Giddings & Lewis Servo Board PCB Assembly 501-03852-00 & 502-03055-00 m00526

$899.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

Stock #:

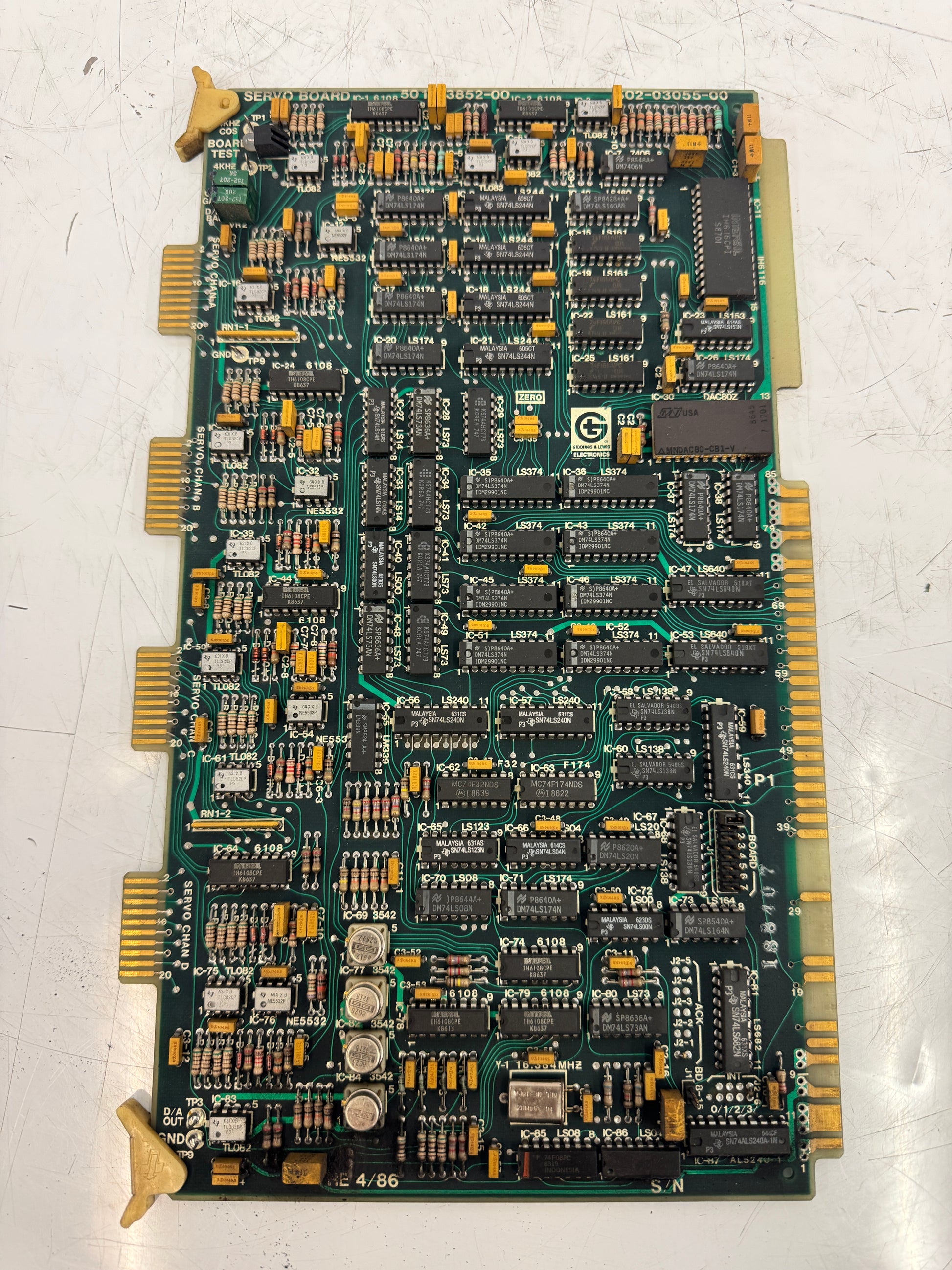

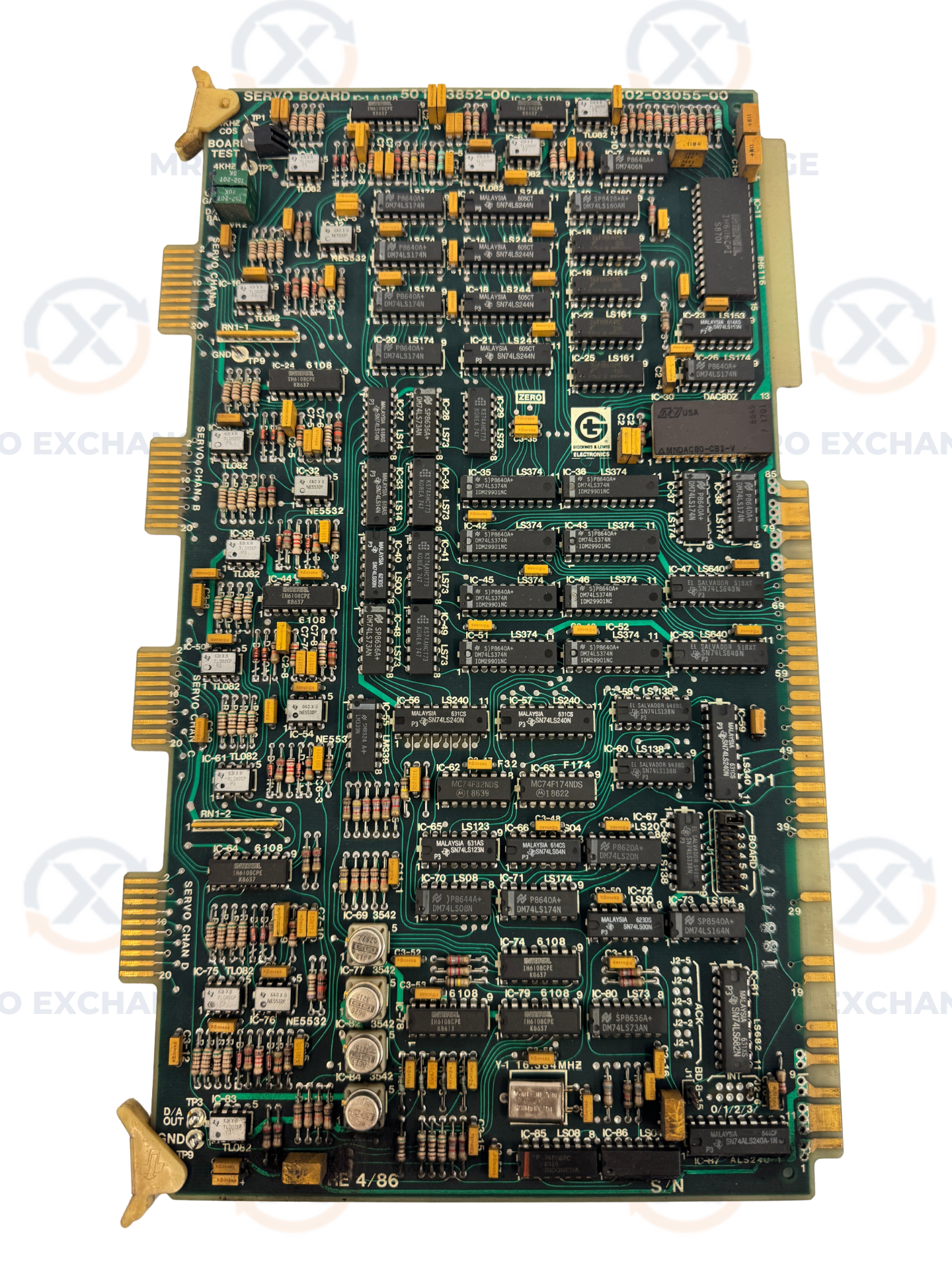

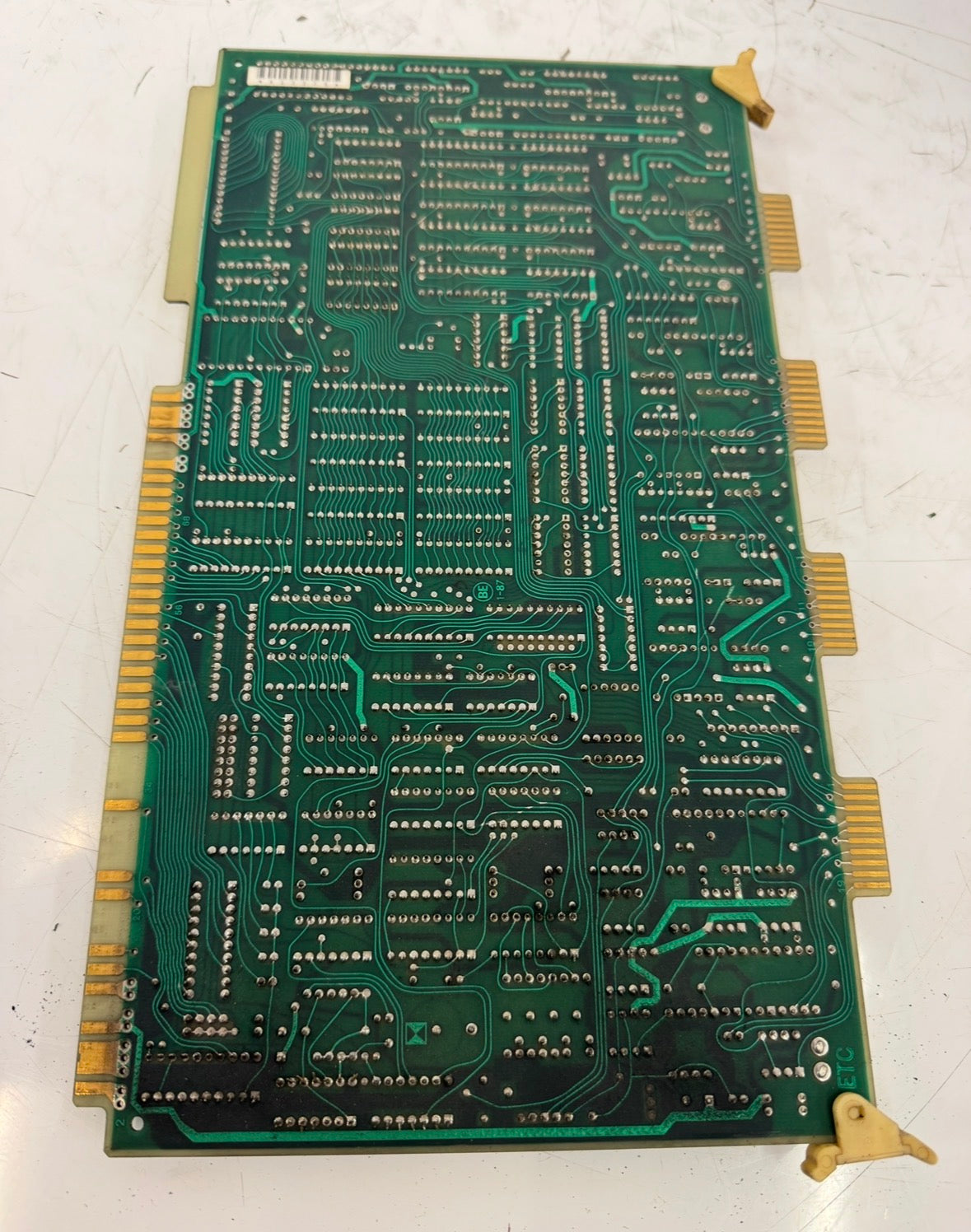

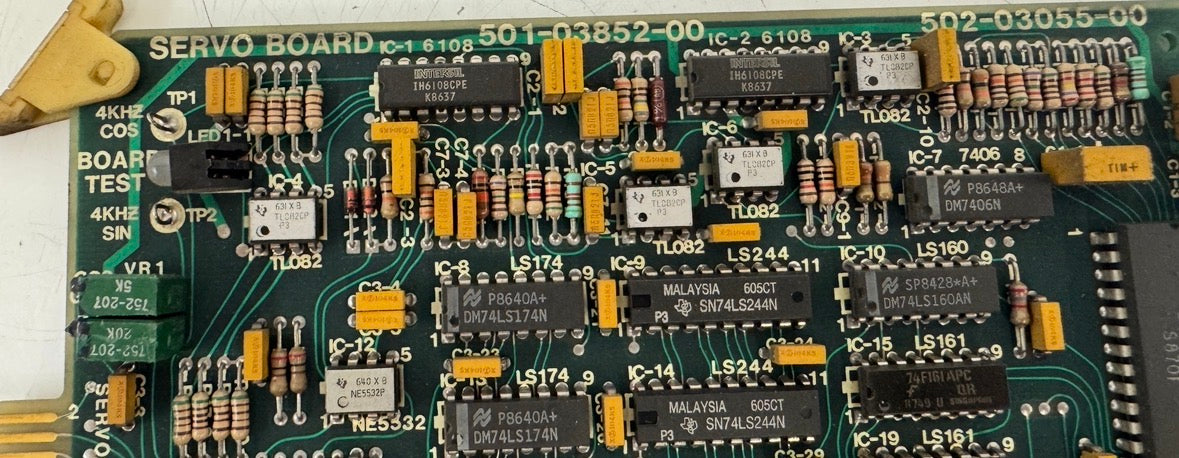

This is a used Giddings & Lewis Electronics servo board PCB assembly bearing part numbers 501-03852-00 and 502-03055-00, silkscreened directly on the board face. The Giddings & Lewis brand logo is printed on the board. The board is a large-format, high-density through-hole assembly configured for four independent servo channels labeled SERVO CHAN A, B, C, and D along the left edge. Gold-edge card connectors labeled BOARD and P1 are located along the board edges with numbered positions to 85 and 39 respectively. A Burr-Brown AMNDAC80-CBI-V D/A converter IC is visible on the board face. Active ICs include Intersil IH6108CPE analog switches with K8637 date codes at multiple positions, Texas Instruments TL082CP dual op-amps, NE5332 and NE5532P precision op-amps at IC-32 and IC-50 positions, and Motorola MC74F32NDS and MC74F174NDS fast logic. Logic ICs include DM74LS174N, SN74LS244N, DM74LS160AN, SN74LS161AN, DM74LS153N, DM74LS374N, SN74LS240N, SN74LS138N, SN74LS123N, SN74LS20N, DM74LS08N, SP8540A, DM74LS164N, and DM7406N. Trimmer potentiometers VR1 with COS and 5K markings and 20K trimmers are accessible on the board. Test points TP1, TP2, and GND TP9 are present. Board sections include 4KHZ COS, 4KHZ SIN, and BOARD TEST labels consistent with resolver-based servo feedback applications. Physical condition shows signs of prior installation and use. This board is consistent with multi-axis analog servo control in Giddings & Lewis legacy CNC machine tool systems.

Stock # 0226-526
