Giddings & Lewis Servo Board PCB Assembly 501-03852-00 & 502-03055-00 m00529

$899.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

Stock #:

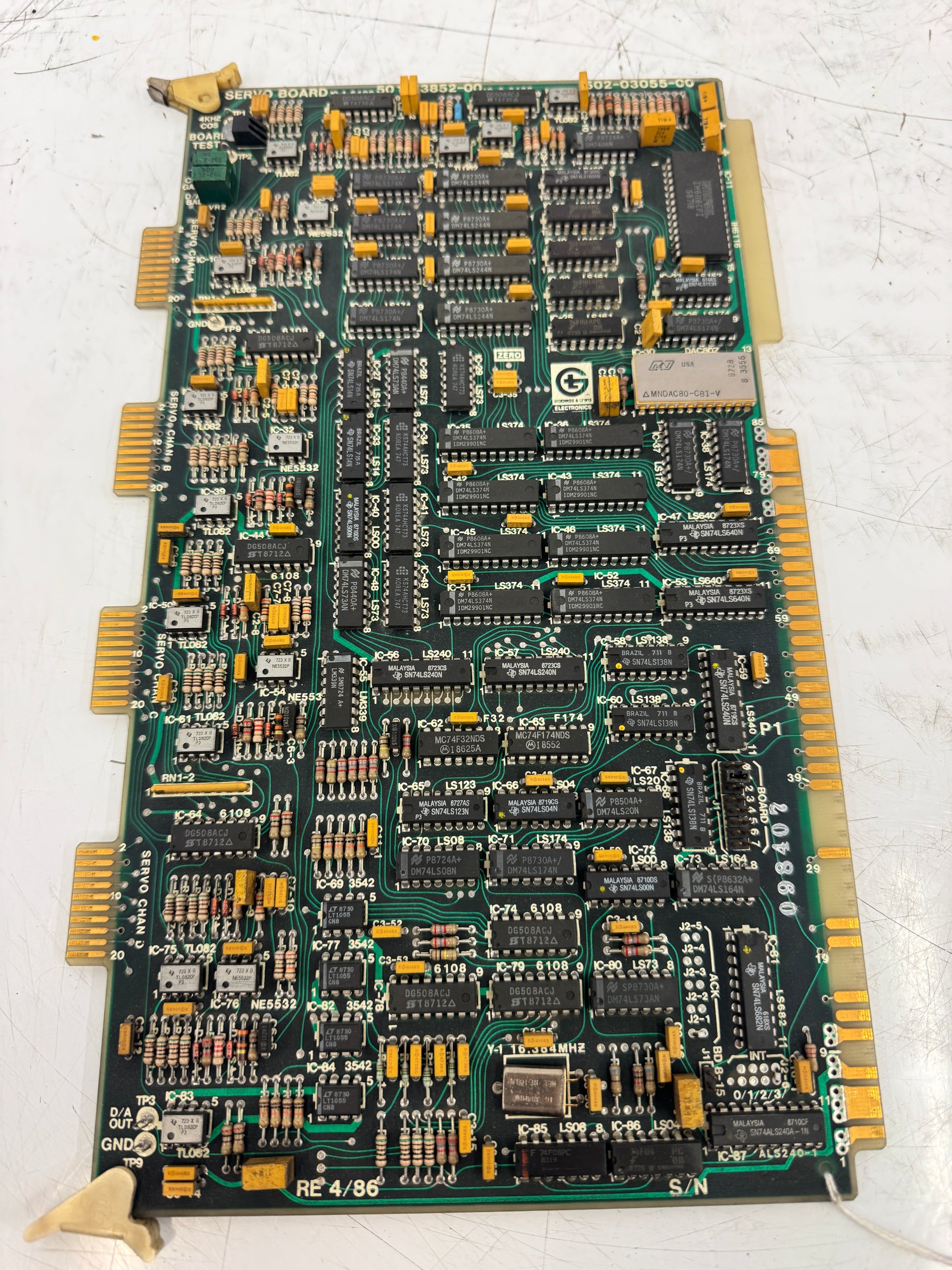

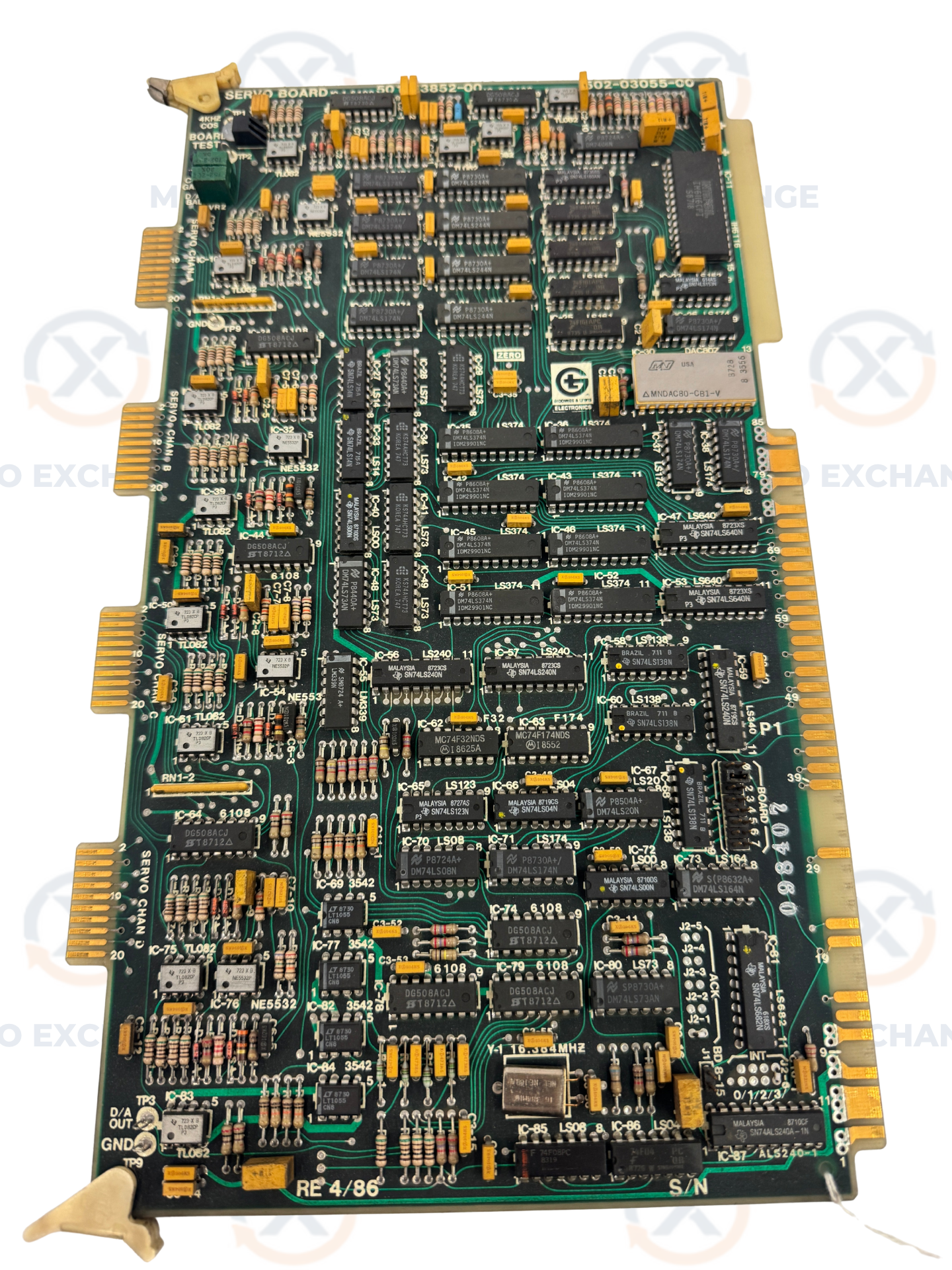

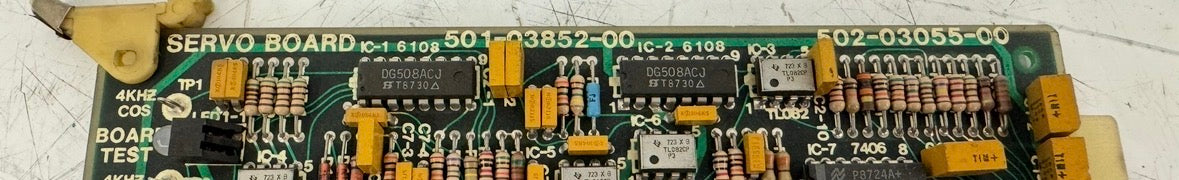

This is a used Giddings & Lewis Electronics servo board PCB assembly bearing part numbers 501-03852-00 and 502-03055-00, silkscreened directly on the board face. The Giddings & Lewis brand logo is printed on the board. The board is a large-format, high-density through-hole assembly configured for four independent servo channels labeled SERVO CHAN A, B, C, and D along the left edge. Gold-edge card connectors labeled BOARD and P1 are located along the board edges. A Burr-Brown AMNDAC80-CB1-V D/A converter IC is visible on the board. Primary analog multiplexer ICs are Texas Instruments DG508ACJ at IC-1, IC-2, IC-44, IC-64, IC-74, IC-79, and additional positions, with T8730 and T8712 date codes, representing a production variant substituting TI DG508ACJ devices in place of the Intersil IH6108CPE used in earlier revisions. Texas Instruments TL082CP dual op-amps branded 722 X B are present at multiple positions. NE5532 and NE5532P precision op-amps appear at IC-32, IC-54, and IC-76. Linear Technology LT1055 op-amps are present at IC-69, IC-77, and IC-82. Logic ICs include P8730A DM74LS174N, P8730A DM74LS244N, SN74LS640N, SN74LS240N, SN74LS138N, SN74LS123N, SN74LS04N, DM74LS08N, SP8730A DM74LS73AN, SN74LS682N, PB504A DM74LS20N, SP8632A DM74LS164N, and DM7406N among others. MC74F32NDS and MC74F174NDS fast logic ICs are present. Test points TP1, TP2, and GND TP9 are accessible. Physical condition shows signs of prior installation and use.

Stock # 0226-529
