Giddings & Lewis Servo Interface PCB Assembly 501-03882-00 & 502-03092-00 m00521

$249.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

Stock #:

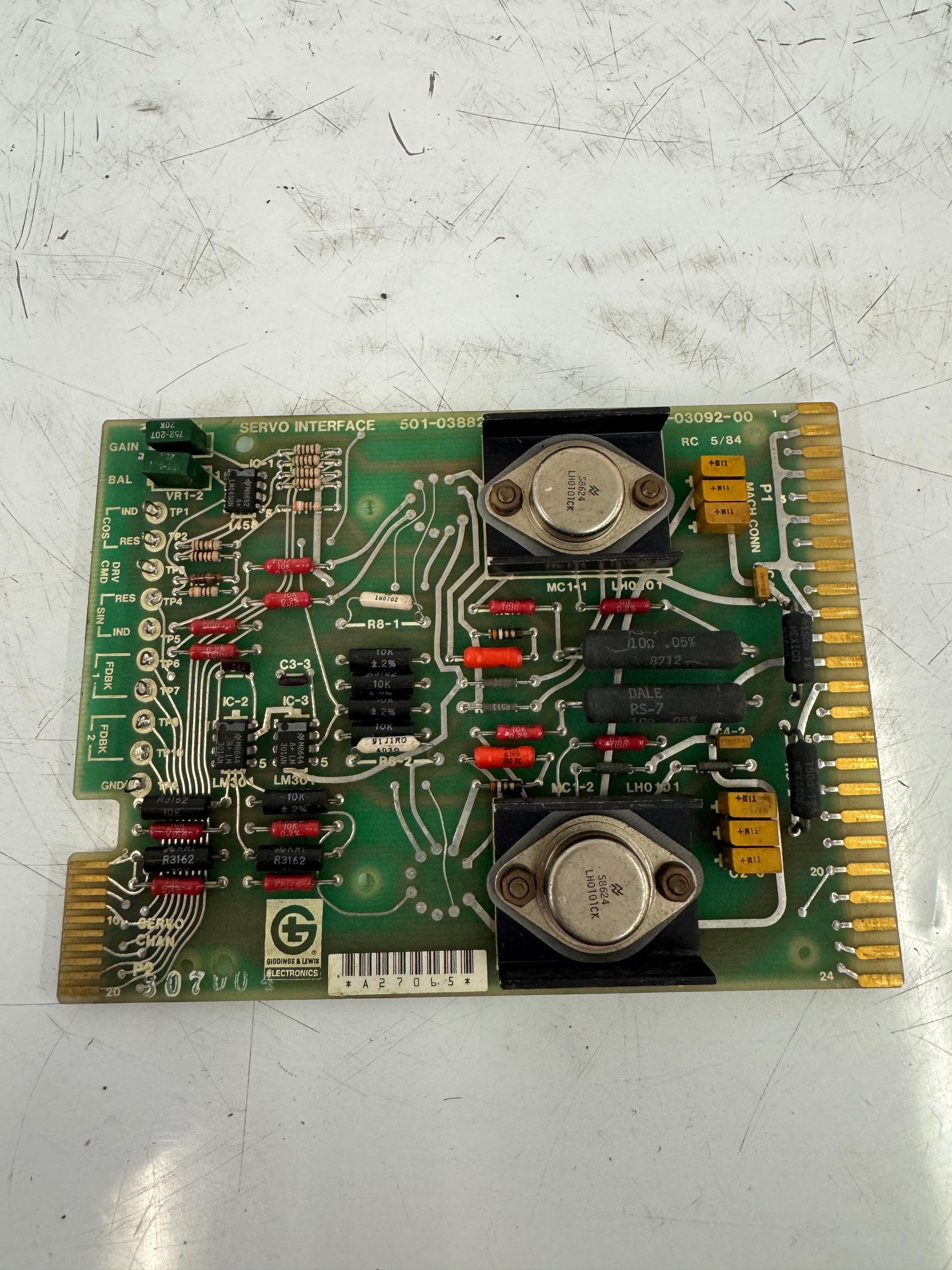

This is a used Giddings & Lewis Electronics servo interface PCB assembly bearing part numbers 501-03882-00 and 502-03092-00, silkscreened directly on the board. The Giddings & Lewis brand logo is printed on the board face. Date code RC 5/84 is visible on the silkscreen. The board is configured with two servo channels, labeled SIG and FDBK, with signal groups including COS, SIN, IND, RES, DRV CMD, and GND connections along the left edge via a gold-edge card connector. A second gold-edge card connector labeled MACH CONN is located along the right edge with numbered positions up to position 24. Two TO-3 package power transistors marked S8624 and LH0101CK are mounted on heatsinks and are visible on the board face. Active ICs include LMB652, AM0640 (x2), and R3162 (x2). Precision resistor networks include Dale RS-7 series 0.05% tolerance resistors. Trimmer potentiometers labeled GAIN, BAL, VR1-1, and VR1-2 are present and accessible for adjustment. Multiple test points are distributed across the board face. The board uses through-hole construction throughout. This assembly is consistent with resolver-based analog servo interface applications used in Giddings & Lewis CNC machine tool systems. Physical condition shows signs of prior installation and use. Revision code 5/84 suggests this board is from the Giddings & Lewis legacy CNC product line.

Stock # 0226-521
