Gongqi Dry Type Transformer SG
Gongqi Dry Type Transformer SG
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: SG
Stock #: 0326-00860

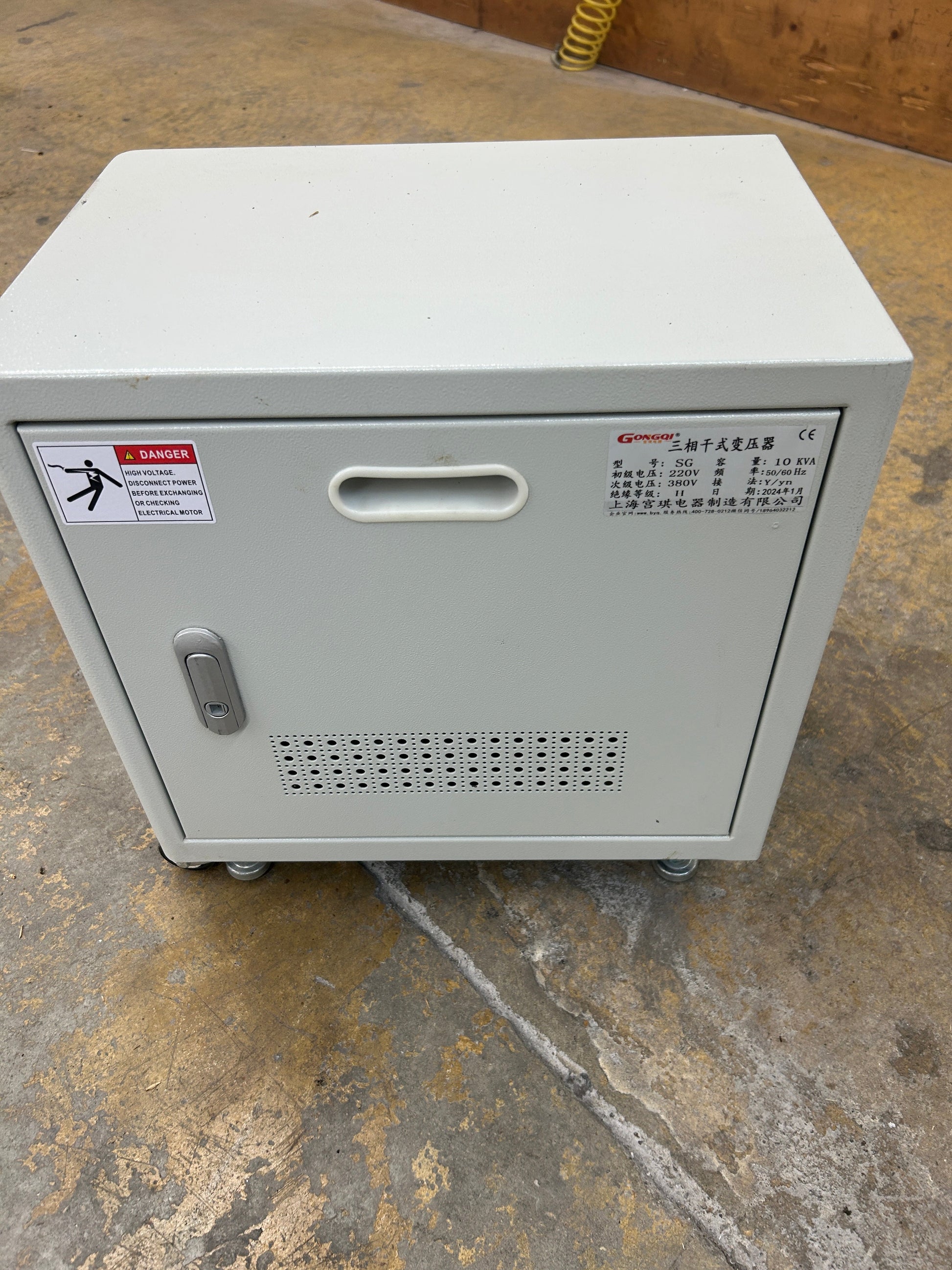

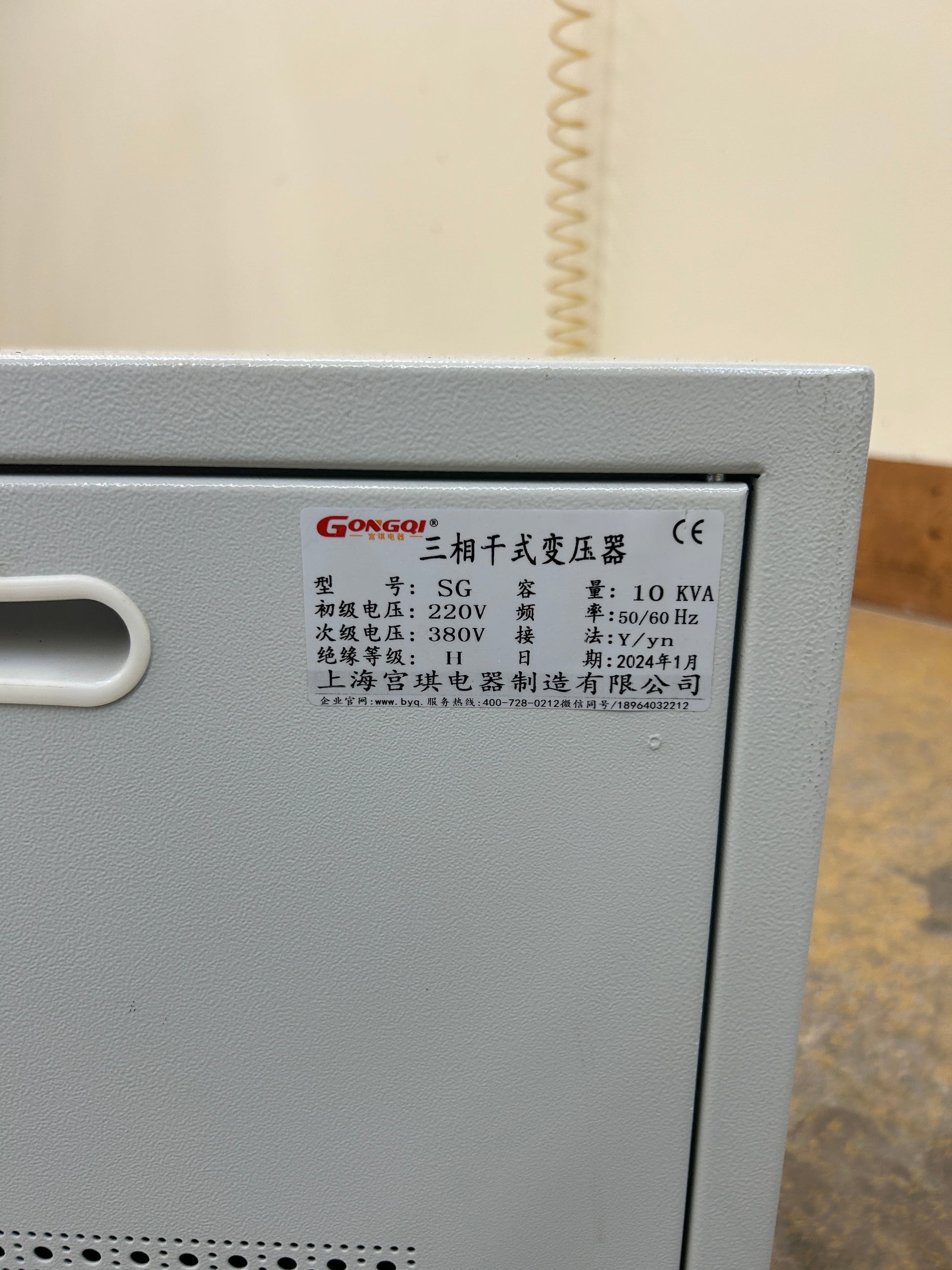

Used Gongqi SG series three phase dry type transformer rated at 10 KVA, manufactured January 2024 by Shanghai Gongqi Electric Manufacturing Co., Ltd. The unit steps up from a 220V three phase primary input to a 380V three phase secondary output, with a wiring configuration of Y/yn. Frequency compatibility is 50/60 Hz. Insulation class is rated Class II per the nameplate. CE marked.

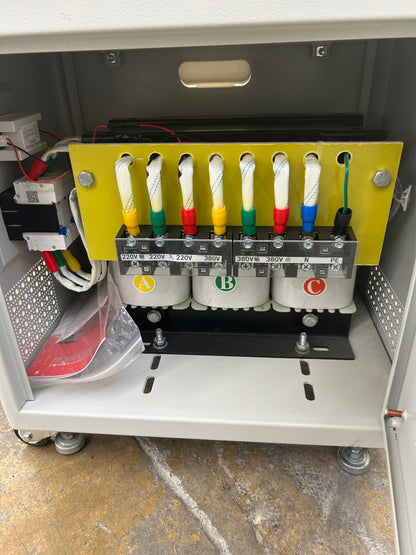

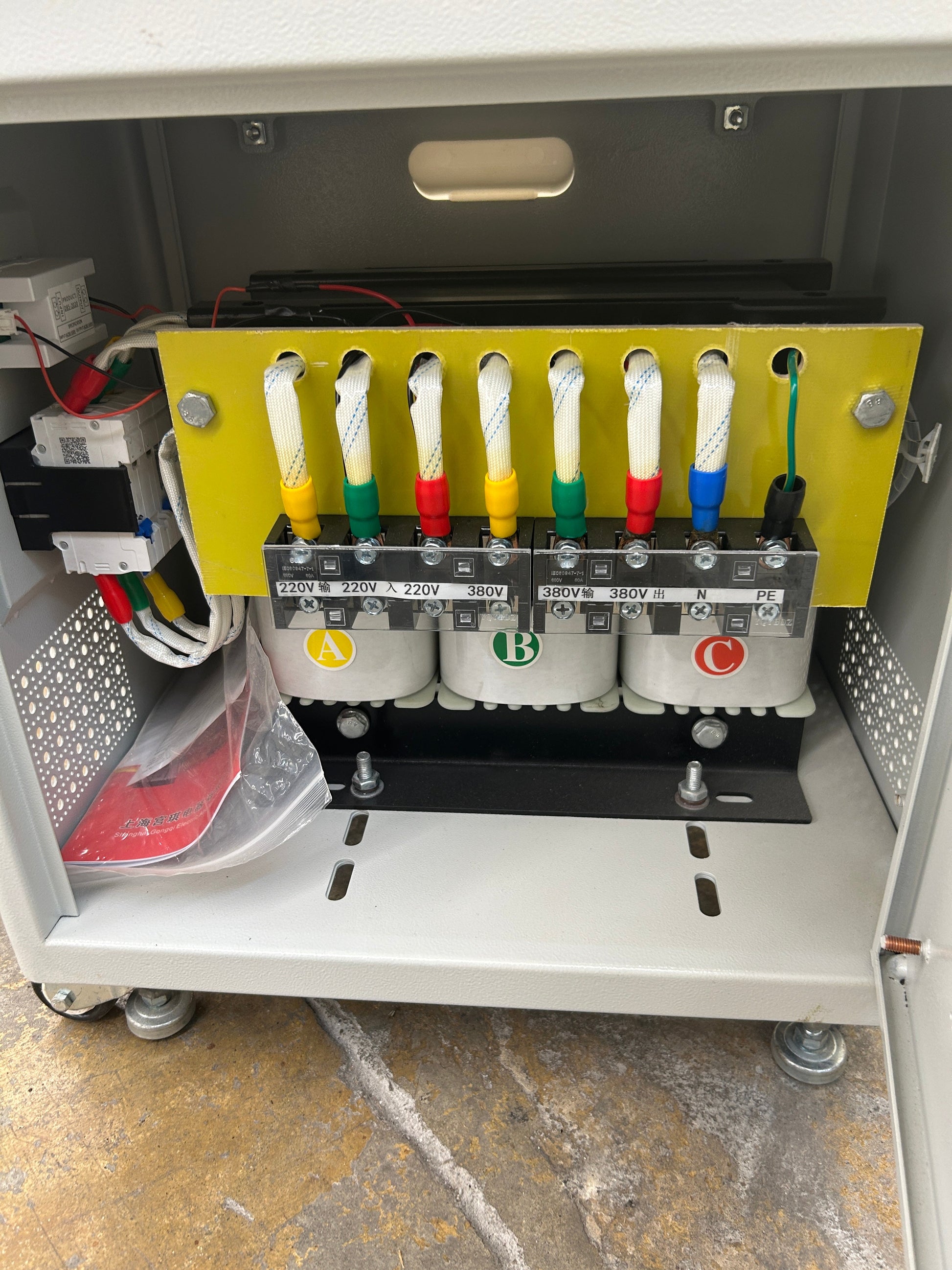

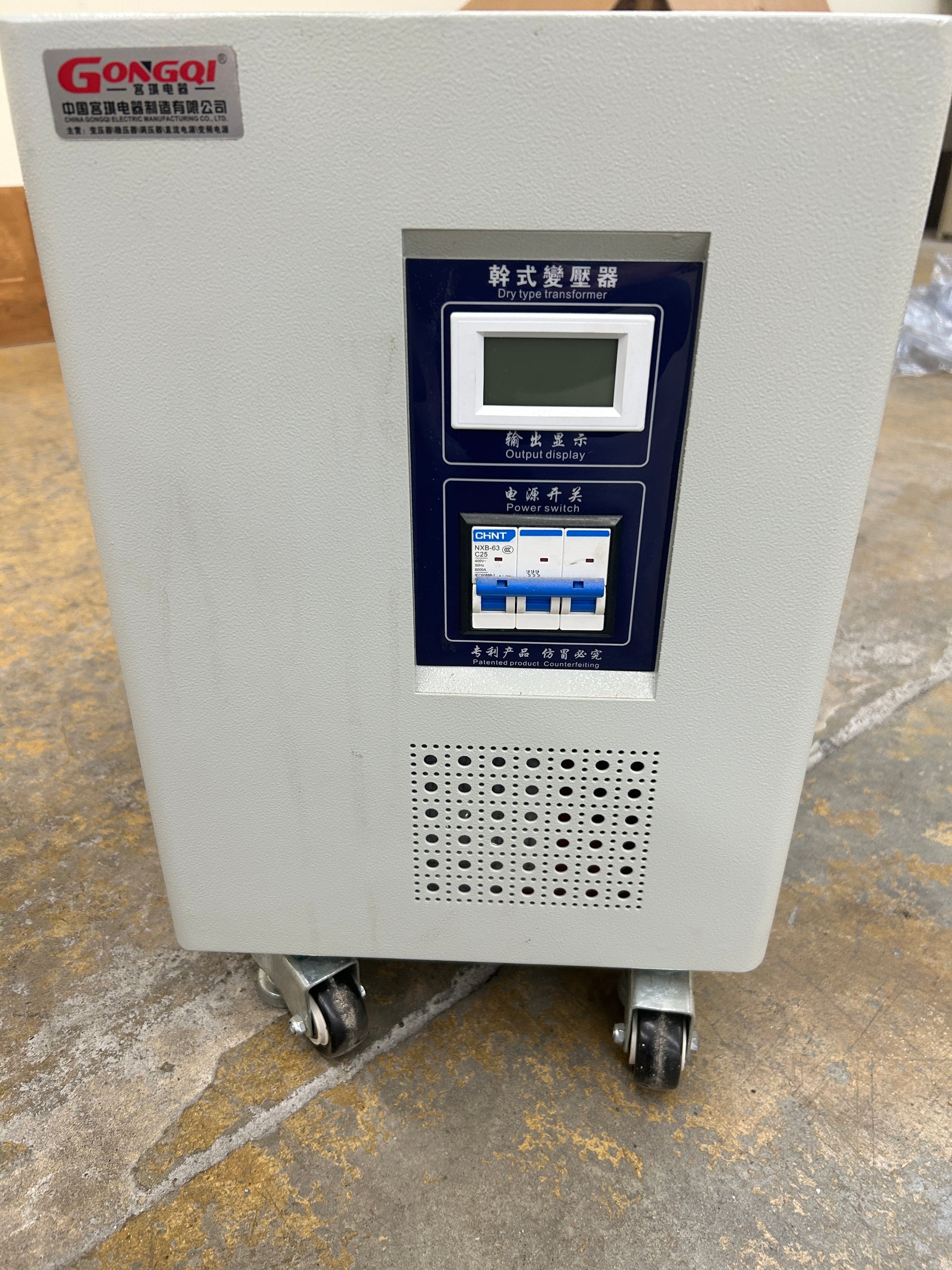

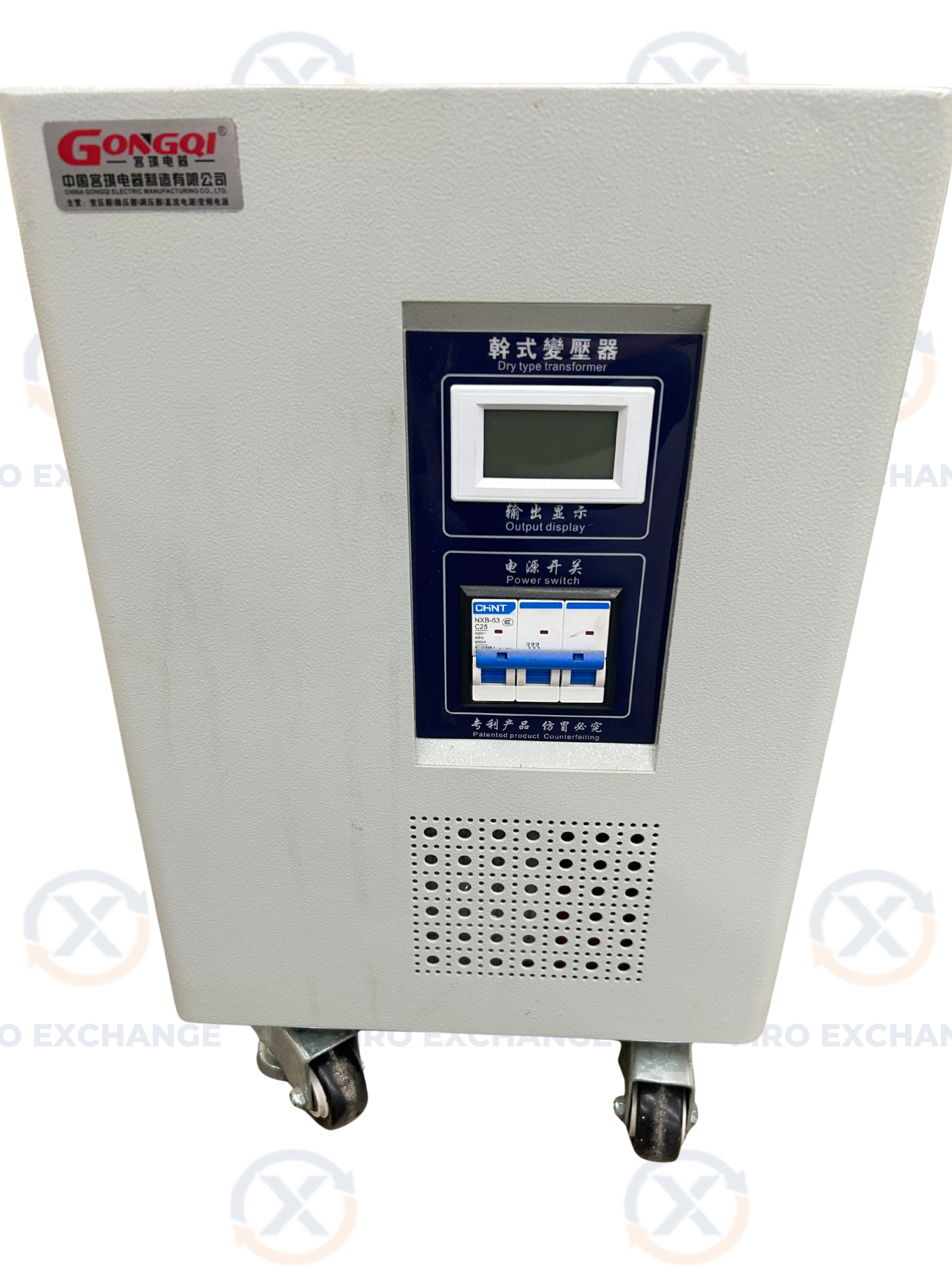

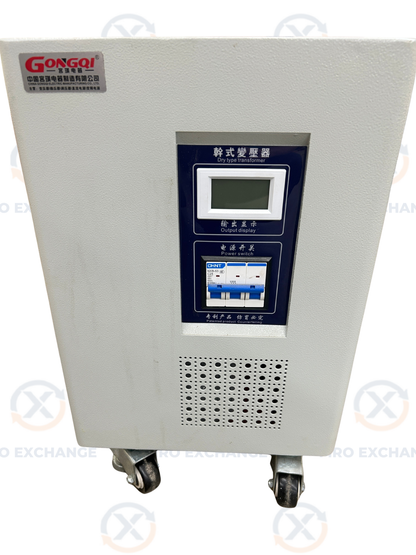

The transformer is housed in a steel enclosure mounted on casters, with front panel features including an LCD output display labeled in Chinese and English and a CHNT NXB-63 three pole circuit breaker serving as the power switch. The interior features three phase transformer coils labeled A, B, and C on a black steel mounting bracket, with color coded lead wires terminating at labeled bus bars marked for 220V input and 380V output connections, plus N and PE terminals.

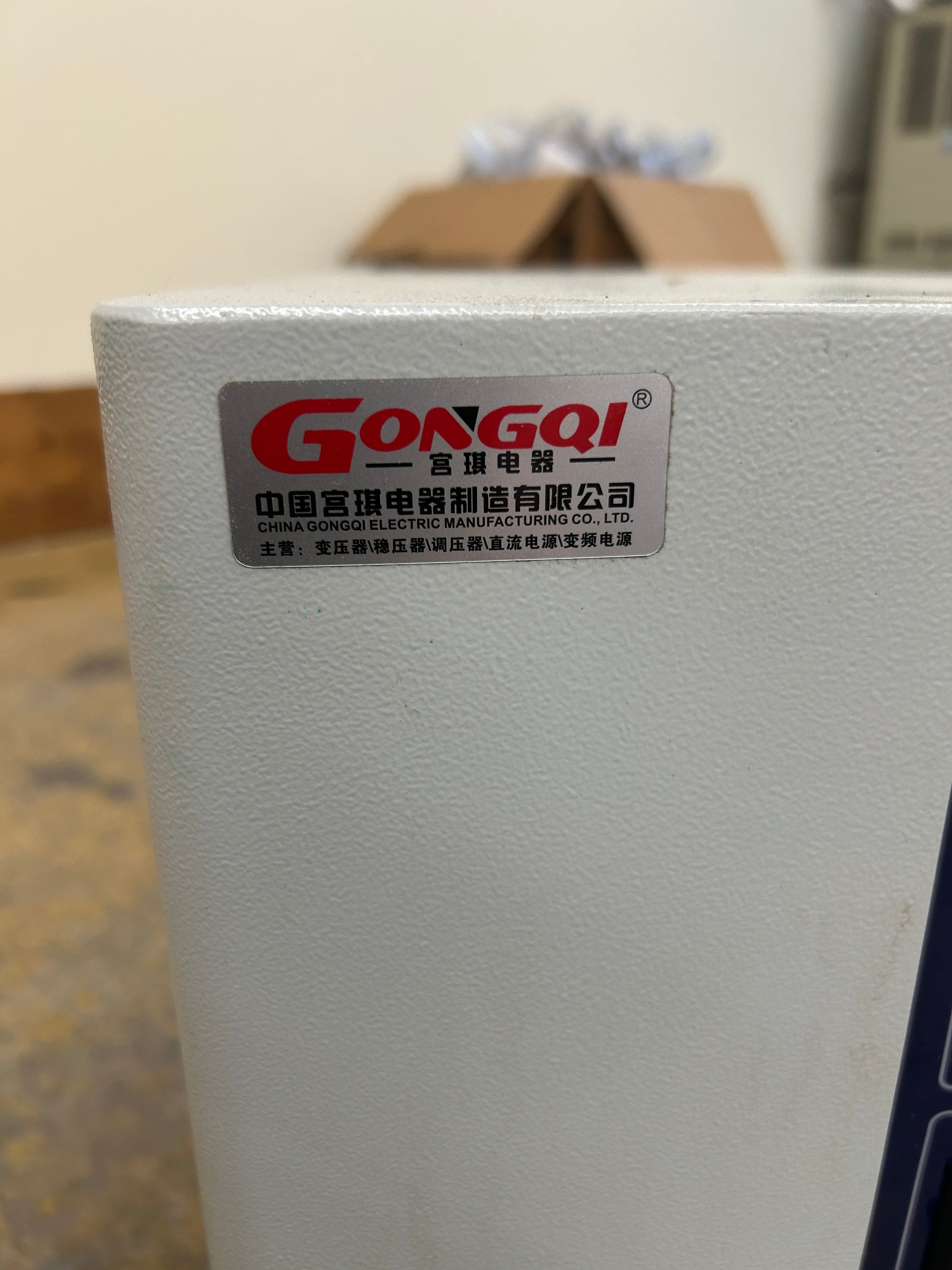

The Gongqi brand is manufactured by China Gongqi Electric Manufacturing Co., Ltd., which produces transformers, voltage regulators, adjusters, DC power supplies, and frequency power supplies. The model designation SG refers to the standard Chinese SG series three phase dry type transformer classification. Manufacture date is January 2024 per the nameplate label. The unit includes what appears to be original documentation inside the enclosure.
Stock # 0326-860
