Gould Fuse Holder MSC.10 690 VAC

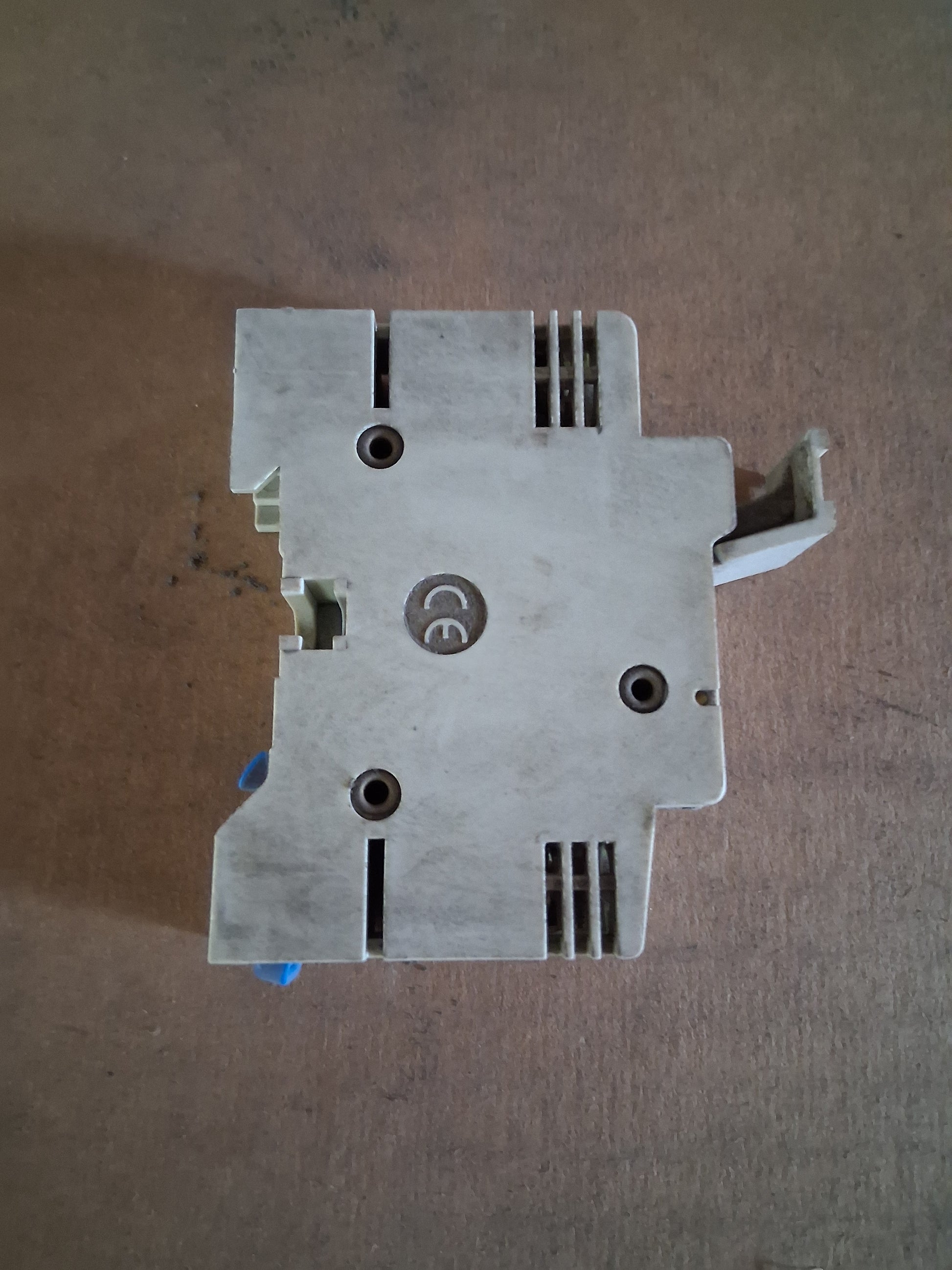

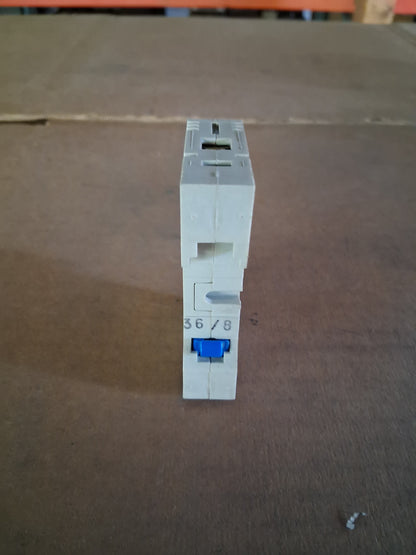

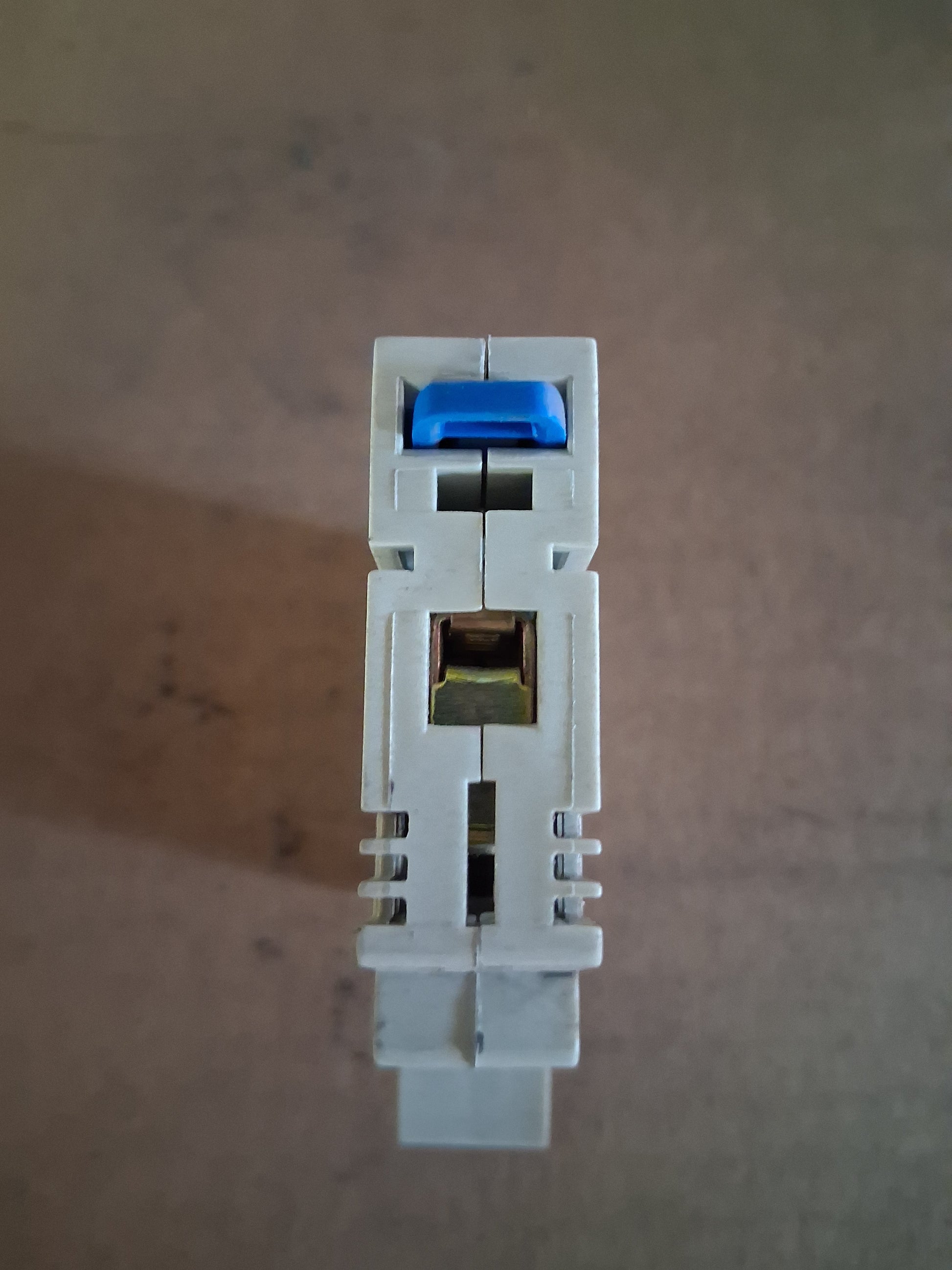

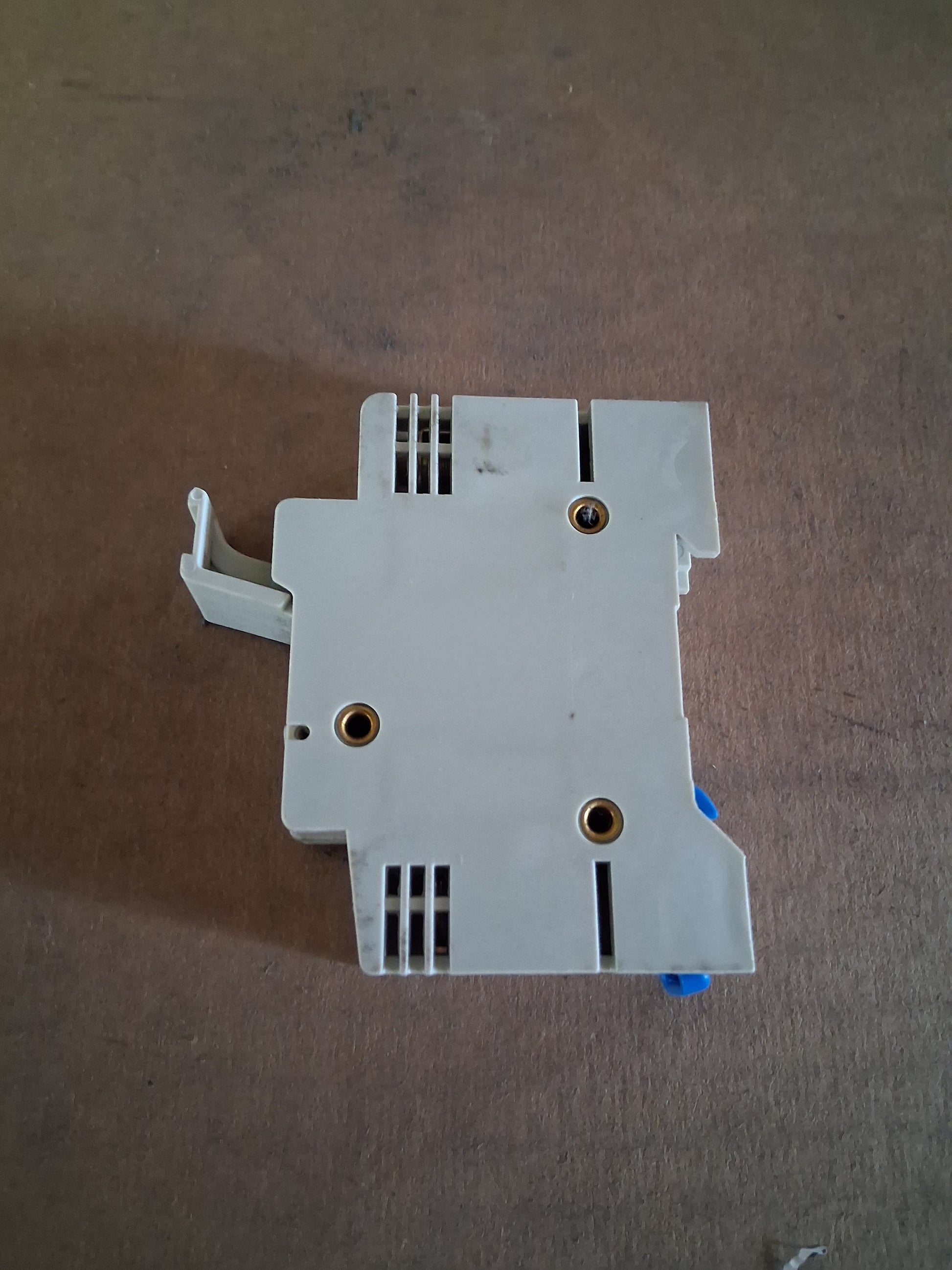

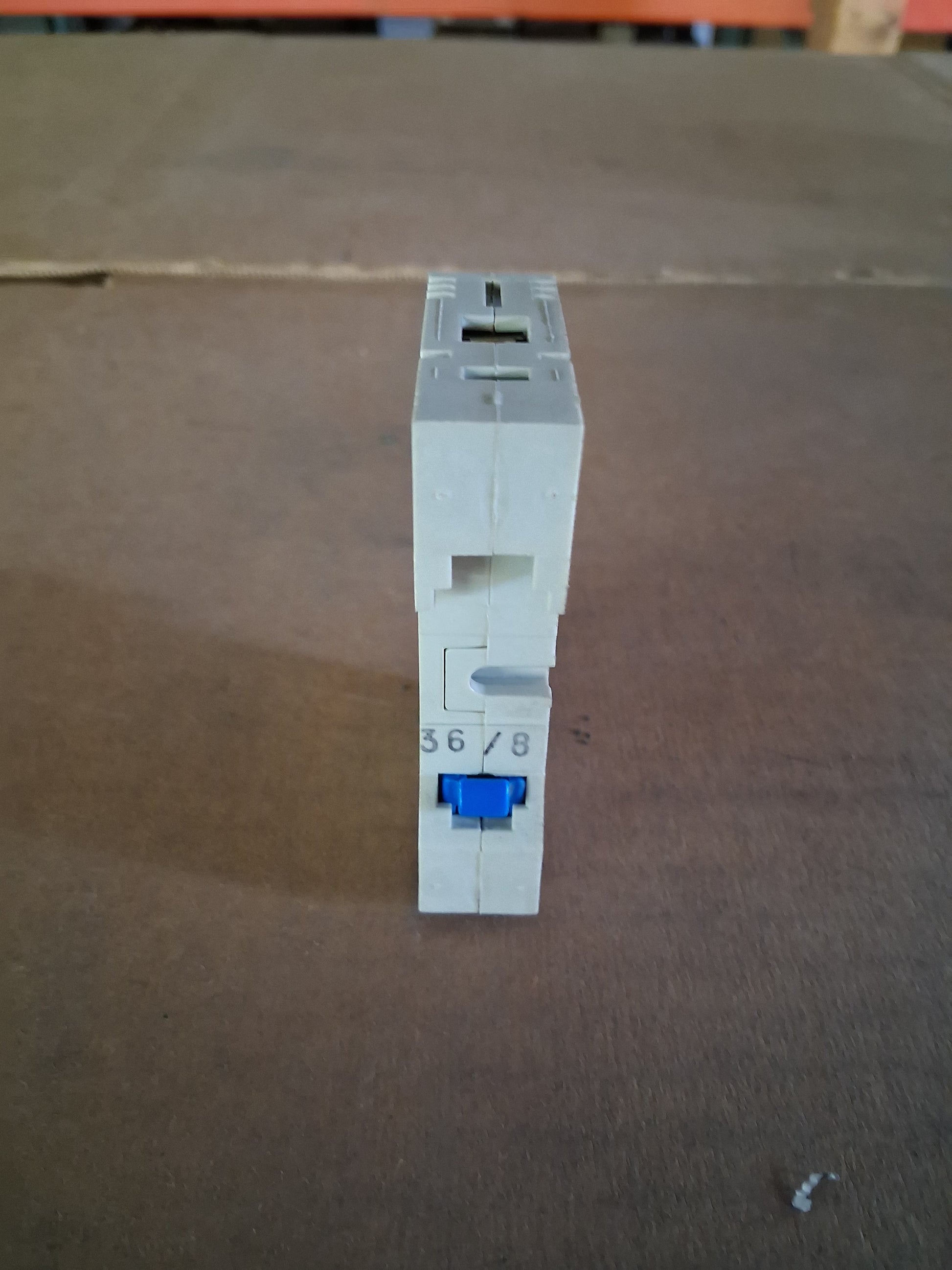

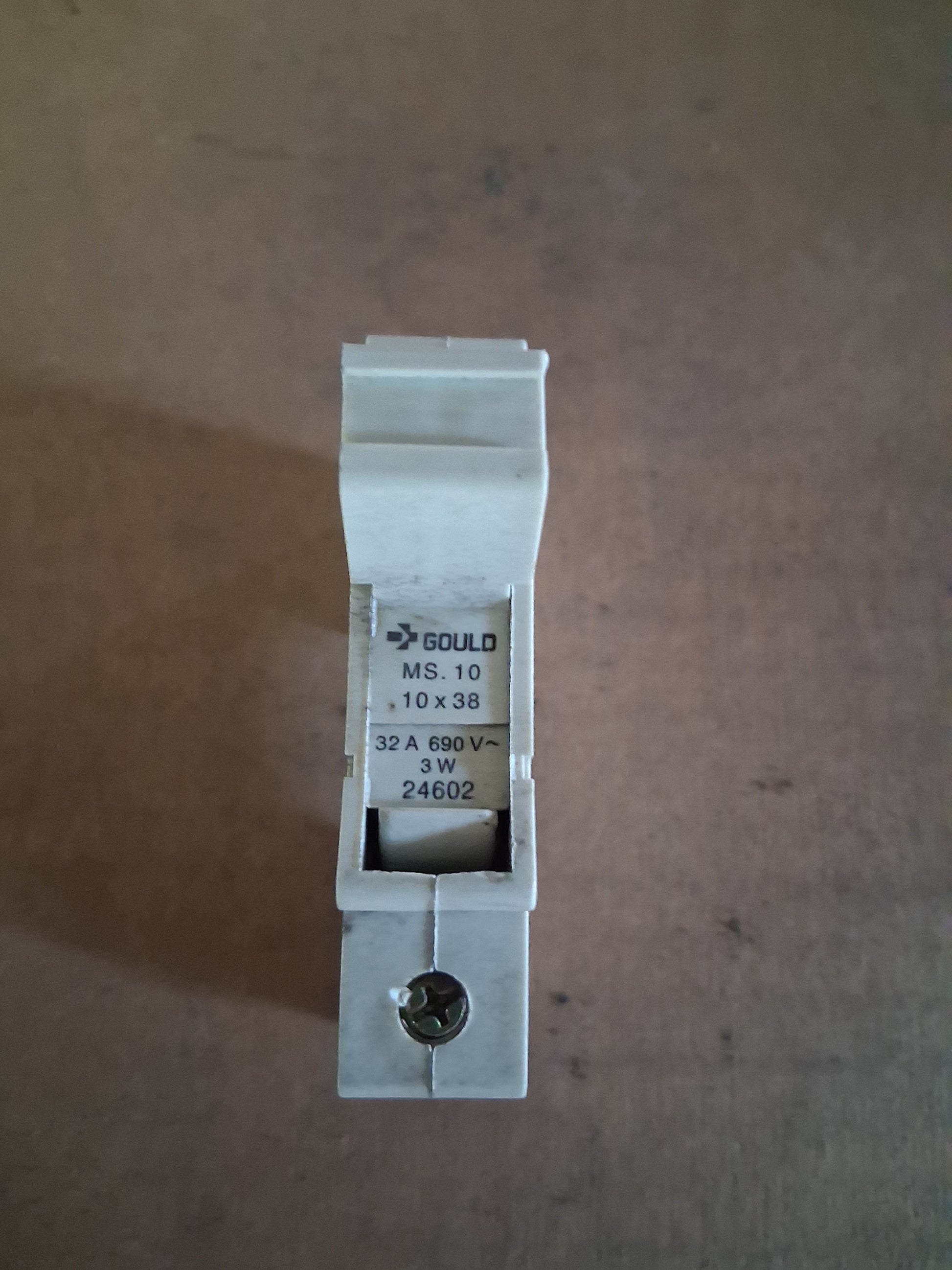

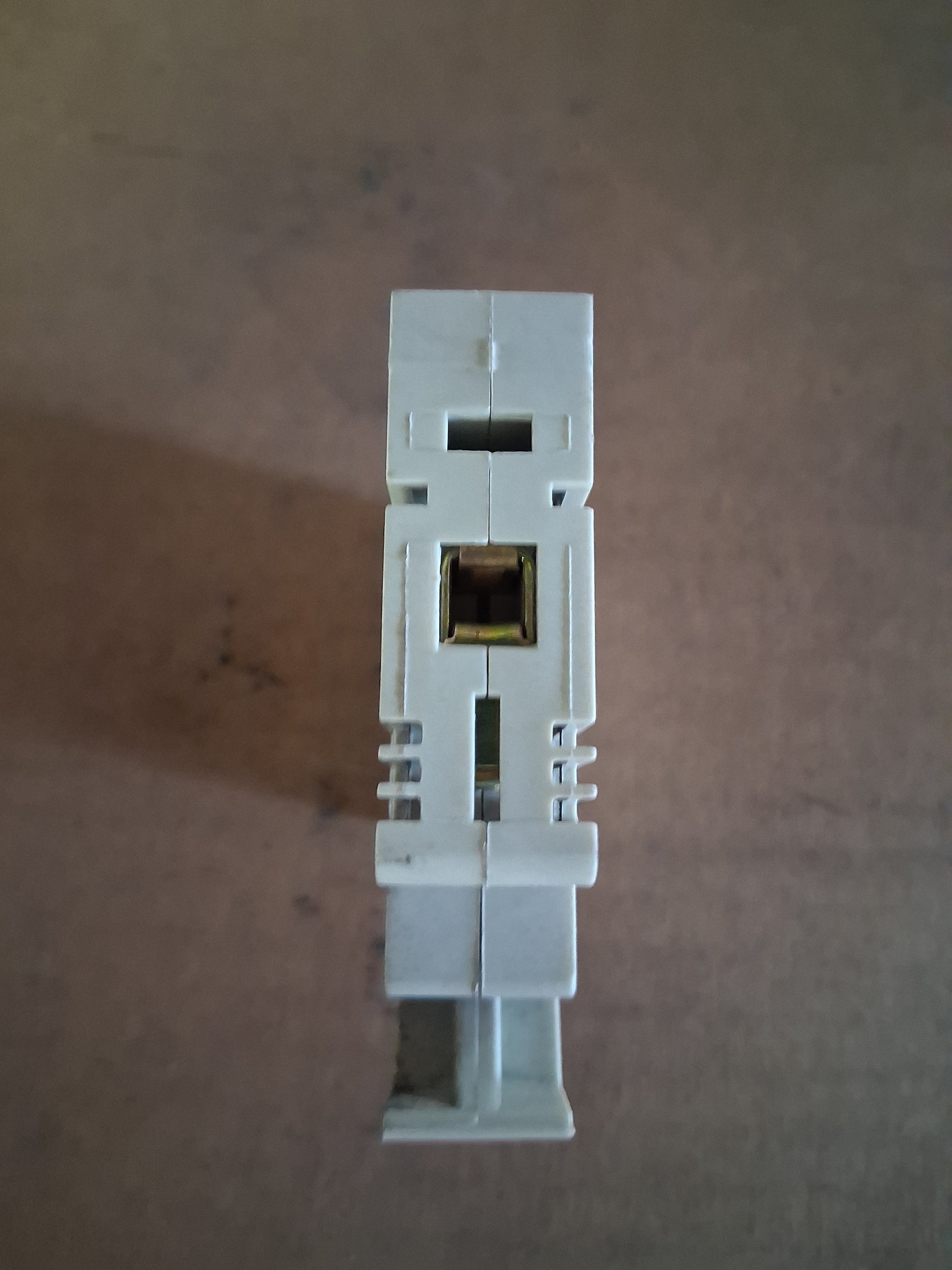

The Gould MSC.10, catalog number 24602, is a single pole modular fuse holder designed for 10 x 38 mm cylindrical fuse links. Rated at 32 A and 690 V AC, the unit provides isolated branch circuit protection in industrial control panels, motor control centers, drives, and machine tool electrical cabinets. Construction is a white thermoplastic body with a hinged front carrier that pivots open for fuse access and closes flush against the base for compact DIN rail installation. A blue indicator tab on the carrier provides visual status at a glance. Screw terminals on the line and load sides accept stranded or solid copper conductors and are accessed through openings on the top and bottom of the housing. The 3 W power dissipation rating and CE marking are printed on the front face along with the brand and catalog data. The single pole, single module width footprint allows multiple holders to be ganged side by side on standard 35 mm DIN rail for multi phase or multi circuit applications. The MSC.10 series is commonly used in European built machinery, CNC equipment, and surplus industrial control assemblies where IEC rated cylindrical fuse protection is specified. Gould later became part of Ferraz Shawmut and subsequently Mersen, and the MSC.10 designation is recognized across all three branding eras for the same form, fit, and function fuse holder. Marking on the body includes "36/8" stamped on the side of the carrier and the Gould logo, MS.10, 10 x 38, 32 A 690 V 3 W, and 24602 printed on the front label.

Stock # 0526-02423
