Heidenhain Endat Encoder Cable Assembly 1-000000-04481 300V
Heidenhain Endat Encoder Cable Assembly 1-000000-04481 300V
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 1-000000-04481
Stock #: 0326-01061

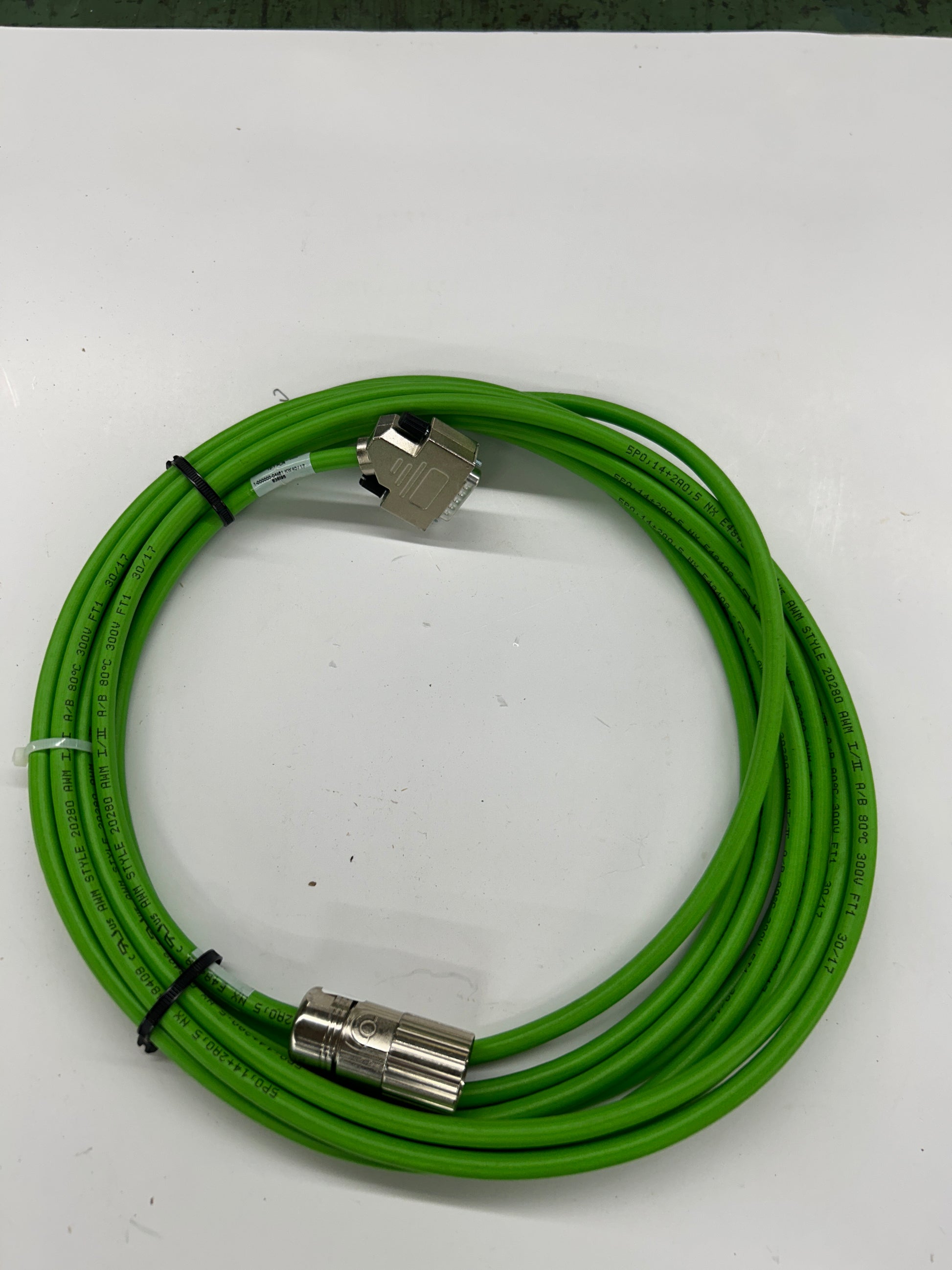

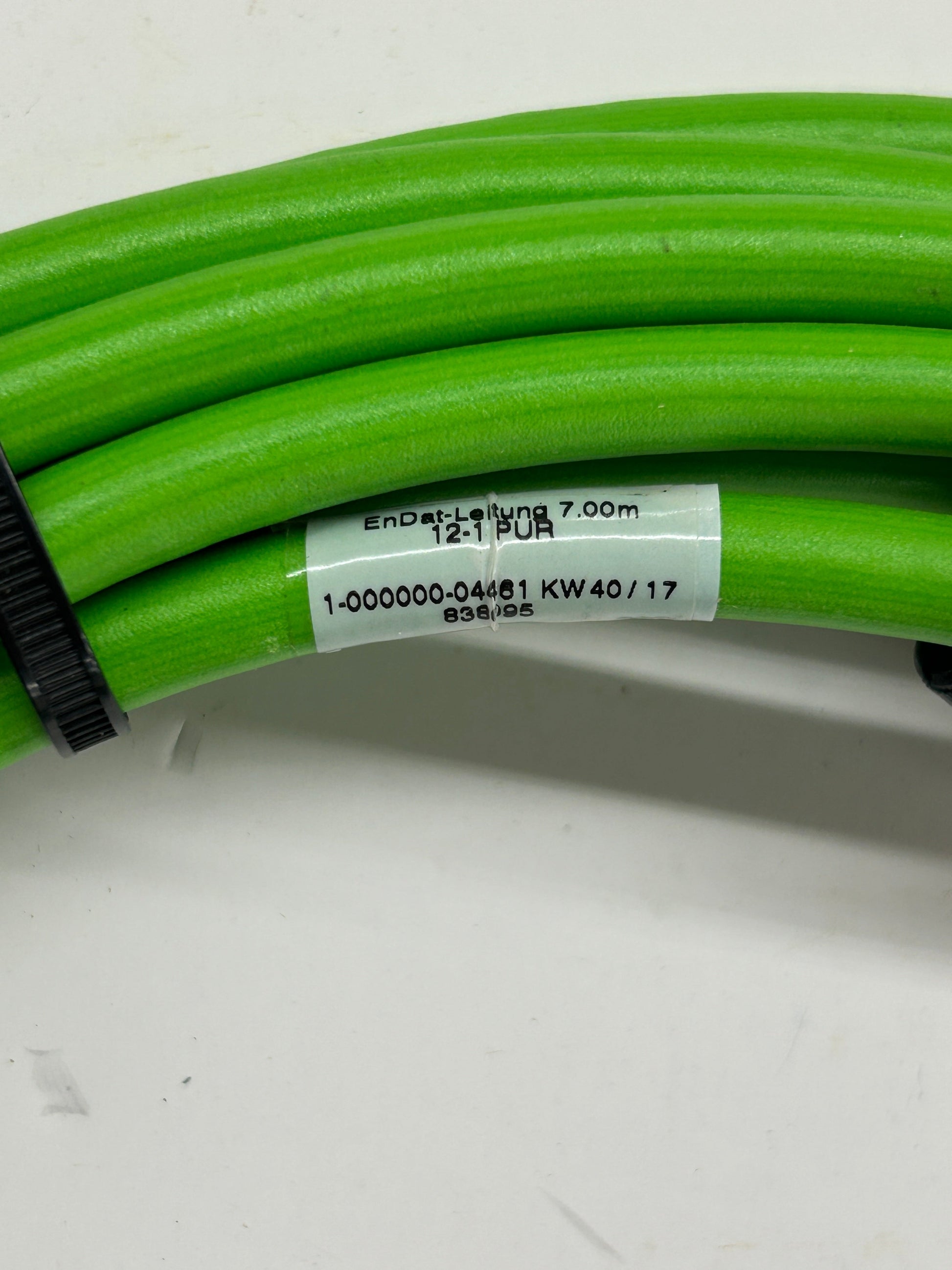

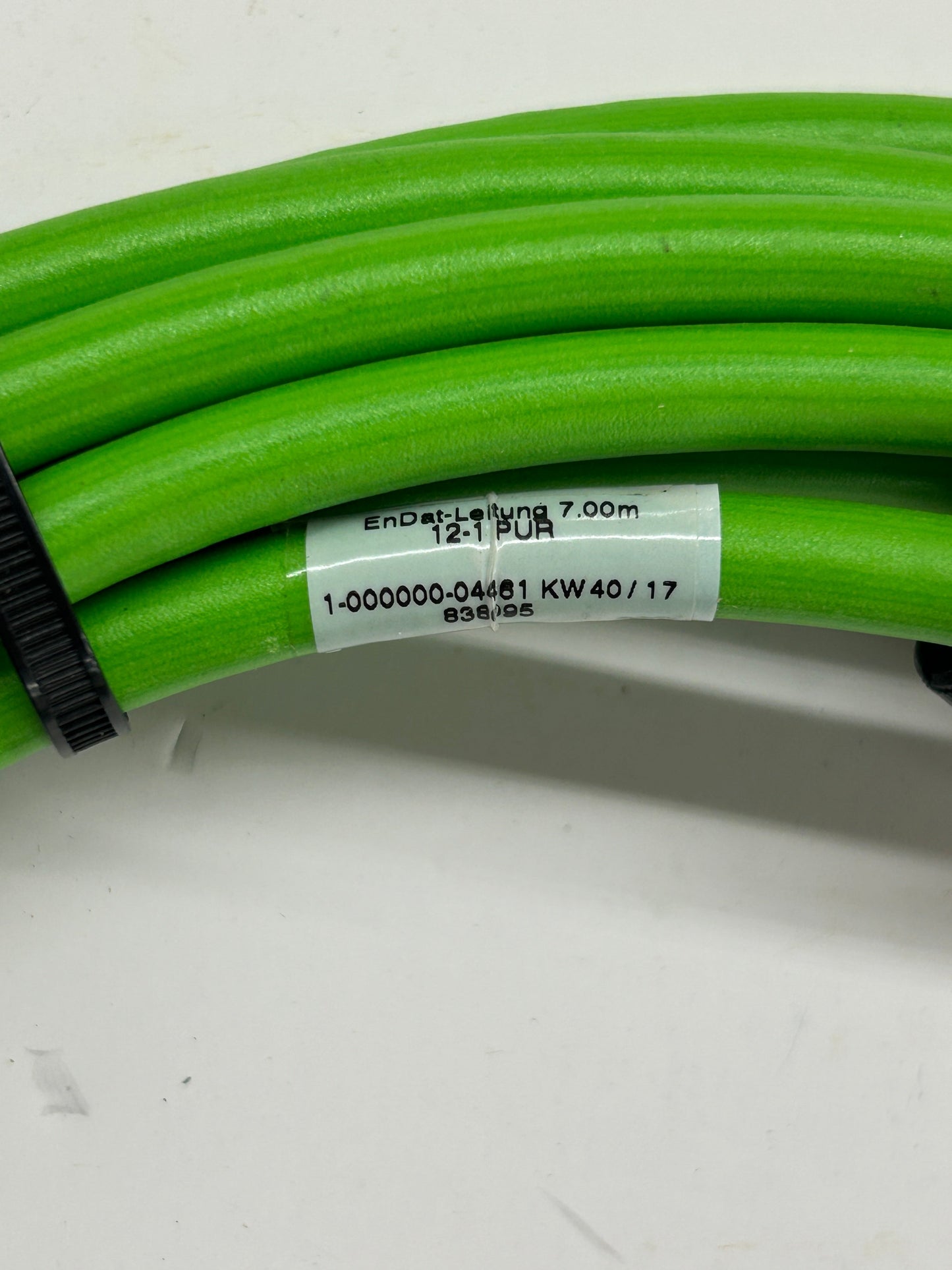

Used in precision CNC machine tool and servo drive installations requiring EnDat interface feedback, this Heidenhain pre-assembled encoder cable assembly carries part number 1-000000-04481 and measures 7.00 meters in length. The label identifies it as an EnDat-Leitung (EnDat signal line) with a 12-1 PUR cable construction, and the date code KW40/17 indicates manufacture in week 40 of 2017. Serial number 838095 is confirmed from the label.

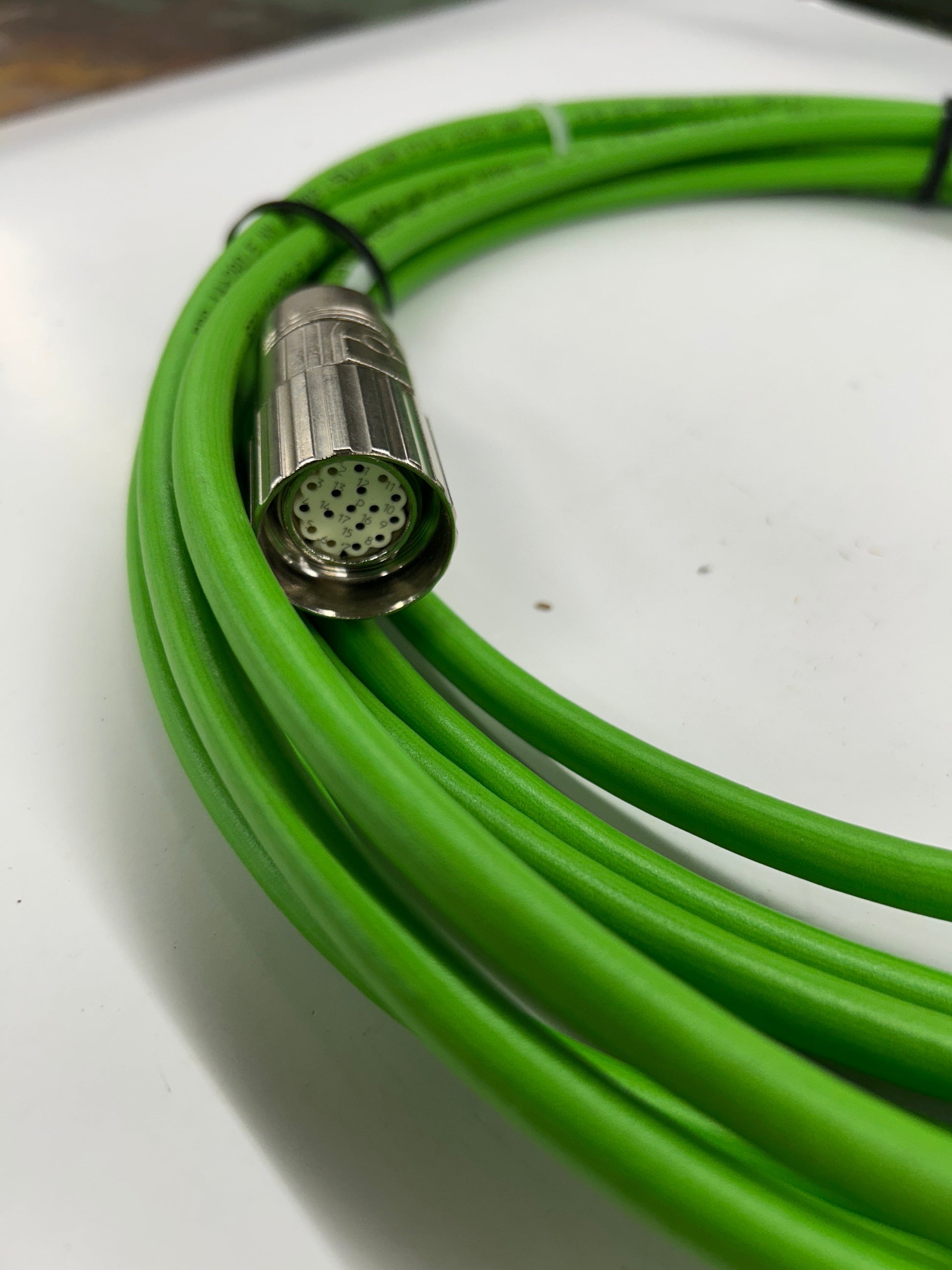

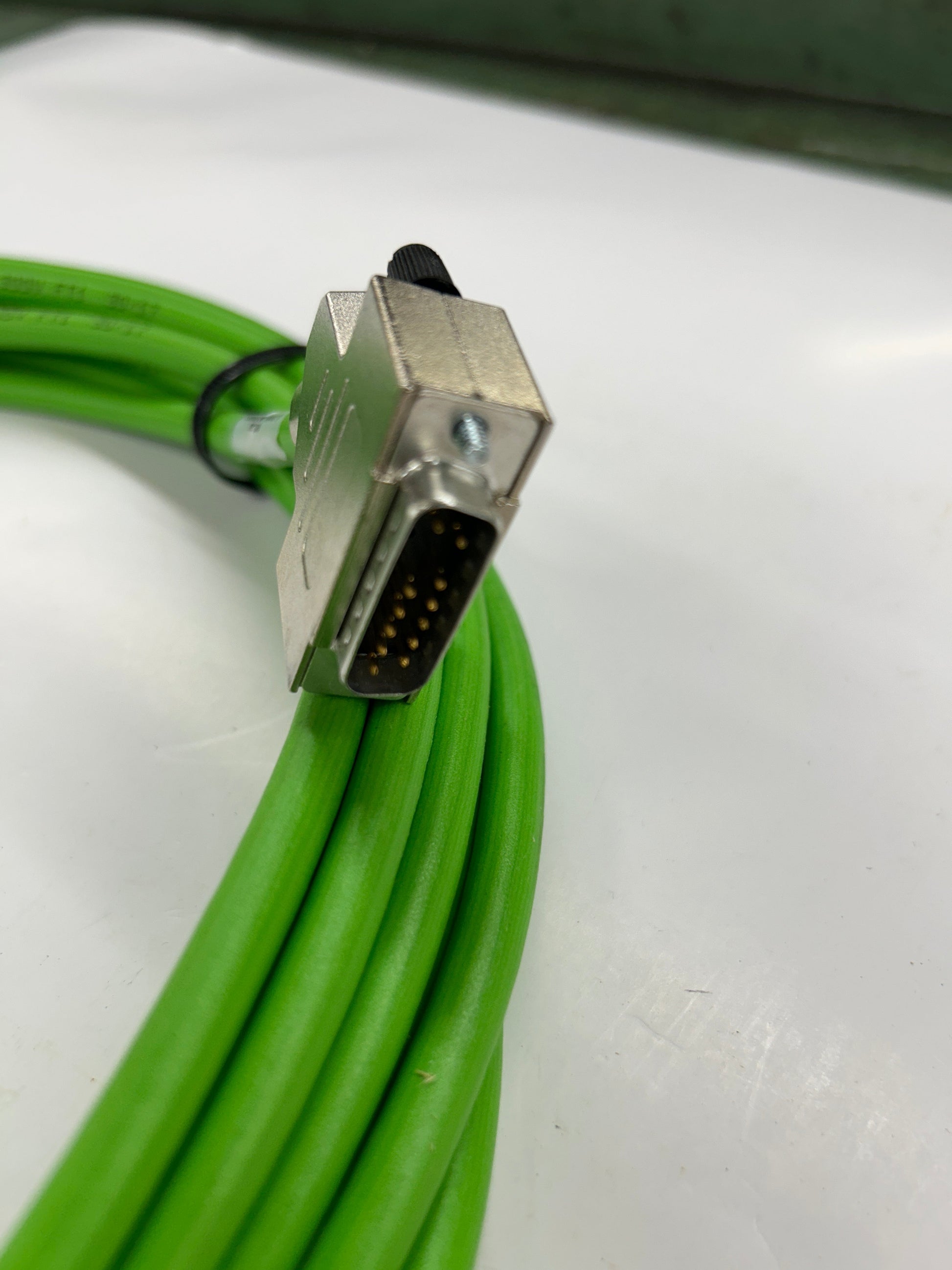

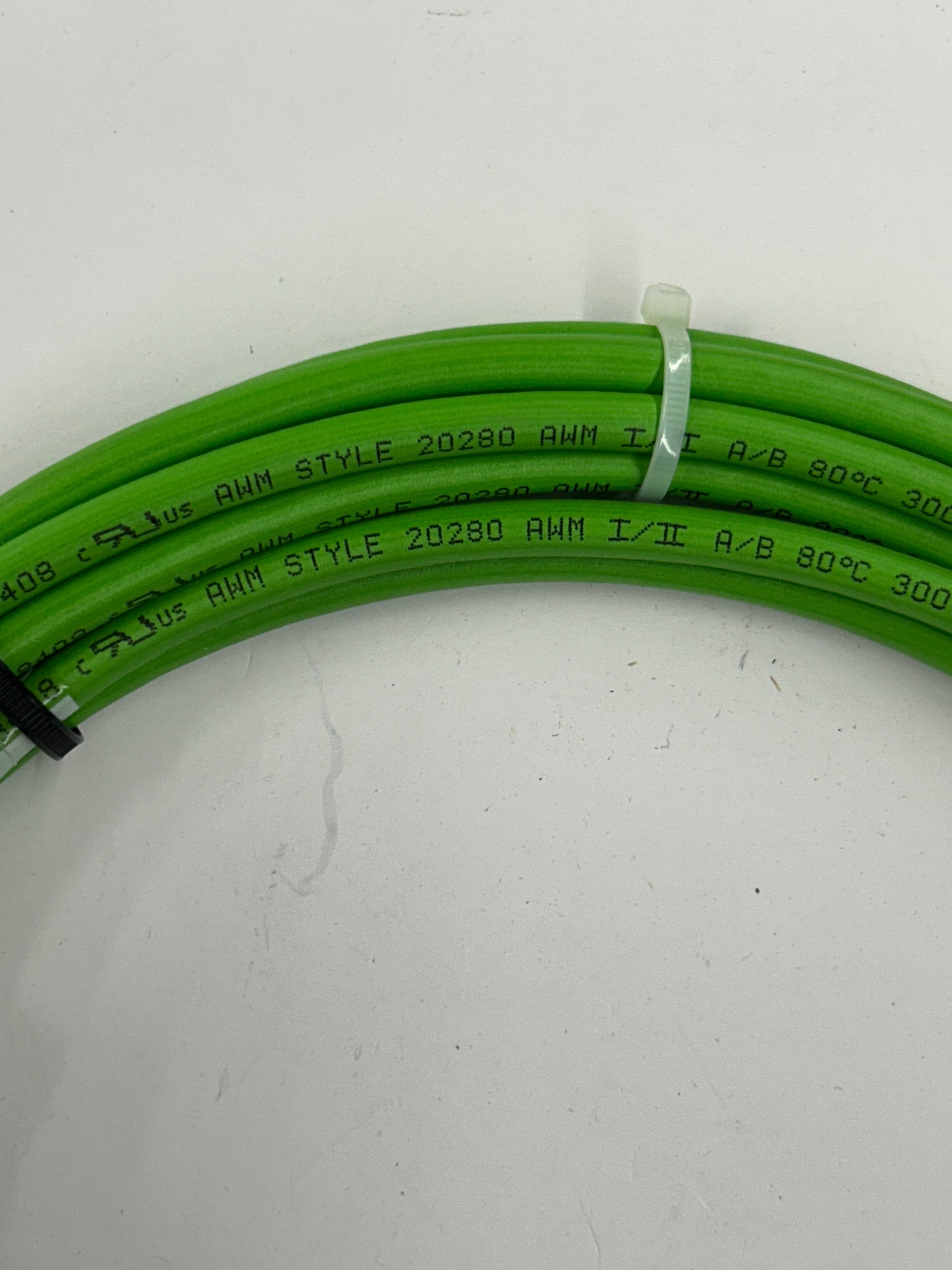

One end terminates in an M23 circular female connector with 17 pins, providing the encoder-side connection. The opposite end uses a 15-pin D-sub male connector for mating with the subsequent electronics, such as a CNC control or servo drive interface. The green PUR cable jacket is rated AWM Style 20280, AWM I/II A/B, 80 degrees C, 300V, per the printing repeated along the cable jacket. This construction provides the flexibility, shielding, and signal integrity required for the EnDat 2.1 or EnDat 2.2 bidirectional serial interface.
Heidenhain EnDat cable assemblies of this type are commonly used with Heidenhain rotary and linear encoders installed in machining centers, turning centers, and other CNC equipment where high-precision position feedback is required. The MPN 1-000000-04481 is a Heidenhain internal product identifier. Compatible with Heidenhain encoder families that use the M23 17-pin flange socket and connect to electronics with a 15-pin D-sub input.
