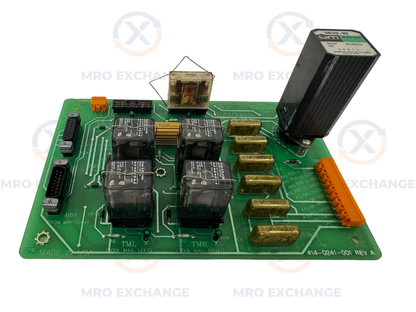

Hurco V2 ATC Relay PCB Assembly 415-0241-001 200 V
Hurco V2 ATC Relay PCB Assembly 415-0241-001 200 V
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

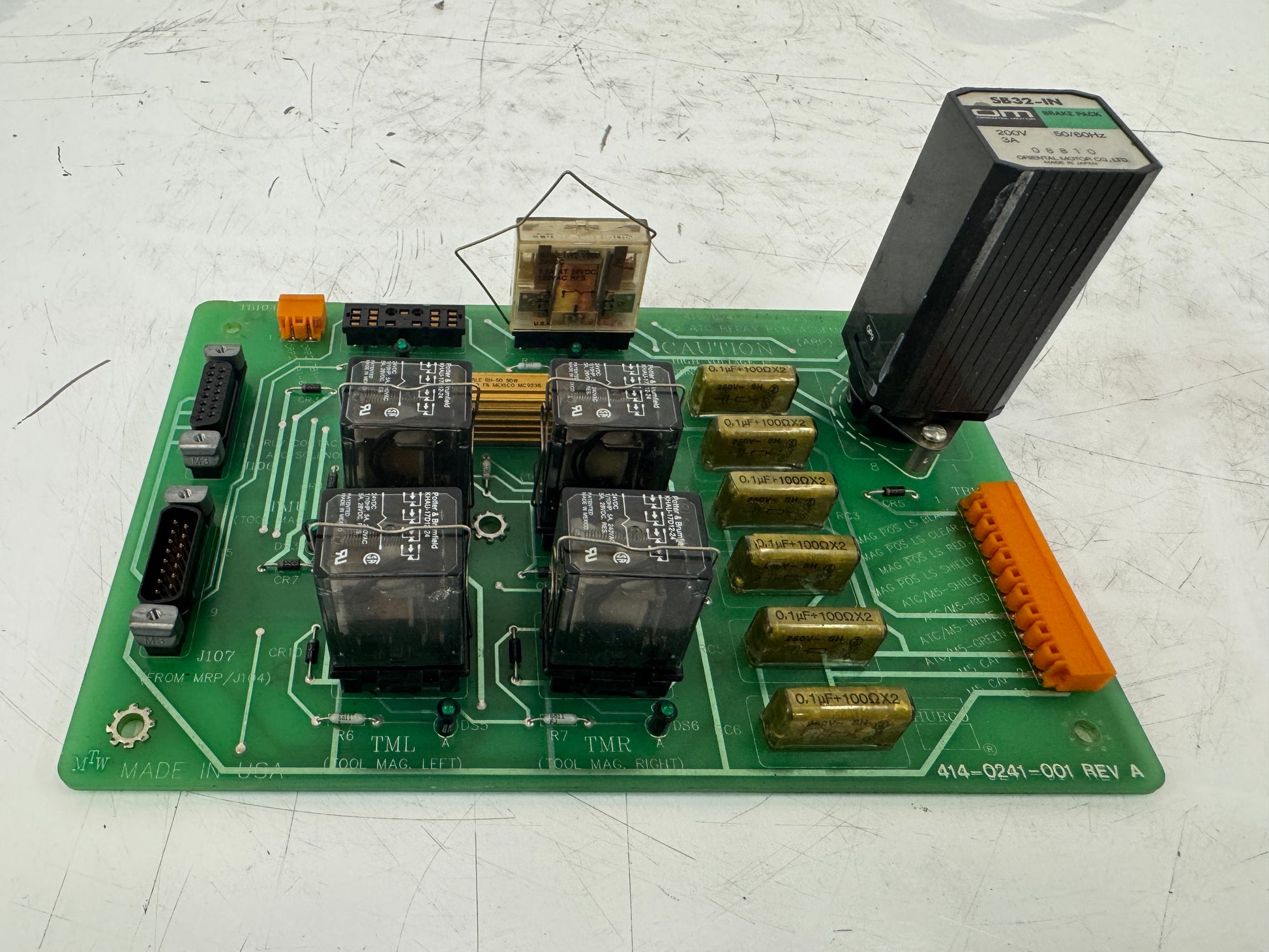

Hurco V2 ATC Relay PCB Assembly, part number 415-0241-001, revision A, also referenced by board number 414-0241-001 Rev A. Silkscreened "V2 ATC RELAY PCB ASSEMBLY (ARP)" on the component side. This board was manufactured in the USA and is used in Hurco V2 CNC vertical machining centers to control the Automatic Tool Changer relay functions, including Tool Magazine Left (TML) and Tool Magazine Right (TMR) circuits as labeled on the board.
The assembly is populated with four Potter and Brumfield style power relays, one smaller signal relay in a clear housing, multiple 0.1uF 100 ohm snubber capacitor networks, orange screw terminal connectors, a DIP switch block, a DB15 style connector, a 15-pin header connector, and an Oriental Motor module rated 200V 50/60Hz 3A mounted vertically at the upper right corner. The board also carries indicator LEDs and diodes for relay feedback circuits. The PCB is green fiberglass with white silkscreen and carries a CAUTION warning noting high voltage is present on the board.
This board is a direct replacement for the ATC relay PCB position in Hurco V2 machining centers. Compatibility should be confirmed against the specific machine model and control revision prior to installation.
Stock # 0226-548
