Igus Chainflex Data Cable CF211.PUR.05.02.02 2 Pair, 20 AWG, 1,000 Ft Spool
Igus Chainflex Data Cable CF211.PUR.05.02.02 2 Pair, 20 AWG, 1,000 Ft Spool
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: CF211.PUR.05.02.02
Stock #: 0326-00869

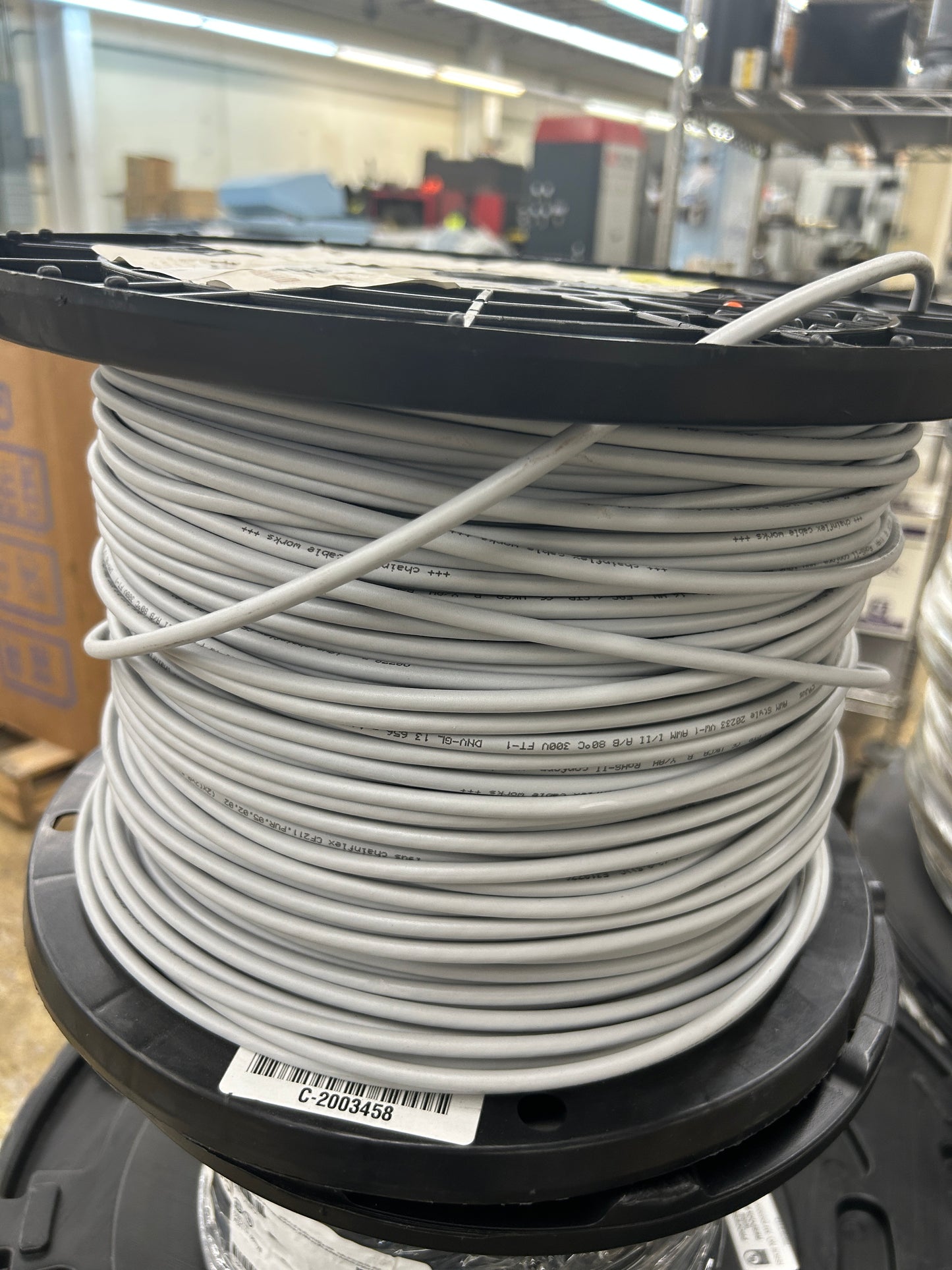

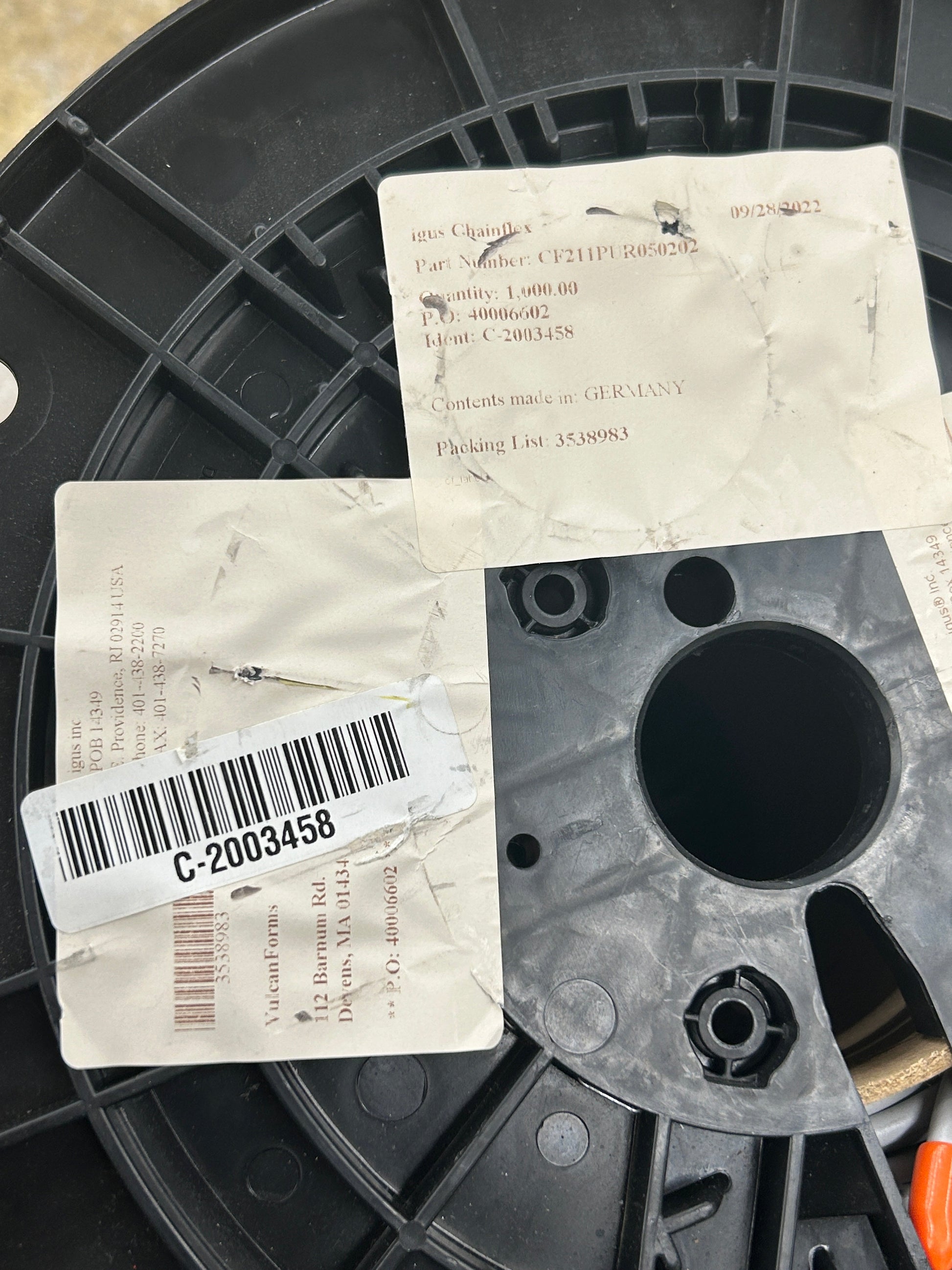

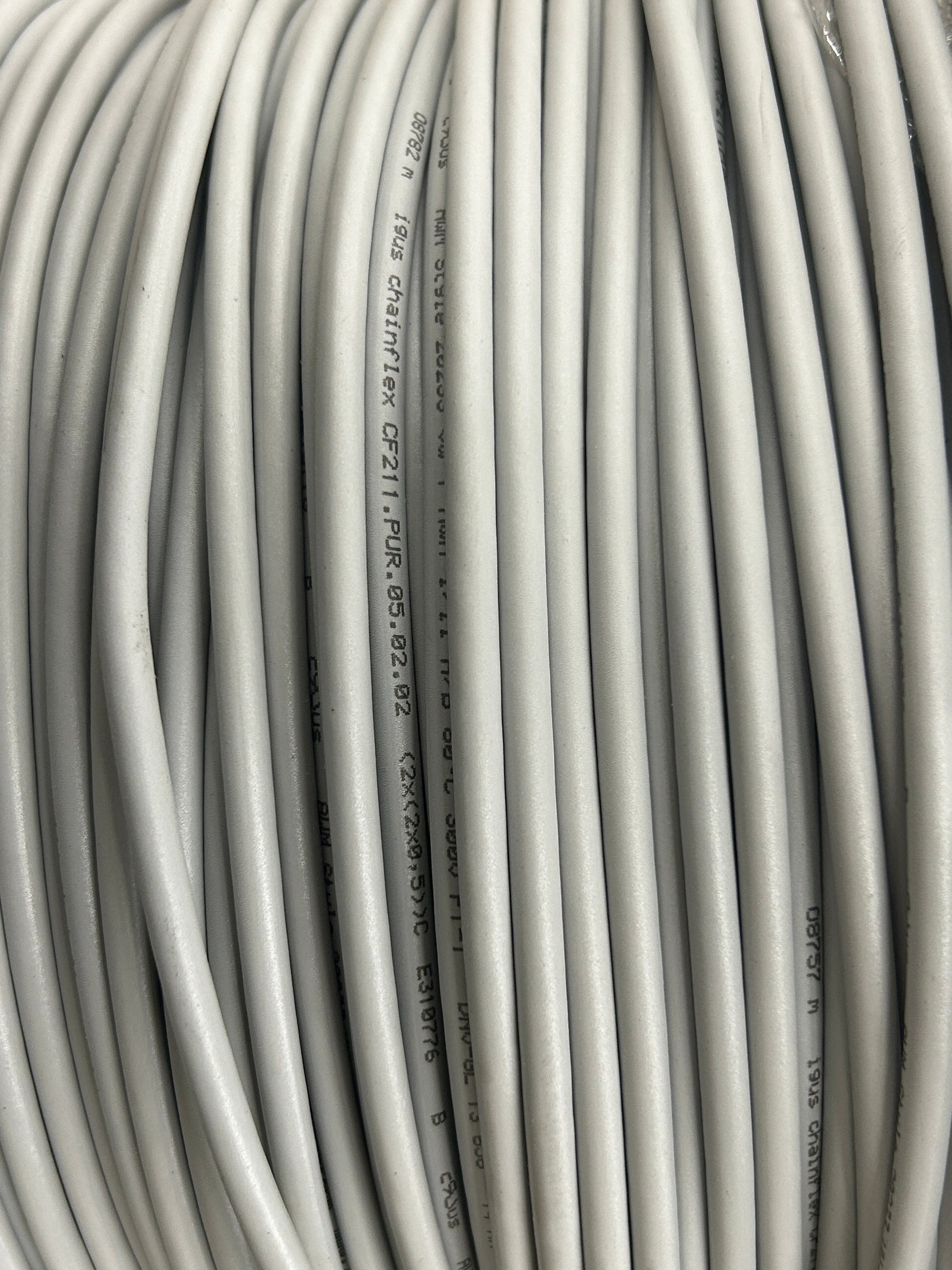

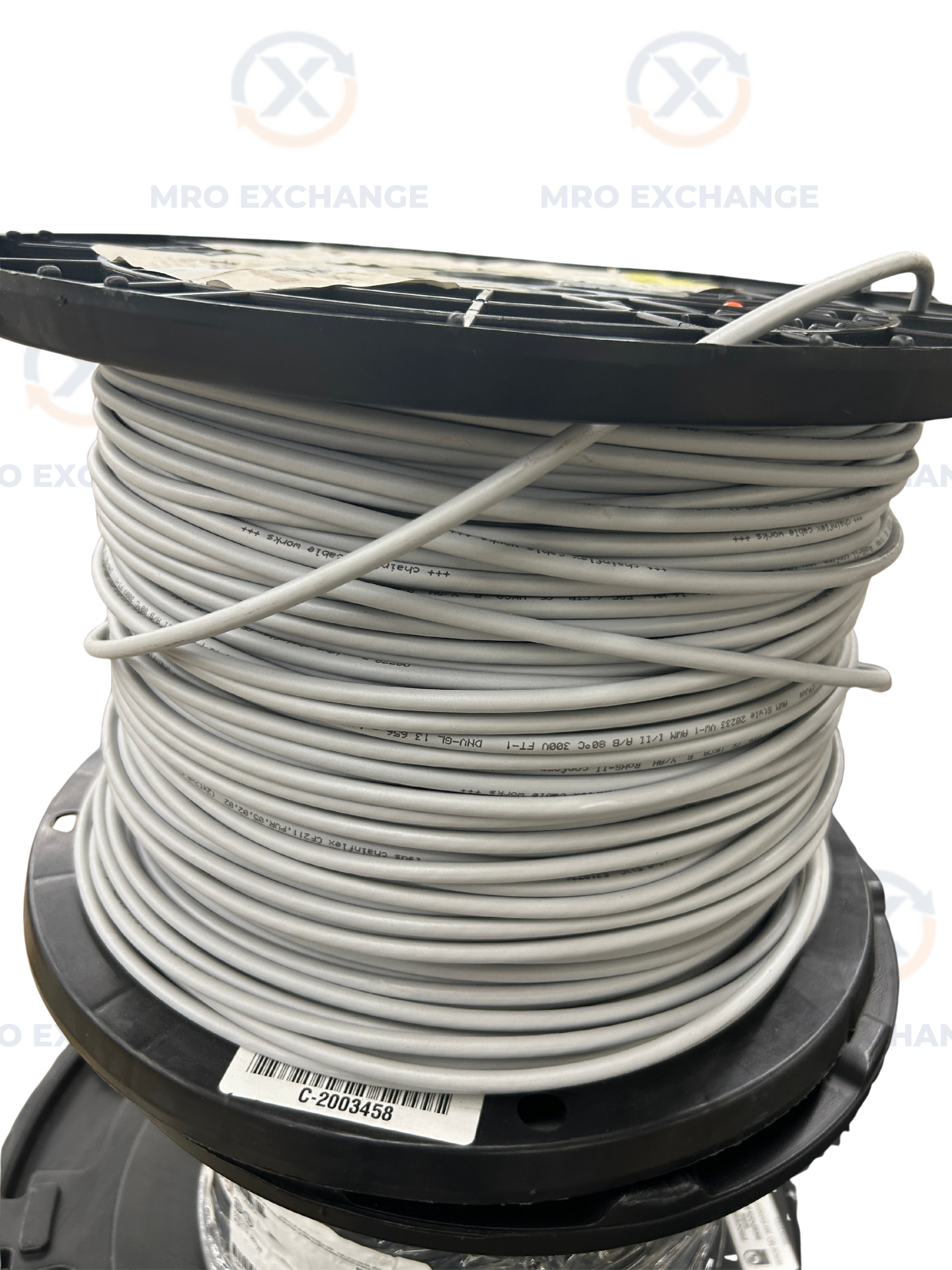

A 1,000-foot spool of igus chainflex CF211.PUR.05.02.02 continuous-flex data cable, part number CF211.PUR.05.02.02, manufactured in Germany per the packing label dated September 2022. The cable consists of 2 twisted pairs with 20 AWG (0.5 mm²) conductors, featuring finely stranded bare copper for high-flex performance. The outer jacket is constructed from a PUR compound, providing resistance to oils and suitable for indoor and outdoor applications with moderate UV exposure. This PUR jacket variant distinguishes it from the standard CF211 PVC series and is rated to 300V. The cable carries UL/CSA style 10493 and 20233 listings, along with CE certification and compliance with FT1 and VW-1 flame ratings. It is halogen-free and silicone-free per relevant standards. The chainflex CF211.PUR series is designed for use in cable carrier systems and continuous-flexing applications including machining centers, packaging equipment, storage and retrieval systems, and handling machinery. The spool Ident number is C-2003458 with P.O. 40006602 and packing list 3538983 visible on the label. Cable text printed on the jacket confirms the part number and construction: 2 x (2 x 0.5) mm², 300V, DNV-GL listed, UL AWM I/II A/B rated.
Stock # 0326-869
