Ingersoll-Rand Starter Interface PCB 39807532-39182175 24 VAC / 115V
Ingersoll-Rand Starter Interface PCB 39807532-39182175 24 VAC / 115V
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

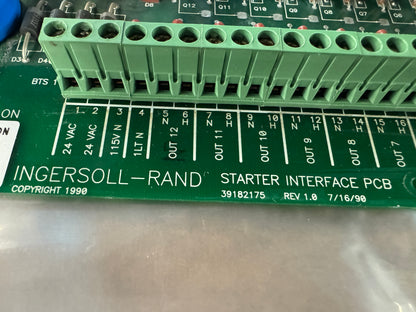

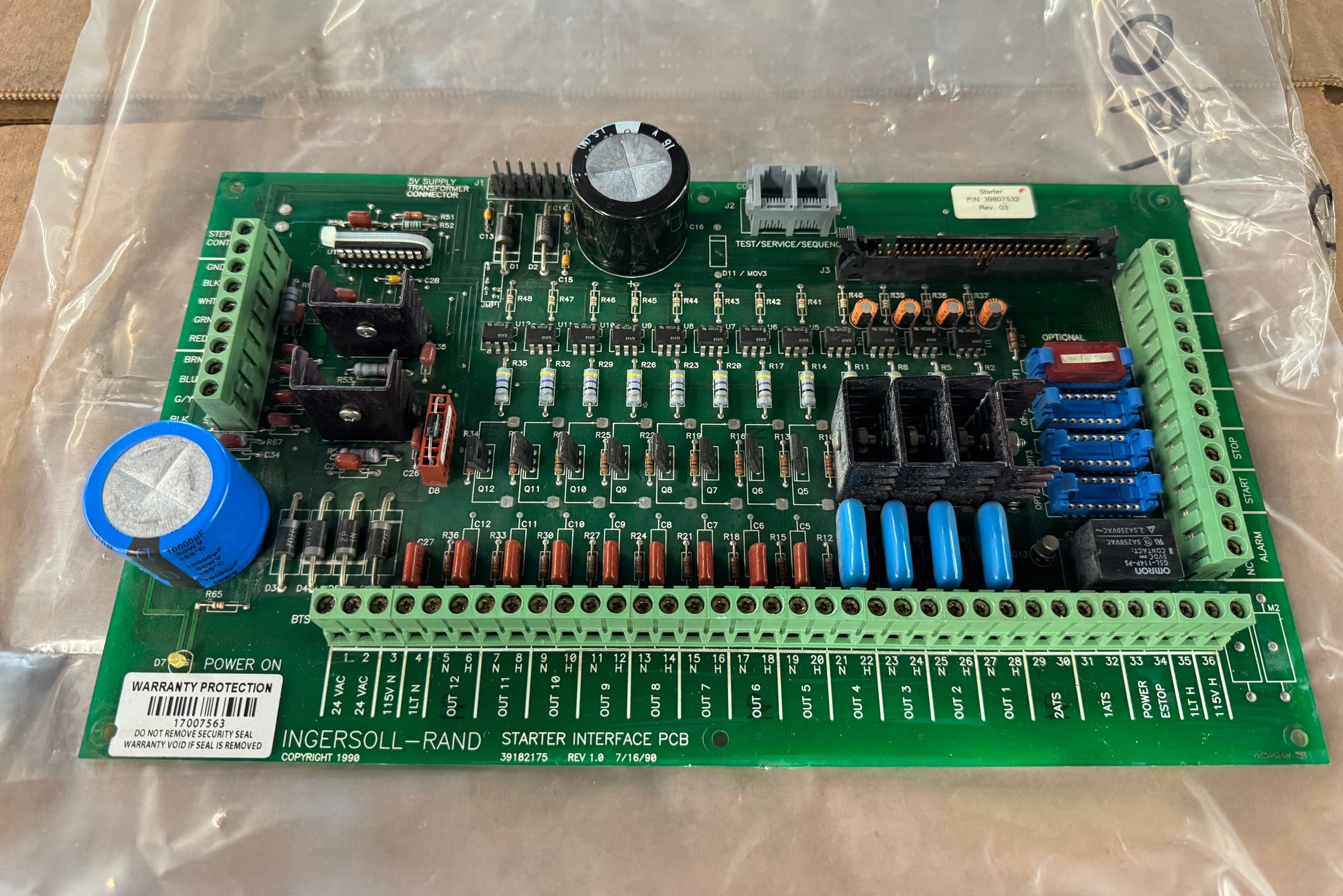

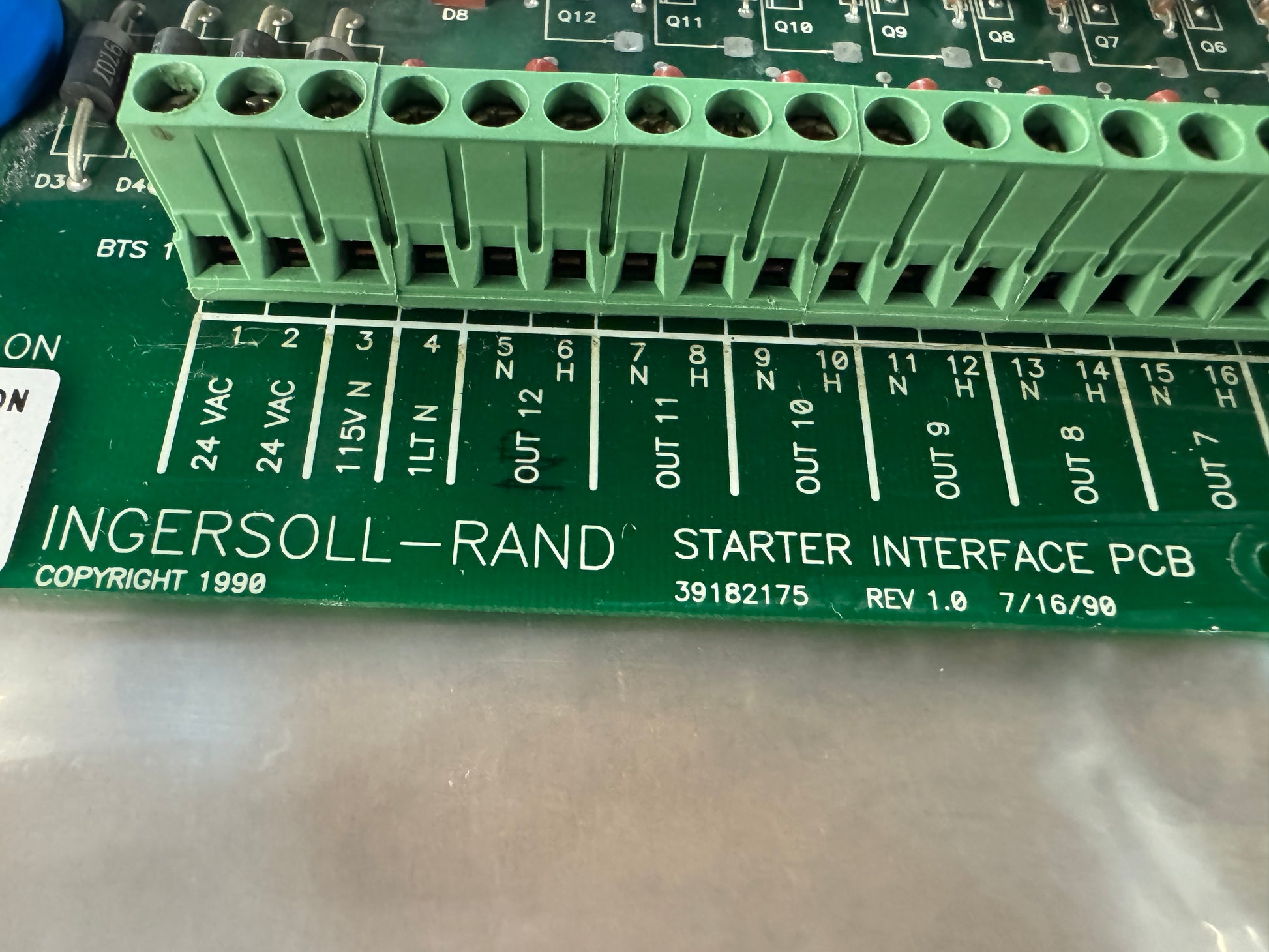

The Ingersoll-Rand 39807532 is a Starter Interface PCB designed for use in Ingersoll-Rand SSR 50-450 Red Eye series air compressors. The board-stamped part number is 39182175, with OEM sticker part number 39807532, Rev. 03. The unit is also cross-referenced under part number 39857263. This board interfaces the Ingersoll-Rand SSR 50-450 Red Eye compressor controller logic control inputs and stepper motor outputs, working in conjunction with the analogue barrier terminal PCB to balance air supply against demand across multiple control configurations. Terminal labeling visible on the board silkscreen includes 24 VAC, 115V N, 1LT N, and multiple output channels (OUT 1 through OUT 12), along with ESTOP, START, STOP, and ALARM connections. The board features a large terminal strip across the bottom edge, multiple relay positions, capacitors, and a TEST/SERVICE/SEQUENCE connector labeled J3. A warranty protection barcode sticker (17007563) is present, along with a small white sticker reading Starter P/N 39807532 Rev. 03. Copyright date on the silkscreen reads 1990, with a board date code of 7/16/90. This board is a legacy control component for compressor systems where the Intellisys or Red Eye controller platform was in service.
Stock # 0526-02513
