Ingersoll Rand Stepper Limit Board 39543368 5 VDC
Ingersoll Rand Stepper Limit Board 39543368 5 VDC
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

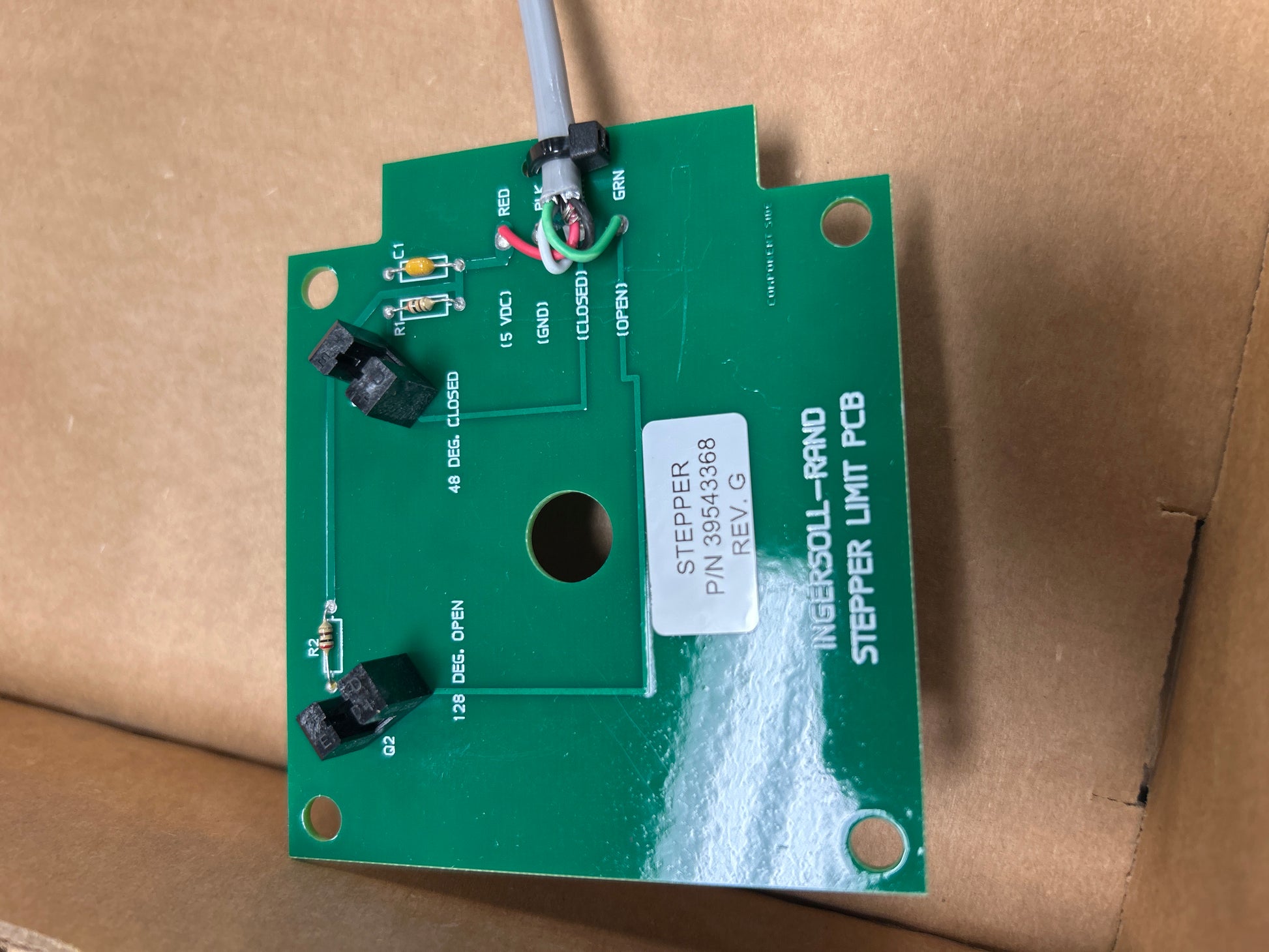

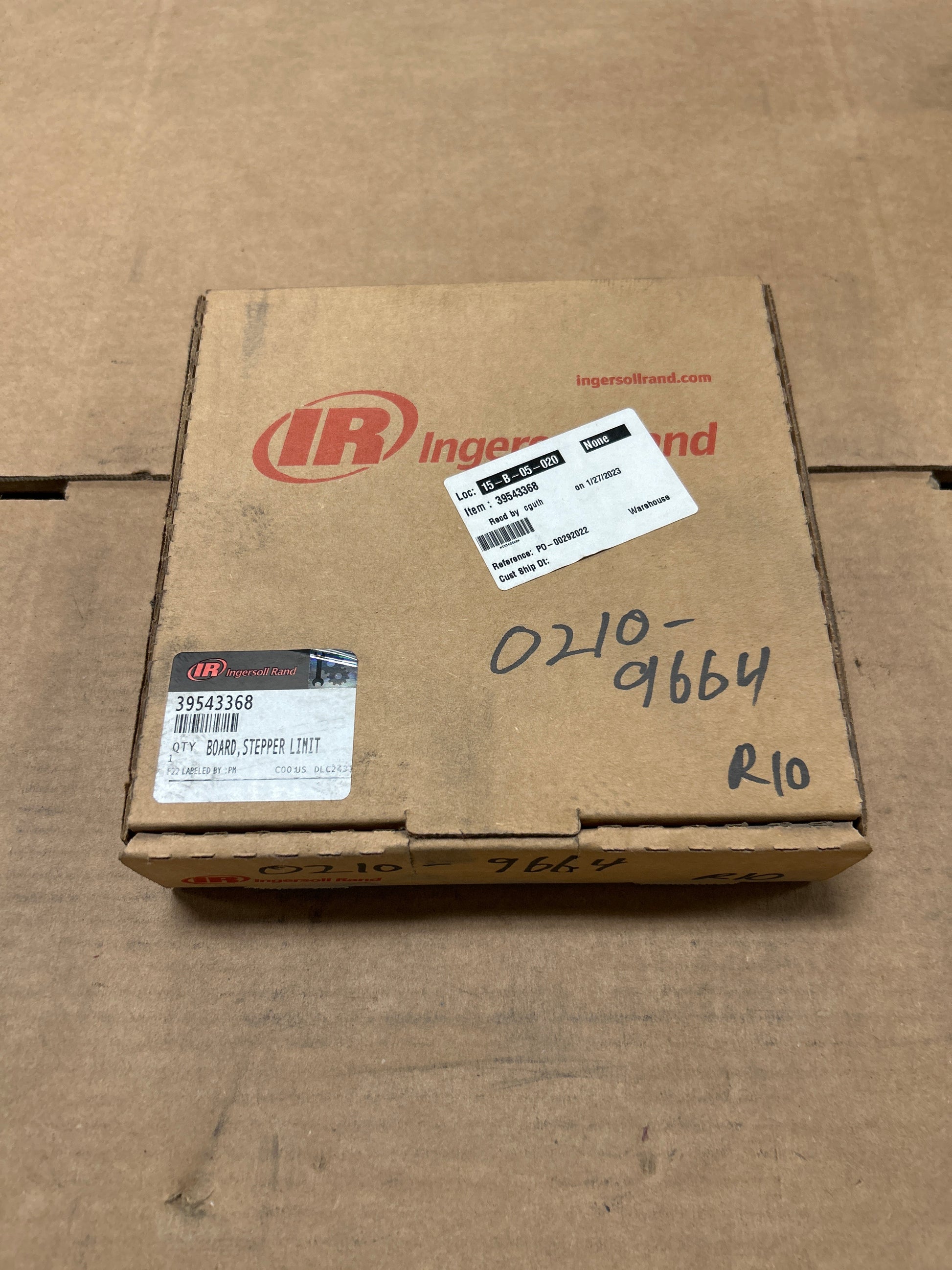

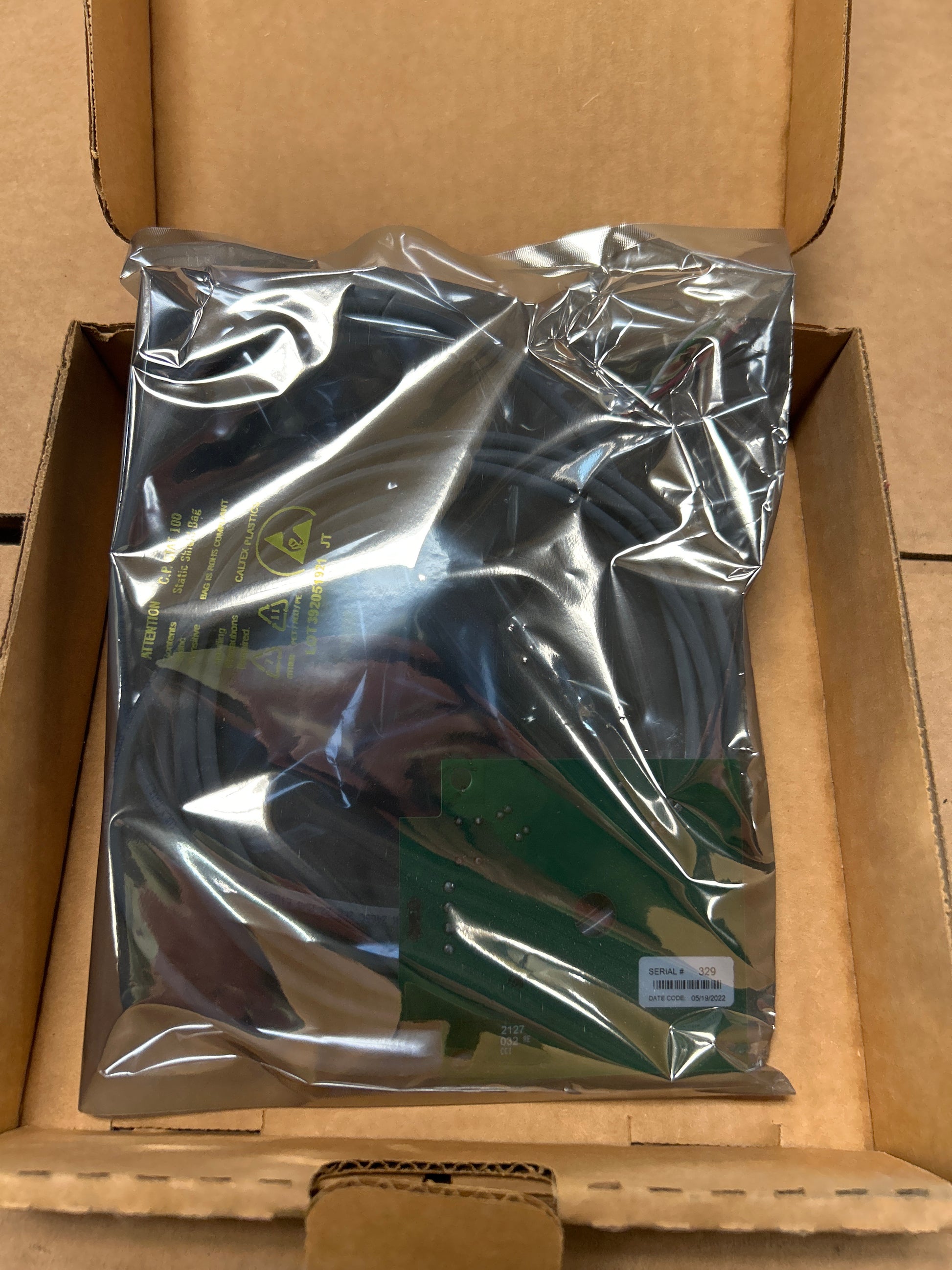

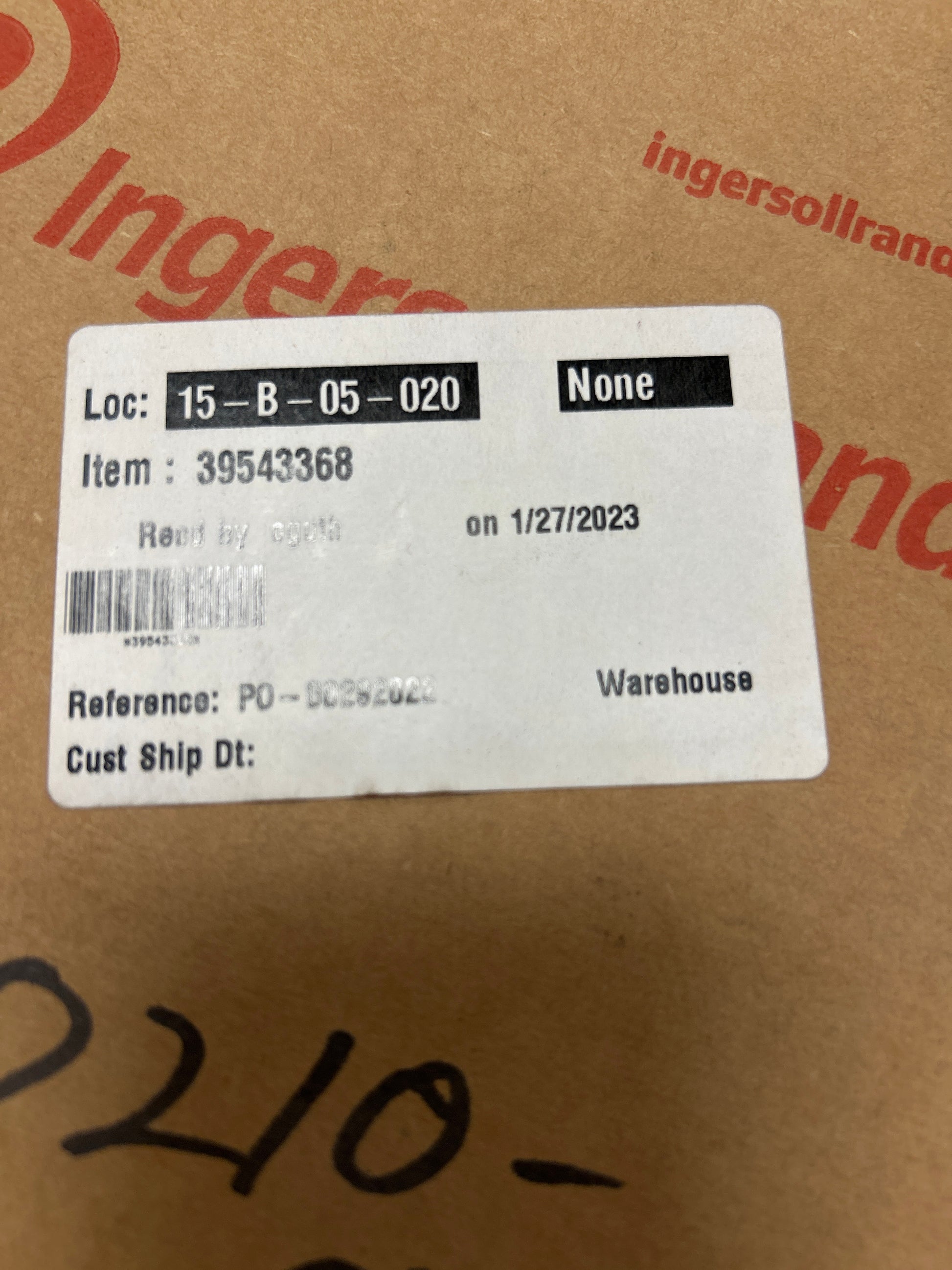

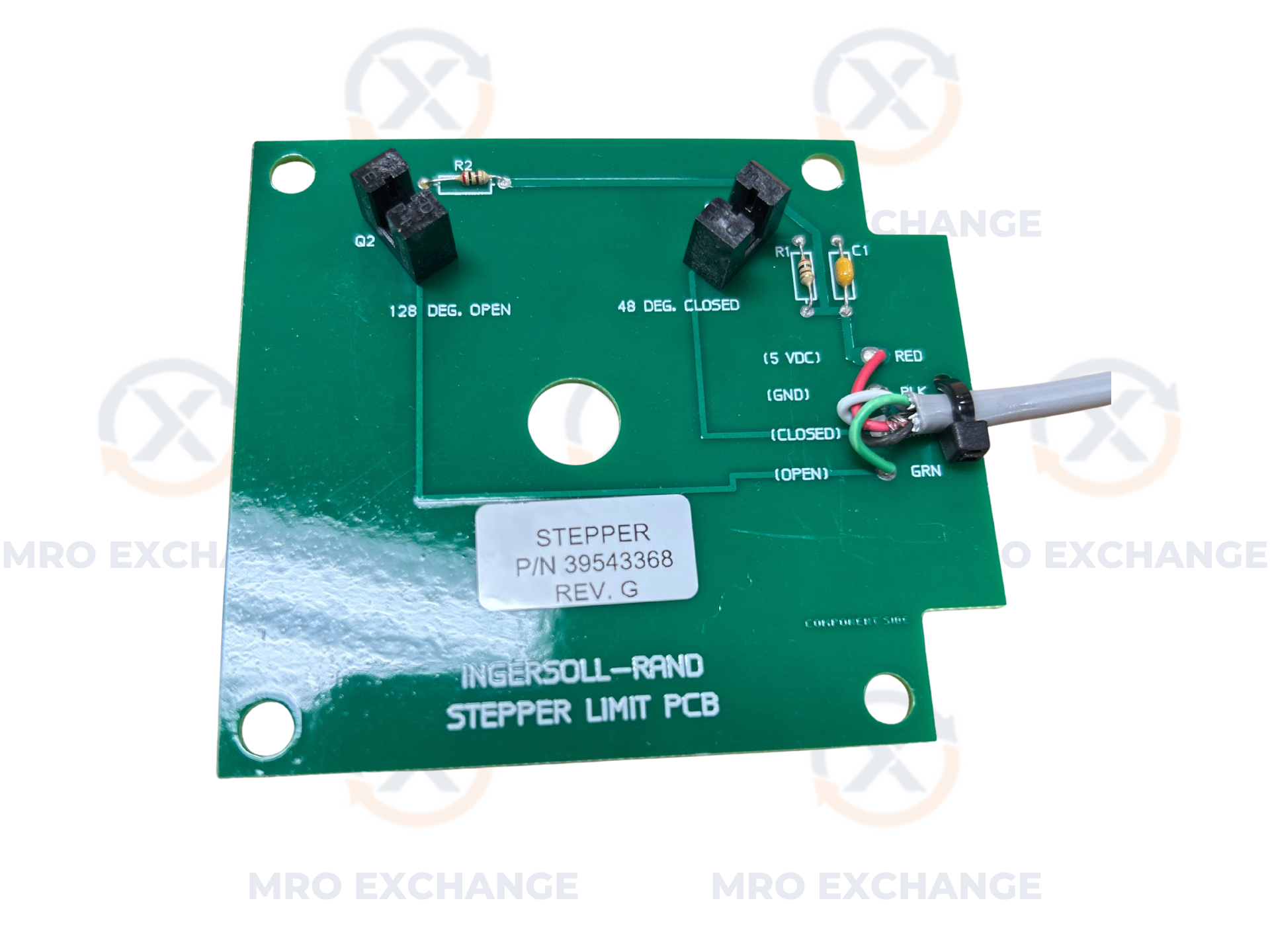

The Ingersoll Rand 39543368 is a Stepper Limit PCB designed for use in Ingersoll Rand rotary screw air compressor systems. The board monitors stepper motor position using two optical sensors, with silkscreen markings indicating a 48 degree closed position and a 128 degree open position. It operates at 5 VDC as labeled on the board and includes labeled connection points for power, ground, closed signal, and open signal in red, black, green, and gray leads respectively. The PCB is identified by part number 39543368, Revision G, as printed on the board label. The item is housed in its original Ingersoll Rand branded cardboard box and stored in an ESD protective bag. A serial number label reading serial number 329 and a date code of 05/19/2022 are visible on the bag. The item was received into inventory on 1/27/2023 per the warehouse label. Country of origin is listed as US DLC on the product label. No accessories or additional hardware are included beyond the board assembly with attached wiring harness.
Stock # 0526-02466
