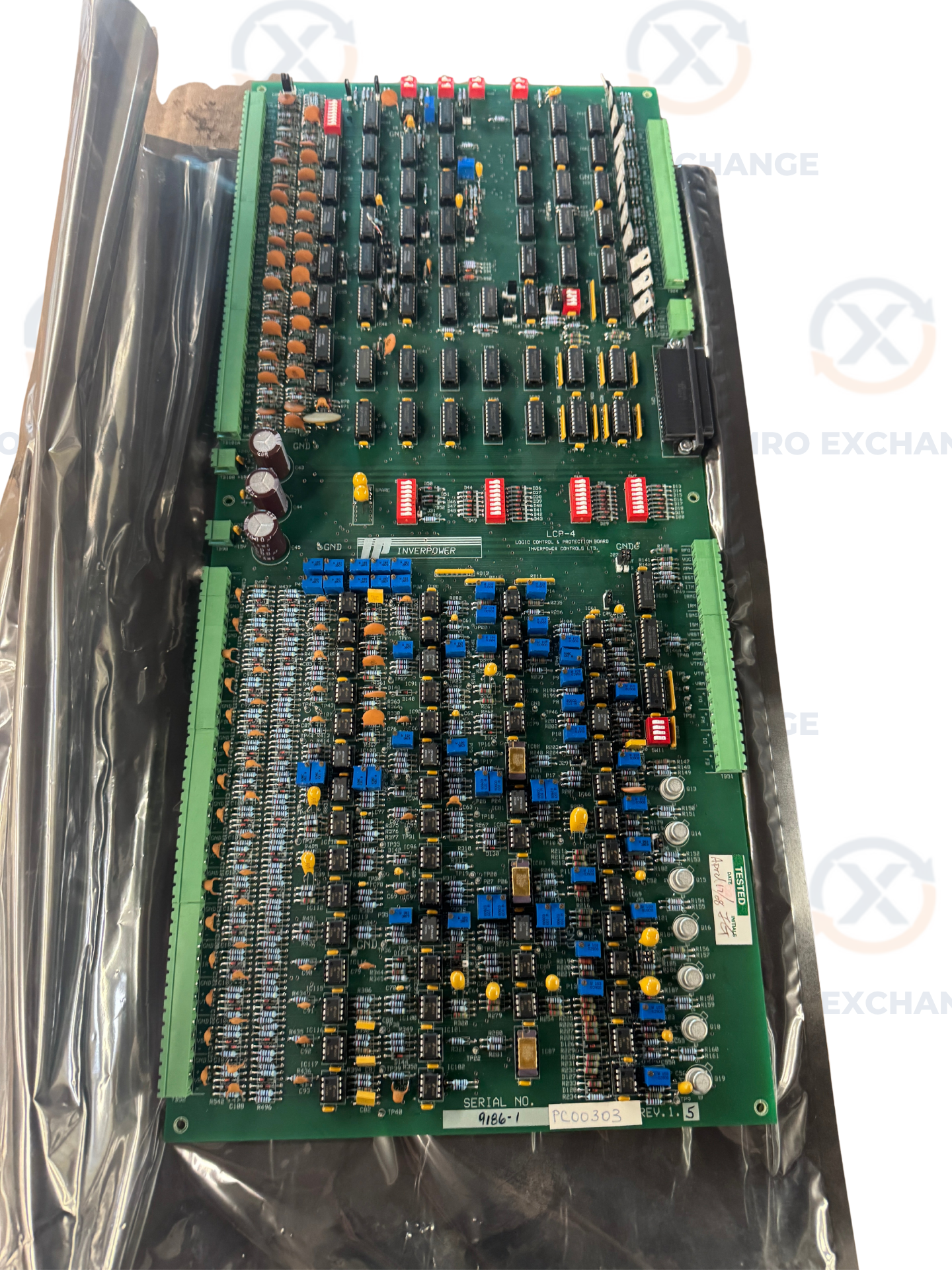

Inverpower Controls Ltd. Logic Control and Protection Board PC00303
Inverpower Controls Ltd. Logic Control and Protection Board PC00303
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

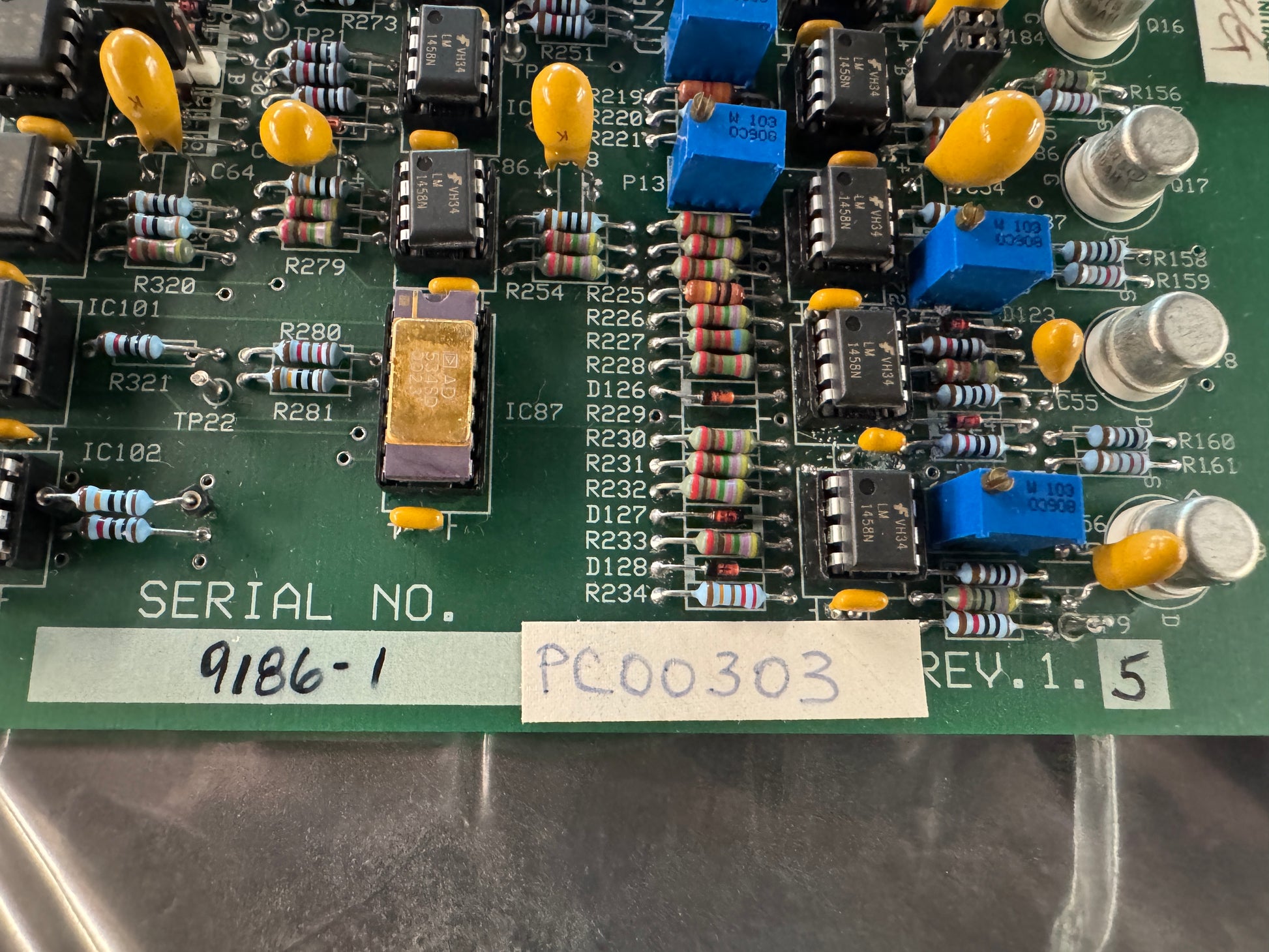

Used in large-scale industrial inverter and power conversion systems, the Inverpower Controls LCP-4 is a Logic Control and Protection Board manufactured by Inverpower Controls Ltd. of Canada. The board carries PCB number PC00303, serial number 9186-1, and is marked Rev. 1.5. Inverpower Controls was a Canadian designer and manufacturer of high-power electronics for industrial applications, subsequently acquired by SatCon Technology Corp.

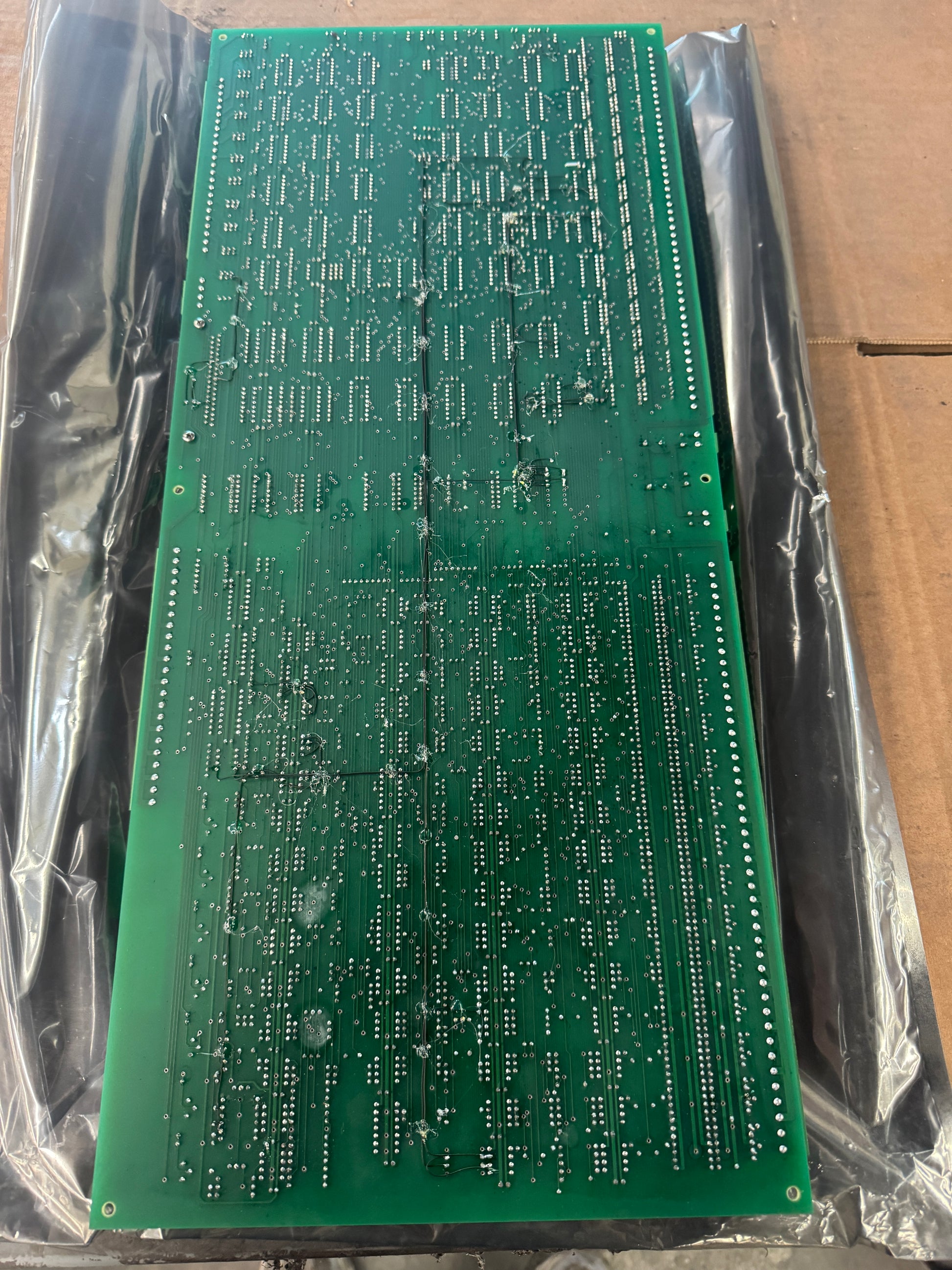

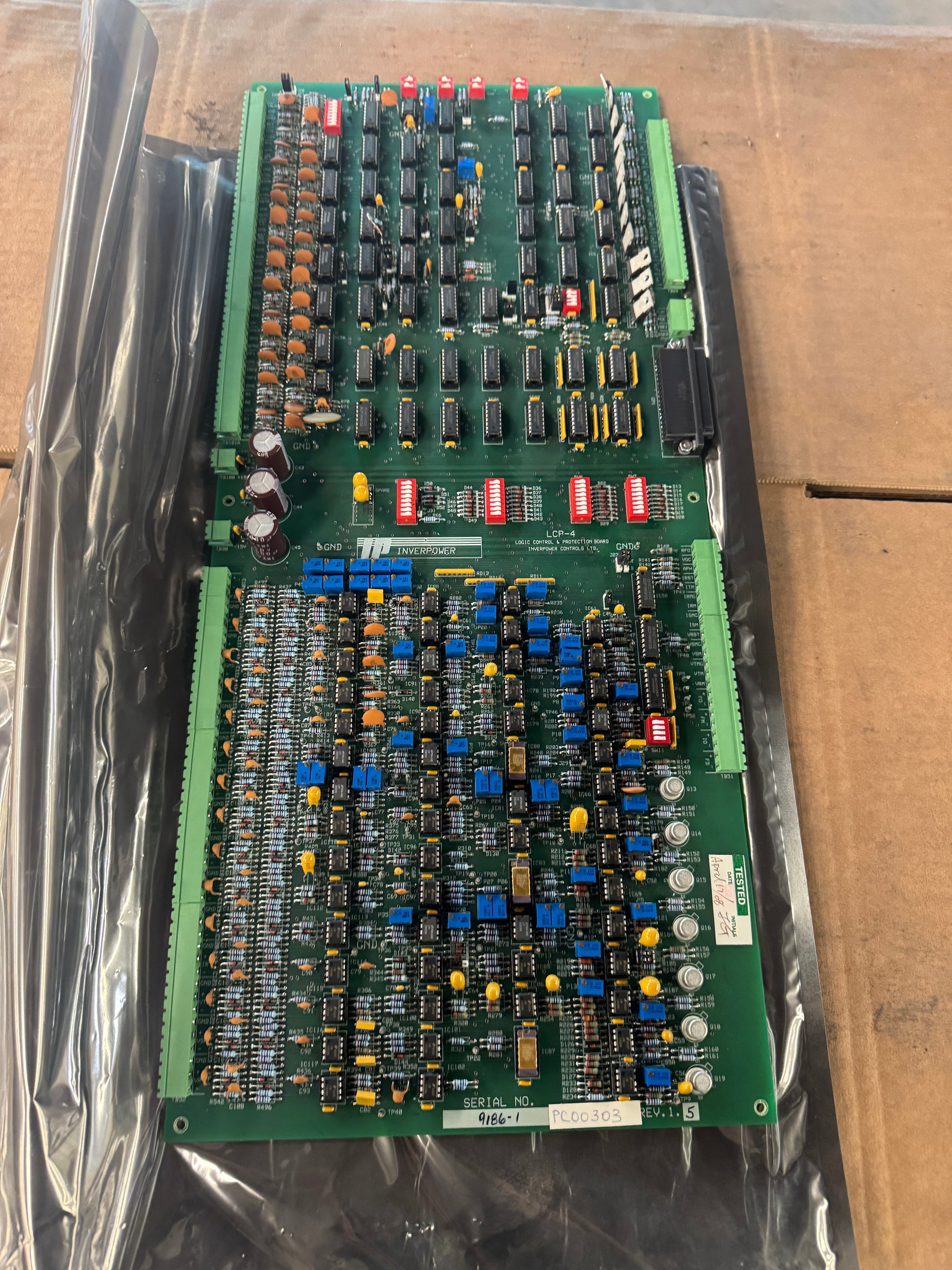

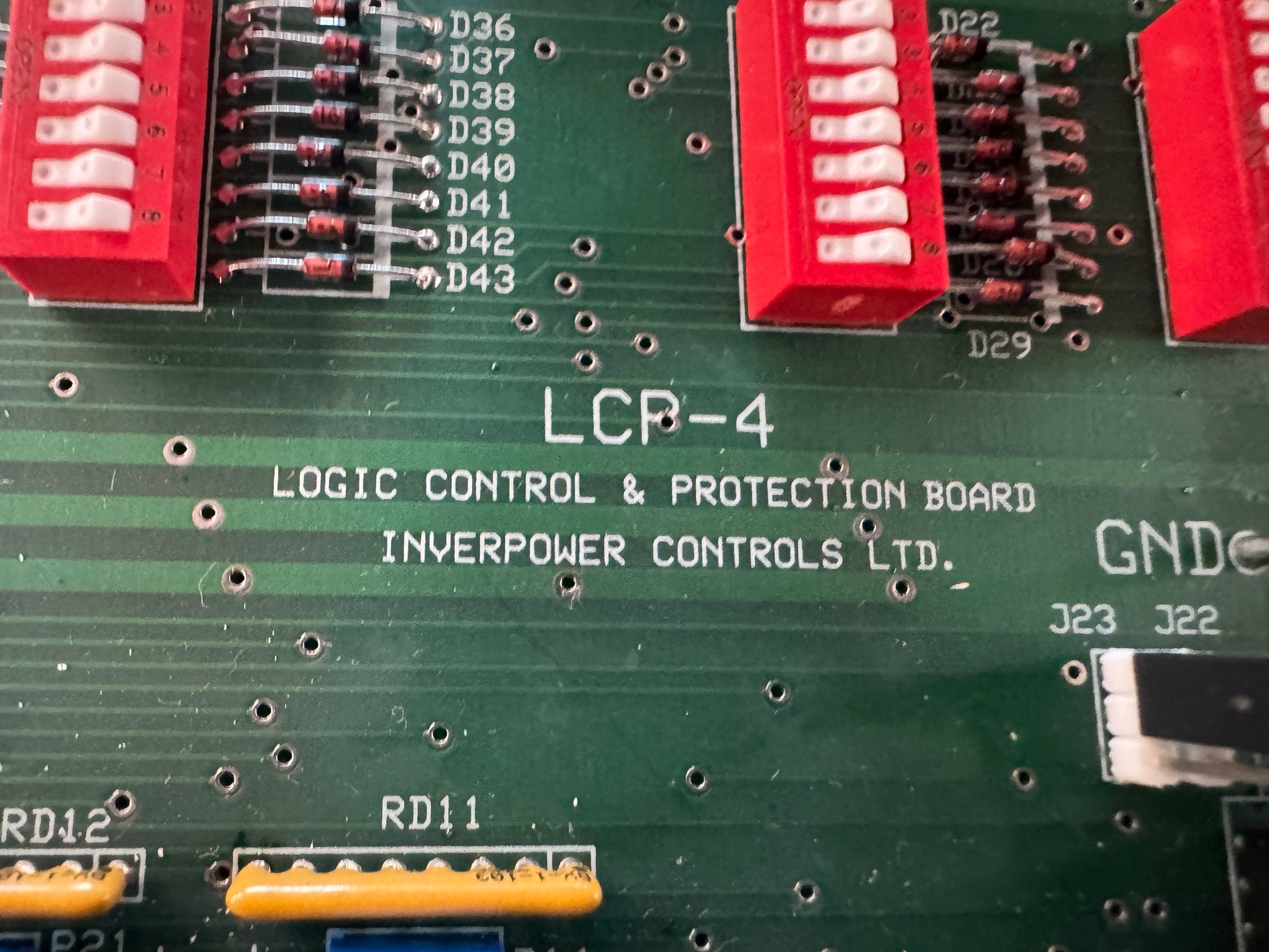

The LCP-4 is a high-density, multi-layer PCB assembly populated with discrete components including electrolytic and tantalum capacitors, resistors, diodes, DIP ICs, trimmer potentiometers, and signal transistors. The board is labeled "Logic Control and Protection Board" in silkscreen text, indicating its role in managing logic sequencing and protective functions within Inverpower drive or inverter assemblies. A "TESTED" label is affixed to the board. The board features multiple card-edge connectors along its perimeter for integration into a host system chassis.

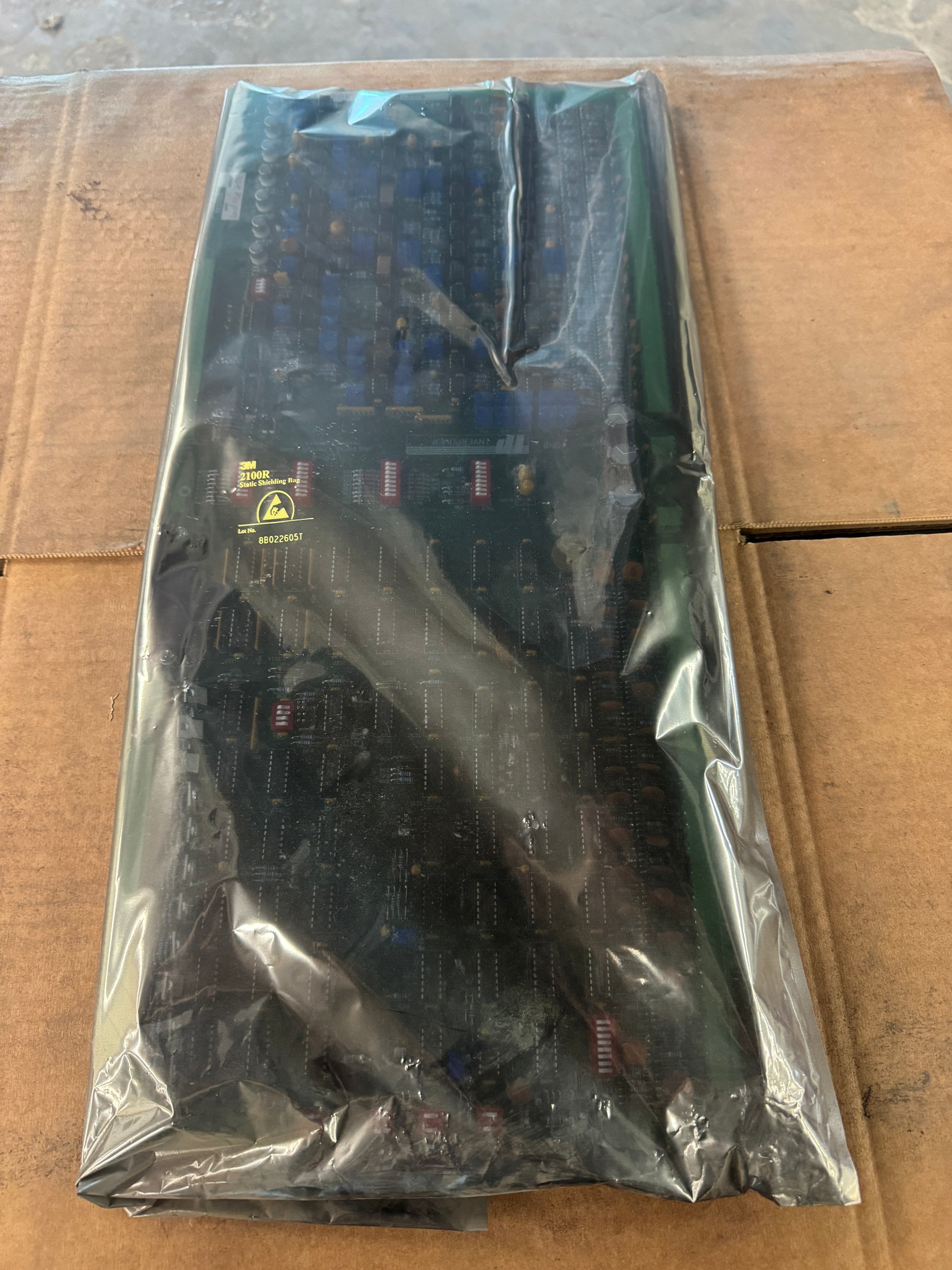

The board measures approximately 10 by 20 inches based on visual proportion. It was stored in a 3M 2100R static shielding bag. Two boards appear in the photos and are presented together. Condition shows light handling wear consistent with removal from service. No visible component damage, burn marks, or physical breakage is apparent in the photos.
Stock # 0526-02512
