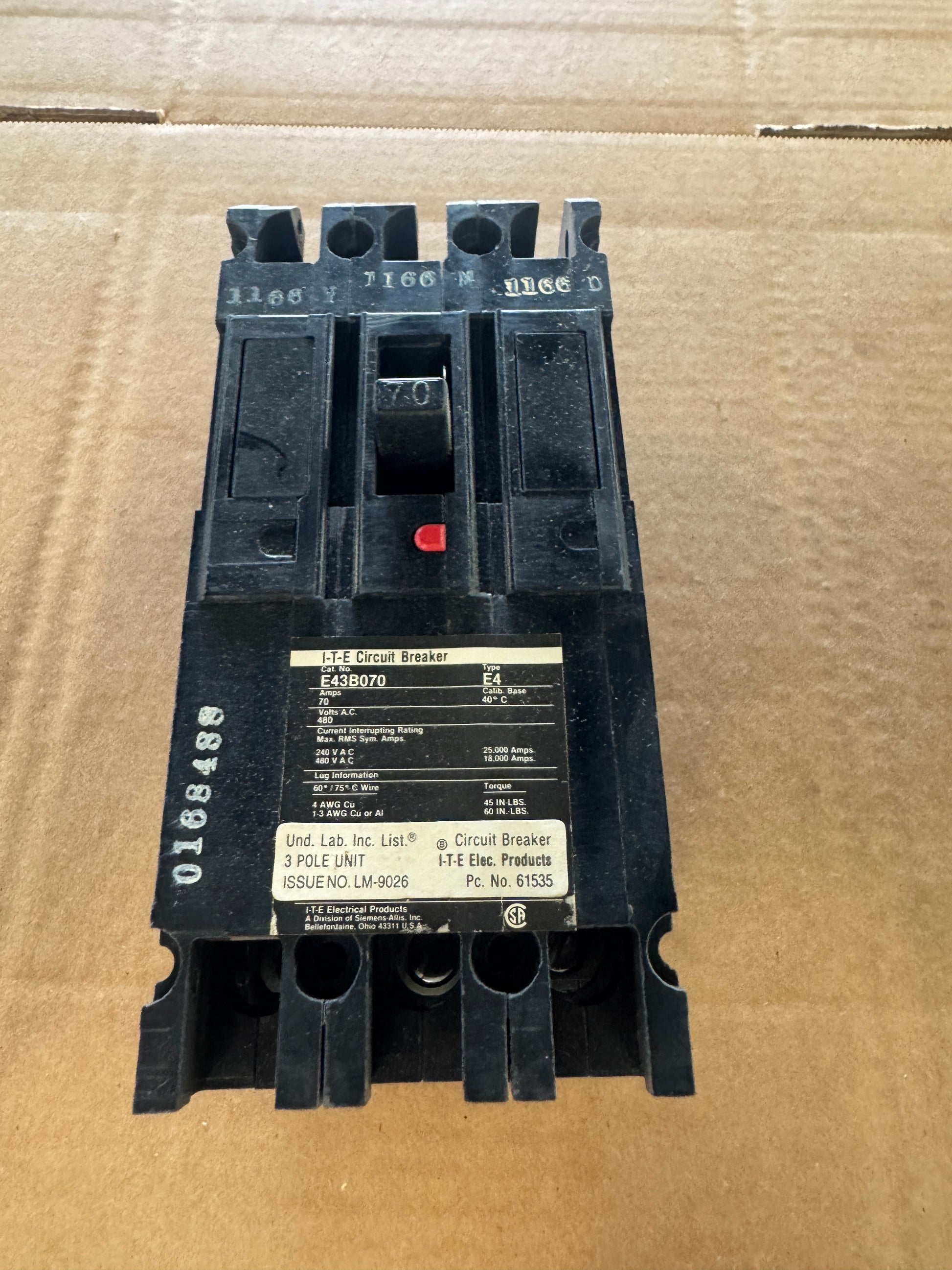

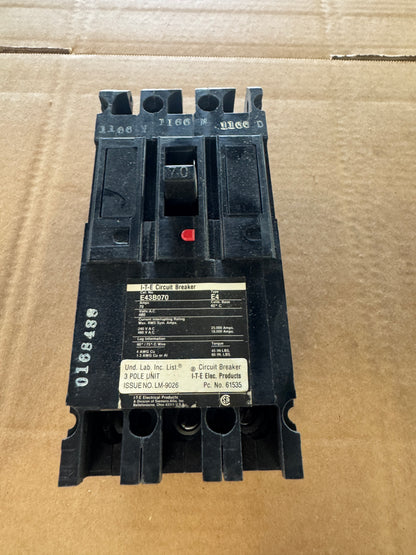

ITE E43B070 Circuit Breaker 480V AC Untested Surplus
ITE E43B070 Circuit Breaker 480V AC Untested Surplus
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: E43B070
Stock #: 0626-01588
Product Specifications
- Manufacturer: ITE (I-T-E Electrical Products, A Division of Siemens-Allis, Inc.)
- MPN / Model: E43B070
- Product Type: Molded Case Circuit Breaker
- Type: E4
- Poles: 3
- Amperage: 70A
- Voltage: 480V AC
- Current Interrupting Rating: 25,000A RMS Sym. at 240V AC; 18,000A RMS Sym. at 480V AC
- Calibration Base: 40 degrees C
- Wire Range: 60/75 degree C Wire; 4 AWG Cu; 1 to 3 AWG Cu or Al
- Torque: 45 IN-LBS (4 AWG Cu); 60 IN-LBS (1 to 3 AWG Cu or Al)
- Listing: UL Listed (Underwriters Laboratories Inc.); 3 Pole Unit; Issue No. LM-9026; Pc. No. 61535
- Country of Origin: USA (Bellefontaine, Ohio 43311)
- OEM Box Serial Reference: 0168488 (visible on original box label and breaker housing)
Product Description

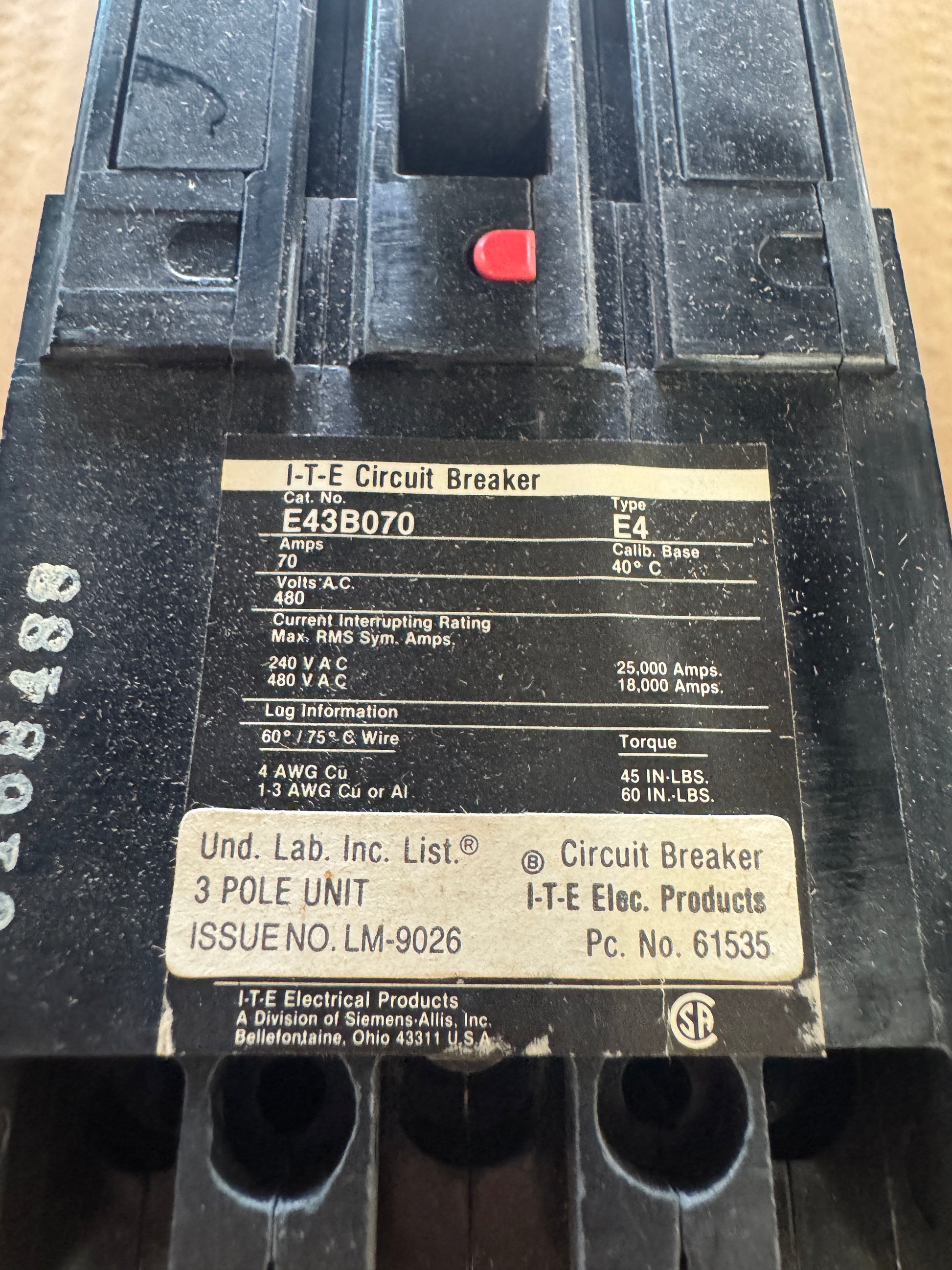

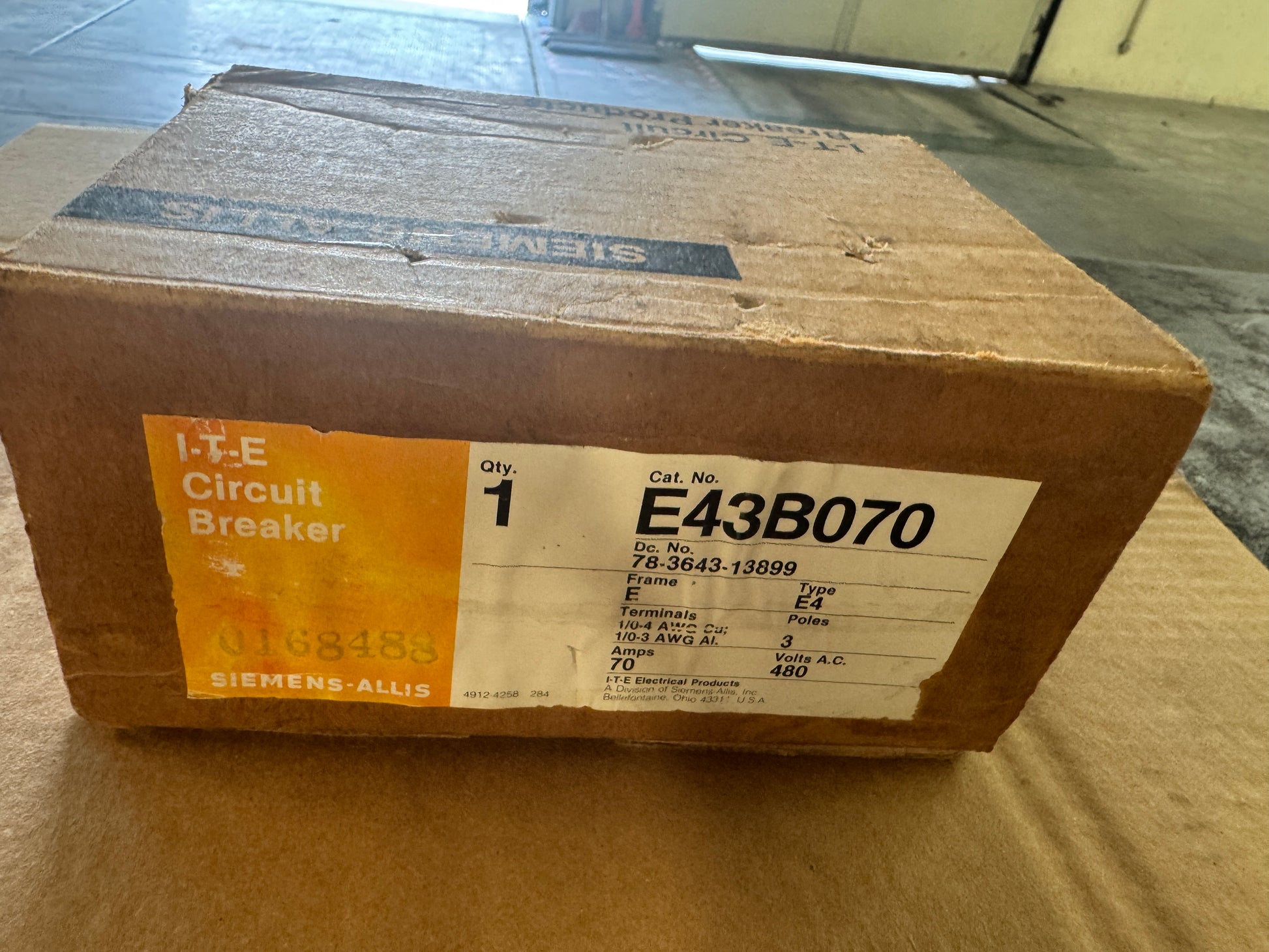

The ITE E43B070 is a 3-pole, 70-amp molded case circuit breaker rated at 480V AC, catalog number E43B070, Type E4. Manufactured by I-T-E Electrical Products, a division of Siemens-Allis, Inc., Bellefontaine, Ohio. The nameplate confirms an interrupting rating of 18,000 amps RMS symmetrical at 480V AC and 25,000 amps RMS symmetrical at 240V AC, with a 40 degree C calibration base. Wire range per nameplate: 4 AWG Cu at 45 IN-LBS torque, and 1 to 3 AWG Cu or Al at 60 IN-LBS. The unit is UL Listed as a 3 Pole Unit under Issue No. LM-9026, Piece No. 61535. This unit was originally shipped in its ITE factory carton bearing catalog number E43B070 and date code 78-3643-13899. The breaker housing shows cosmetic wear. Buyers sourcing a replacement or spare E43B070 can use the catalog number and nameplate data to confirm fitment against their existing panel requirements. The successor model referenced in current market listings is the Siemens ED43B070.
