Koyo TRD-NA360PW5M Absolute Rotary Encoder New
Koyo TRD-NA360PW5M Absolute Rotary Encoder New
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

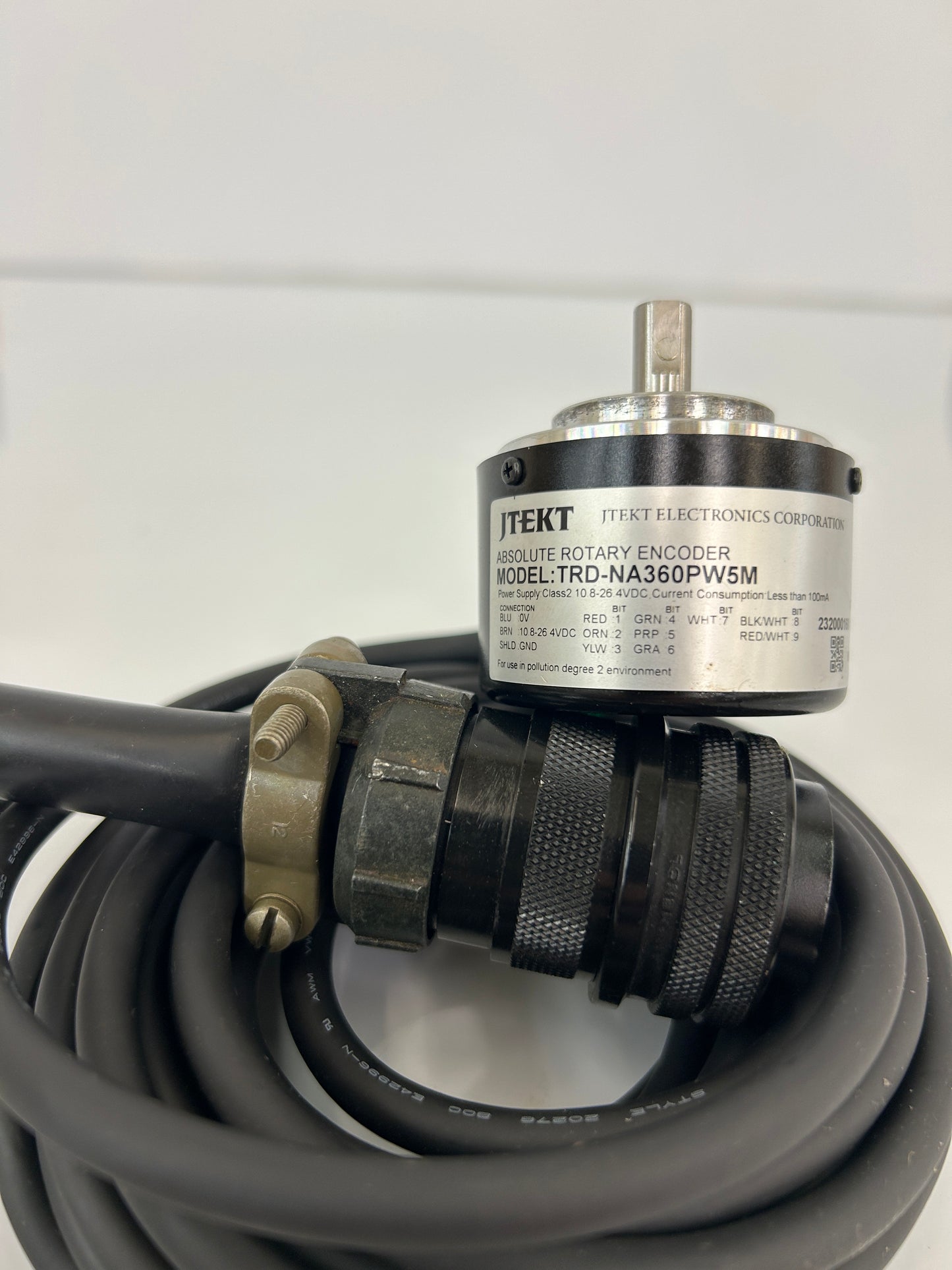

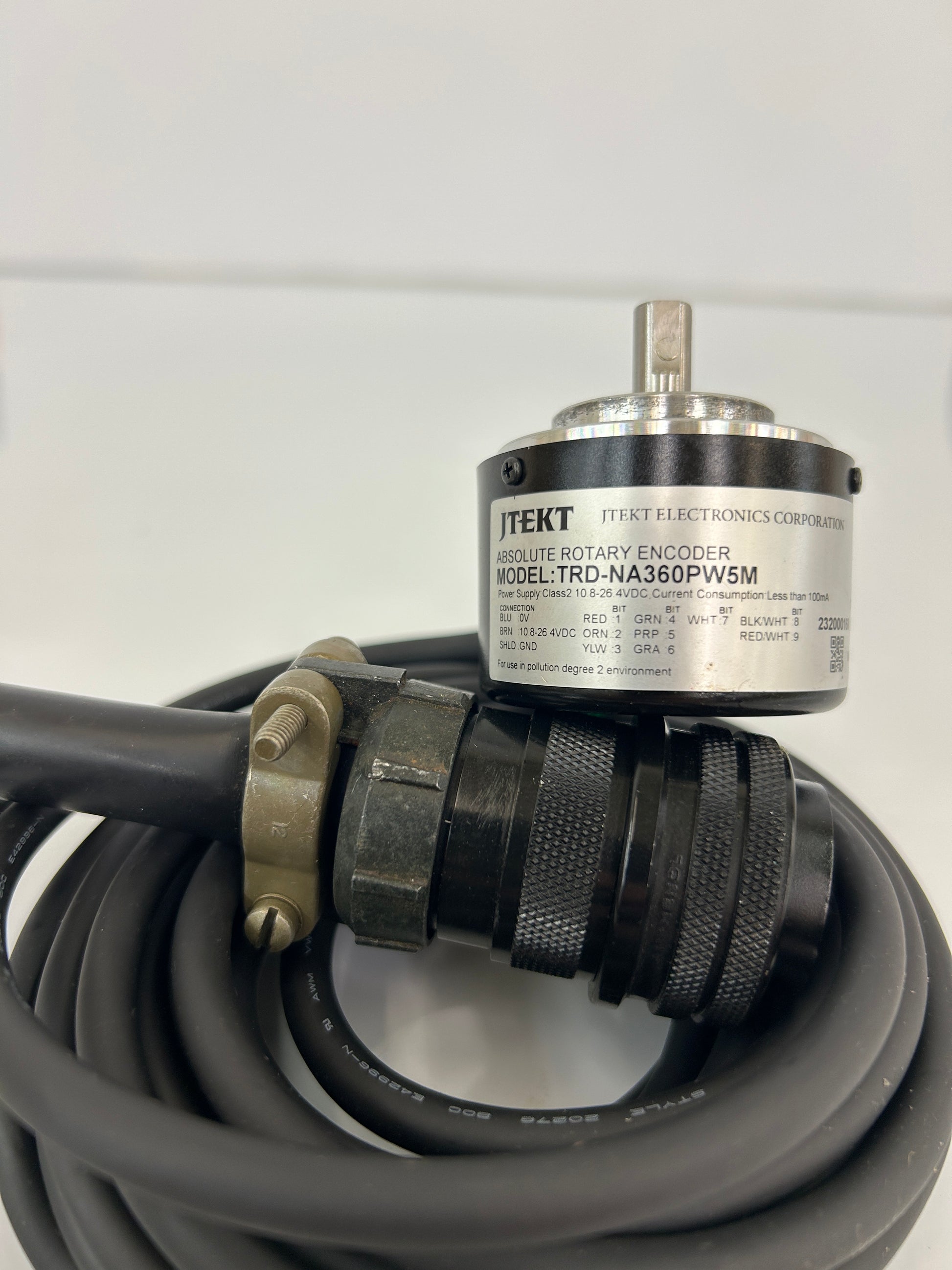

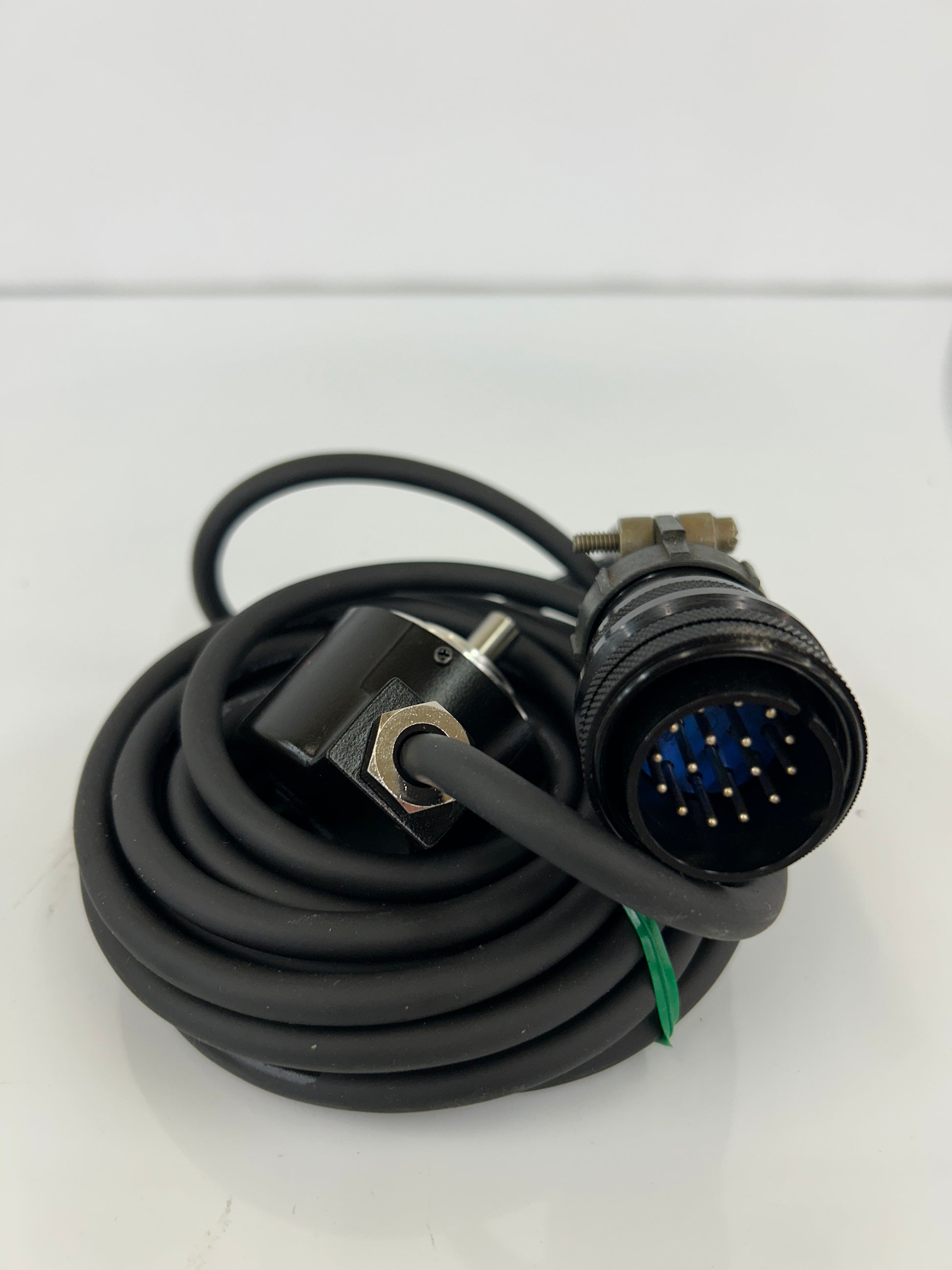

The Koyo TRD-NA360PW5M is an absolute rotary encoder originally supplied as a turret encoder for Mazak T Plus CNC turning centers. Mazak part number R51ZZ001160, customer PO 744500, location 35 04 P4. The unit outputs 360 pulses per revolution in Gray code format and is intended for absolute position feedback applications where the angular position must be retained without homing after power loss. Construction includes a flanged servo style mounting body with a shaft seal and a multi pin military style circular connector terminating a flexible shielded cable. The TRD NA series is part of Koyo Electronics absolute encoder line, commonly integrated into CNC turret indexing systems, rotary tables, and machine tool spindle orientation feedback. The supplied cable assembly includes the encoder body, shaft, mounting flange hardware, full length cable, and the mating circular connector visible in the photos. Compatible with Mazak control platforms that accept Koyo Gray code absolute feedback. Applications include turret position sensing, indexing axes, and absolute angular measurement on industrial machinery. Replacement and successor variants in the same Koyo TRD NA family include TRD NA360NW5M and TRD NA360PWE, which share the 360 PPR absolute Gray code output but differ in cable termination and connector style. Buyers sourcing this encoder for Mazak turret repair should confirm pin out and cable length against their existing installation before installing.
Stock # 0226-039
