Kollmorgen Analog Interface Board M-1017-5969
Kollmorgen Analog Interface Board M-1017-5969
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

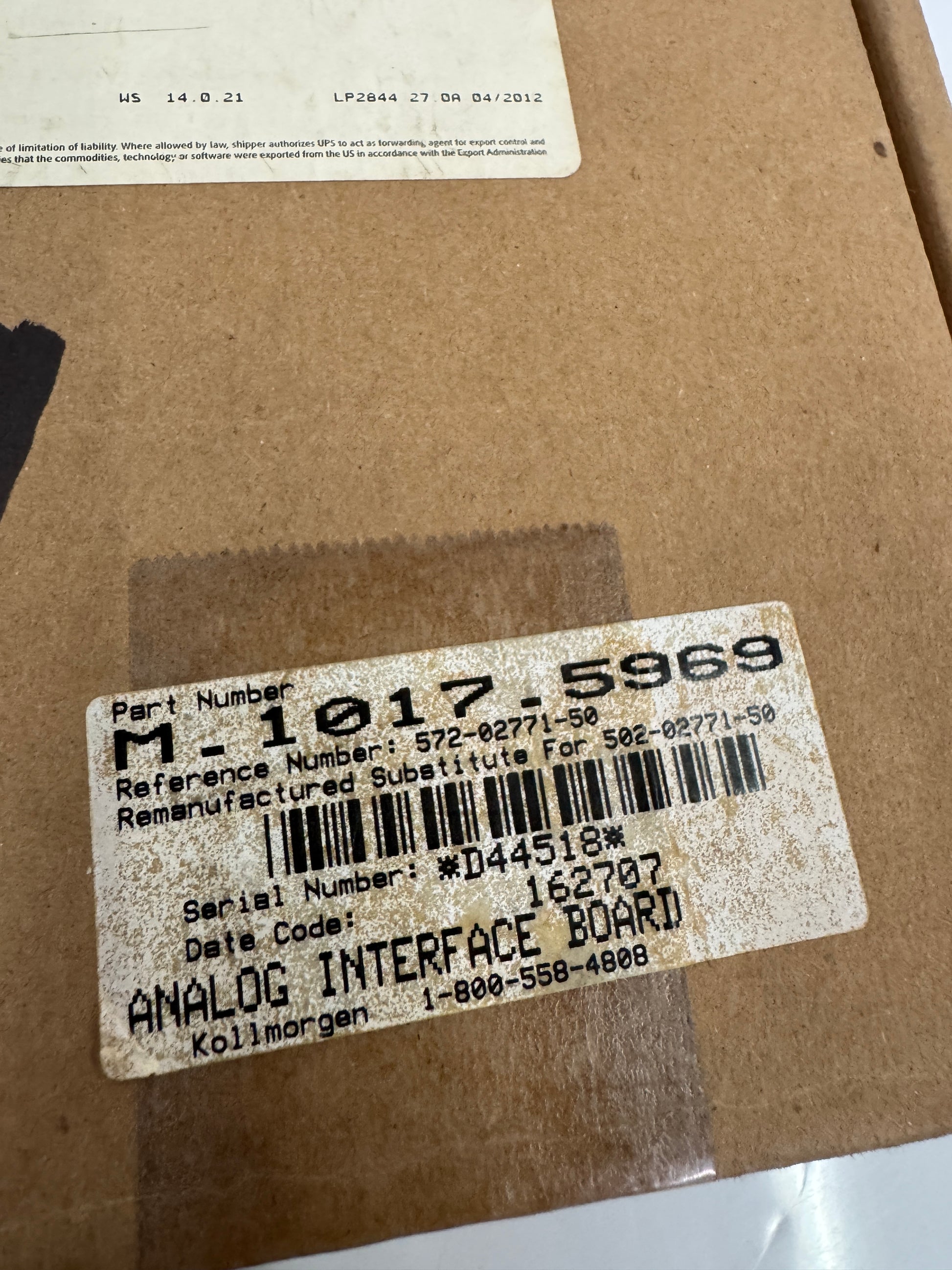

The Kollmorgen Analog Interface Board, part number M-1017-5969, is an industrial control PCB assembly used within motion control and CNC systems. The attached label identifies the unit as an “ANALOG INTERFACE BOARD” and lists part number M-1017-5969, with reference number 572-02771-50. Serial number D44518 and date code 162707 are also shown on the label. The manufacturer name Kollmorgen is printed directly on the identification label.

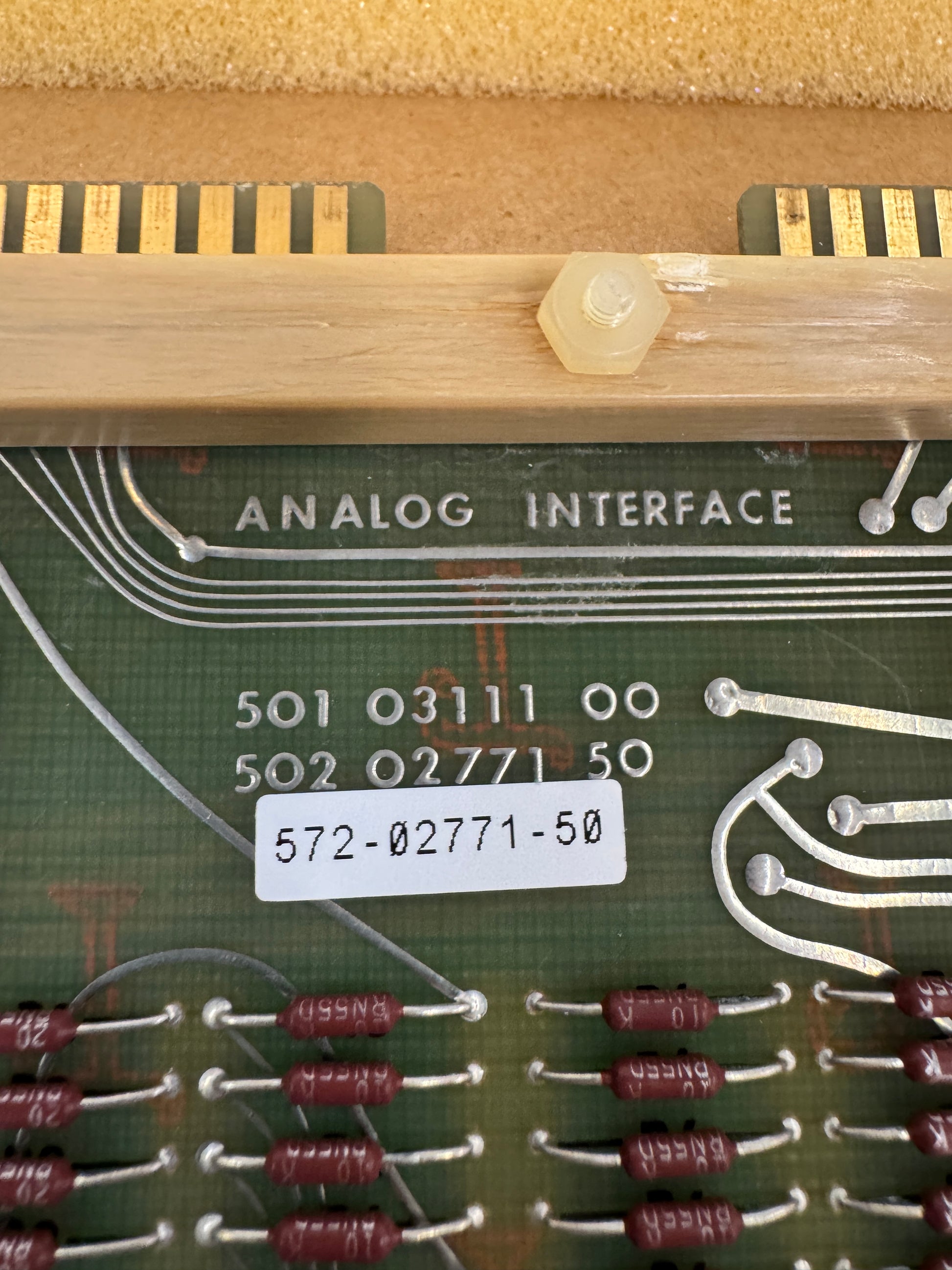

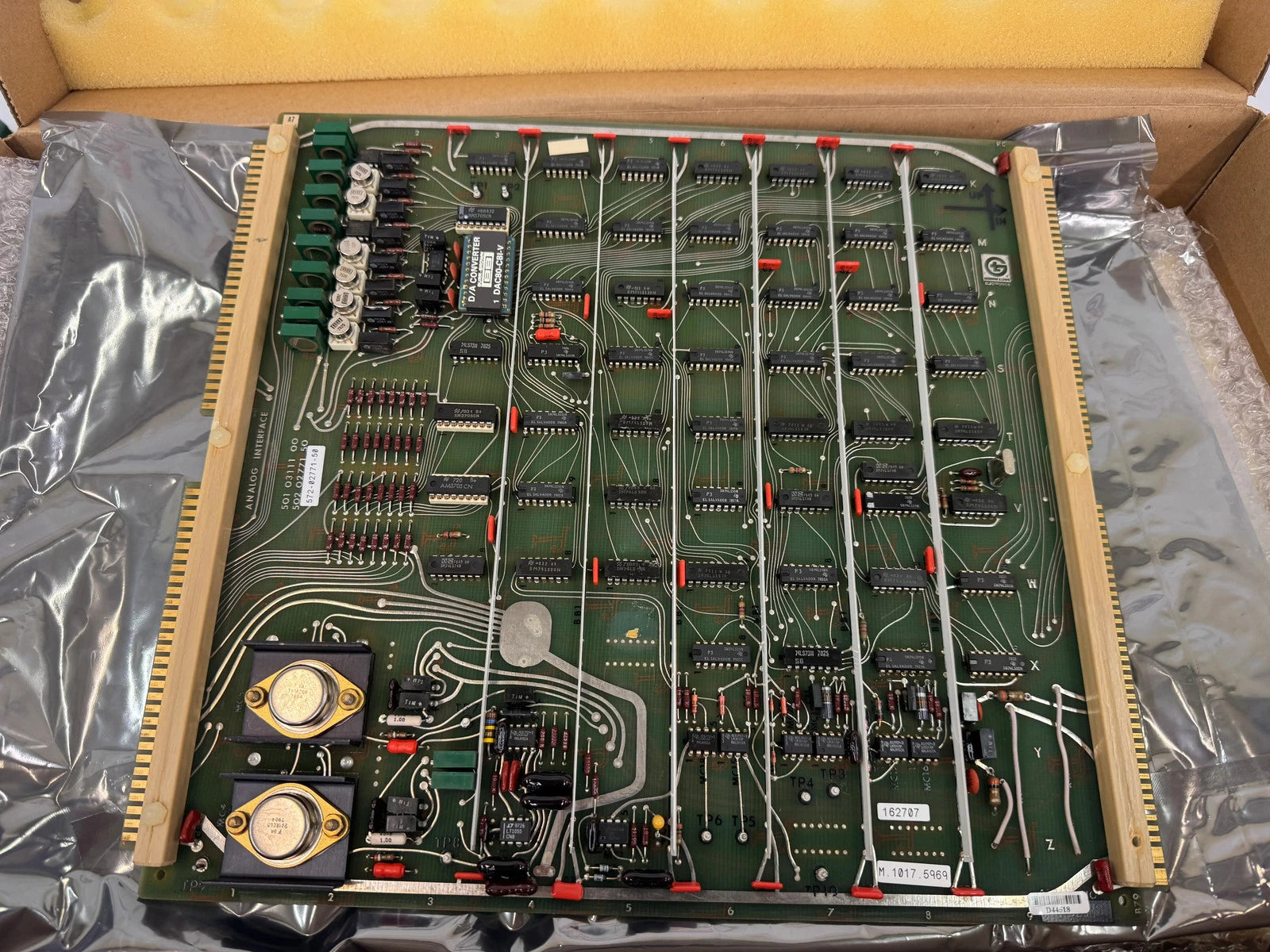

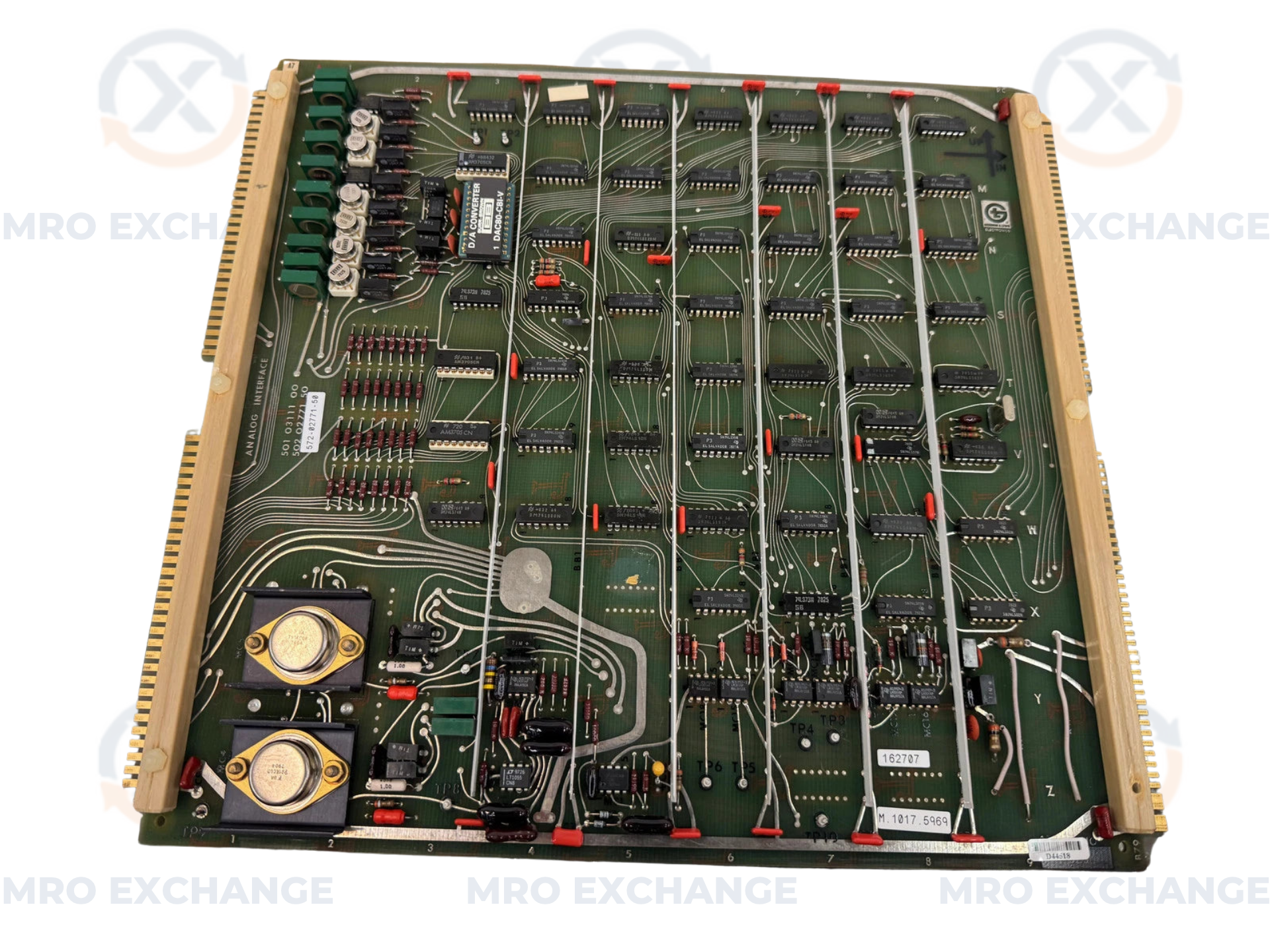

The PCB features dual edge connectors for rack or card cage installation, multiple integrated circuits, discrete resistors, capacitors, and signal conditioning components. Two large metal-can style power transistors are mounted to the board, indicating analog signal handling or drive interface functionality. The layout includes clearly segmented circuit sections and test points marked on the silkscreen.
This assembly is intended for use as an analog interface module in compatible Kollmorgen or related Danaher Motion control systems. Identification details are based strictly on the visible nameplate and PCB markings.
Stock # 0226-446
