Kontron Laser Control Module ASMC2177 115/230V AC
Kontron Laser Control Module ASMC2177 115/230V AC
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

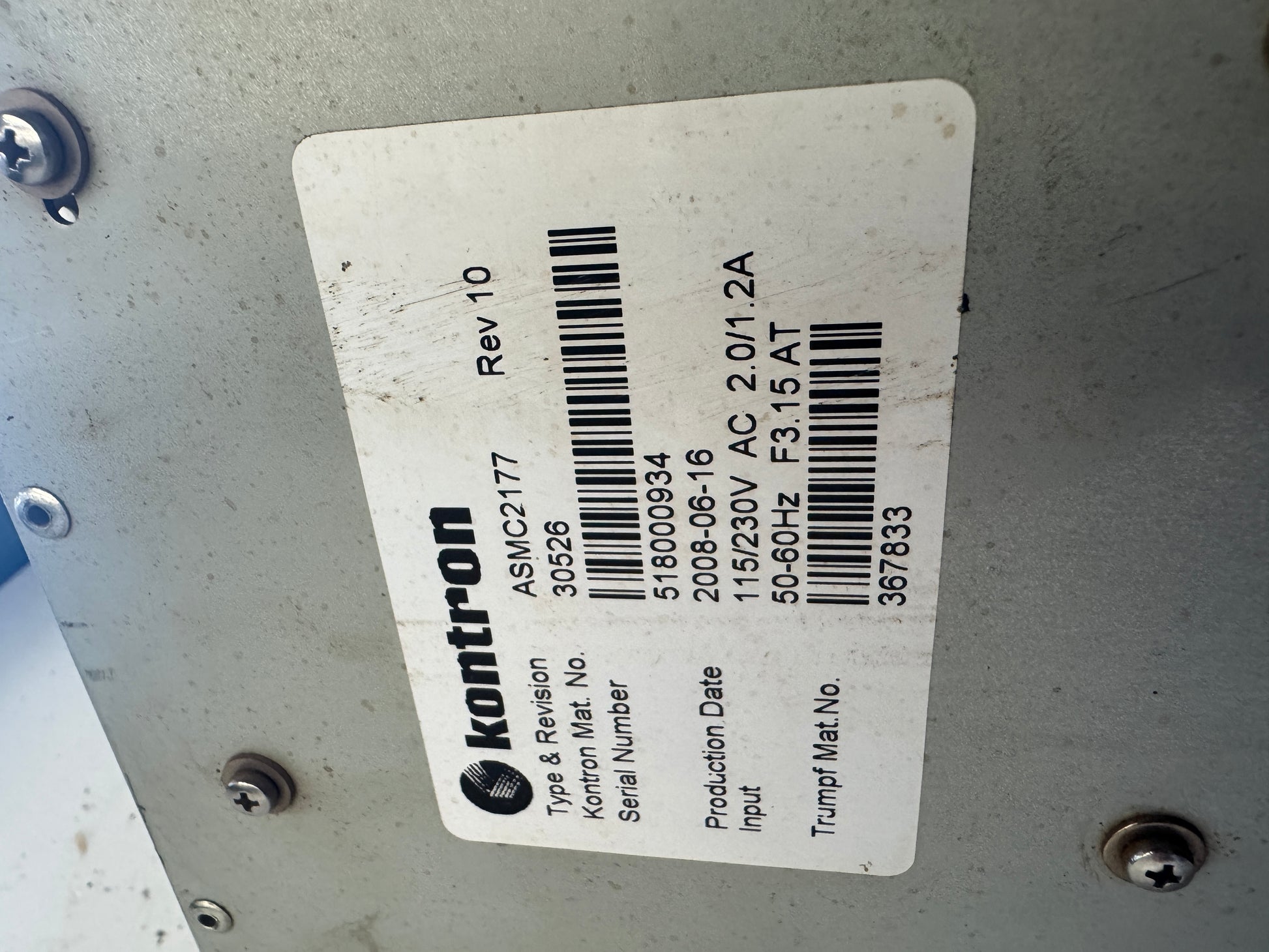

The Kontron ASMC2177 is a laser control module produced for integration into Trumpf laser systems. Nameplate data confirms model ASMC2177, Revision 10, with Kontron Mat. No. 30526 and Trumpf Mat. No. 367833. Serial number 518000934 is recorded on the unit. Production date is 2008-06-16. Input is rated at 115/230V AC, 2.0/1.2A, 50-60Hz, with a F3.15AT fuse rating.

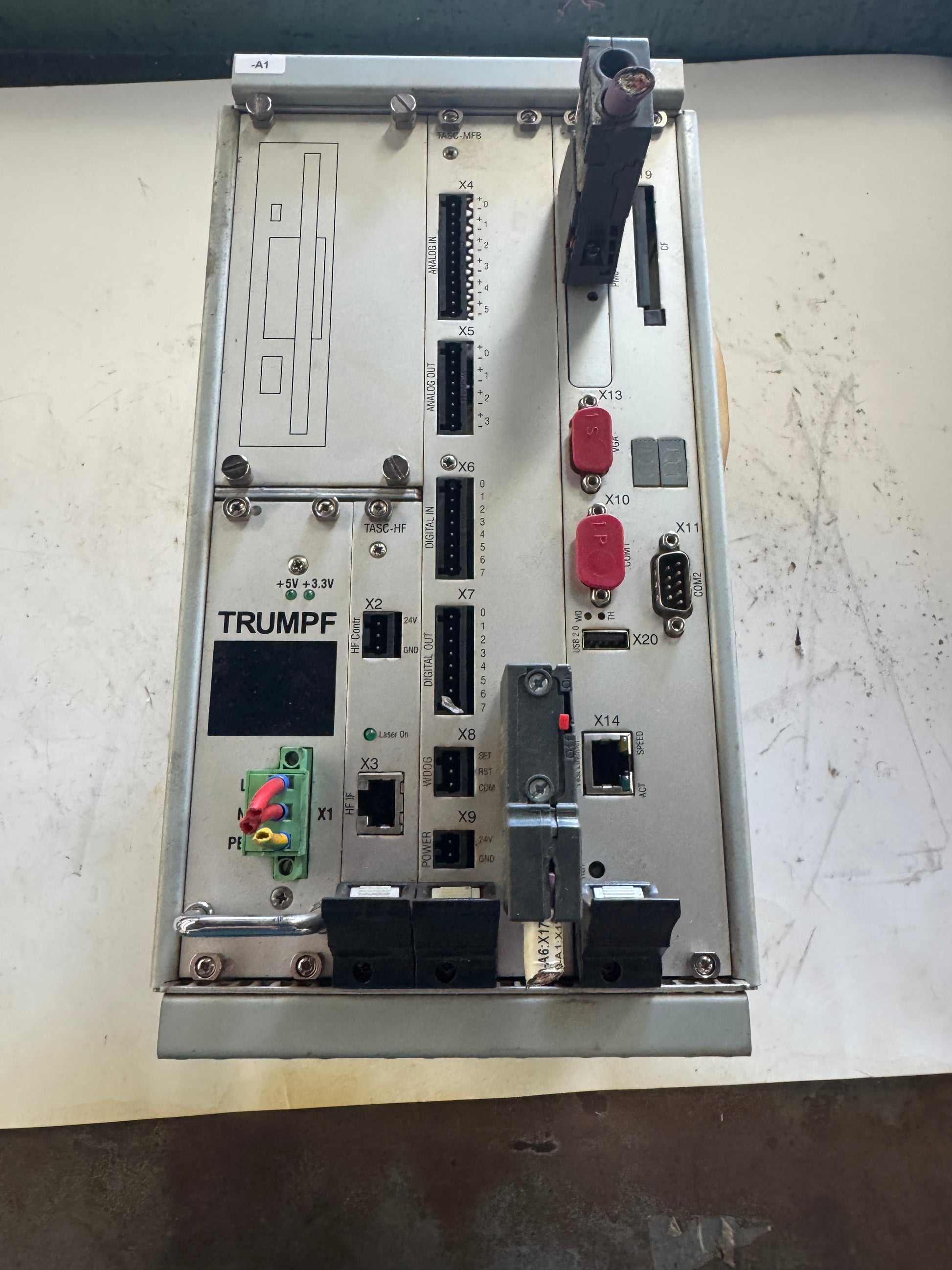

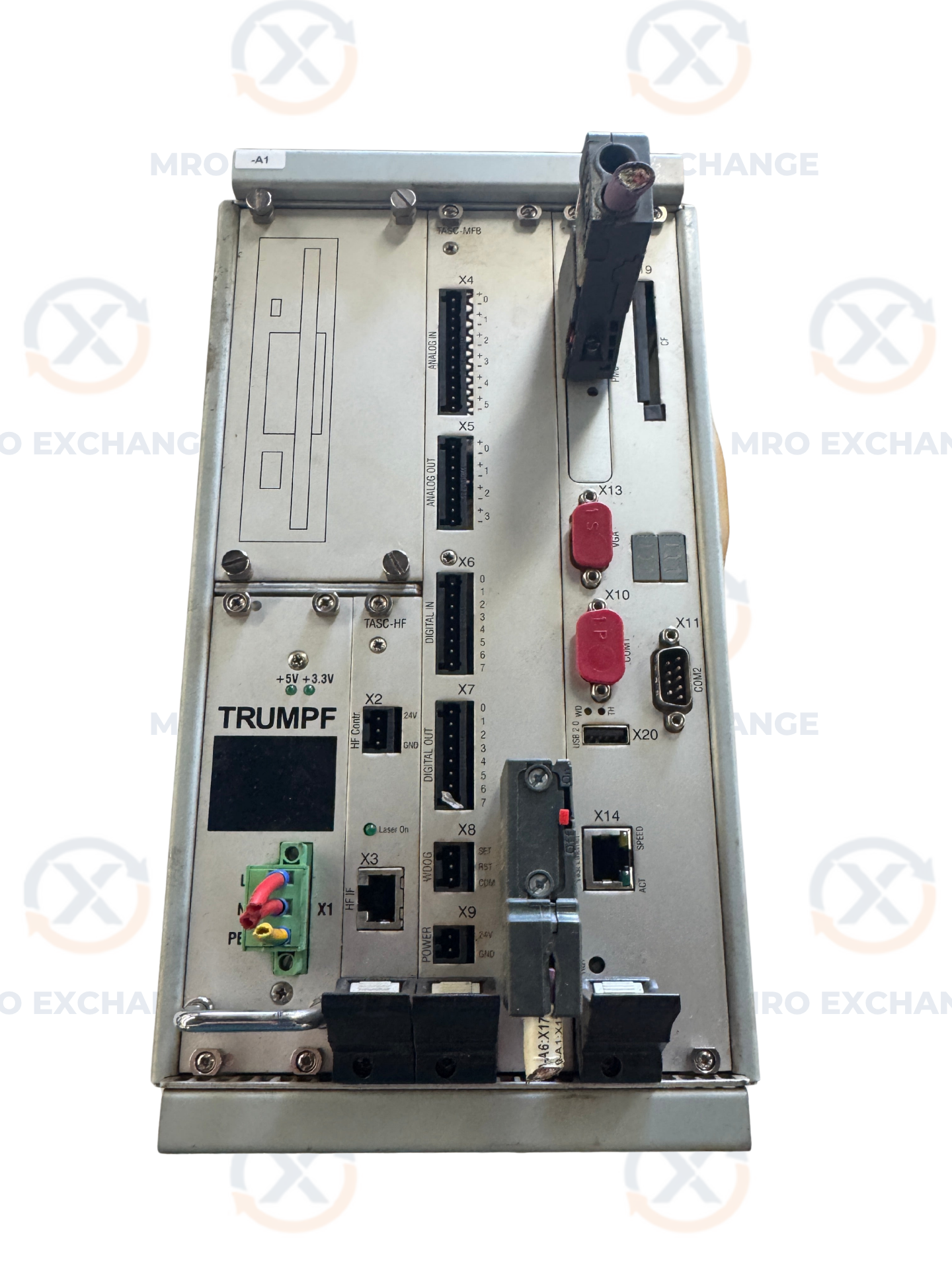

The front panel features a TASC-MFB board section alongside a TASC-HF section, with visible connector positions including X1 through X20 labeled for analog in, analog out, digital in, digital out, power, HF interface, watchdog, and communications. Interfaces visible include COM1, COM2, USB, and an Ethernet port at X14. Status indicators for +5V and +3.3V are present. A CF card slot and a coaxial connector are mounted to the chassis. The unit carries a Trumpf brand label on the front panel.
This module is associated with Trumpf TASC 3 laser control architecture and is referenced in the market under both the Kontron MPN ASMC2177 and Trumpf material number 367833. The unit is offered as surplus, as removed from service. No accessories, cables, or external hardware are included unless shown in photos.
Stock # 0426-02071
