Lapp Hook-Up Wire 4520001 1.5 mm², 16 AWG, 100 m, Green/Yellow
Lapp Hook-Up Wire 4520001 1.5 mm², 16 AWG, 100 m, Green/Yellow
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 4520001
Stock #: 0326-01054
Used in control cabinet wiring, panel assembly, and machine internal circuits designed for compliance with European harmonized standards, the LAPP H07V-K 1G1.5 is a finely stranded single-core PVC hook-up wire rated at 450/750V. Part number 4520001, article number confirmed on original LAPP packaging label. Color is green/yellow, the standard designation for protective earth and equipotential bonding conductors in IEC and EN compliant installations.

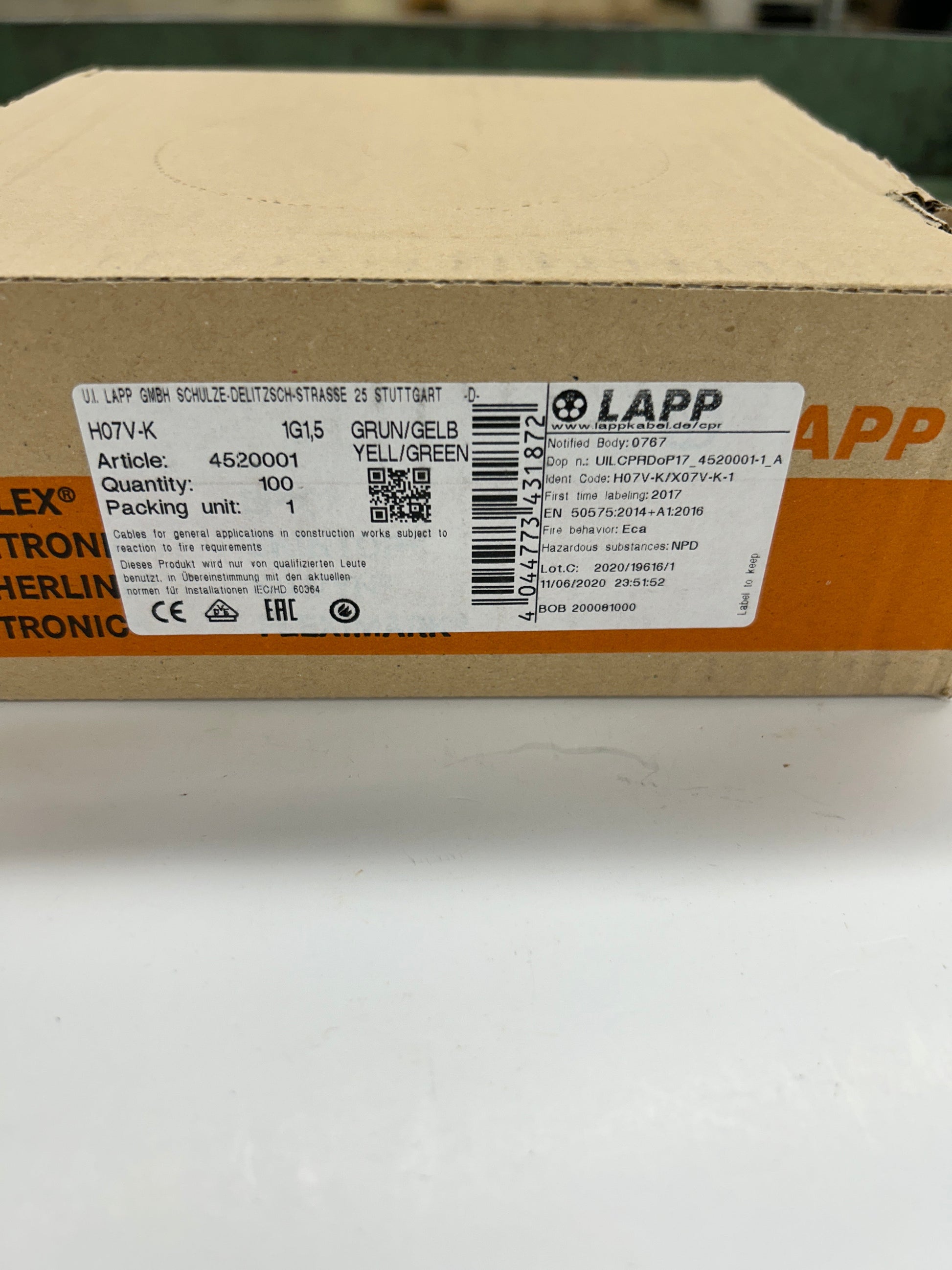

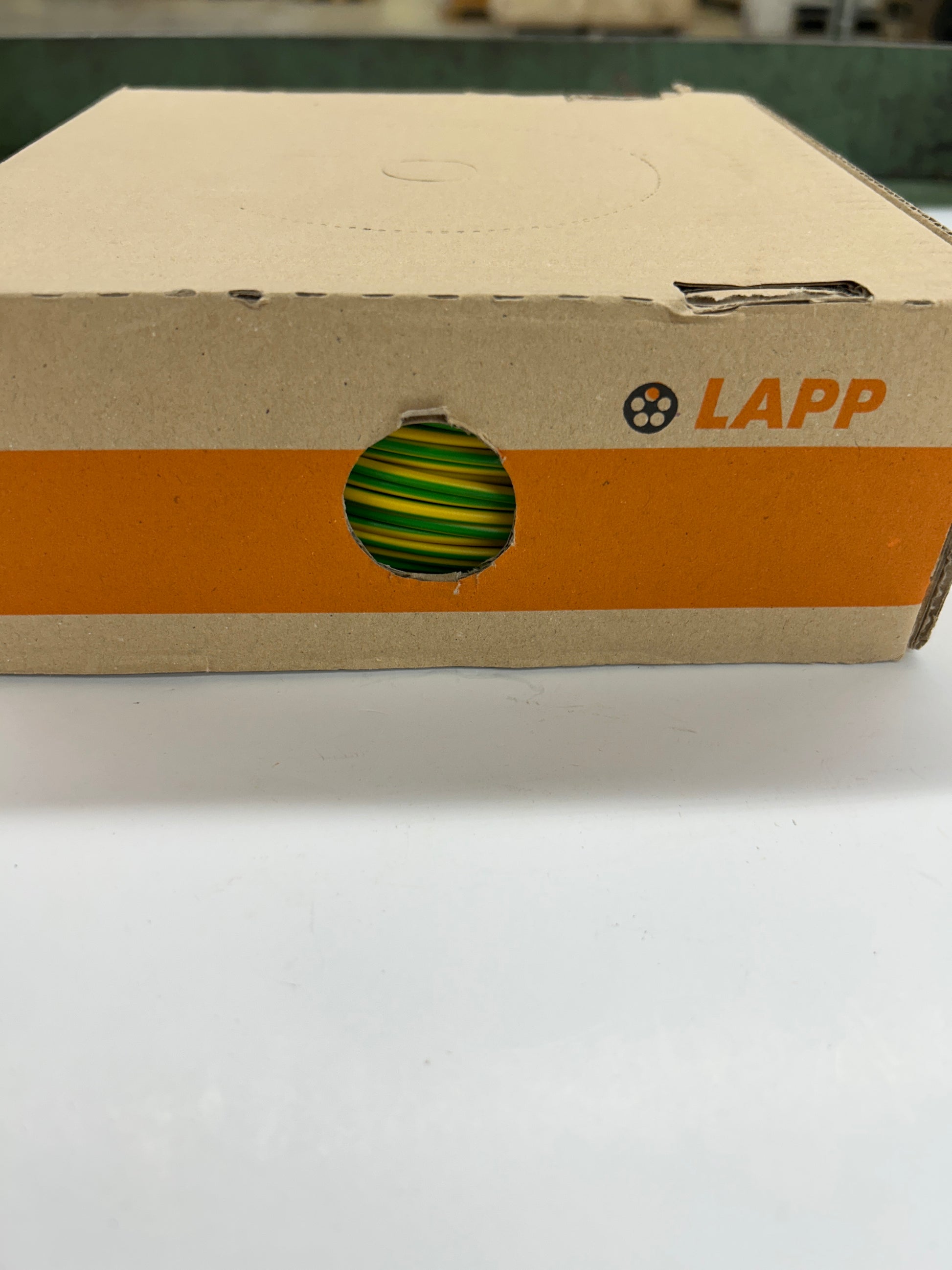

Conductor cross-section is 1.5 mm² (16 AWG equivalent), with a bare copper stranded conductor per IEC 60228 Class 5. PVC insulation per EN 50525-2-31 and VDE 0285-525-2-31. HAR certified, carrying the EN 50575:2014+A1:2016 marking with fire behavior class Eca. Quantity per pack is 100 meters (approximately 328 ft), packed in original LAPP cardboard dispenser box with circular cable access port. Lot code 2020/19616/1, labeled 11/06/2020. Manufactured by U.I. Lapp GmbH, Stuttgart, Germany.
Nominal voltage U0/U: 450/750V. Temperature range: -30°C to +80°C. Outer diameter approximately 3.4 mm. Suitable for installation in conduits, enclosed cable ducts, on plaster, or as equipotential bonding wire in machinery and control systems destined for European markets.
Stock # 0326-1054
