LS Industrial Systems ABN254-C-16/250A Molded Case Circuit Breaker Untested Surplus
LS Industrial Systems ABN254-C-16/250A Molded Case Circuit Breaker Untested Surplus
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Open Box - Unused
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: ABN254-C-16/250A
Stock #: 0626-01483
Product Specifications
- Manufacturer: LS Industrial Systems
- MPN / Model: ABN254-C-16/250A
- Product Type: Molded Case Circuit Breaker (MCCB)
- Frame: 250AF
- Poles: 4P
- Rated Current (Iu): 250A
- Operating Voltage (Ue): AC 400V
- Insulation Voltage (Ui): 690V
- Impulse Withstand Voltage (Uimp): 8kV
- Breaking Capacity (Icu): 16kA at AC 400V
- Service Breaking Capacity (Ics): 100% Icu
- IEC Category: A
- Frequency: 50Hz
- Max Operating Temperature: 40°C
- R/S/T Thermal Setting (Ith): 250A
- R/S/T Magnetic Setting (Im): 1250A
- N Thermal Setting (Ith): 125A
- N Magnetic Setting (Im): 800A
- Standard: IEC 60947-2
- Approvals: CE, UE DY3501, UE DY3101
Product Description

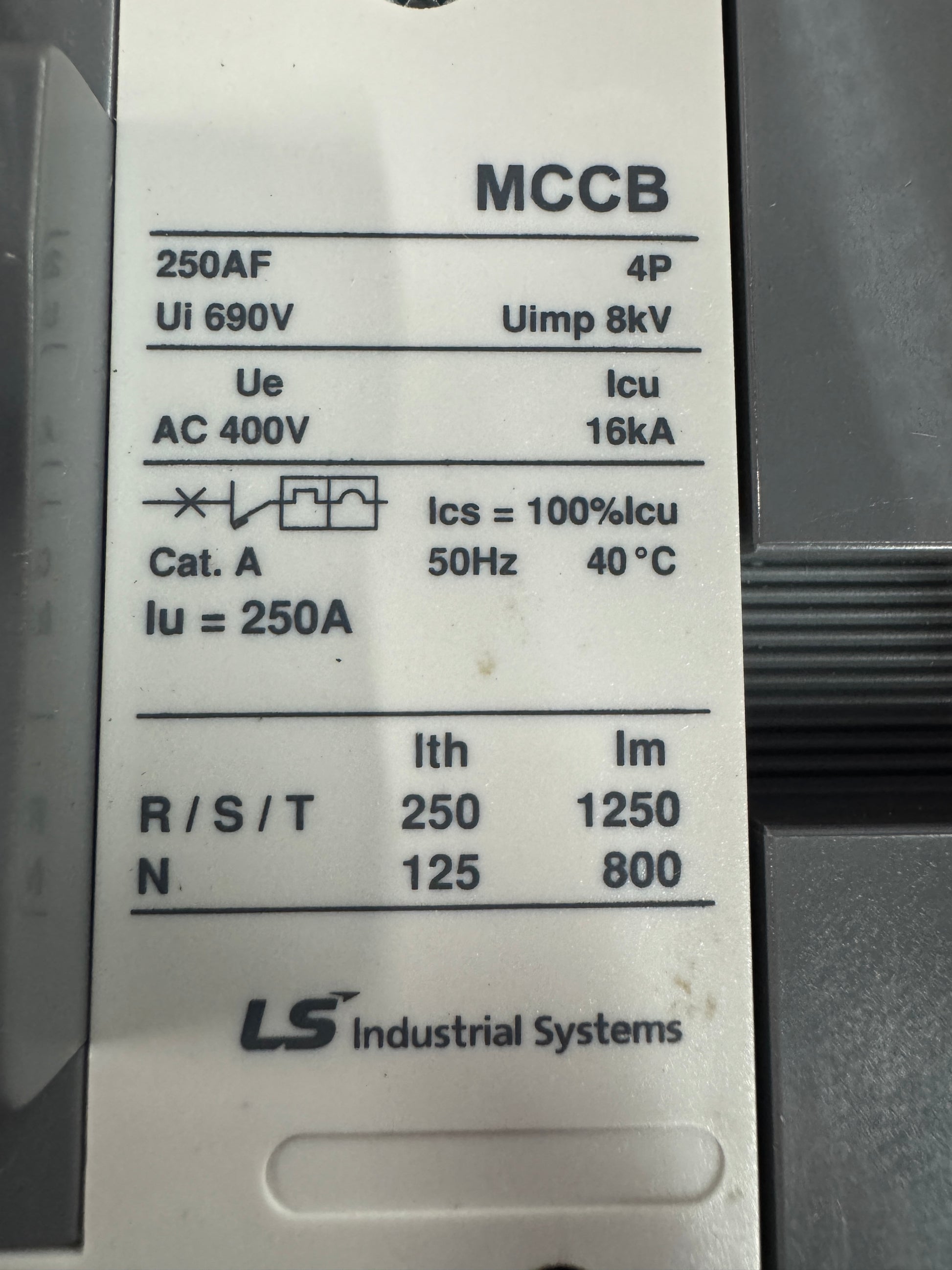

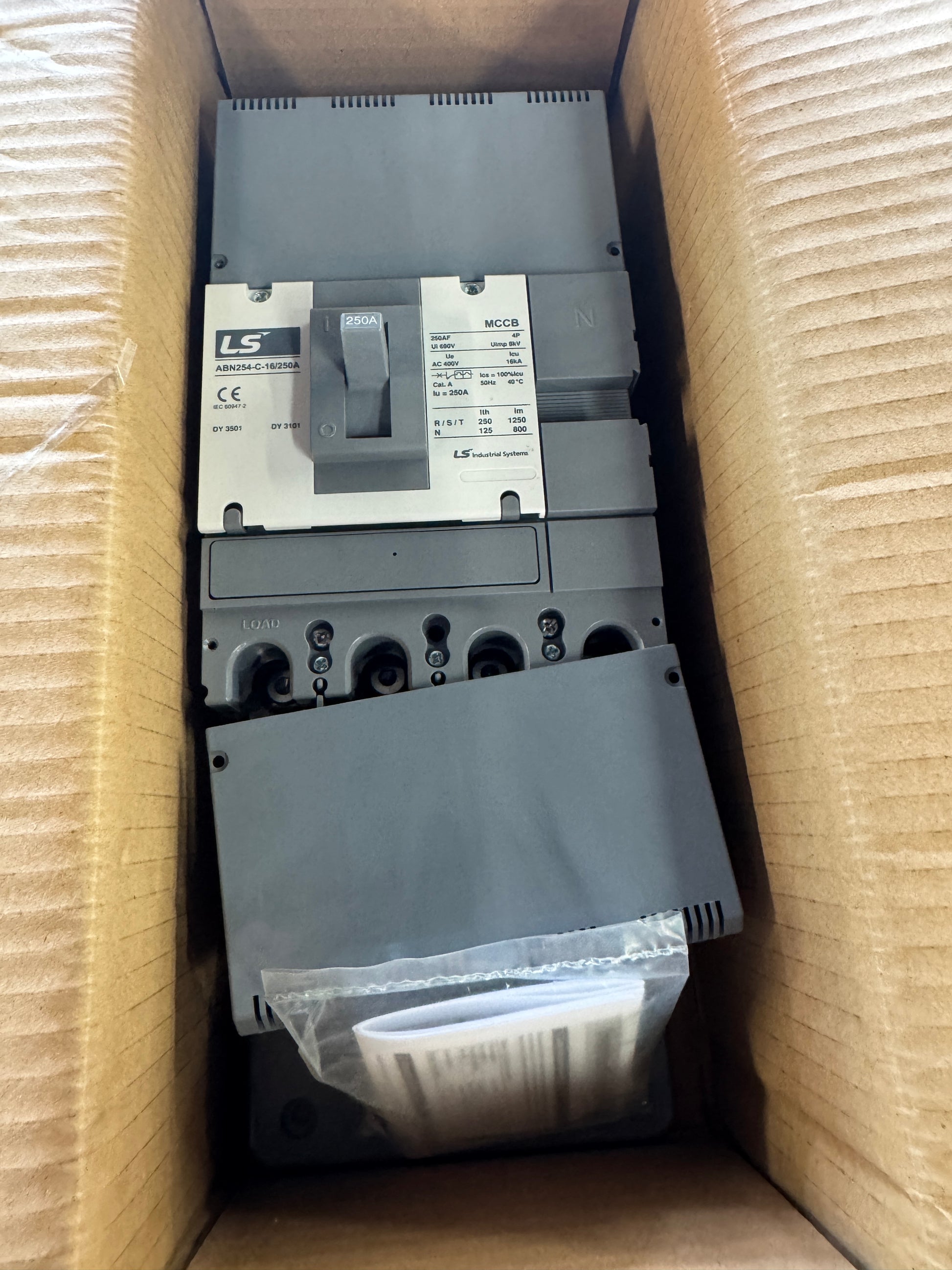

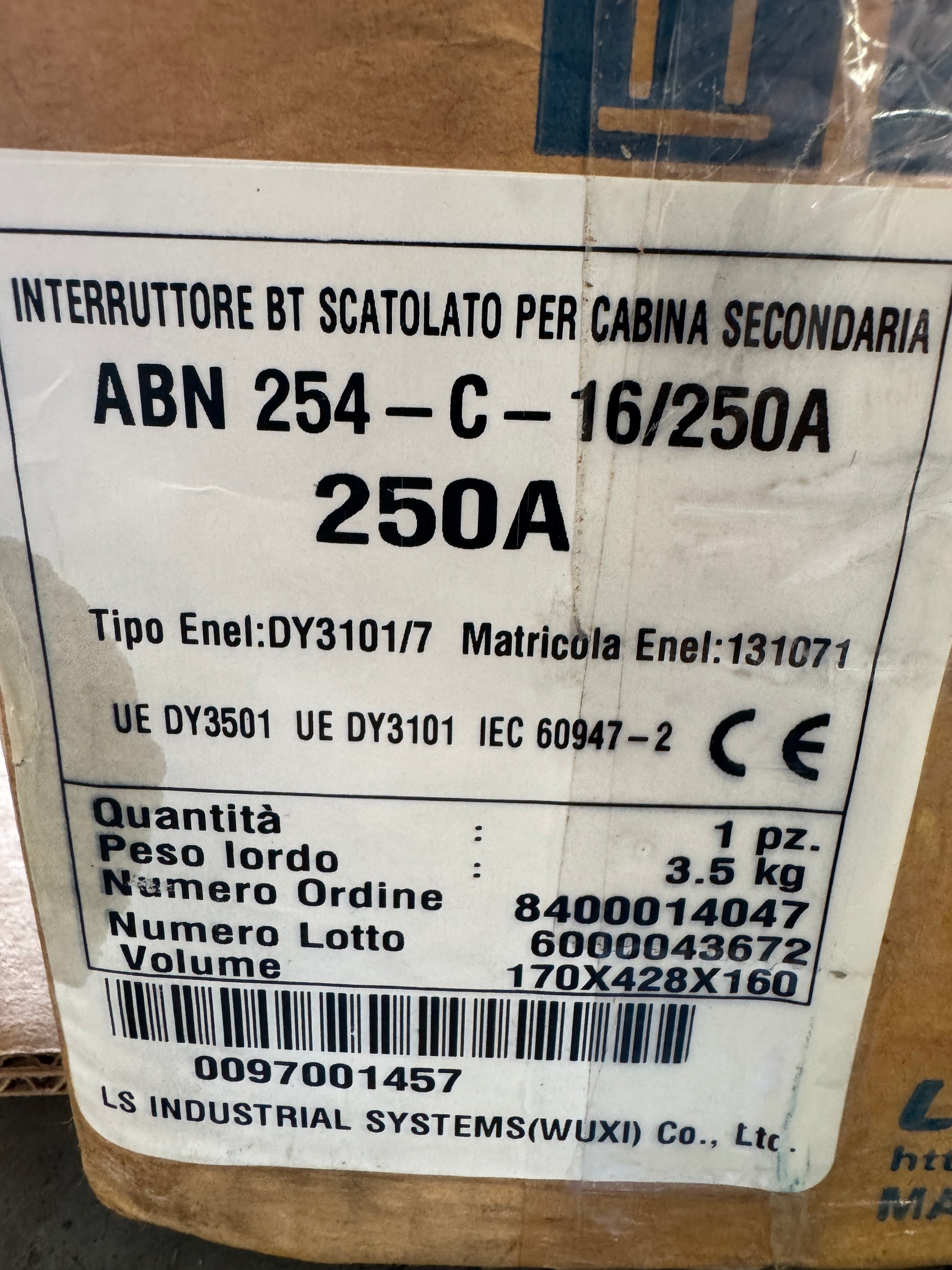

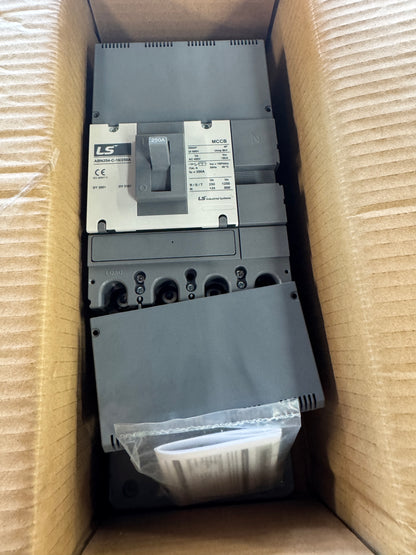

The LS Industrial Systems ABN254-C-16/250A is a 4-pole, 250A molded case circuit breaker with a 250AF frame rating. Catalog number ABN254-C-16/250A is confirmed on both the unit nameplate and the original manufacturer box label. Operating voltage (Ue) is AC 400V, insulation voltage (Ui) is 690V, and impulse withstand voltage (Uimp) is 8kV. Rated breaking capacity (Icu) is 16kA at AC 400V, with service breaking capacity (Ics) equal to 100% of Icu. Rated thermal current for R/S/T poles is 250A with a magnetic setting of 1250A; the neutral pole carries a 125A thermal rating and an 800A magnetic setting. Conforms to IEC 60947-2 and carries CE marking along with UE DY3501 and UE DY3101 approval designations. The unit is in the original LS Industrial Systems manufacturer packaging.
