Marathon Electric AC Motor 56T17F2041B P - 1 HP 1800 RPM

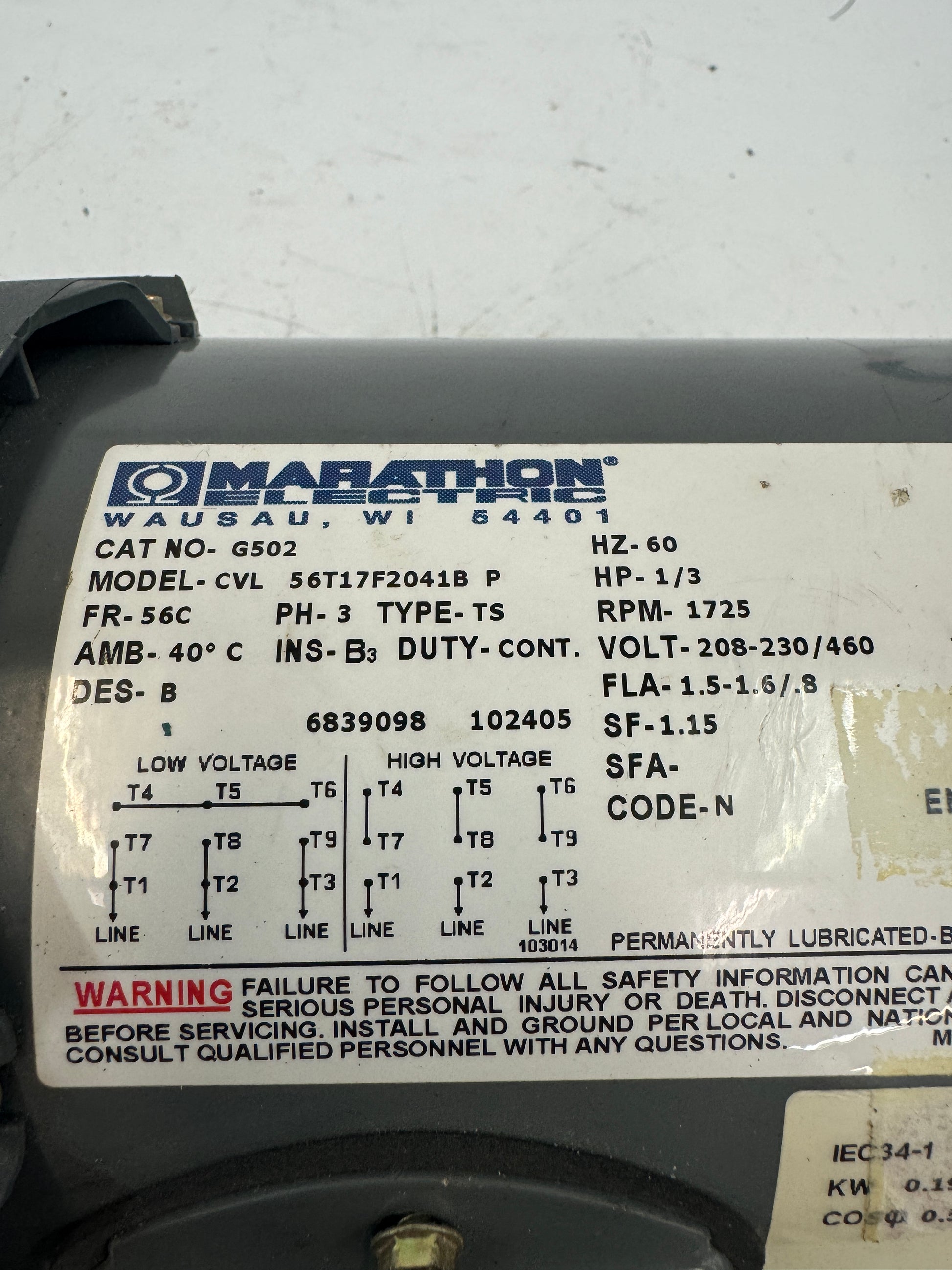

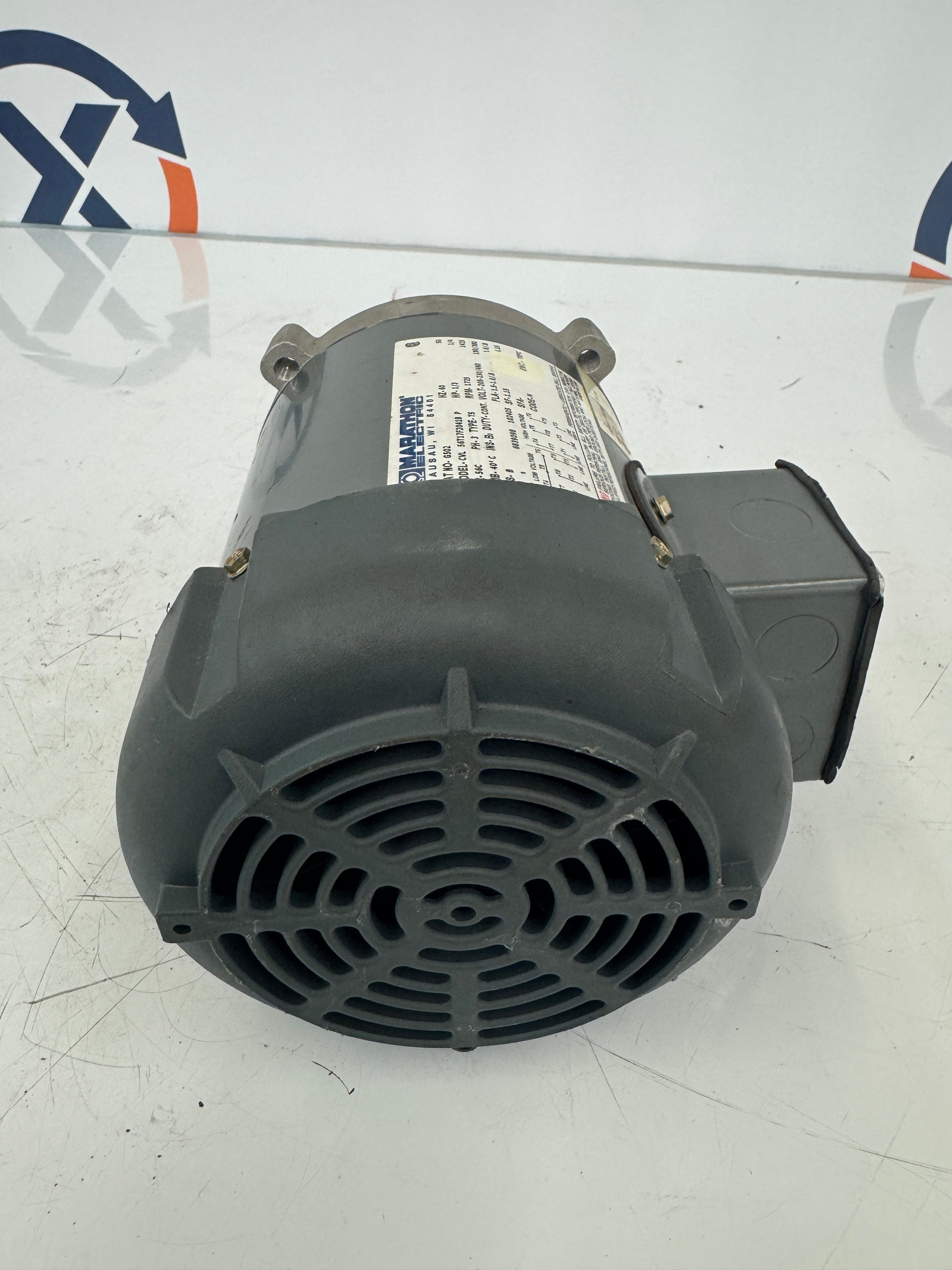

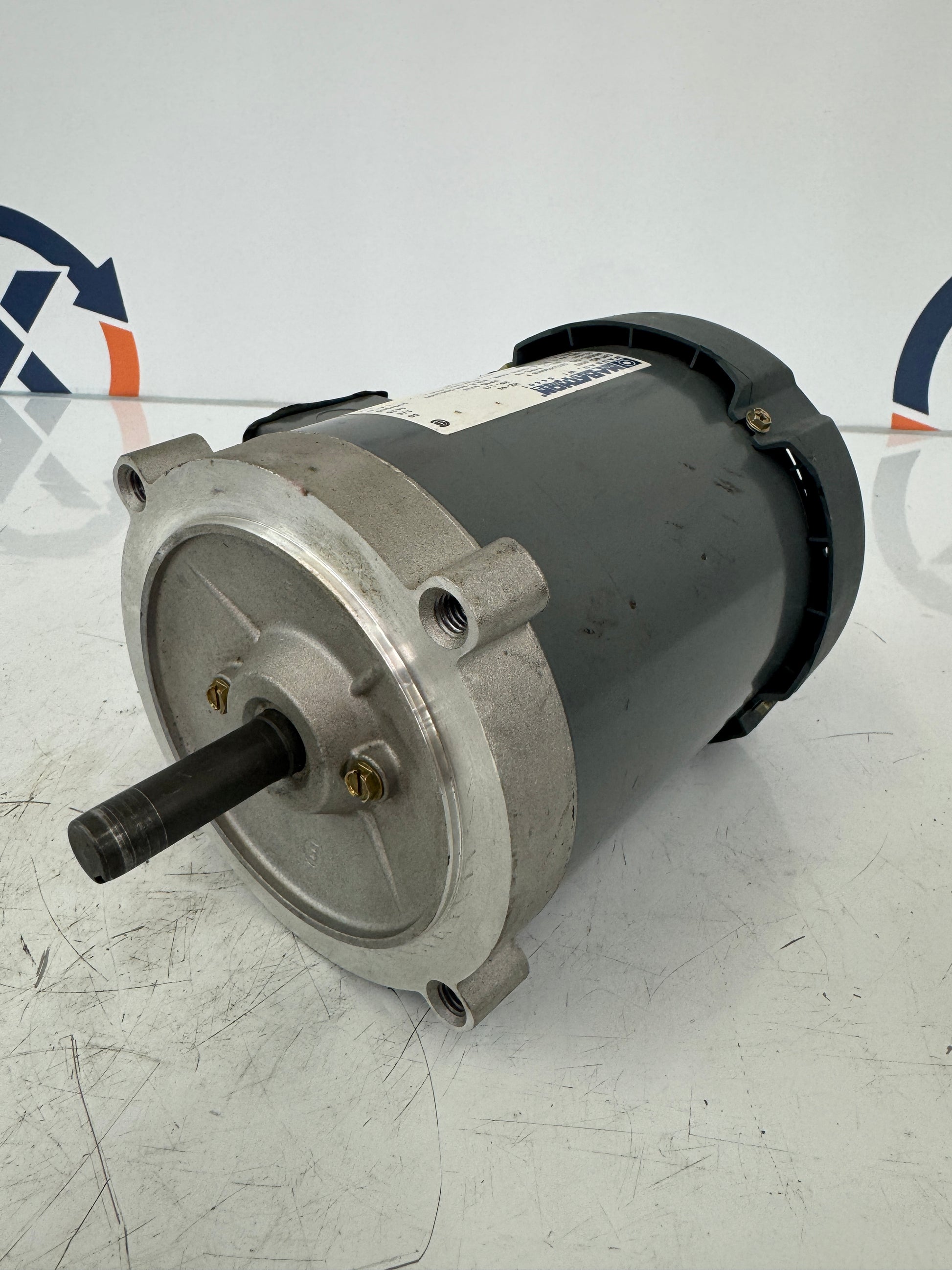

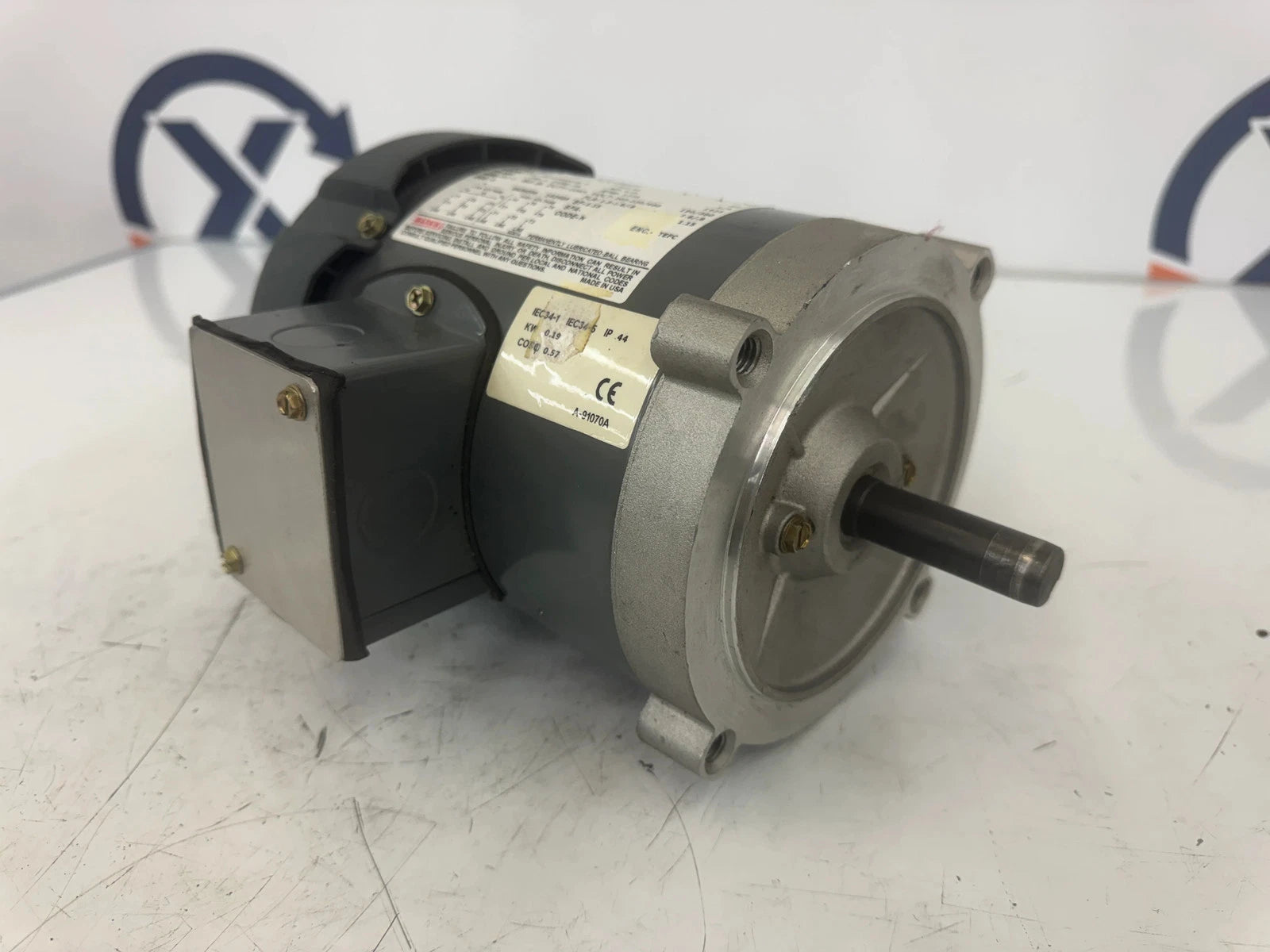

This listing is for a used Marathon Electric AC motor, model 56T17F2041B P, catalog number G502, manufactured in Wausau, Wisconsin. The motor is rated at 1/3 HP, 3-phase, 1725 RPM, 60 Hz, with a voltage rating of 208 to 230/460 V and full load amps of 1.5 to 1.6/0.8 A. The NEMA frame is 56C, insulation class B, ambient temperature rating 40 degrees C, duty continuous, service factor 1.15, design B, type TS. The motor features a C-face flange mount with a straight output shaft and an enclosed construction with fan cooling. Permanently lubricated bearings are noted on the nameplate. The unit is CE marked and carries IEC34-1 compliance notation. This motor is well suited for direct drive applications in machine tools, pumps, fans, and general industrial equipment requiring a compact 56C frame 3-phase motor. The unit shows general surface wear consistent with prior industrial use. No testing or performance claims are made. All specifications are sourced directly from the visible nameplate label.

Stock # 0226-376
