Mazak (Yamazaki Mazak) M/T Controller Board IPM-200 +24V DC
Mazak (Yamazaki Mazak) M/T Controller Board IPM-200 +24V DC
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

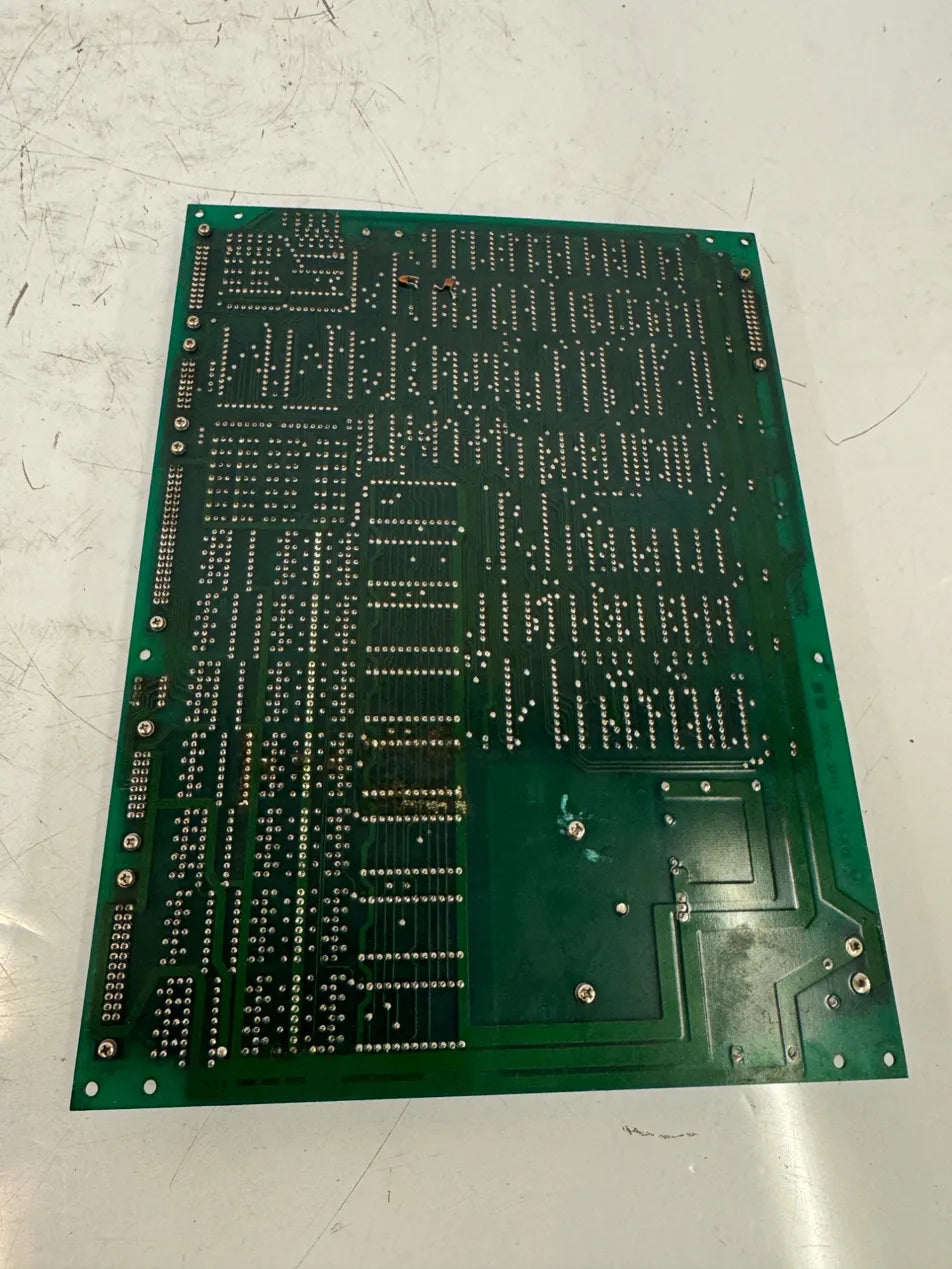

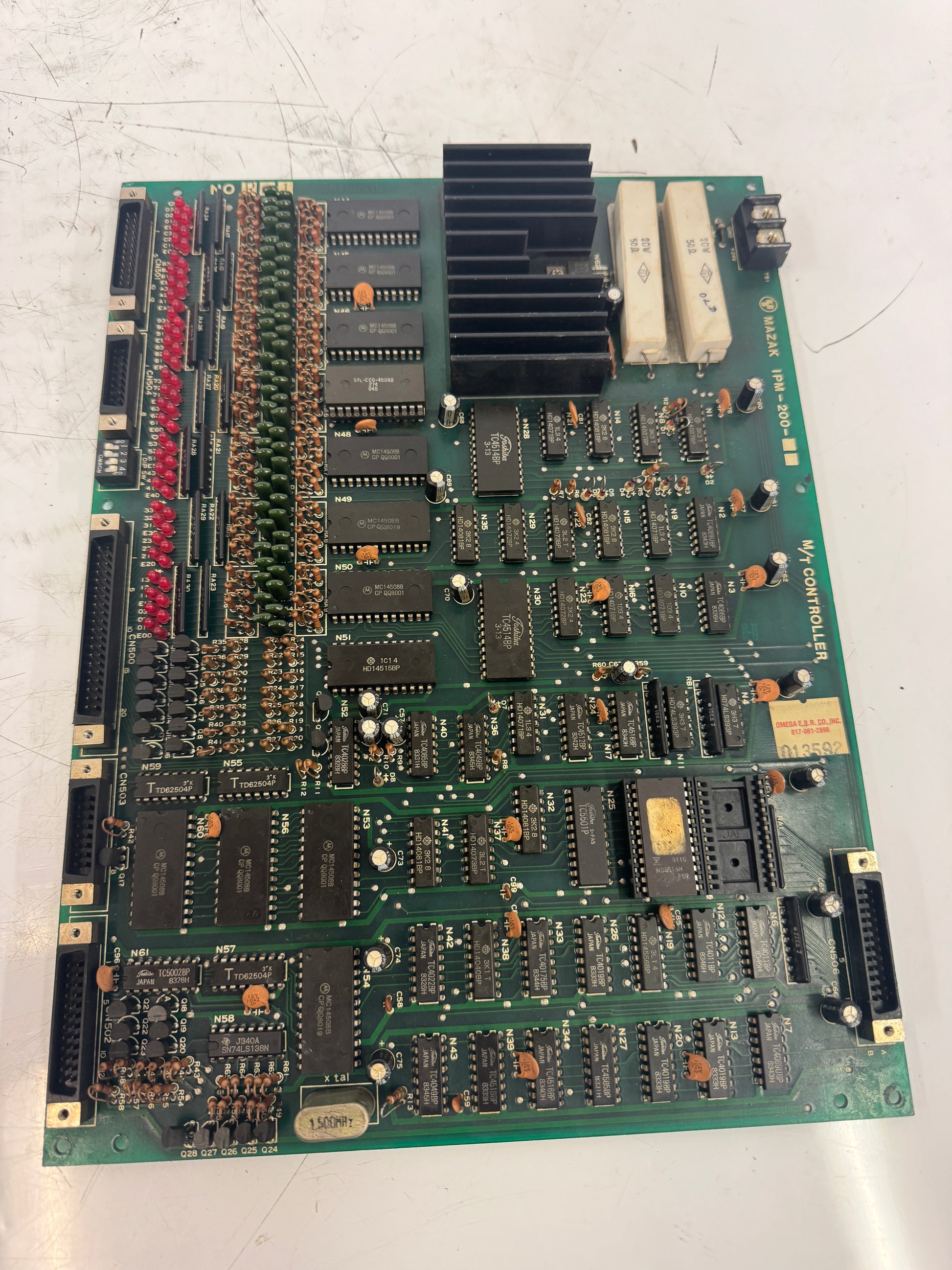

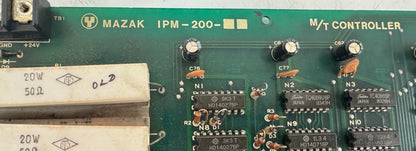

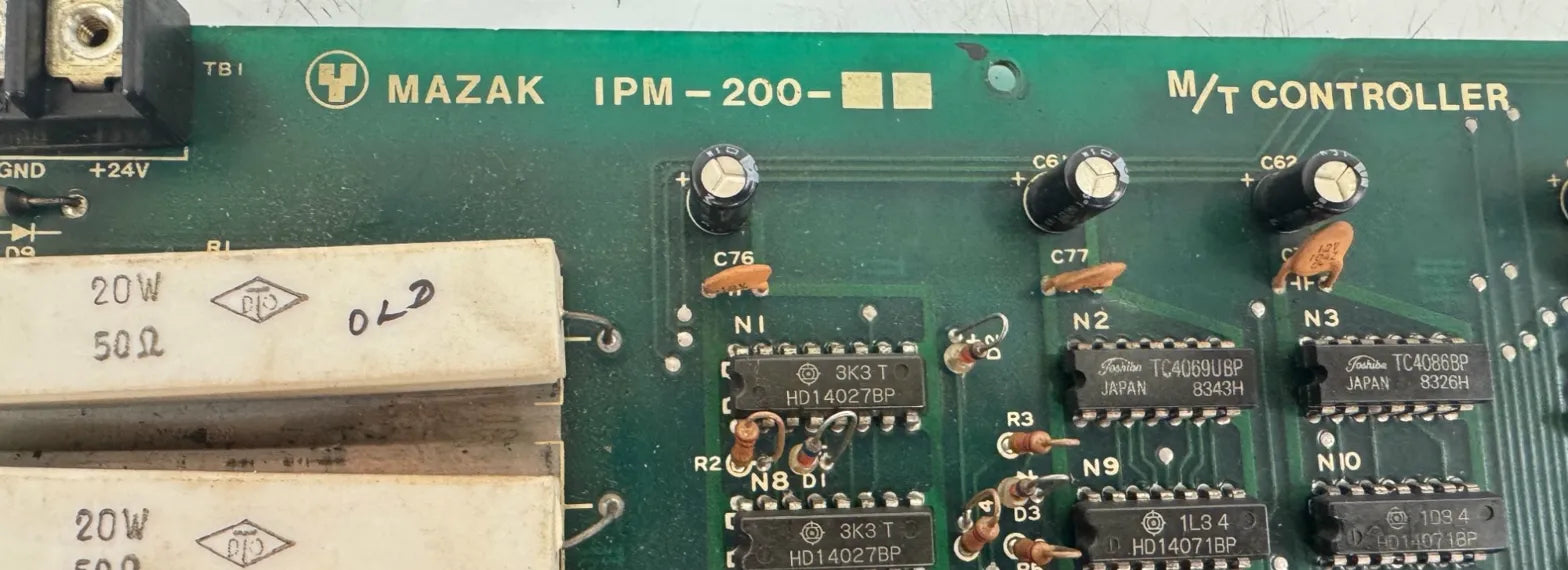

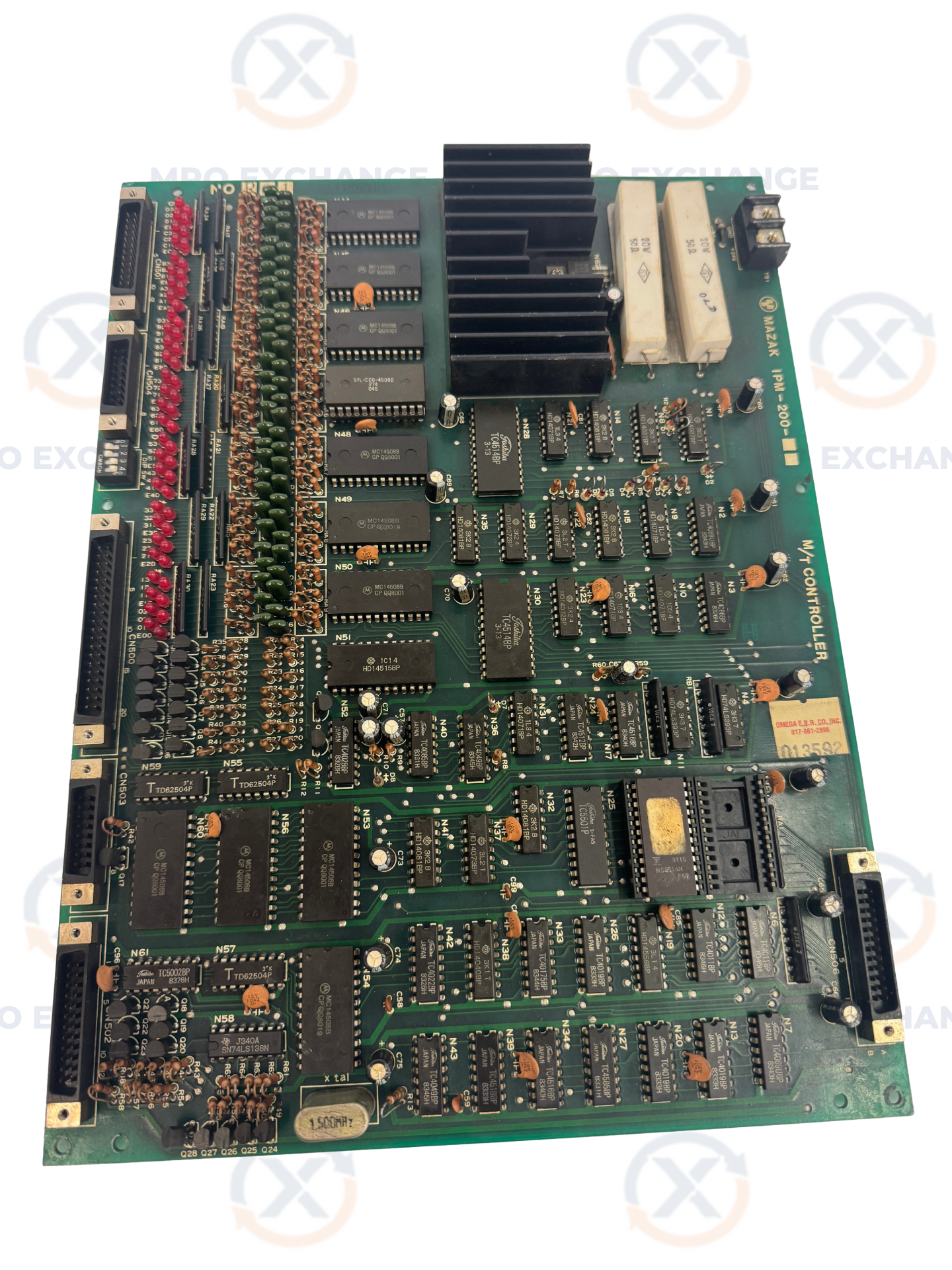

The Mazak IPM-200 is a M/T Controller Board used in Yamazaki Mazak CNC machining centers equipped with the Mazatrol control system. Silkscreen markings on the PCB identify it as the IPM-200 and confirm the M/T Controller designation. The board features a +24V DC supply reference visible on the component side, along with a large heatsink assembly, power resistors rated at 20W 50 ohm, multiple IC logic packages including Toshiba TC4069UBP and TC4086BP CMOS devices, Hitachi HD14027BP and HD14071BP logic chips, and a 1.500 MHz crystal oscillator. Multiple edge connectors and a dense through-hole component layout are consistent with the machine interface and sequencer functions associated with this board in Mazatrol T-series and M-series control systems. The reverse side of the board shows a through-hole solder matrix with no visible damage. A service label from Omega C.B.R. Co., Inc. is affixed to the component side, indicating prior service history. Part number IPM-200 is also referenced in Radwell International documentation as the M/T Control Board for Mazak. This item is sold as surplus and is intended for buyers sourcing replacement control hardware for Mazak CNC machines running compatible Mazatrol control configurations.
Stock # 0226-571
