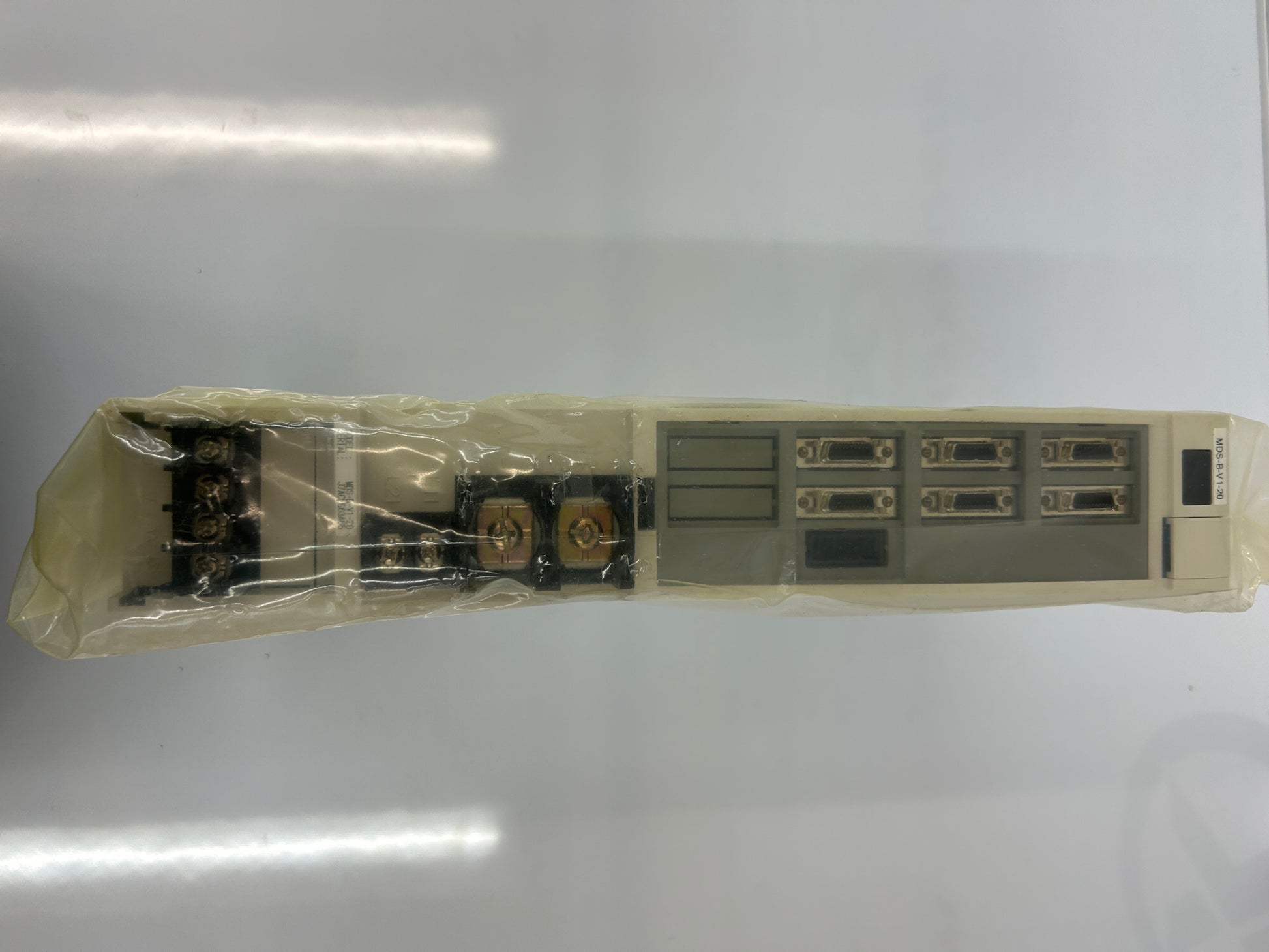

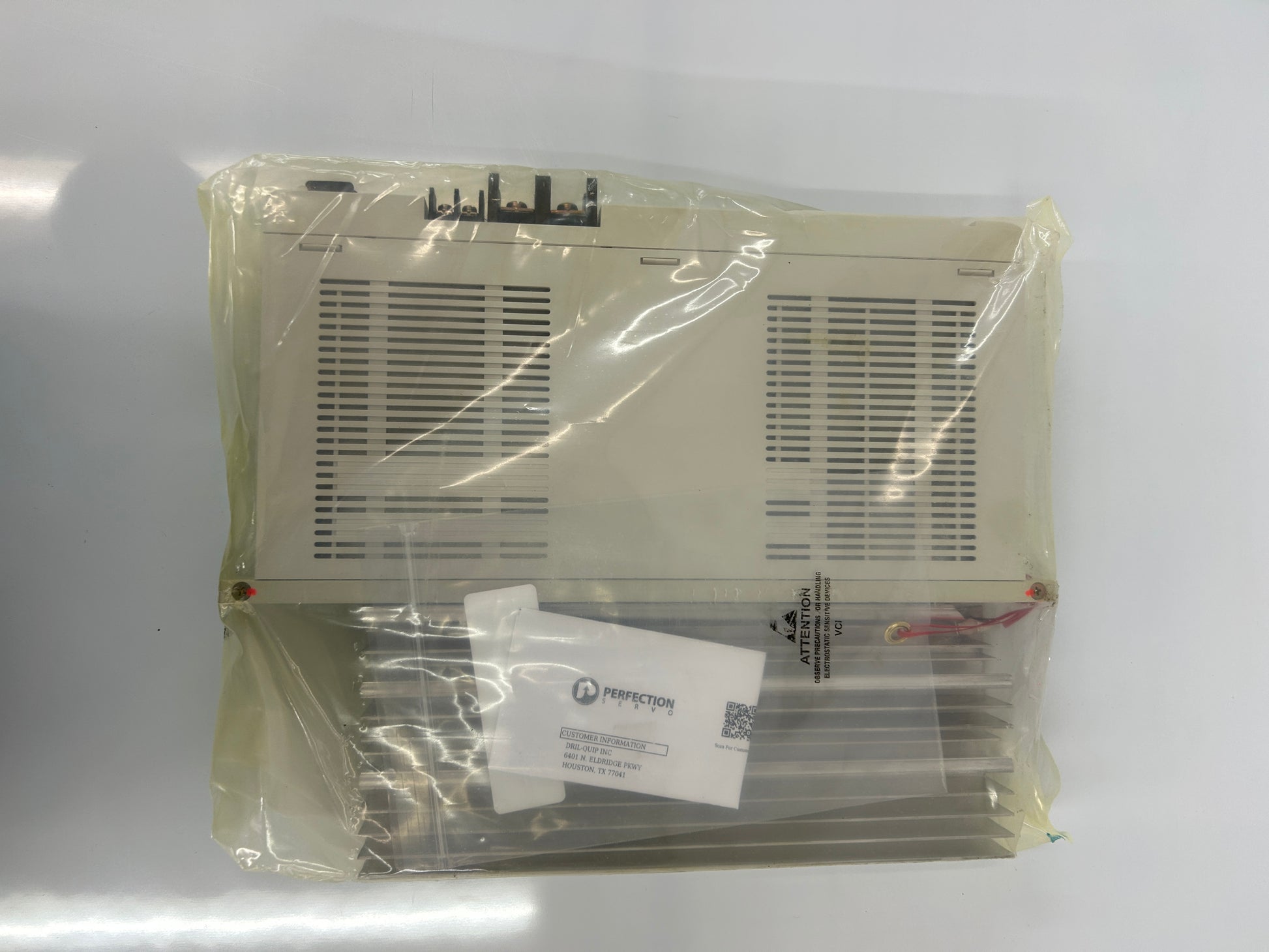

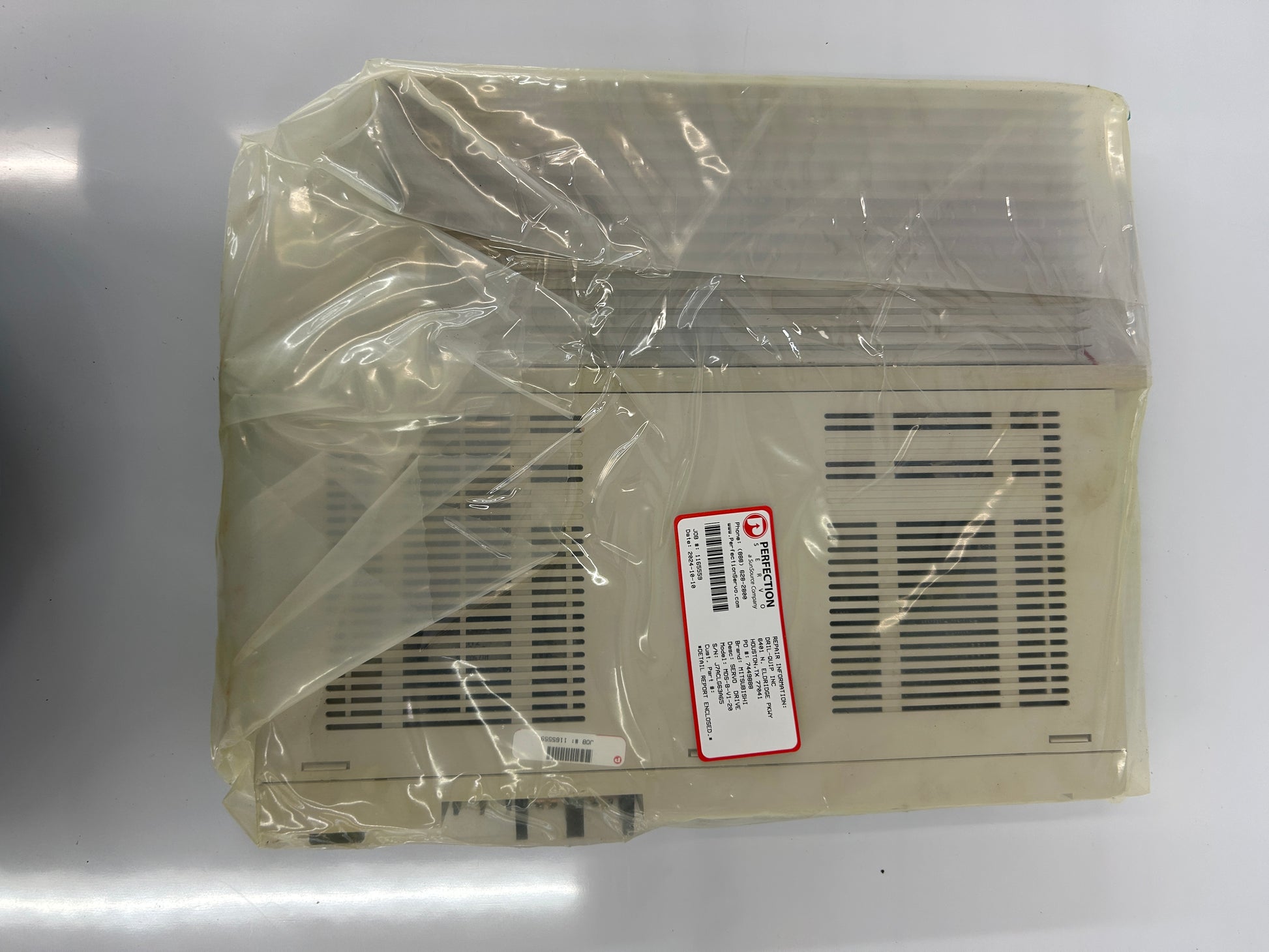

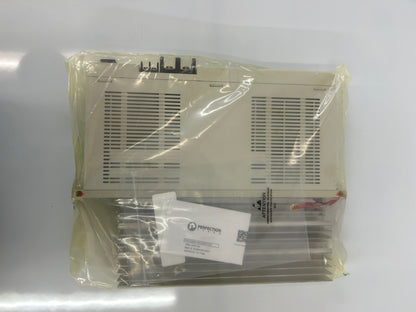

Mitsubishi MDS-B-V1-20 200/200-230 VAC, 270-311 VDC Servo Drive - New in Package
Mitsubishi MDS-B-V1-20 200/200-230 VAC, 270-311 VDC Servo Drive - New in Package
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:
The Mitsubishi MDS-B-V1-20 is a single axis AC servo drive unit from the MELDAS MDS-B Series, rated at 2.0 kW for use with Mitsubishi HA Series and HC Series servo motors. This drive accepts a 270 to 311 VDC bus input from a compatible MDS-B Series power supply unit and 200 to 230 VAC control power, producing the output required to drive a single feed axis on CNC machining centers, lathes, and other production equipment configured around the Mitsubishi MELDAS M500 control platform.
The MDS-B Series replaced the earlier MDS-A Series and was developed to meet European LVD safety directives, with TUV approval covering the CV power regenerative supply, SP spindle drives, and the V1 and V2 single and dual axis servo drive units. An added power supply emergency stop input allows the external contactor to be directly shut off from the power supply when the NC emergency stop hot line is not active. Compatibility with the MDS-C1 Series allows MDS-B units to be used in the same machine as C1 units without modification.

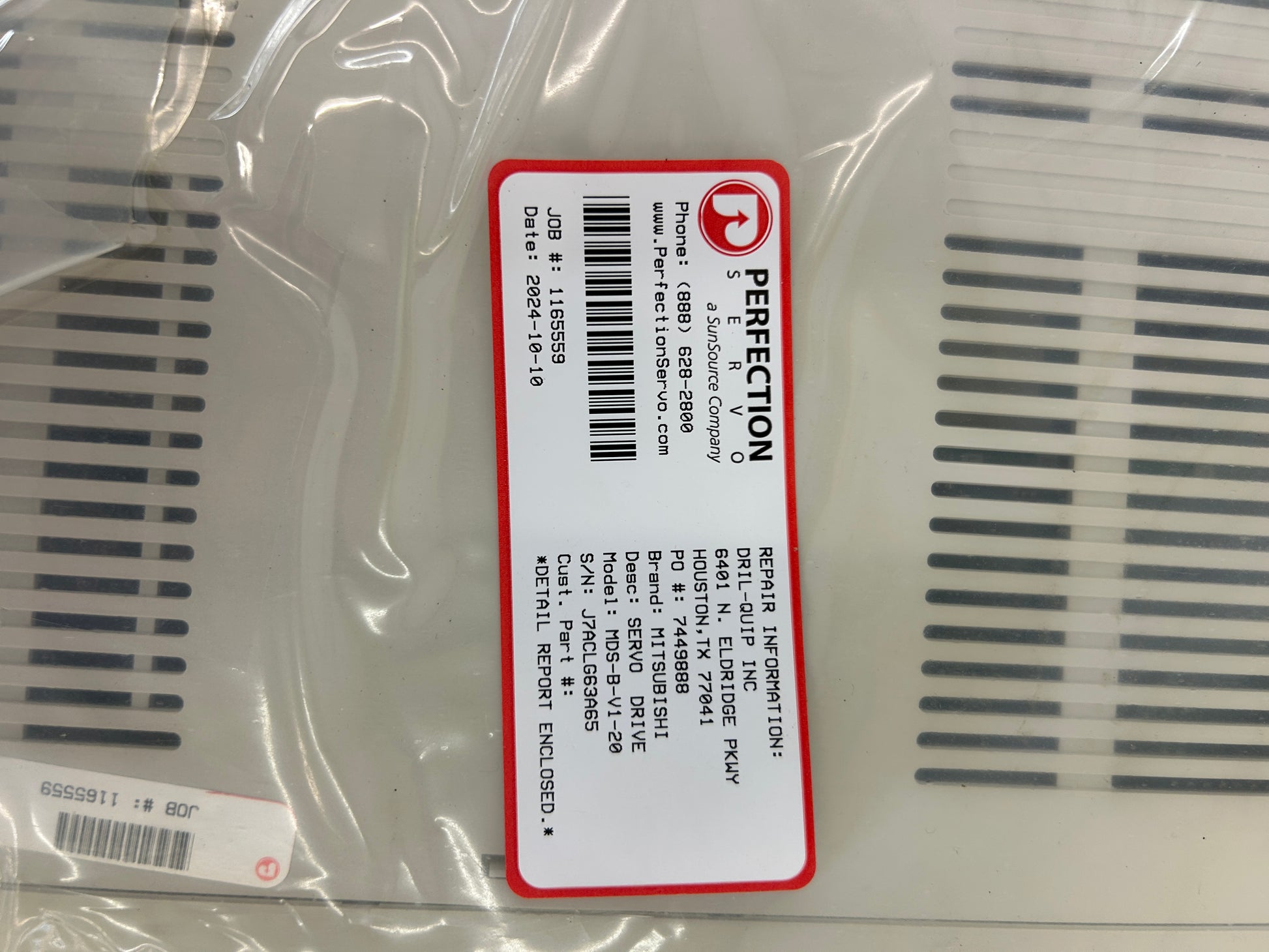

Common applications include Mazak machining centers and turning centers, as well as other CNC machine tools fitted with MDS controllers and MELDAS M500 numerical controls. Identifiers visible on the attached repair tag include part number MDS-B-V1-20, brand Mitsubishi, customer Dril Quip Inc, and serial number J7ACLG63A65. The MDS-B-V1-20 is listed by Mitsubishi as discontinued, and surplus units of this type are commonly purchased as replacement spares for legacy installations.
Stock # 0226-044
