MODEL CHECK PLS - TECO Westinghouse AC Motor EPY4008 - 400 HP 900 RPM
MODEL CHECK PLS - TECO Westinghouse AC Motor EPY4008 - 400 HP 900 RPM
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Factory Sealed
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: EPY4008
Stock #: Stock # 0626-01706
Product Specifications
- Manufacturer: TECO-Westinghouse
- MPN / Model: EPY4008
- Product Type: AC Motor, Keyless Shaft, Severe Duty, TEFC
- Series: MAX-E1 NEMA Premium Efficiency
- Type Code: AEHH-SY
- Horsepower: 400 HP
- Voltage: 460V
- Phase: 3
- Frequency: 60 Hz
- Amperage: 478 A
- Speed: 893 RPM
- Poles: 8
- Code: C
- Service Factor: 1.15
- Nominal Efficiency: 95%
- Minimum Efficiency: 94.1%
- Enclosure: TEFC
- Insulation Class: F
- Design: B
- Ambient Temperature: 40 deg C
- Rating: Continuous
- D.E. Bearing: 6330C3
- Weight: 3,896 lb (nameplate)
- Hazardous Location Rating: CSA Certified, Class I Div. 2 Groups B, C and D; Class I Zone 2 Groups IIB+H2, IIB and IIA; Class II Div. 2 Groups F and G; Class II Zone 22 Groups IIIB and IIIA; Temp Code T3
- PWM VFD Duty: Variable Torque, Constant Torque, Constant Power
- Serial Number: YH.FC22B617T1-1
- Manufacturer Location: Made in Taiwan, TECO-Westinghouse Motor Company, Round Rock, Texas
- Condition: New Surplus, Original Crate
Product Description
TECO-Westinghouse EPY4008 is a 400 HP, 893 RPM, 460V, 3-phase, 8-pole TEFC AC motor from the MAX-E1 NEMA Premium Efficiency Severe Duty line. It carries the AEHH-SY type designation, identifying it as the keyless shaft variant of the MAX-E1 family. Rated at NEMA Premium efficiency with a nominal efficiency of 95% and minimum efficiency of 94.1%, this motor is Class F insulated, Design B, with a 1.15 service factor on 60 Hz and continuous duty rating.

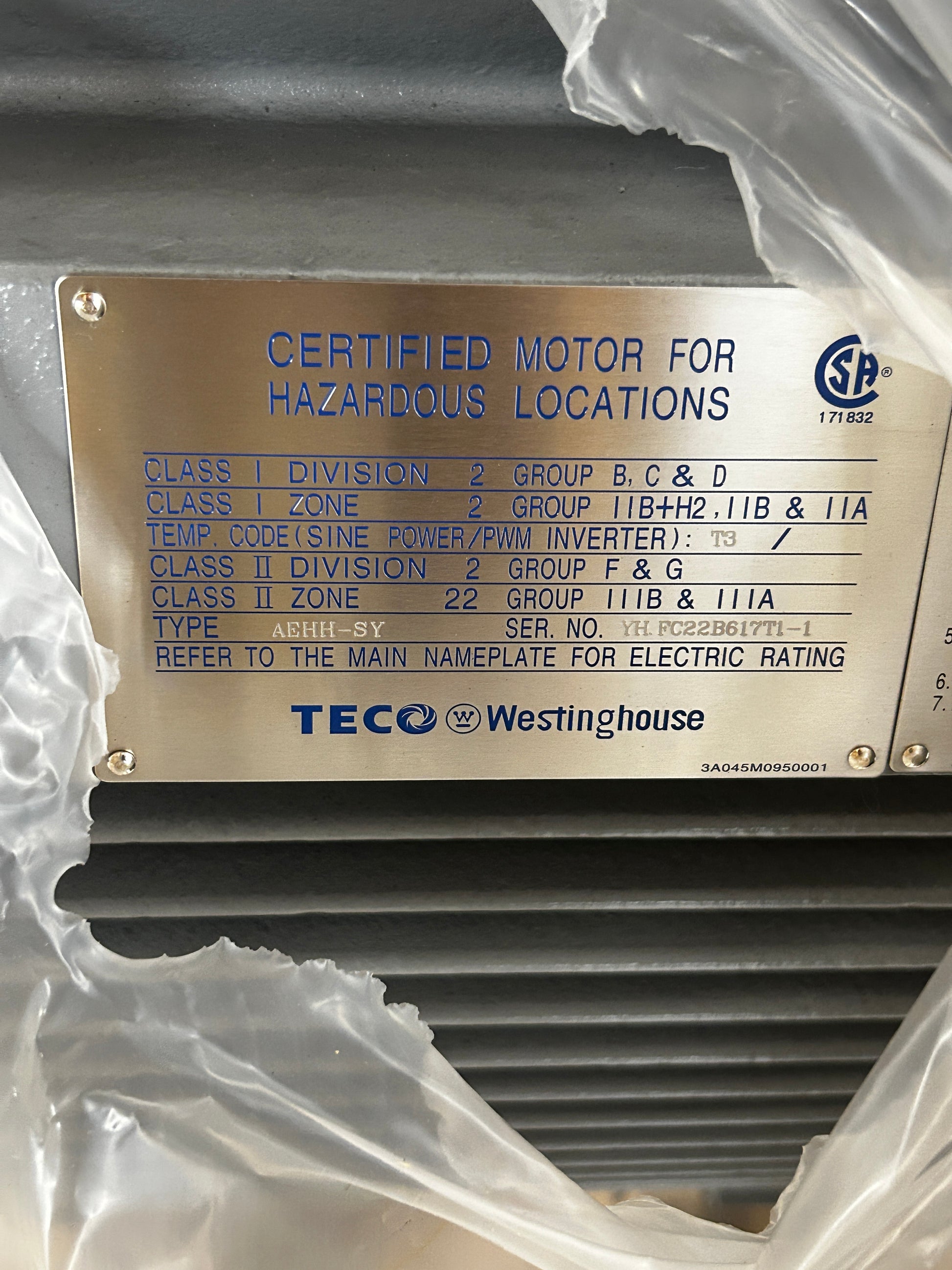

A secondary nameplate identifies this unit as CSA certified for hazardous locations: Class I Division 2 Groups B, C and D, Class I Zone 2 Groups IIB+H2, IIB and IIA, Class II Division 2 Groups F and G, and Class II Zone 22 Groups IIIB and IIIA, with a Temp Code of T3 under Sine Power and PWM Inverter supply. The motor is rated for PWM VFD duty in Variable Torque, Constant Torque, and Constant Power configurations.

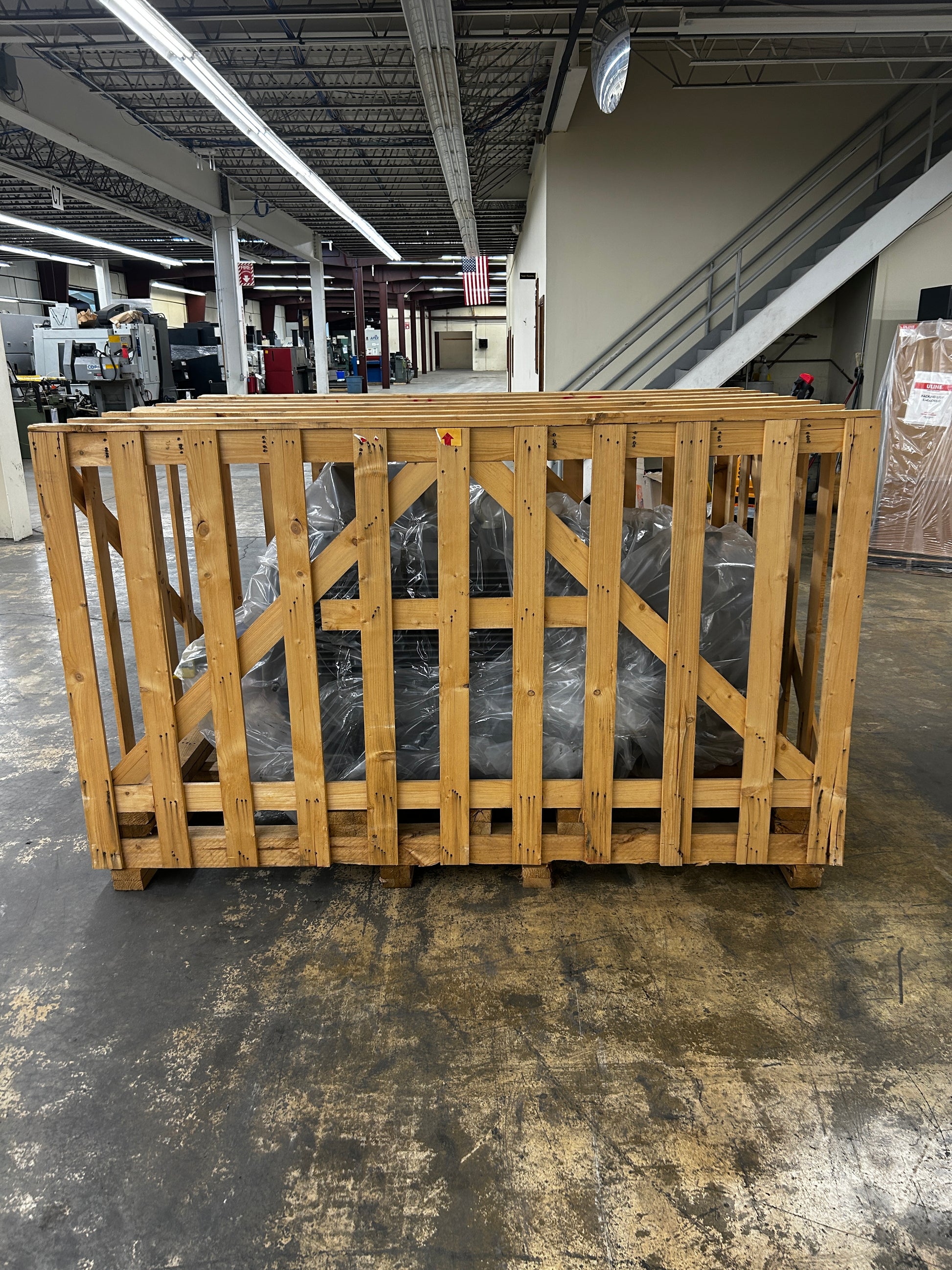

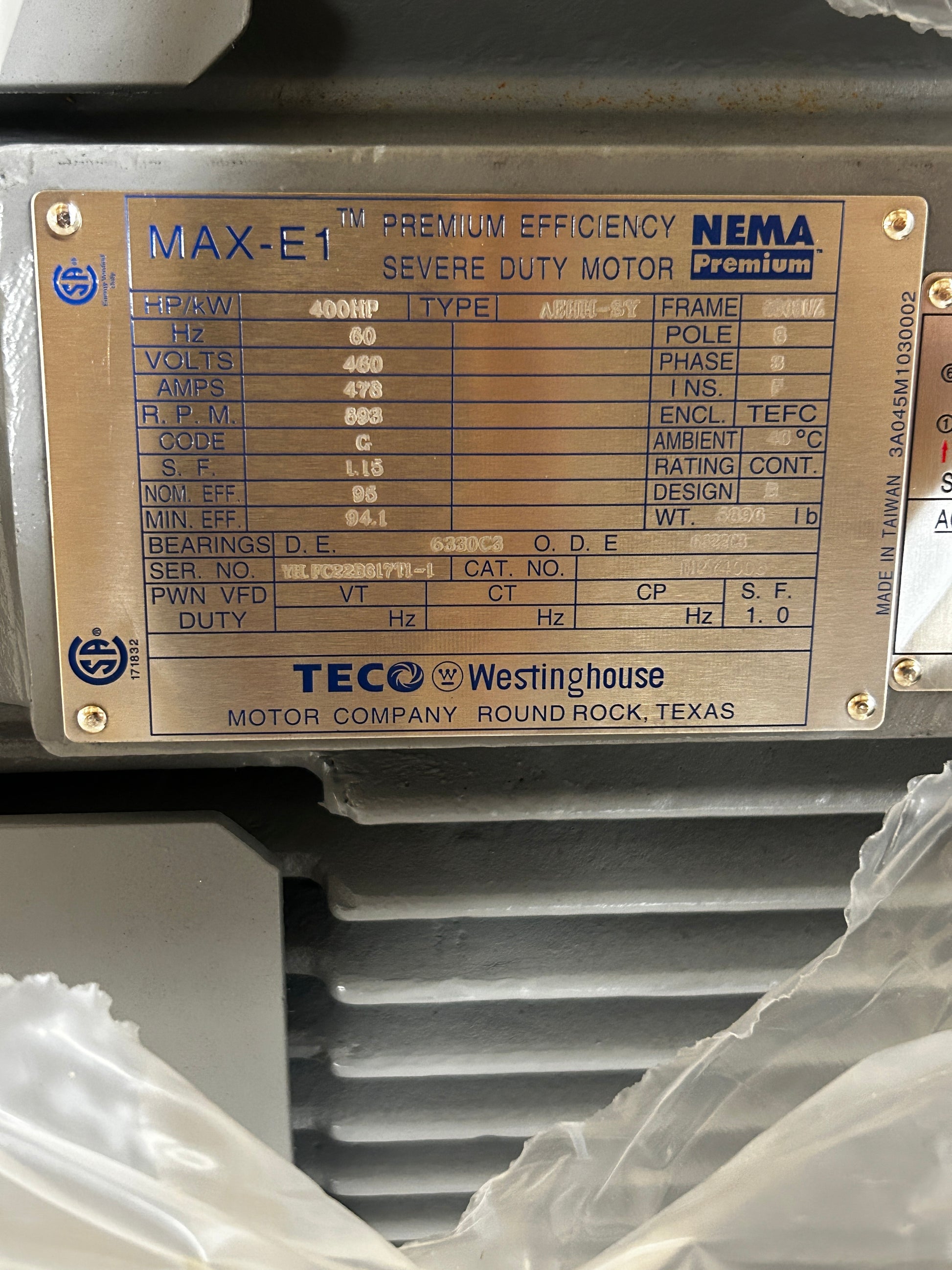

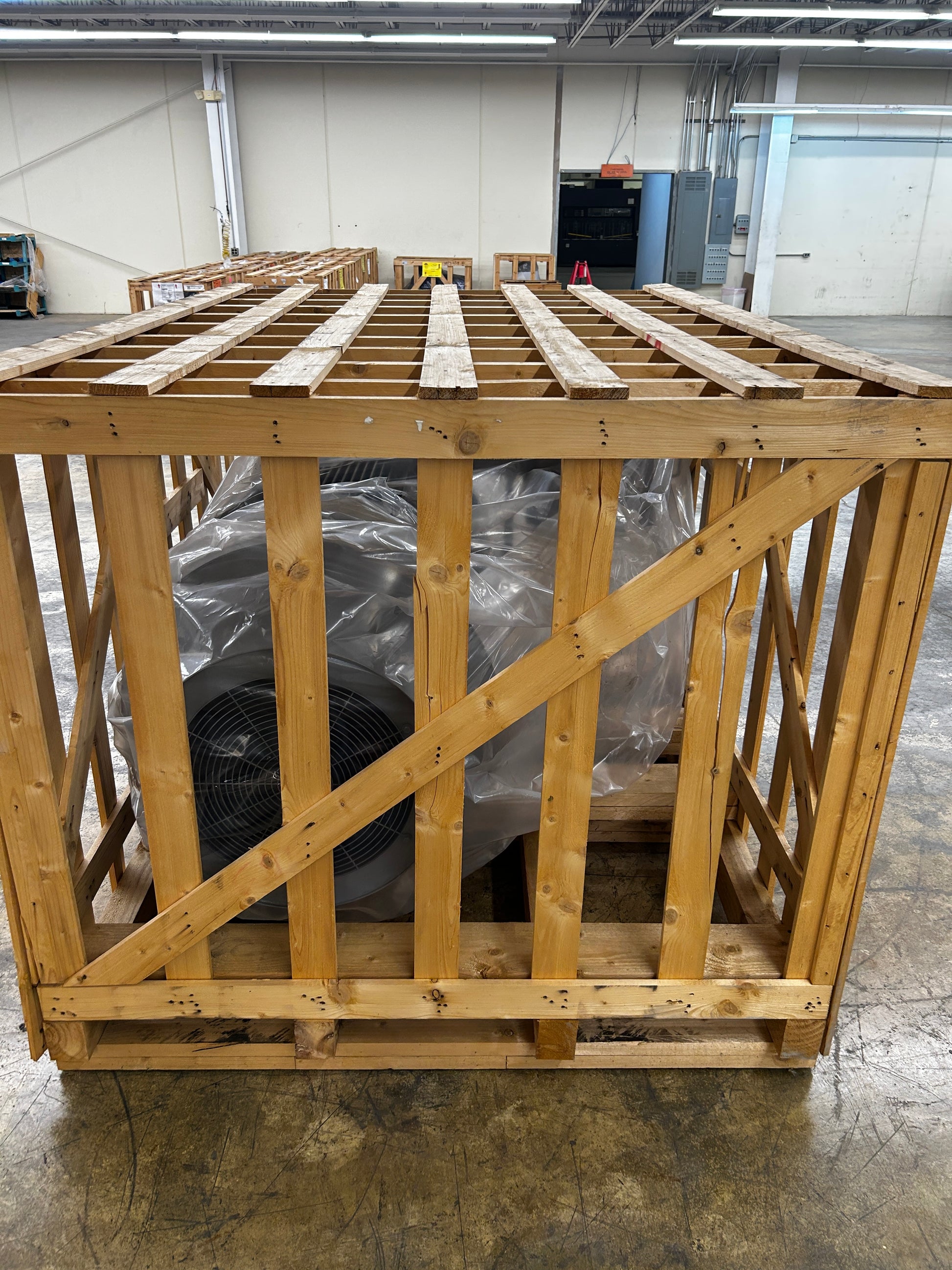

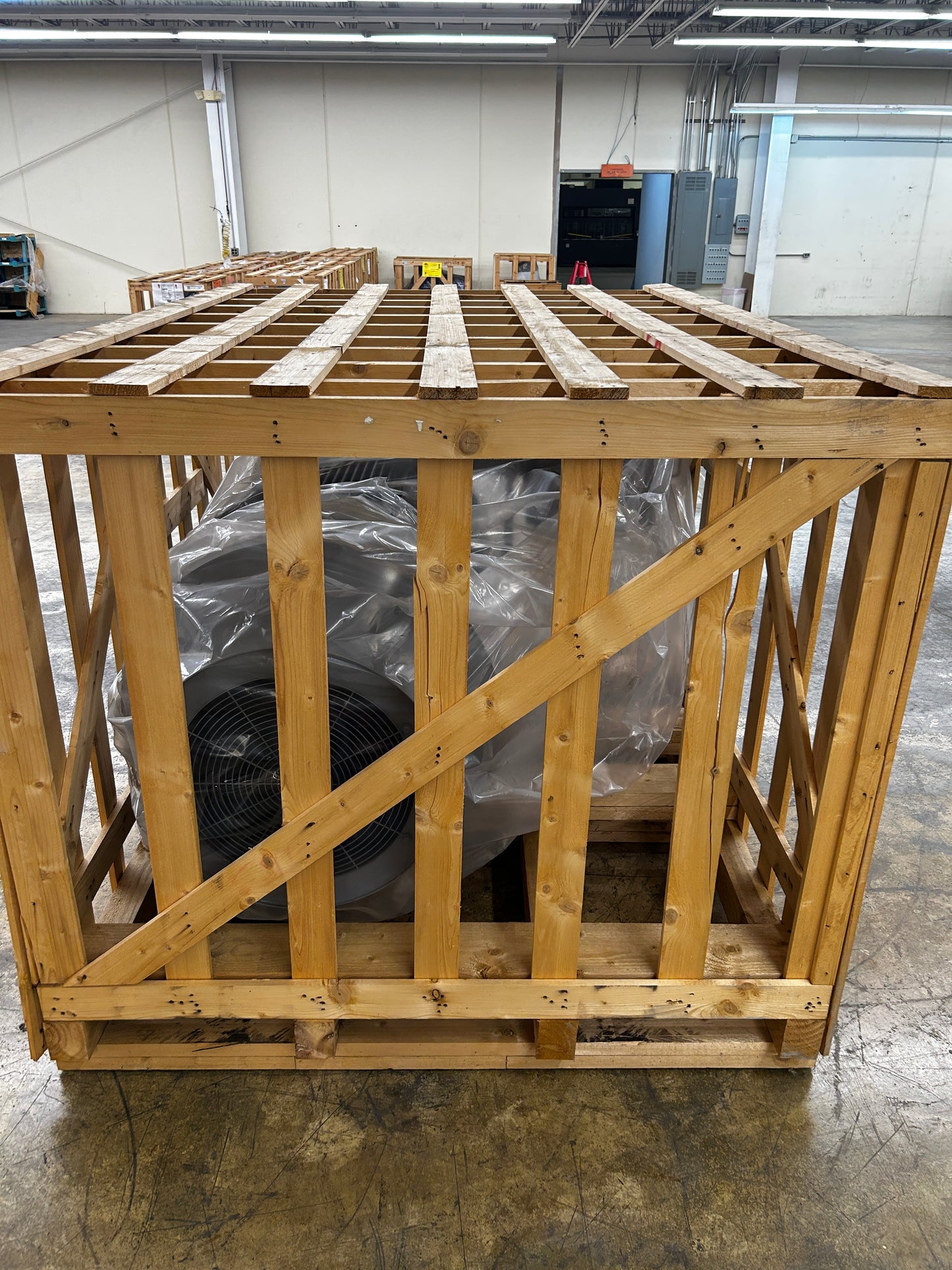

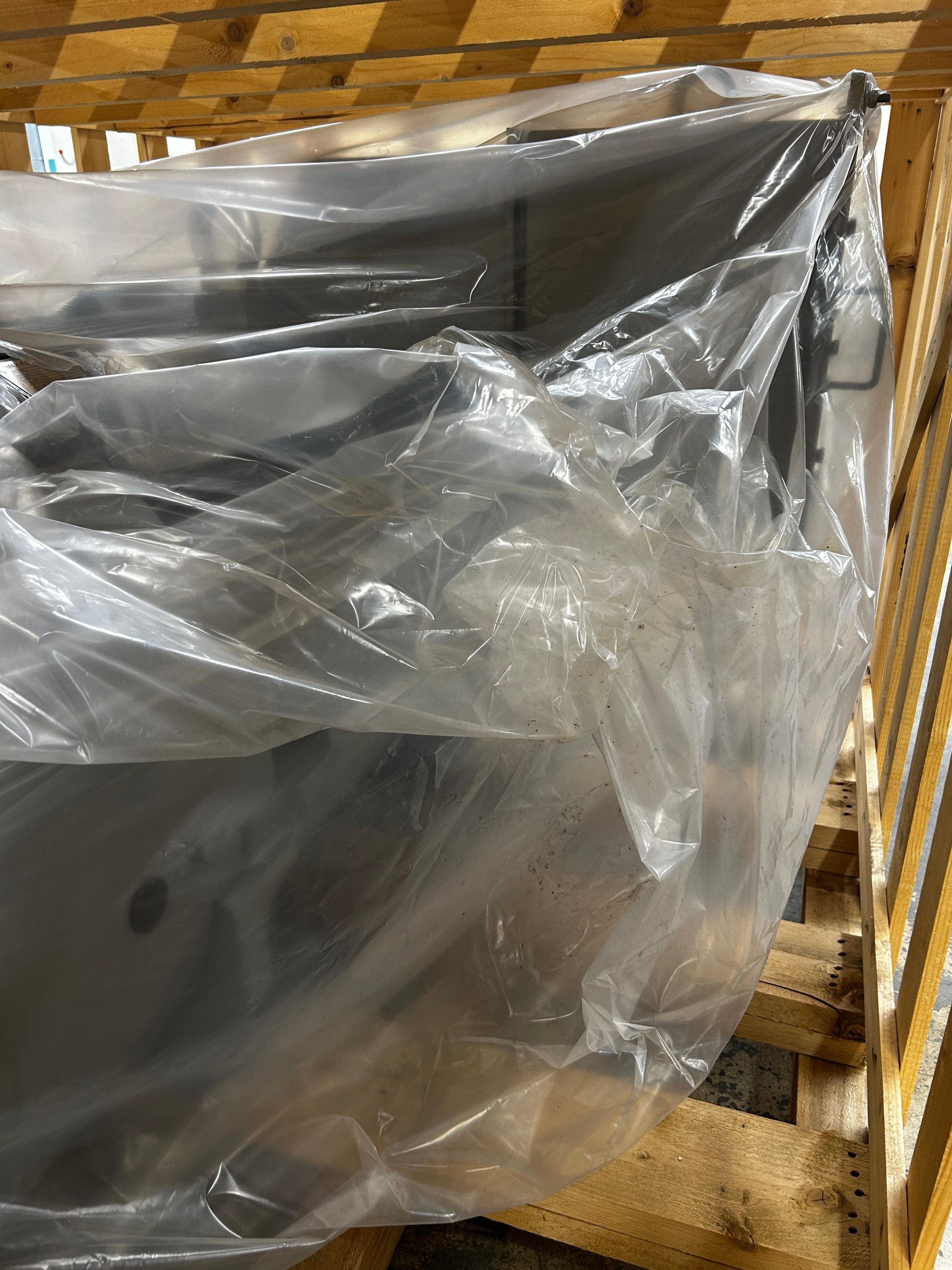

Serial number YH.FC22B617T1-1 is confirmed on both the main nameplate and hazardous location plate. The motor is listed as new surplus and arrives in its original wooden shipping crate with plastic wrap protection intact. Buyers matching the EPY4008 catalog number or AEHH-SY type designation for large-horsepower, low-speed, hazardous location, or severe duty applications should cross-reference the nameplate data and serial number against their specific procurement requirements.
