Murrelektronik Panel Interface Insert 4000-68000-0970000 48 VAC/VDC
Murrelektronik Panel Interface Insert 4000-68000-0970000 48 VAC/VDC
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 4000-68000-0970000
Stock #: 0326-01123

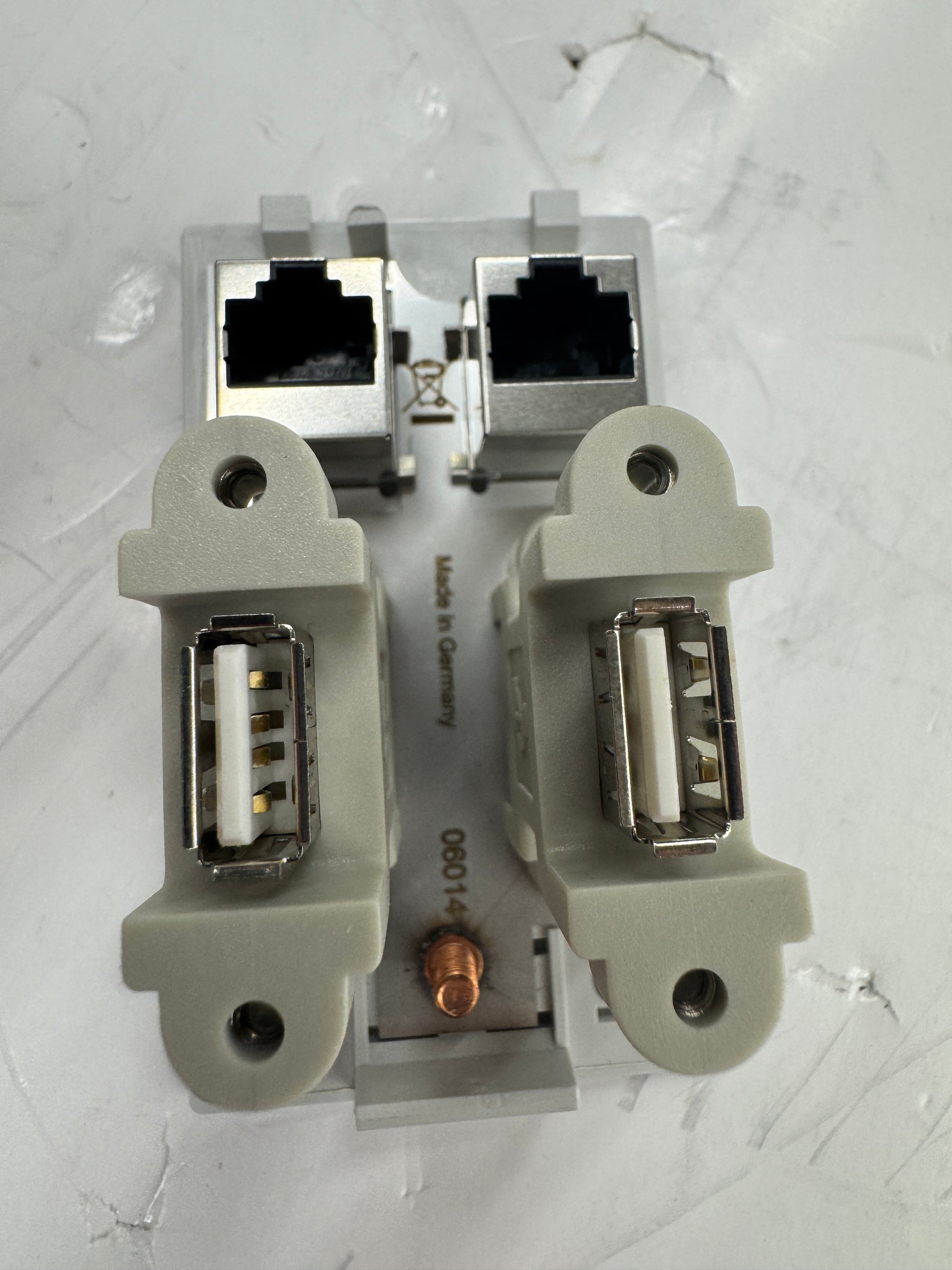

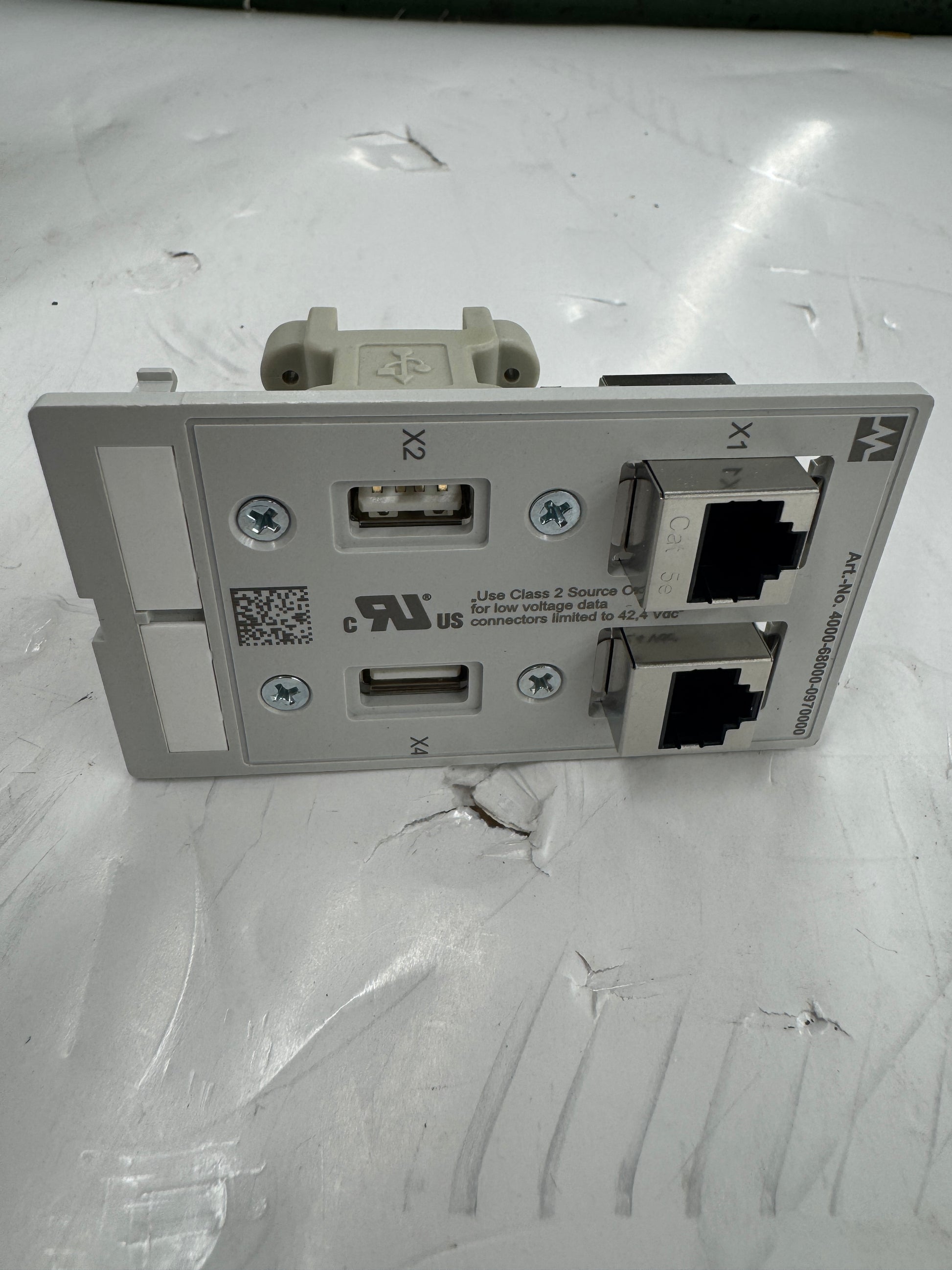

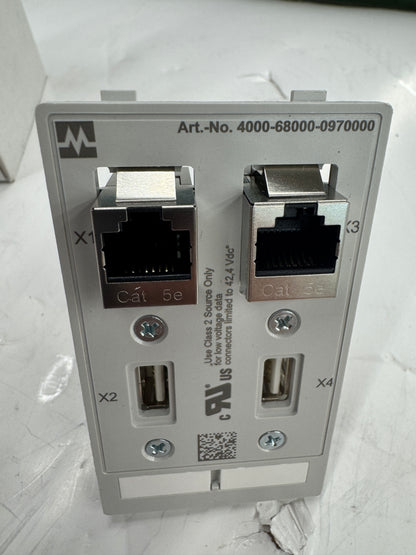

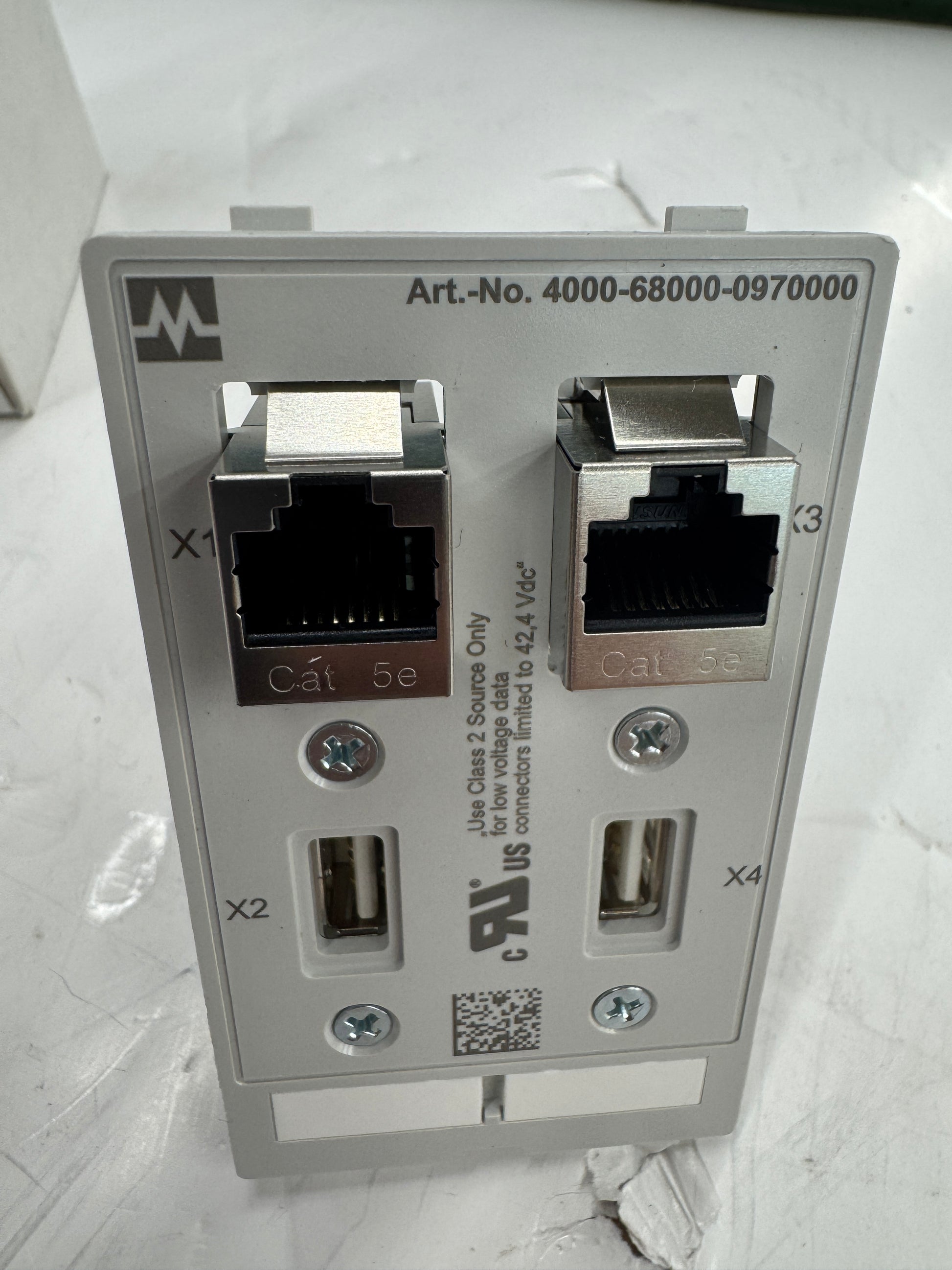

Used in industrial control panels and machine enclosures, the Murrelektronik Modlink MSDD data insert part number 4000-68000-0970000 provides a panel-mounted interface combining two USB Type A female/female passthrough ports and two RJ45 Cat 5e female/female Ethernet passthrough ports. Connector designations visible on the unit are X1 and X3 for the RJ45 ports and X2 and X4 for the USB ports. The insert carries a UL listing (cULus) and is rated for Class 2 source use only, with low voltage data connectors limited to 42.4 VAC as marked on the faceplate. According to active US market listings for this MPN, USB ports are rated up to 48 VAC/VDC at 500 mA and RJ45 ports up to 30 VAC/VDC at 175 mA. Country of manufacture is Germany as stamped on the rear of the assembly. The module mounts into Murrelektronik Modlink MSDD enclosure frames and compatible third-party panel cutouts. The rear of the unit shows a date/lot code reference of 060014. Two USB Type A receptacles with gold-plated contacts are visible from the rear, and a single copper grounding contact pin is present at the center of the rear assembly.
Stock # 0326-1123
