NSK 7013CTYSULP4 Bearing – 65mm ID x 100mm OD x 18mm Width – New
NSK 7013CTYSULP4 Bearing – 65mm ID x 100mm OD x 18mm Width – New
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 7013CTYSULP4
Stock #: 0226-00235

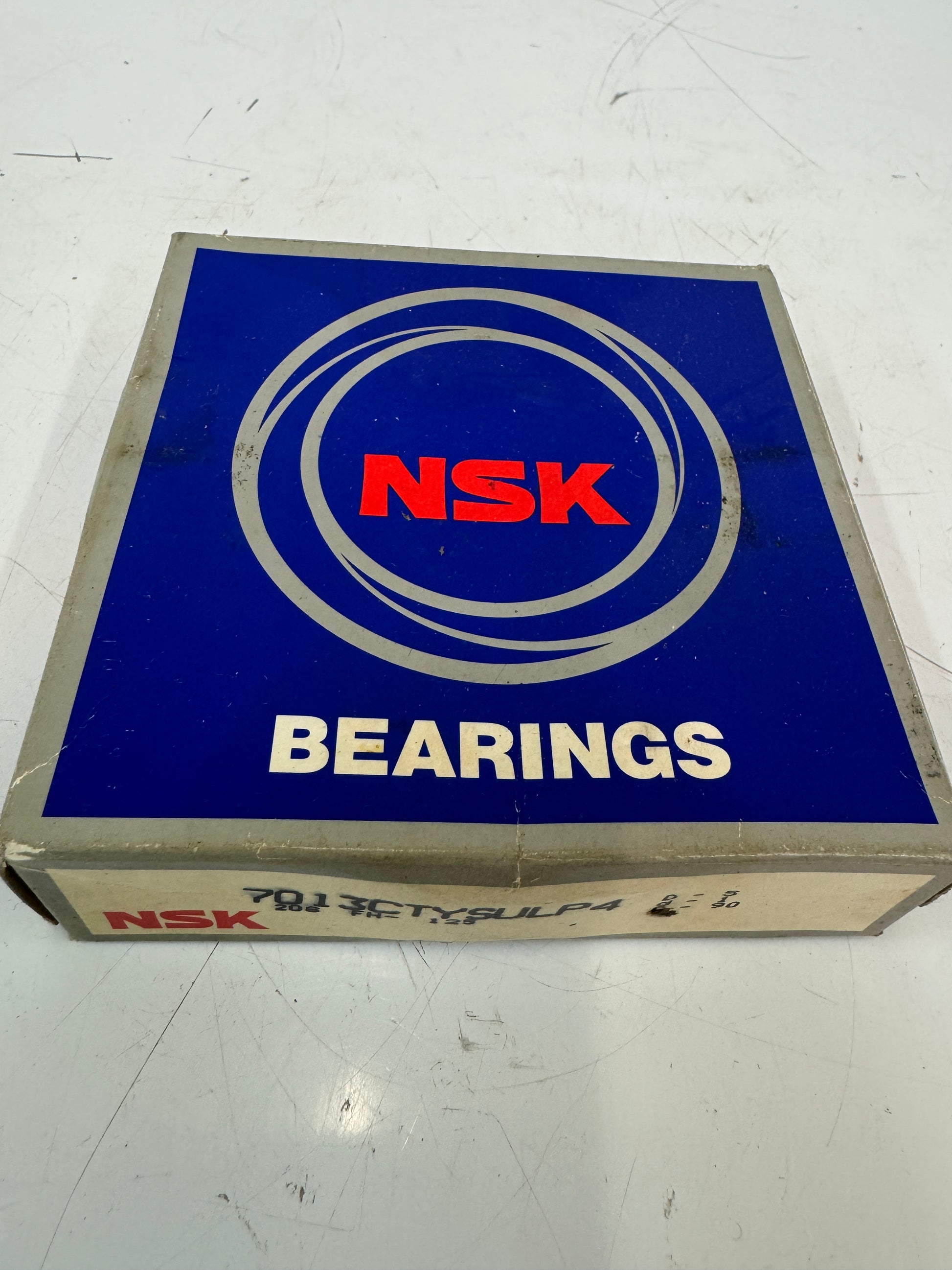

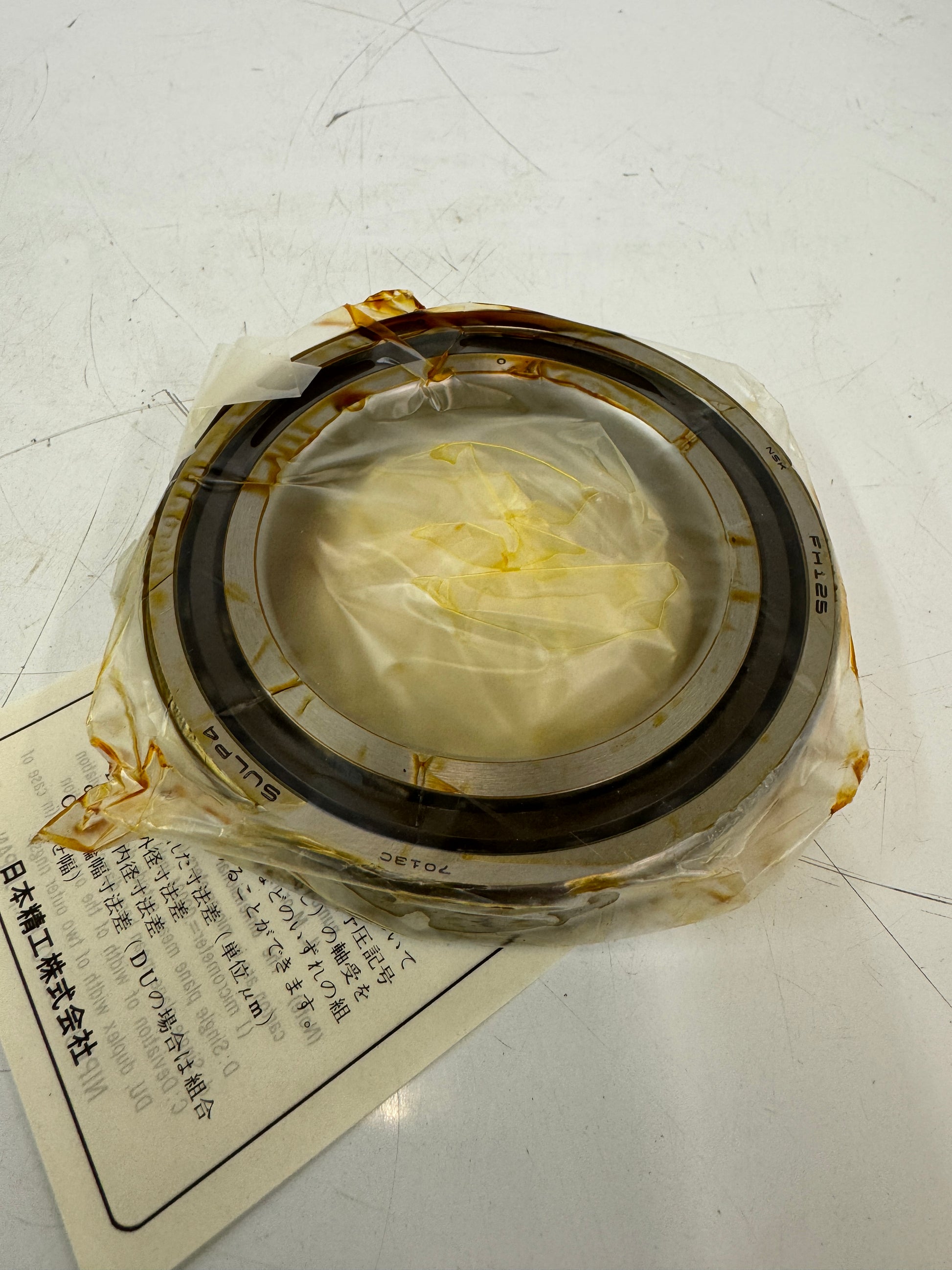

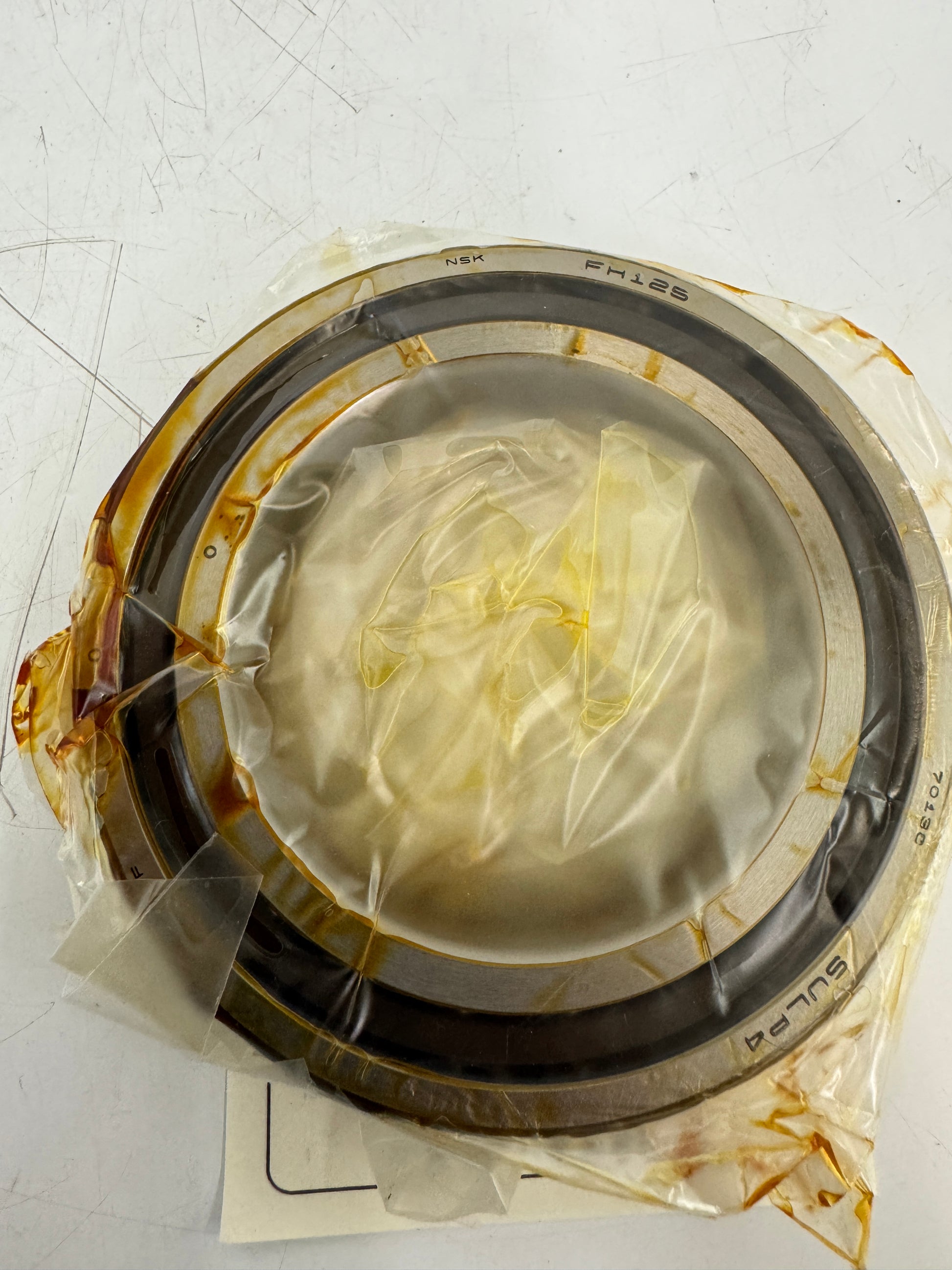

The NSK 7013CTYSULP4 is a super precision angular contact ball bearing from NSK's 7000 series, supplied new in the original NSK box. The part number marked on the original packaging is 7013CTYSULP4, with internal NSK identifiers 208 FH 71 and clearance reference markings d-4, D-4, C-95. Bore is 65 mm, outside diameter is 100 mm, and width is 18 mm, per NSK published specifications for the 7013C series. The bearing is a single row design with a 15 degree contact angle (C suffix), phenolic resin cage (TY designation), and universal flush ground configuration (SU), allowing it to be matched into DB, DF, or DT arrangements as required by the application. The P4 suffix designates ISO Class 4 precision tolerance, equivalent to ABEC 7. NSK cross references list 7013CTYNSULP4 and 7013CTRDULP4Y as functional replacements within the NSKHPS Super Precision product family. Typical applications include machine tool spindles, high speed CNC milling and turning centers, grinding spindles, indexing tables, and precision rotary fixtures where combined radial and axial loads must be supported at elevated rotational speeds. Open type construction permits oil or grease lubrication selected by the spindle builder. Made in Japan. Original NSK packaging shows minor shelf wear consistent with surplus storage.
Stock # 0226-235
