NTN Spherical Roller Bearing 23232EMW33C3 160 x 290 x 104 mm
NTN Spherical Roller Bearing 23232EMW33C3 160 x 290 x 104 mm
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Factory Sealed
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN:
Stock #:

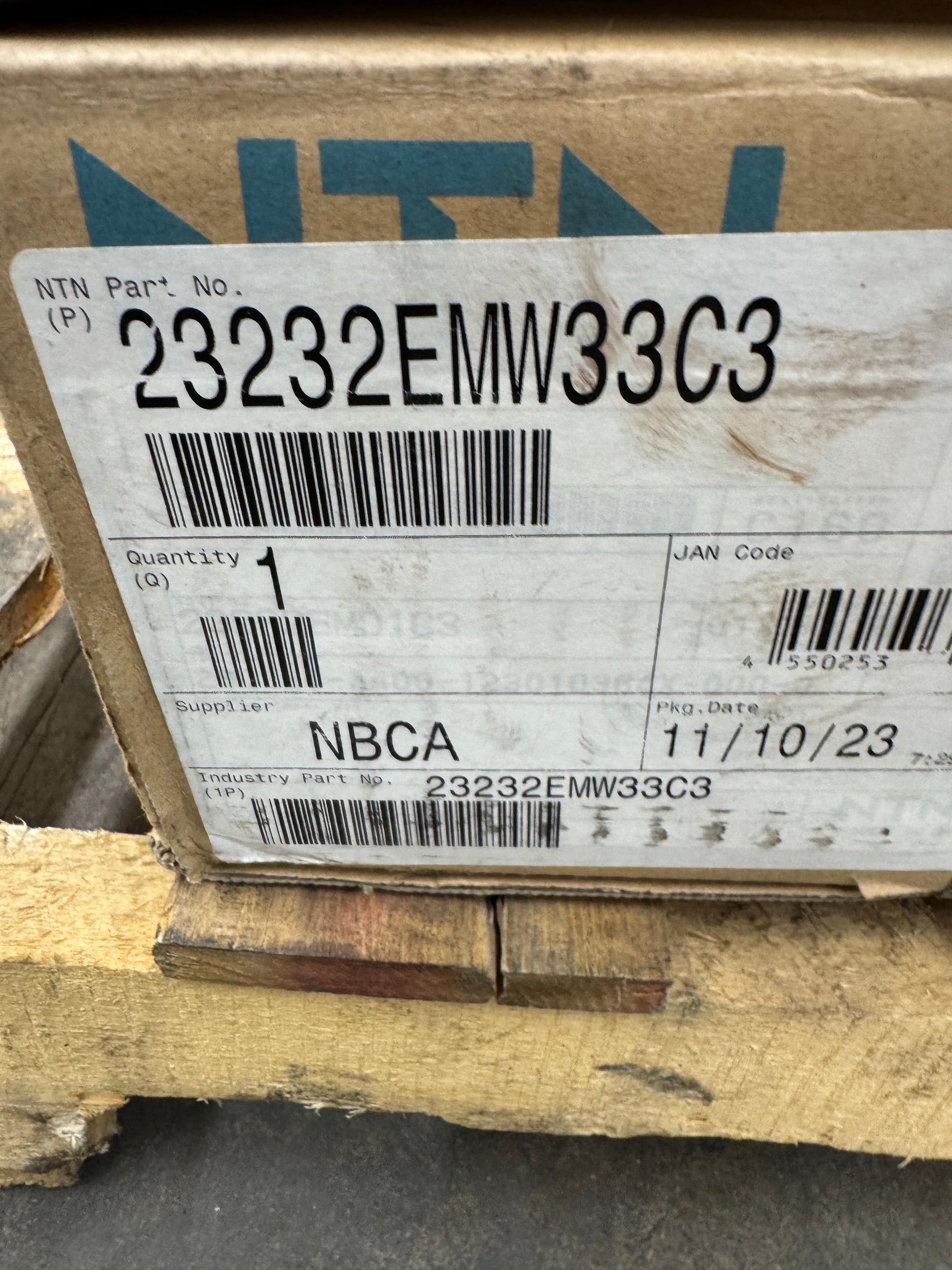

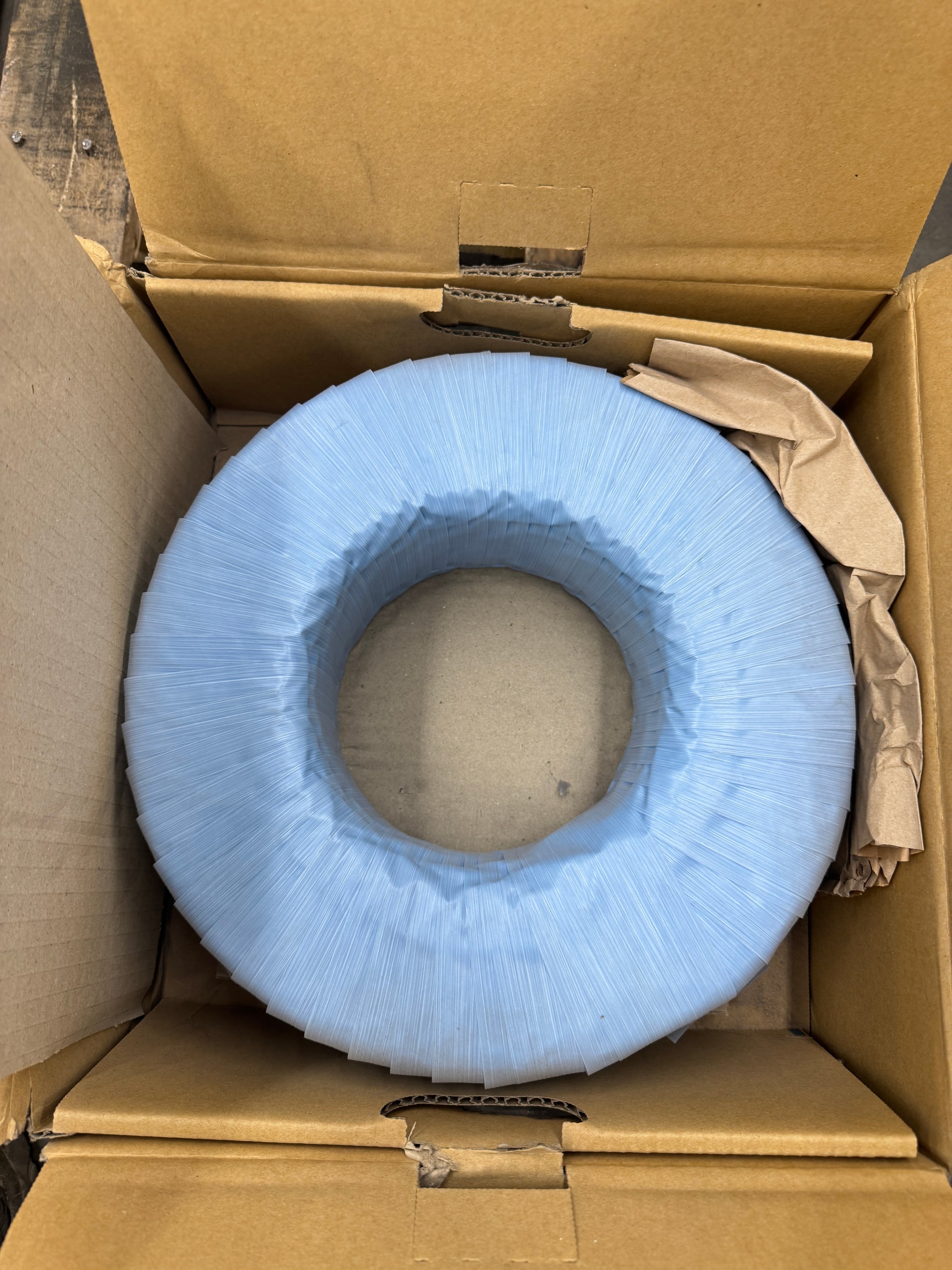

The NTN 23232EMW33C3 is a double-row spherical roller bearing from NTN's ULTAGE series, part number confirmed on the original factory label. Dimensions are 160 mm bore, 290 mm outside diameter, and 104 mm width, corresponding to the 232 series heavy-wide configuration. The EM designation indicates a machined brass cage, and the W33 suffix denotes an annular oil groove with three lubrication holes in the outer ring, supporting grease or oil lubrication in service. C3 internal clearance is greater than standard, suitable for applications with elevated operating temperatures or press-fit mounting. The round cylindrical bore accommodates direct shaft mounting. This unit was packaged at the NTN facility on 11/10/23 and carries the NTN part number 23232EMW33C3 with the industry part number 23232EMW33C3, consistent across both the NTN label and the secondary barcode. Supplier code on the label reads NBCA. Quantity per box is 1. The bearing is housed in the original NTN cardboard carton with internal foam blocking visible in the interior photo. Spherical roller bearings of this type are commonly used in industrial gearboxes, heavy fans, paper mill rolls, mining equipment, and vibrating screens where misalignment tolerance and high radial load capacity are required. Cross-brand equivalents include SKF 23232 CC/C3W33 and FAG 23232-E1A-M-C3, sharing the same 160x290x104 mm envelope dimensions.
Stock # 0526-02183
