O-Z/Gedney Cast Device Box FS275
O-Z/Gedney Cast Device Box FS275
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: FS275
Stock #: 0526-02496

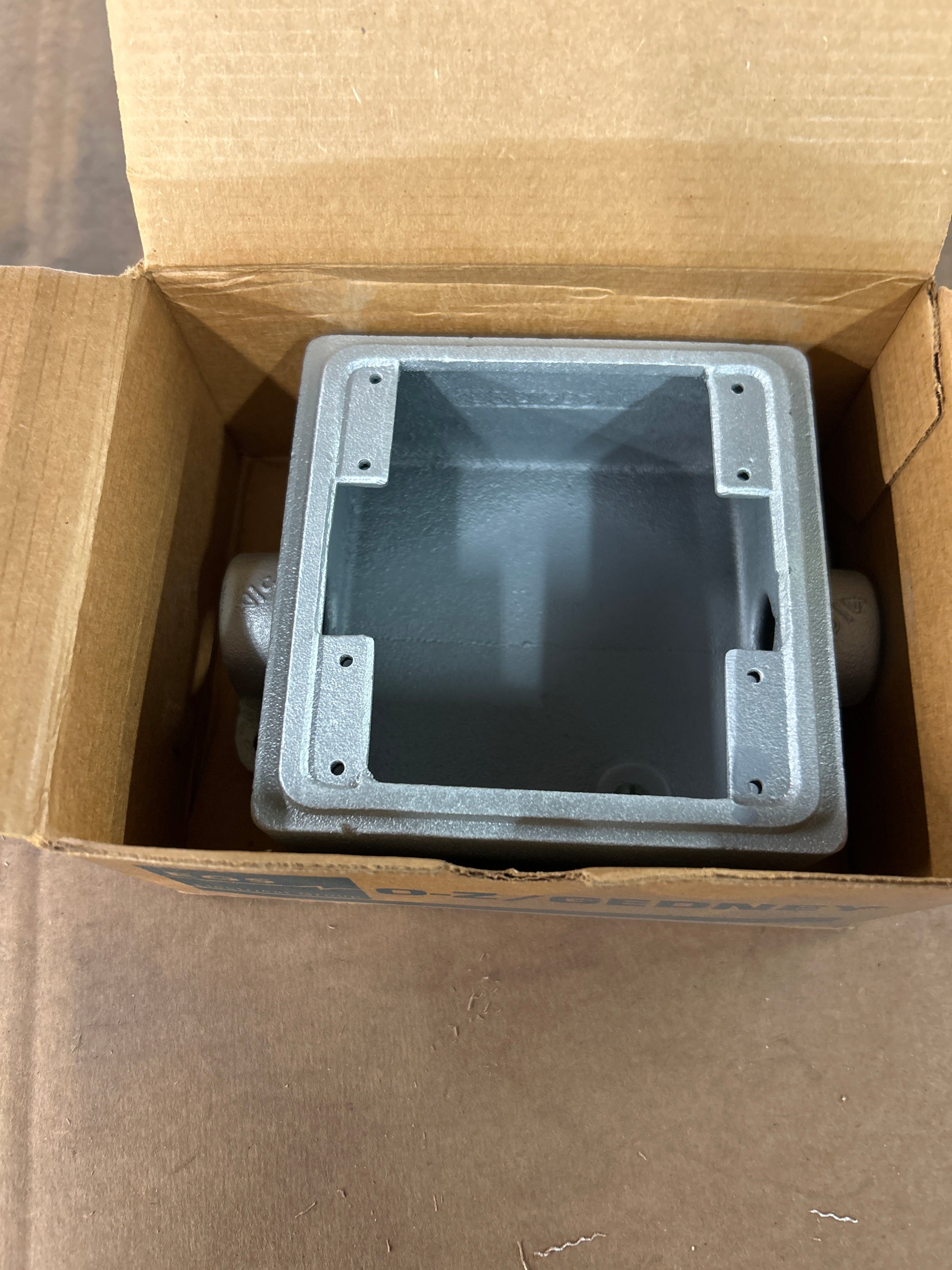

Used in industrial and commercial electrical installations, the O-Z/Gedney FS275 is a Type FS-2 shallow cast device box designed for use with 3/4 in. threaded rigid metal conduit and IMC. Manufactured by EGS Electrical Group under the O-Z/Gedney UNILETS brand, this 2-gang, dead-end style box features a single 3/4 in. threaded hub, ridge top construction for positive cover and gasket fit, and an internal ground screw. The box body is constructed of gray iron alloy with a zinc electroplated finish for corrosion resistance. Internal capacity is 33.2 cu-in. Overall dimensions are 4-11/16 in. height x 4-11/16 in. width x 2-3/8 in. depth. Rated for use in both indoor and outdoor applications; raintight when used with a gasketed cover per UL 514A requirements. Third-party certifications include UL File Number E-18095 and CSA 009795. Complies with UL 514A, CSA C22.2 No. 18, Federal Specification A-A-50563, and NEMA FB-1 standards. Suitable for surface mounting as a wiring device enclosure, pull box, or conduit junction point. Item is supplied in original O-Z/Gedney branded box; box shows wear but contents appear unused. Approximate weight per manufacturer label: 2.23 lbs. Part number FS275, UPC 783126204131.
Stock # 0526-02496
