Reliance Electric 0-51831-7 CVTH Current Voltage Transductor Circuit Board Card

$150.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

Stock #:

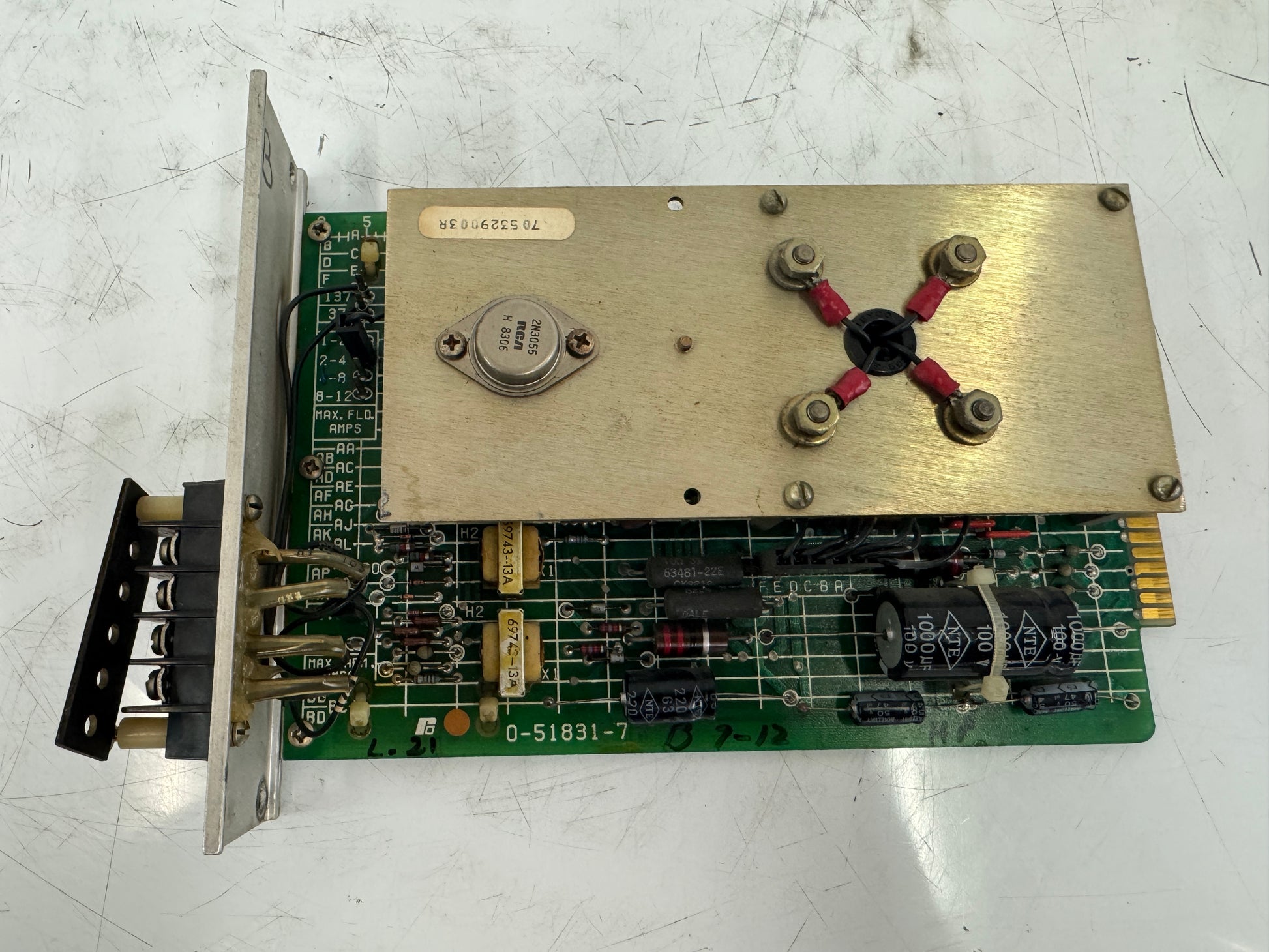

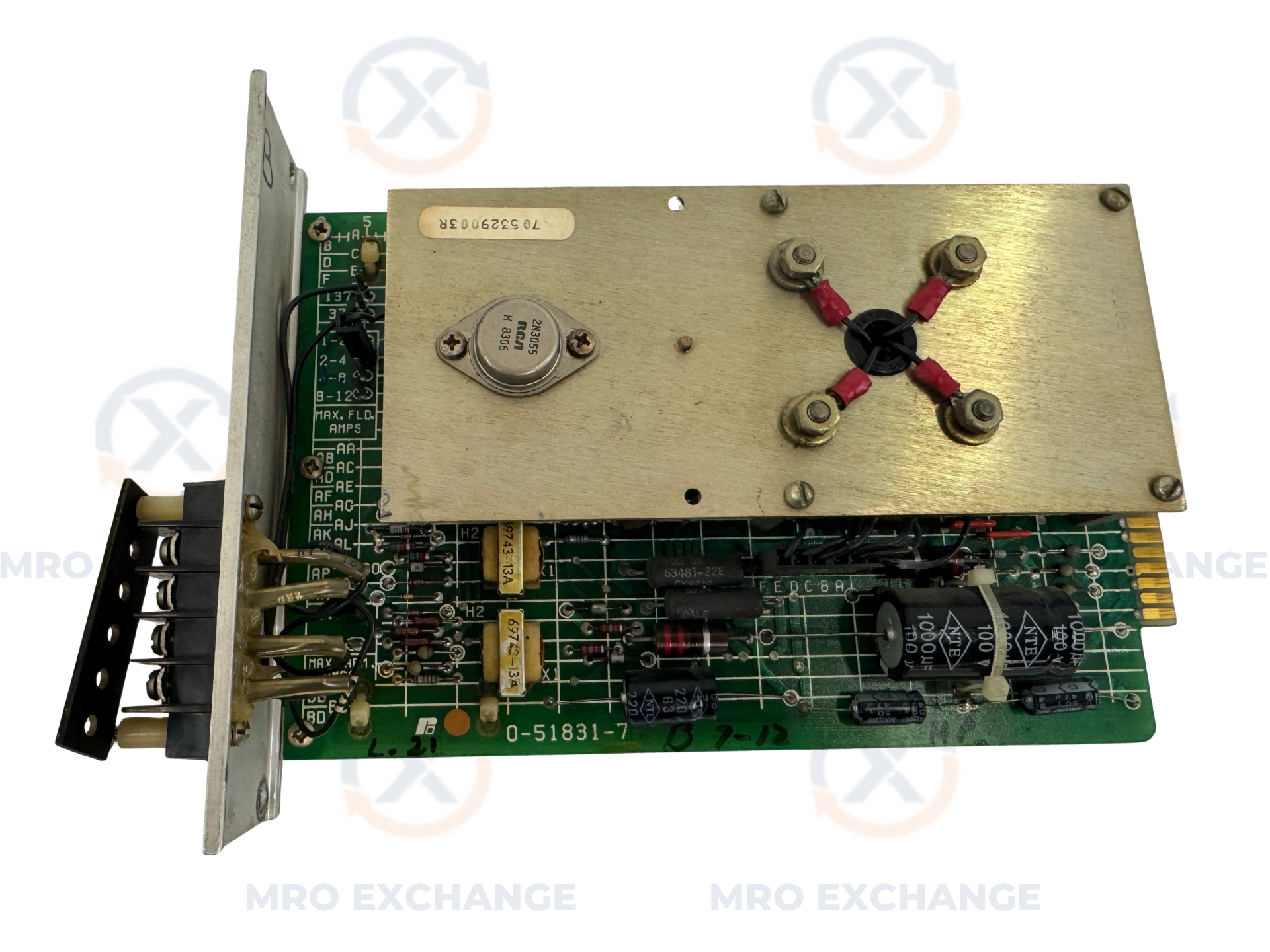

This listing is for one used Reliance Electric 0-51831-7 CVTH Current Voltage Transductor circuit board card. The board number 0-51831-7 is silkscreened on the PCB and also identified via a sticker label reading 7053290003R visible on the brass heatsink cover. The assembly includes a metal front faceplate with a four-position screw terminal strip and a connected PCB mounted behind it. The faceplate left side carries labeled connections for arm current, shunt, and field current shunt signals, with the user caution to properly set range taps upon replacement. The PCB is populated with two yellow potted transformers marked 6743-13A and 9743-13A, a 2N3055 NPN power transistor mounted to the brass heatsink plate, Dale wirewound resistors marked 63481-22E, LM307 and LM301AN op-amp ICs, electrolytic capacitors, and a bridge rectifier arrangement. A gold-fingered edge connector at the board rear allows plug-in installation into compatible Reliance MaxPak Plus or equivalent drive rack slots. This product has been discontinued by the original manufacturer and is available as a surplus replacement. Buyers are responsible for confirming compatibility with their specific drive system configuration prior to purchase.

Stock # 0226-554
