Reliance Electric CLDR Current Loop Driver PC Board 0-51865-14
Reliance Electric CLDR Current Loop Driver PC Board 0-51865-14
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:
This listing is for a used Reliance Electric 0-51865-14 CLDR Current Loop Driver PC Board. This board is designated CLDR by Reliance Electric and is identified in third-party documentation as a plug-in component of the Reliance Electric MaxPak Plus DC drive system. The 0-51865-14 occupies the CLDR slot position on the MaxPak Plus 51377-31 motherboard rack, alongside other drive function cards including the SSCC, CVTH, ACCA, and TSSA boards.

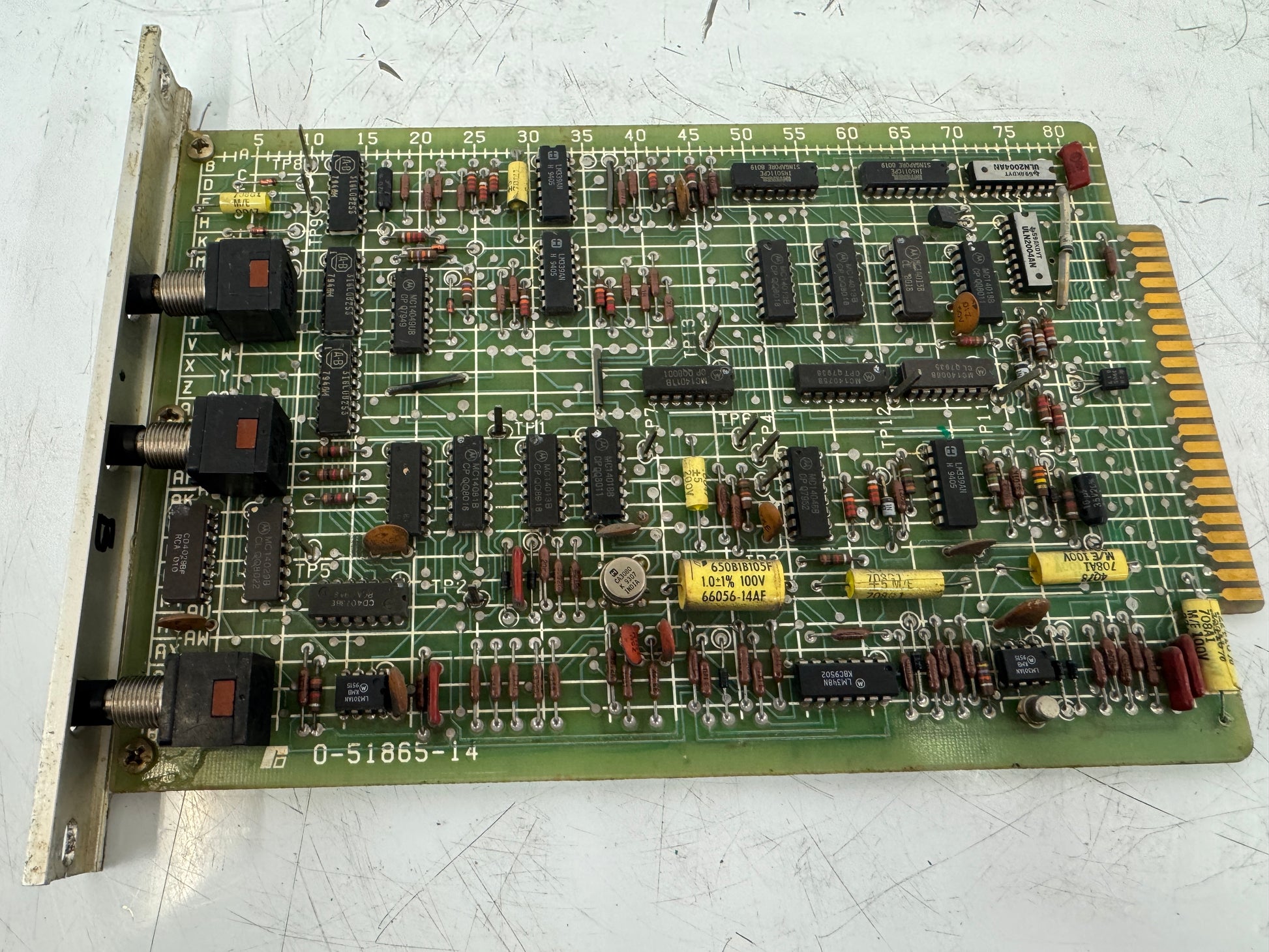

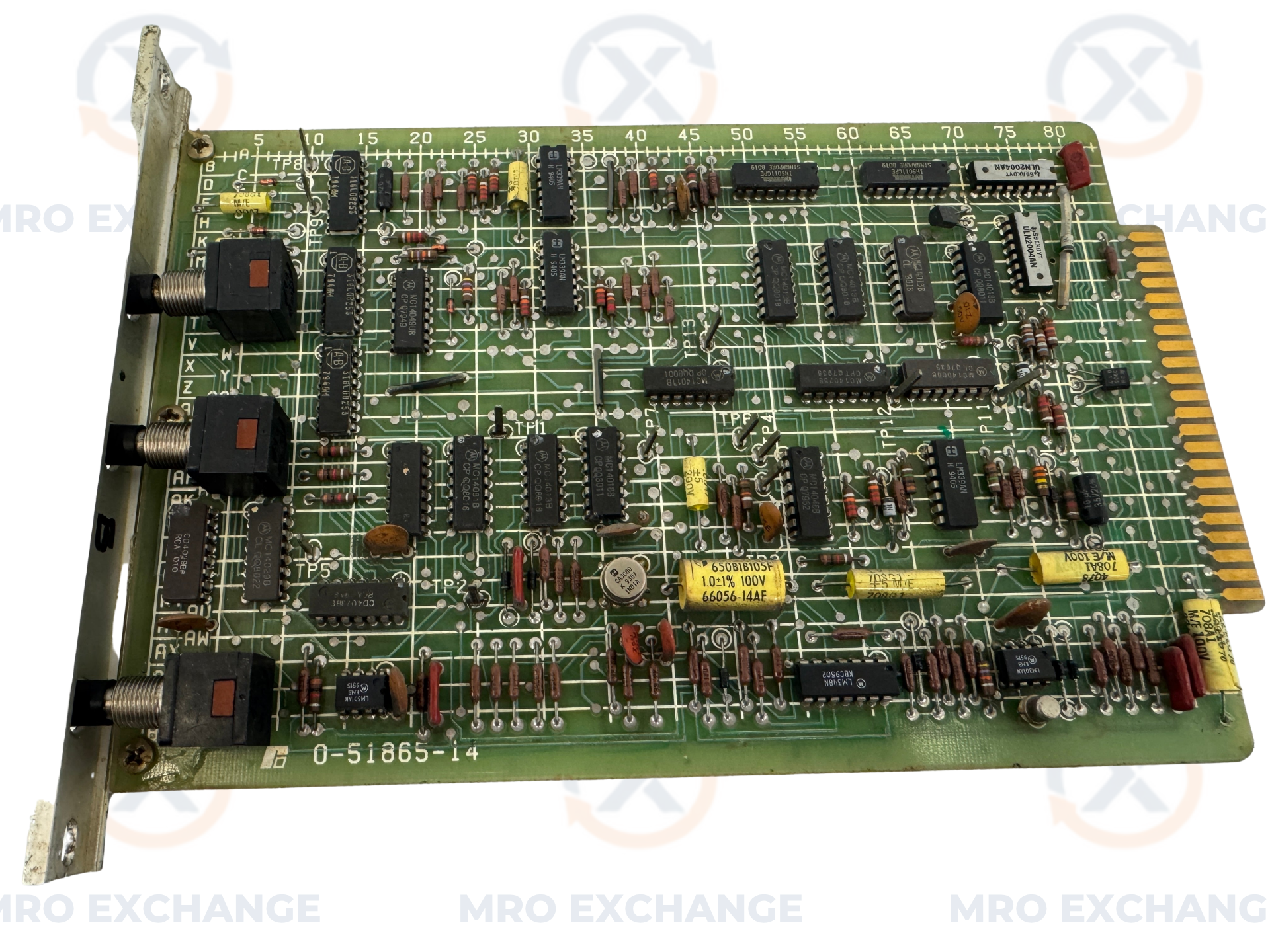

The PCB silkscreen clearly shows part number 0-51865-14 and carries the Reliance Electric logo mark. The board features a grid-patterned coordinate system with numeric and alphabetic axis labels. Visible components include multiple DIP integrated circuits, film resistors, tantalum and electrolytic capacitors, a precision metalized film capacitor marked 1.0 plus or minus 1% 100V (part 65081810SF, 66056-14AF), BLN2004AN transistors or similar TO-92 and TO-220 packaged devices, and test points labeled TP1 through TP5. Three BNC-style coaxial connectors are mounted along the left edge of the board. A gold-finger edge connector runs along the right edge for rack backplane insertion.
This is a discontinued, obsolete component. Reliance Electric has since been absorbed into the Baldor-Reliance and ABB product lines. Replacement supply is limited to the industrial surplus market.
Stock # 0226-538
