Reliance Electric PMI Processor Module 0-60021-4
Reliance Electric PMI Processor Module 0-60021-4
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:
The Reliance Electric 0-60021-4 is a PMI Processor Module from the AutoMax platform, designed for integration within PMI rack-based drive control systems. It functions as the central processing unit within the Power Module Interface rack, executing the motor control algorithm and managing all rack-level communications. The module transmits and receives data over a fiber-optic link, interfacing with the UDC module to exchange I/O values, speed feedback data, and diagnostic results.
The faceplate carries LED status indicators including OK and COMM OK green lights, along with P.M. FLT, EXT FLT, and RAIL FLT red fault indicators. A four-port meter block labeled P1 provides analog output access. Two fiber-optic communication ports (P2 XMT and P3 RCV) and two AutoMate rail ports (P4 and P5, labeled 0 and 1) are also present on the faceplate. The rear edge of the board includes an additional connector for rack installation.

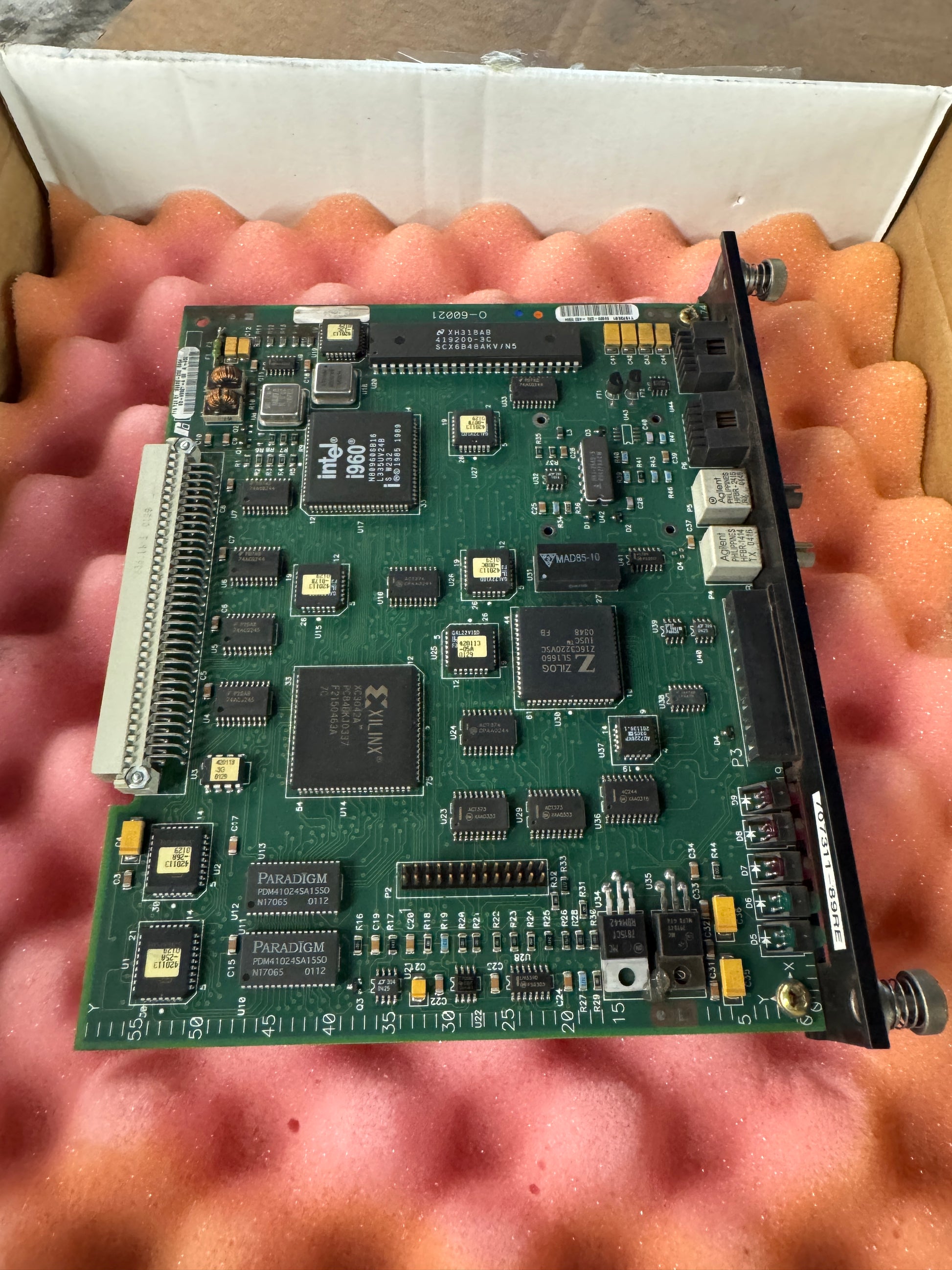

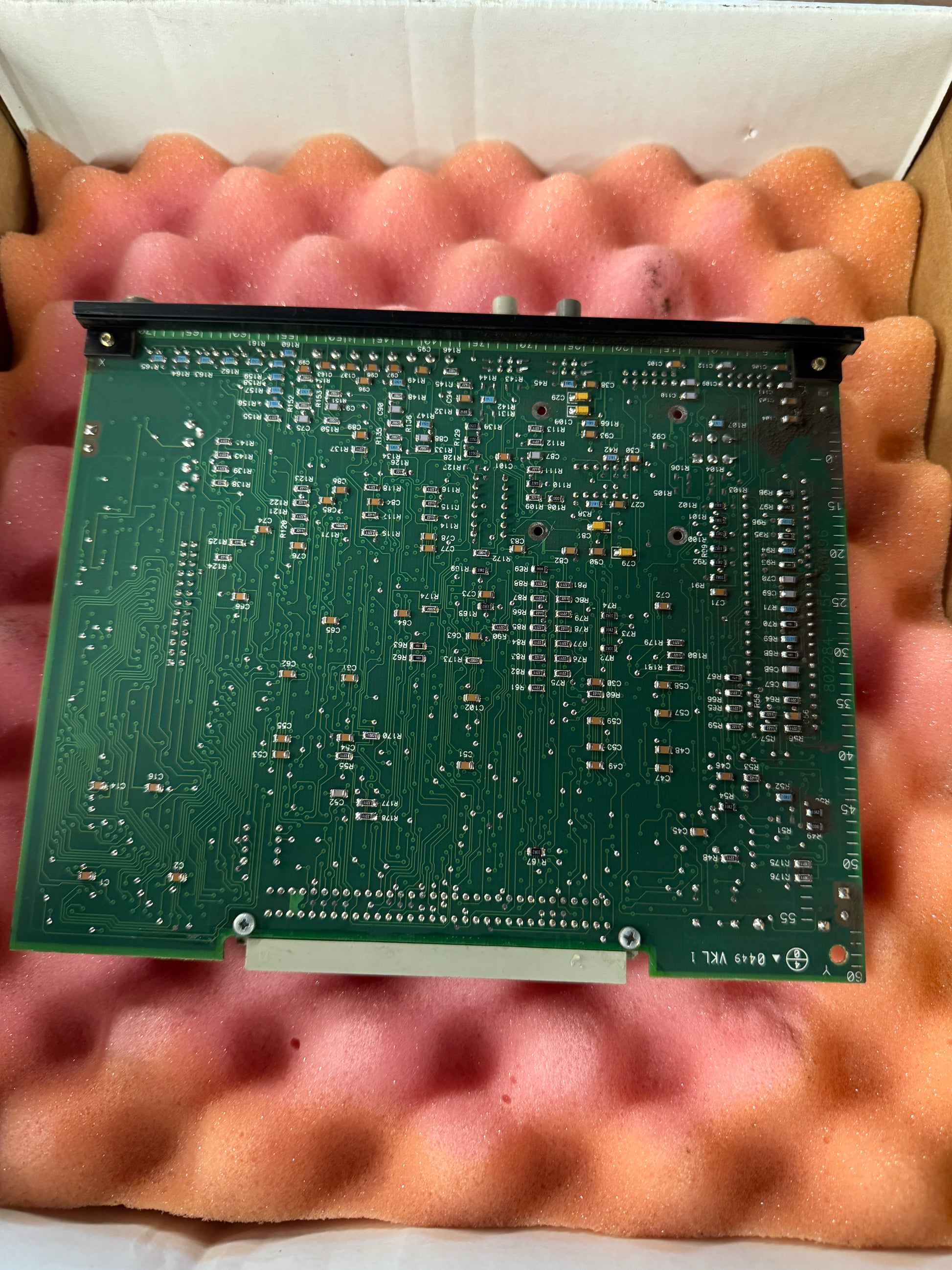

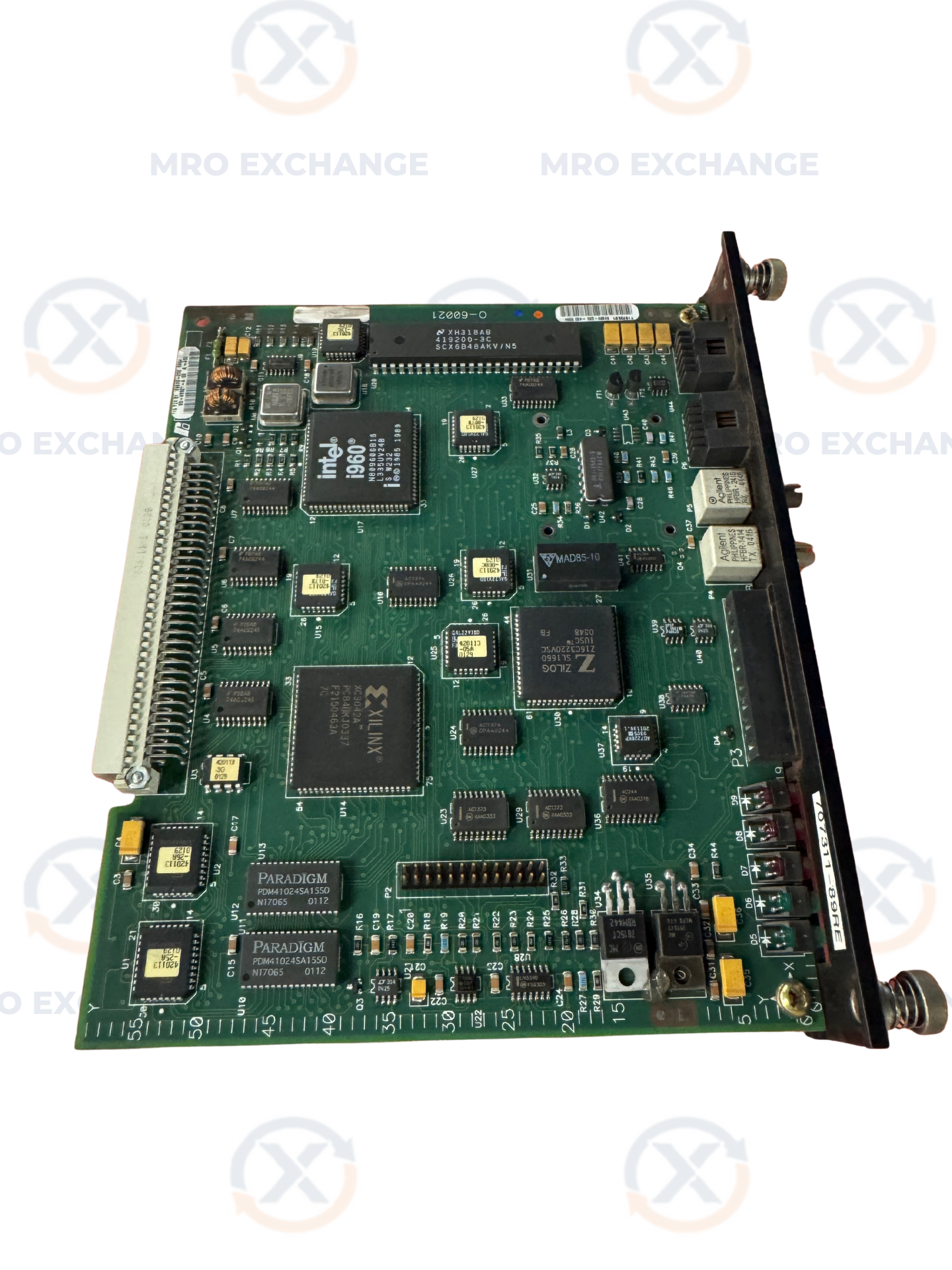

The PCB reverse side is marked 0-60021 VKL 1. The box label identifies this unit as Catalog Number RO-60021-4, Serial Number SR0CX8QC, with a remanufactured product date of 08/19/2010. The board is mounted in a standard rack-slide format with a black metal faceplate. Component population includes an Intel i960 processor, Xilinx FPGA, Zilog Z16C, and Paradigm PDM41024SA15SO SRAM devices visible on the component side.
Stock # 0526-02518
