Reliance Electric VFD SP500 / 1SU41005 - 5 HP Variable RPM

$749.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

Stock #:

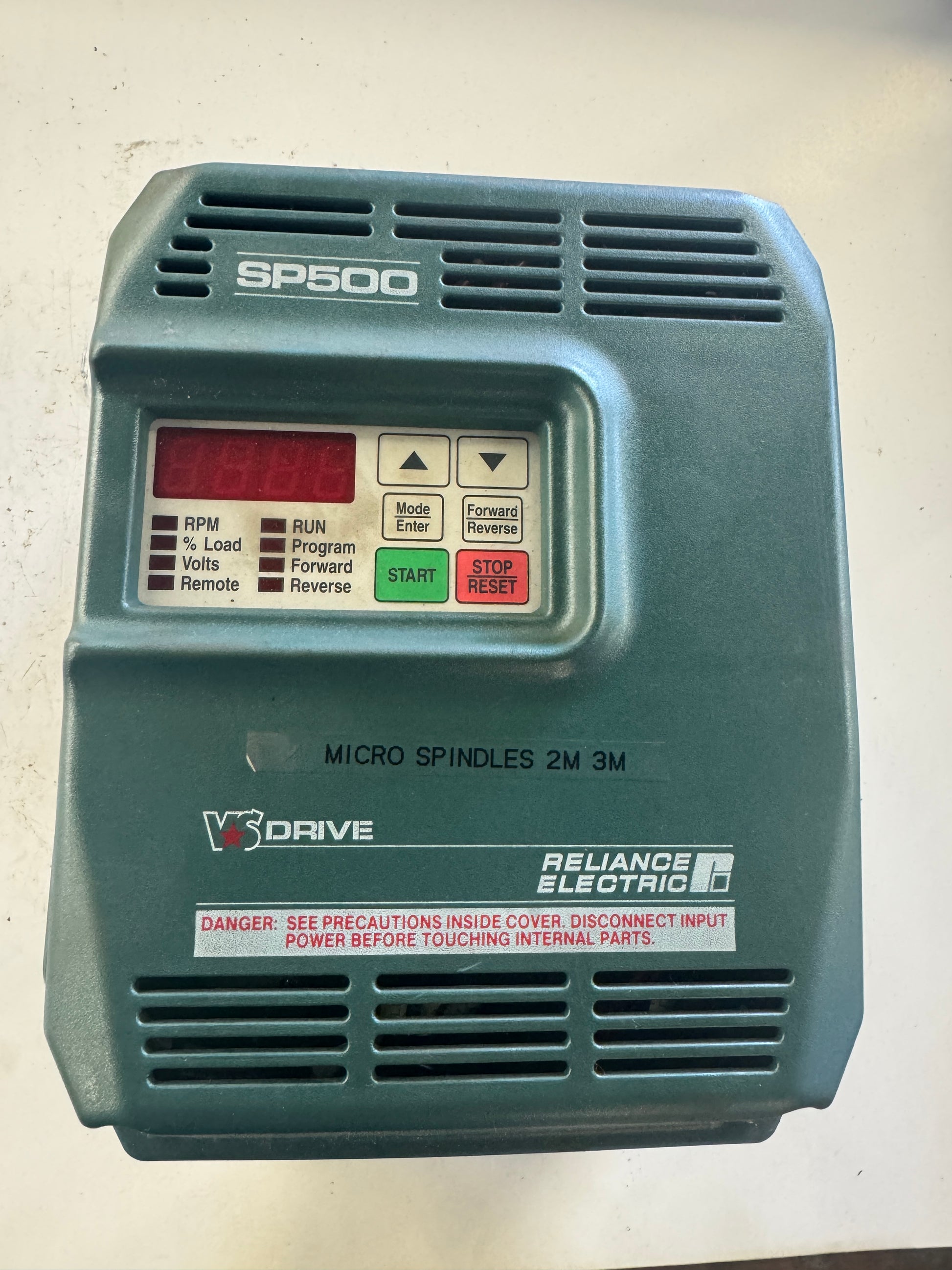

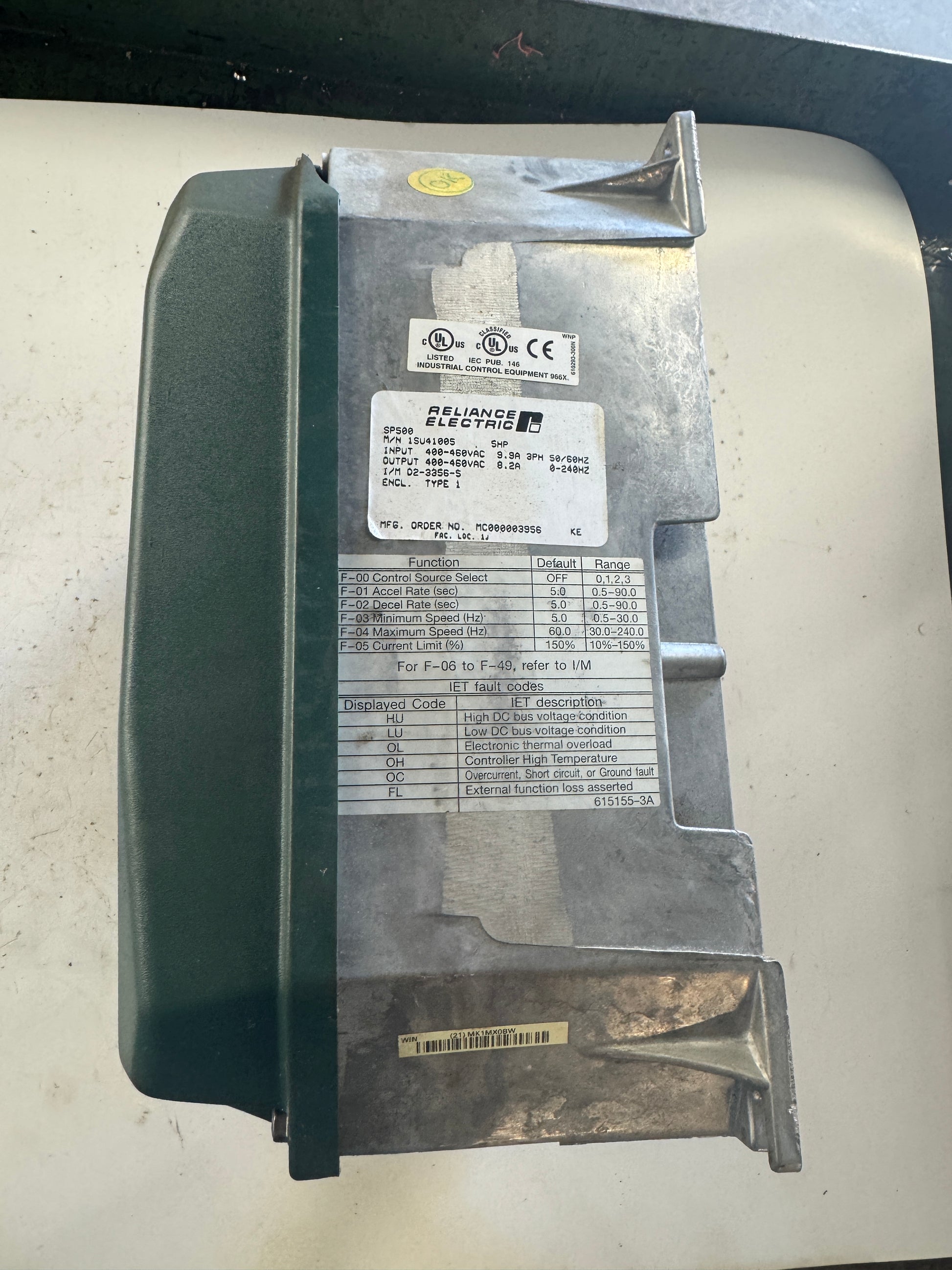

The Reliance Electric SP500 is a VS Drive variable frequency drive rated at 5 HP, carrying part number 1SU41005. Input is 400 to 460VAC, 3-phase, 50/60 Hz, at 9.9A. Output is 400 to 460VAC at 8.2A, with a frequency range of 0 to 240 Hz as shown on the nameplate. The front panel label indicates compatibility with Micro Spindles 2M and 3M. The integrated keypad displays RPM, percent load, volts, and remote status, and includes Run, Program, Forward, and Reverse indicators along with Start and Stop/Reset buttons. I/M reference is 02-3356-5. Manufacturing order number MC000003956, factory location KE. Enclosure is NEMA Type 1. The unit is UL Listed and CE marked per IEC PUB 146 for Industrial Control Equipment. The SP500 series uses an AC pulse-width-modulated inverter design with IGBT output stage. Adjustable parameters include acceleration rate, deceleration rate, minimum speed, maximum speed, and current limit, configurable via keypad or remote terminal. Fault indication covers high and low DC bus voltage, electronic thermal overload, controller overtemperature, overcurrent, short circuit, ground fault, and external function loss. Physical dimensions for this enclosure size are approximately 11.88 in. H x 8.75 in. W x 6.3 in. D, with an approximate weight of 12 lb.

Stock # 0426-02067
