Bosch Rexroth AA1VS028DFR/31R-PKC62N00 Axial Piston Variable Pump 203 bar DR 14 bar FR

$1,199.00 USD

Sale Sold out

ConditionSurplus - Untested MPNAA1VS028DFR/31R-PKC62N00 Stock #0426-01246

Photos reflect current condition. Items differing from description may be eligible for return or refund — see our condition guide.

Shipping Estimate

Estimated package weight: 25.0 lbs

Select your state above for a shipping estimate.

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

A variable displacement axial piston pump from Rexroth, manufactured at their Fountain Inn, South Carolina facility. The nameplate identifies the model as AA1VS028DFR/31R-PKC62N00, with serial number G3056266. Rated at 28cc displacement per revolution, 203 bar DR pressure, 14 bar FR pilot pressure, and 1800 RPM maximum speed. Output power is rated at 1.95 kW per the nameplate. Rotation is clockwise as confirmed by the CW marking. Made in the USA.

The AA1VS028 is an axial piston variable pump in the Rexroth A1VS series, designed for open-circuit hydrostatic drive applications. The DFR control designation indicates pressure and flow control regulation. The PKC62N00 suffix denotes specific mounting flange, shaft, and port configuration consistent with the standard SAE B 2-bolt mounting pattern common to this frame size. Items of this type are commonly used in machine tool hydraulic systems, industrial presses, and general purpose fluid power circuits.

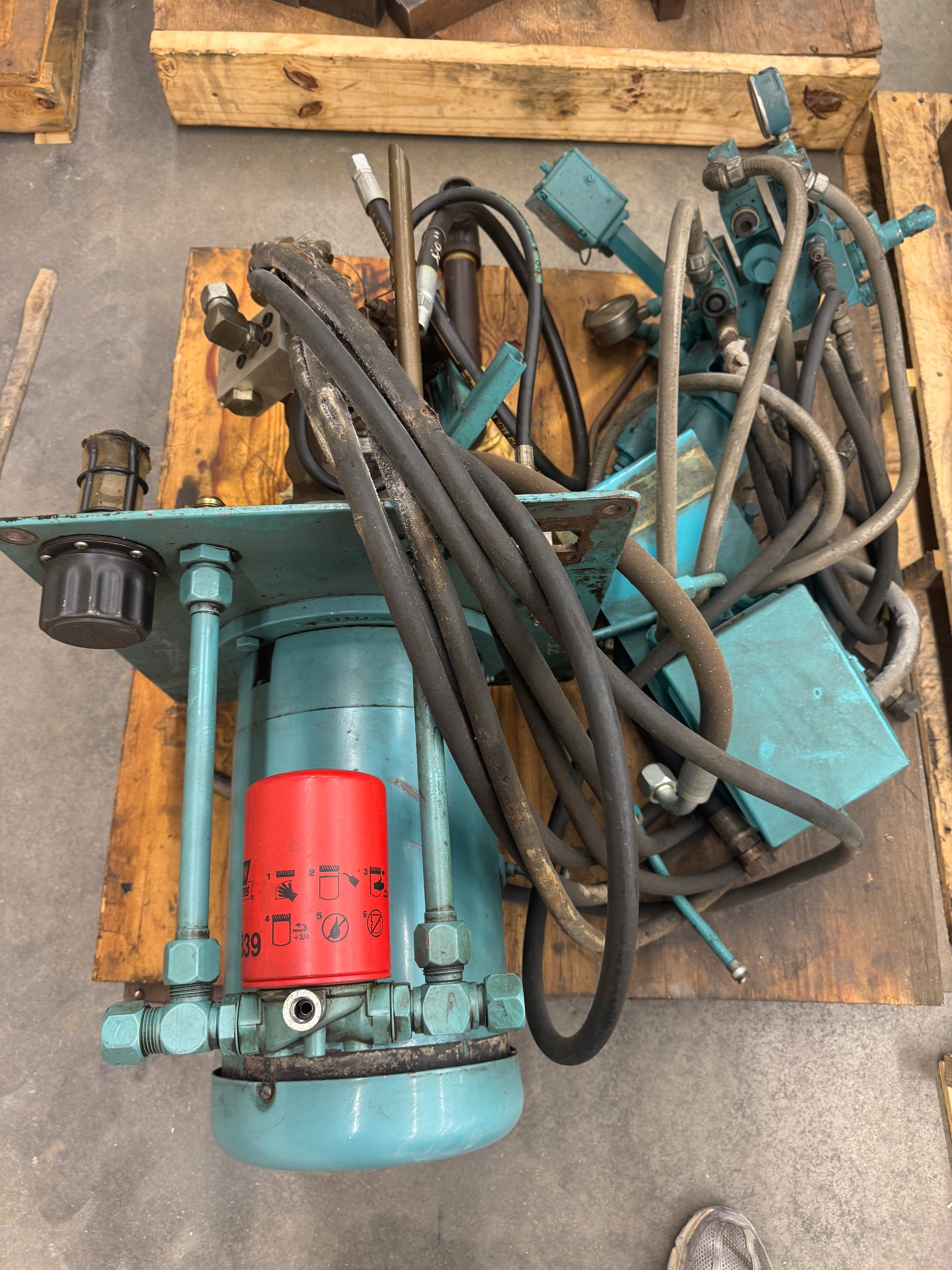

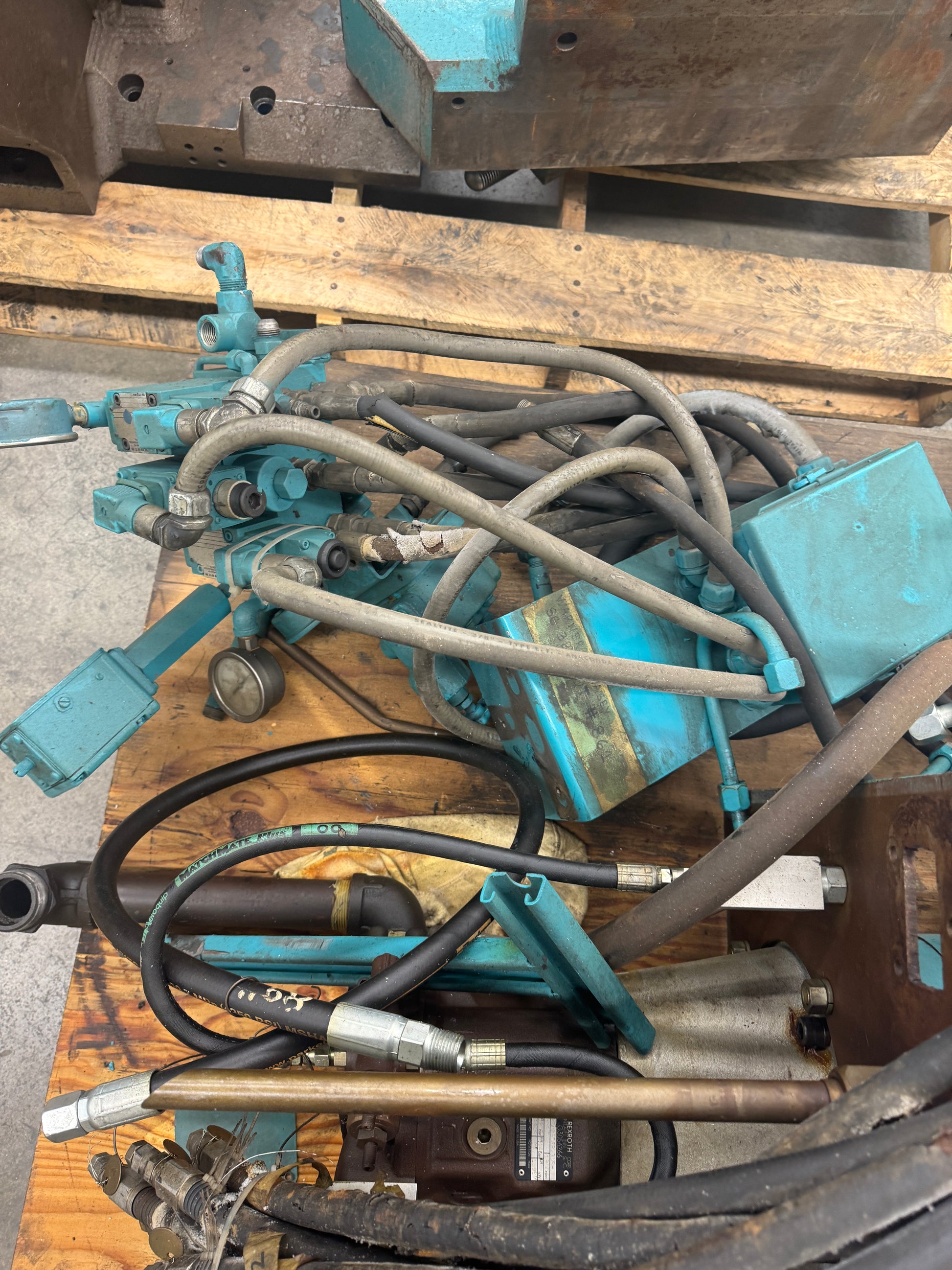

Photos show the unit with associated hydraulic hoses, manifold blocks, valves, and a mounted spin-on filter, indicating it was removed as part of a larger hydraulic power unit assembly. The pump body is finished in the characteristic Rexroth teal color. Part number RH00939606 is visible on the nameplate barcode area.

Stock # 0426-01246
