Schneider Electric Motion Controller LMC101CAA10000 24 VDC

$1,999.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

MPN: LMC101CAA10000
Stock #: 0326-01010

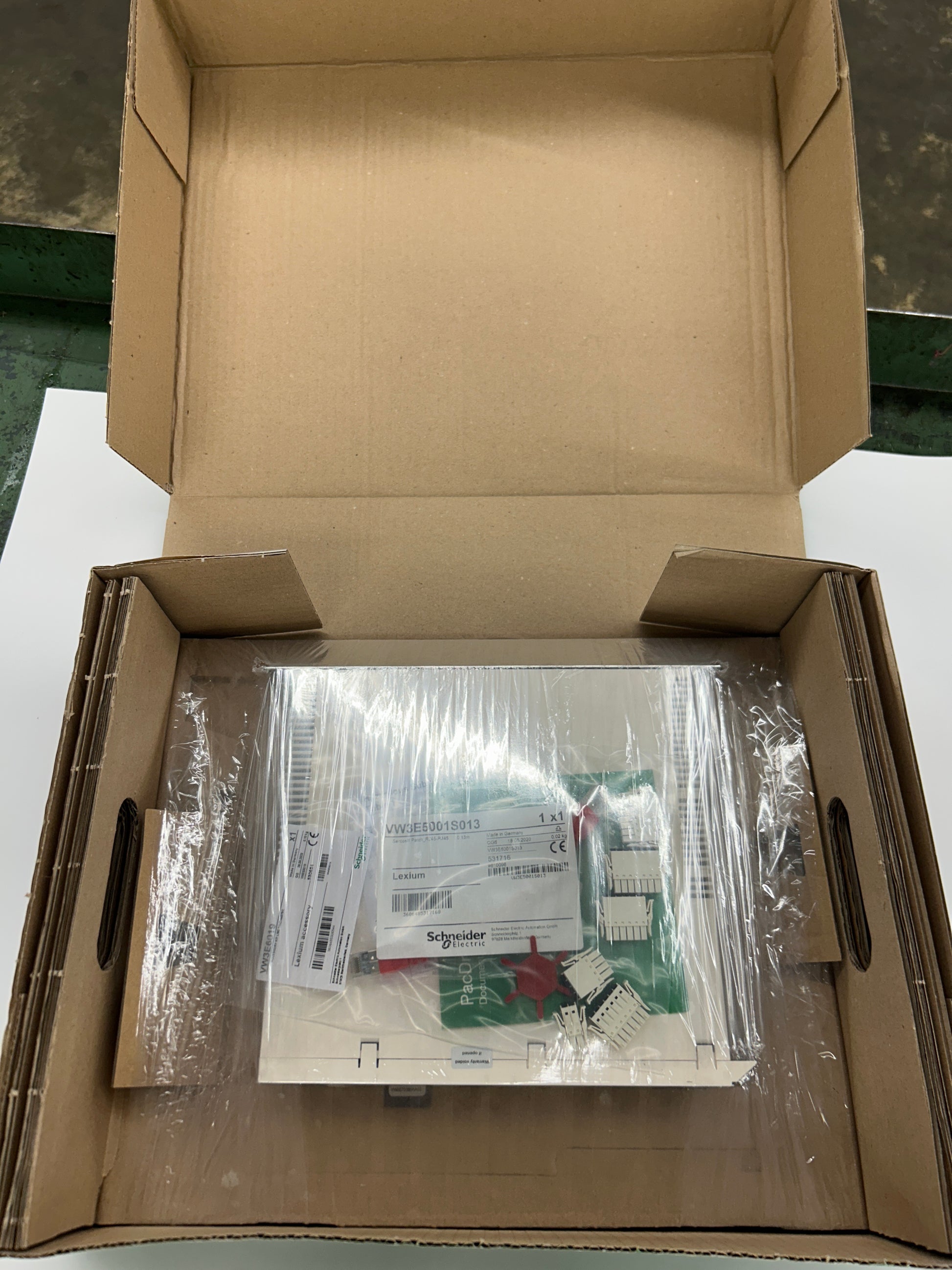

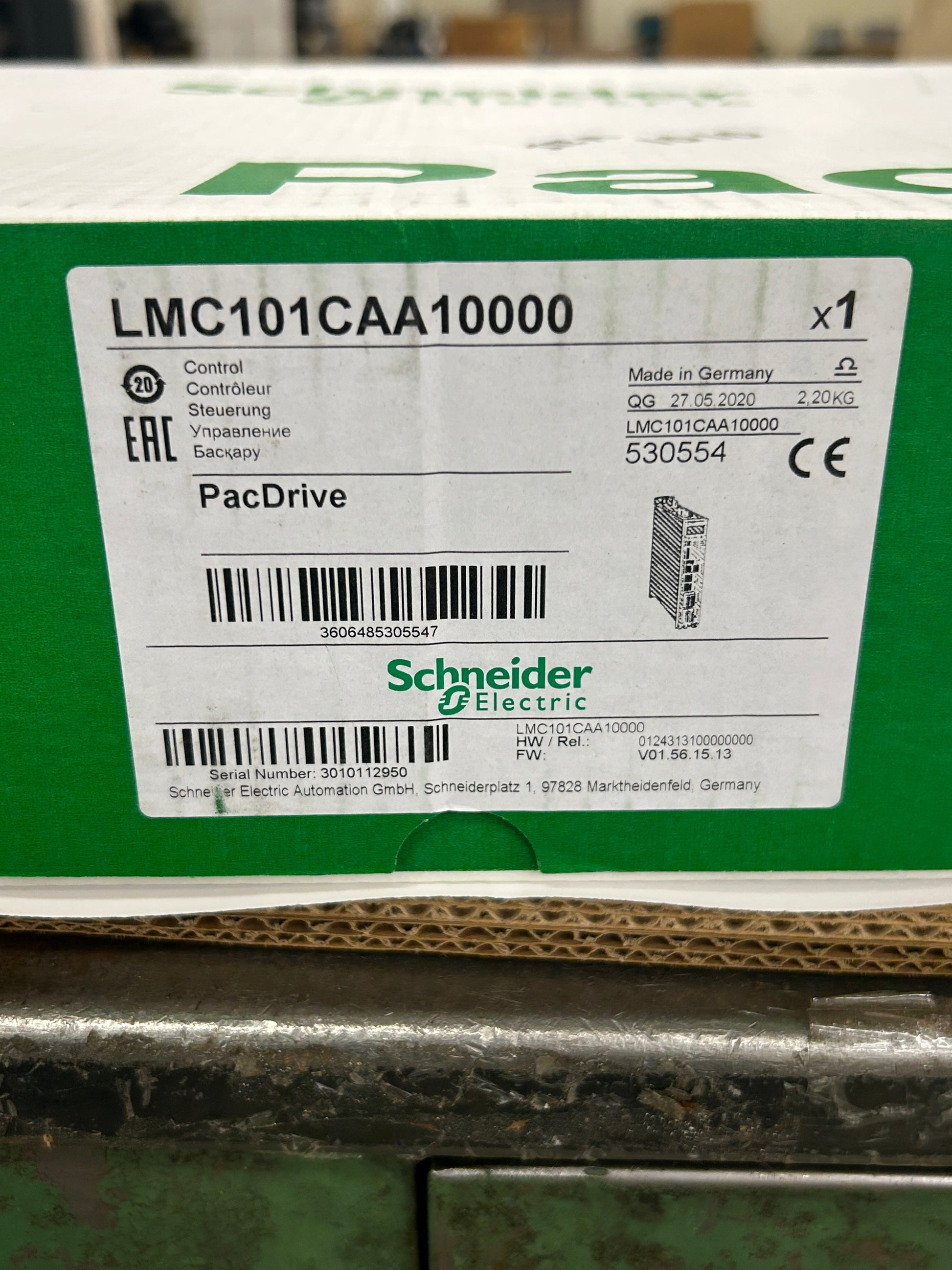

The Schneider Electric LMC101CAA10000 is a PacDrive 3 Logic Motion Controller rated for 4 servo axes with an integrated PLC, designed for automating machines and production lines. It operates on a 24 VDC supply voltage, draws 30W, and delivers a discrete output current of 500mA. The unit supports 8 discrete inputs, including 4 configurable touch probe inputs conforming to IEC 61131-2 Type 1, and provides 100 µs to 4.29 s configurable response times for digital, touch probe, and interrupt inputs. Programming is supported across all five IEC 61131-3 languages: IL, LD, FBD, SFC, ST, and CFC. The controller carries IP20 ingress protection and is certified to CULus, CSA, CE, and EAC standards, meeting CSA C22.2 No. 14, CSA C22.2 No. 274, EN/IEC 61131-2, and UL 508C. Physical dimensions are 44mm wide x 222mm deep x 270mm tall; weight is 2.2 kg as confirmed on the product label. Serial number 3010112950 is visible on the box label. Hardware revision 0124313100000000 and firmware version V01.56.15.13 are also label-confirmed. Manufactured in Germany by Schneider Electric Automation GmbH, Marktheidenfeld. This unit ships in its original factory packaging and includes a Schneider Electric Lexium VW3E5001S013 SercosIII patch cable (RJ45 to RJ45, 0.13m), which is the factory-included accessory kit component for this MPN.

Stock # 0326-1010

View full details
