Schneider Electric / Telemecanique Thermal Overload Relay LRD3355 600/690 VAC

$79.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

MPN: LRD3355
Stock #: 0226-00737

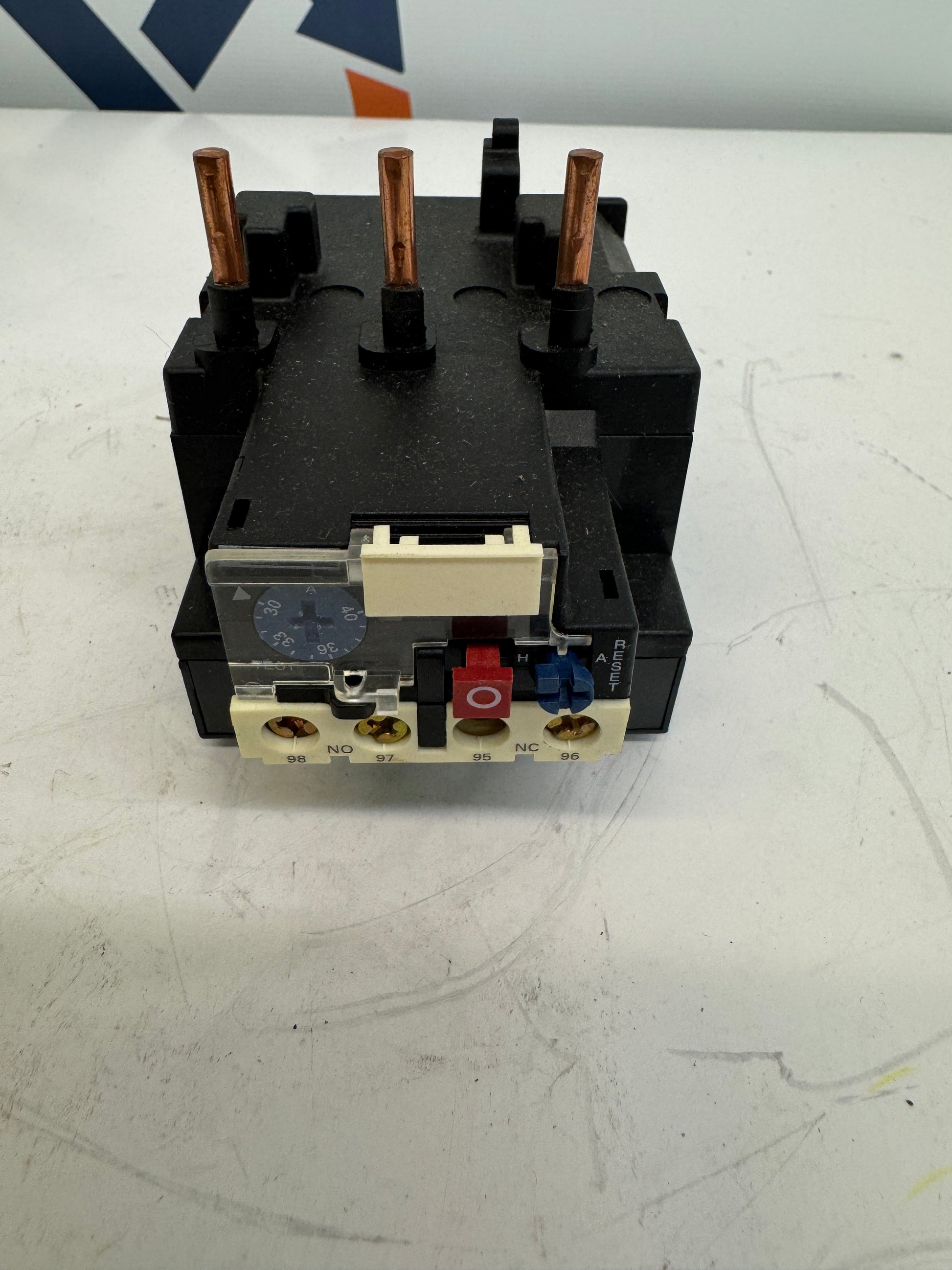

The Schneider Electric LRD3355 is a 3-pole bimetallic thermal overload relay from the TeSys LRD series, with an adjustable current range of 30 to 40 amps. Manufactured in France and sold under both the Schneider Electric and Telemecanique brands, this unit carries part number LRD3355 and catalog reference 051993. It is rated for use at 600/690 VAC and features Trip Class 10 protection with phase loss sensitivity for single-phase fault detection. The relay uses bimetallic technology with ambient temperature compensation and offers both manual and automatic reset modes, selectable via the front-mounted dial. Auxiliary contacts include one normally open (NO) contact at terminals 97/98 and one normally closed (NC) contact at terminals 95/96. Connection is made via screw clamp terminals. The LRD3355 is designed for direct contactor mounting, compatible with TeSys D series contactors in the LC1D80 and LC1D95 range, making it suited for motor starter assemblies in industrial control panel and MCC applications. The item is presented in its original Telemecanique TeSys product box.

Stock # 0226-737
