Siemens 3RV1031-4DA10 Manual Motor Protector Circuit Breaker 600 V Max Appears Unused
Siemens 3RV1031-4DA10 Manual Motor Protector Circuit Breaker 600 V Max Appears Unused
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Inspected Surplus - Appears Unused
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 3RV1031-4DA10
Stock #: Stock # 0626-01786
Product Specifications
- Manufacturer: Siemens
- MPN / Model: 3RV1031-4DA10
- Product Type: Manual Motor Protector / Circuit Breaker
- Series: SIRIUS 3R
- Frame Size: S2
- Poles: 3
- Current Setting Range: 18 to 25 A
- Trip Class: Class 10
- Short Circuit Release: 325 A
- Voltage: 600 V Max
- HP Rating (3 Phase): 7 1/2 HP at 200 to 208 V, 10 HP at 230 V, 20 HP at 460 V, 25 HP at 575 V
- Terminal Type: Screw Terminal
- Enclosure Rating: IP20
Product Description

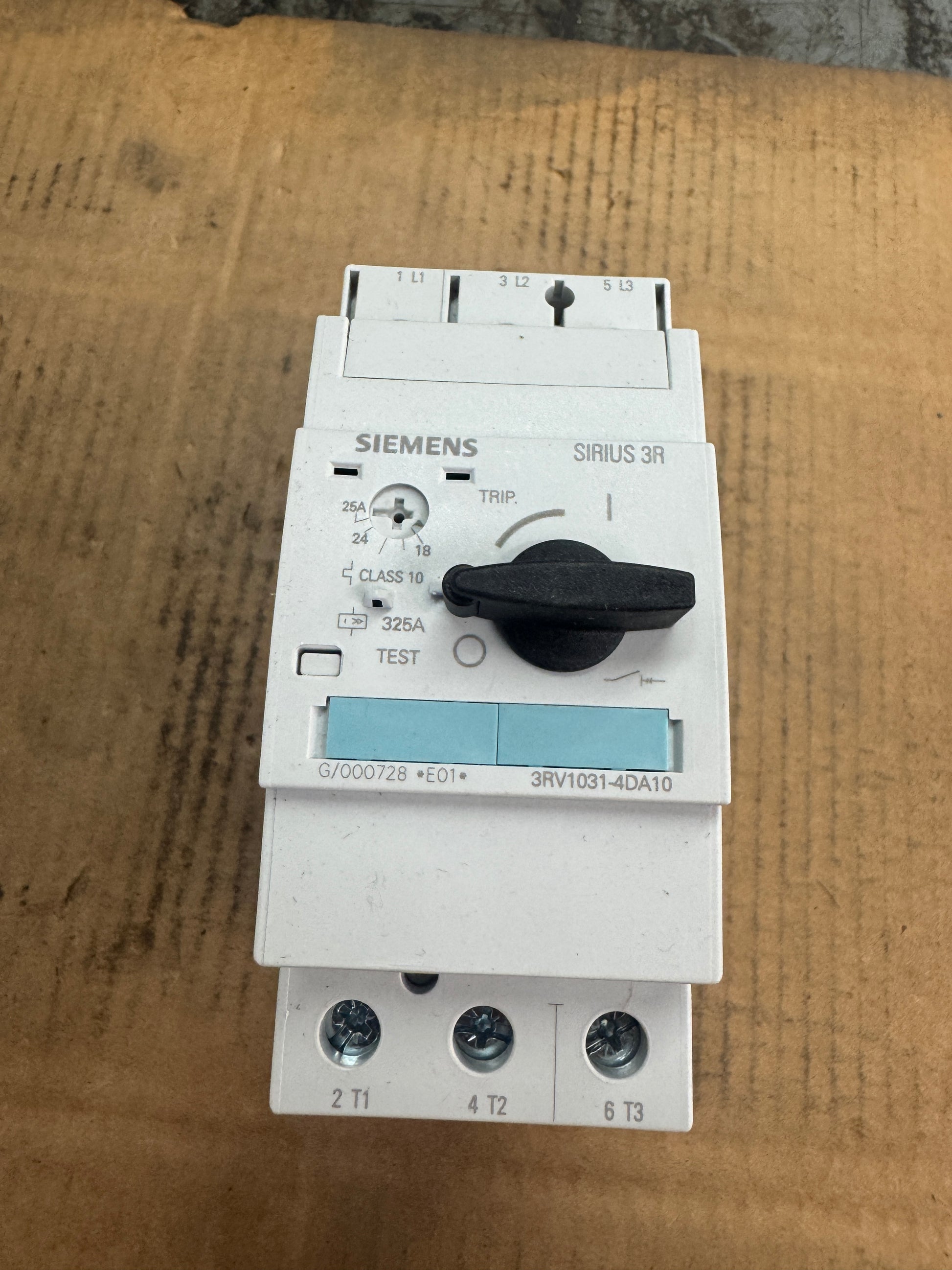

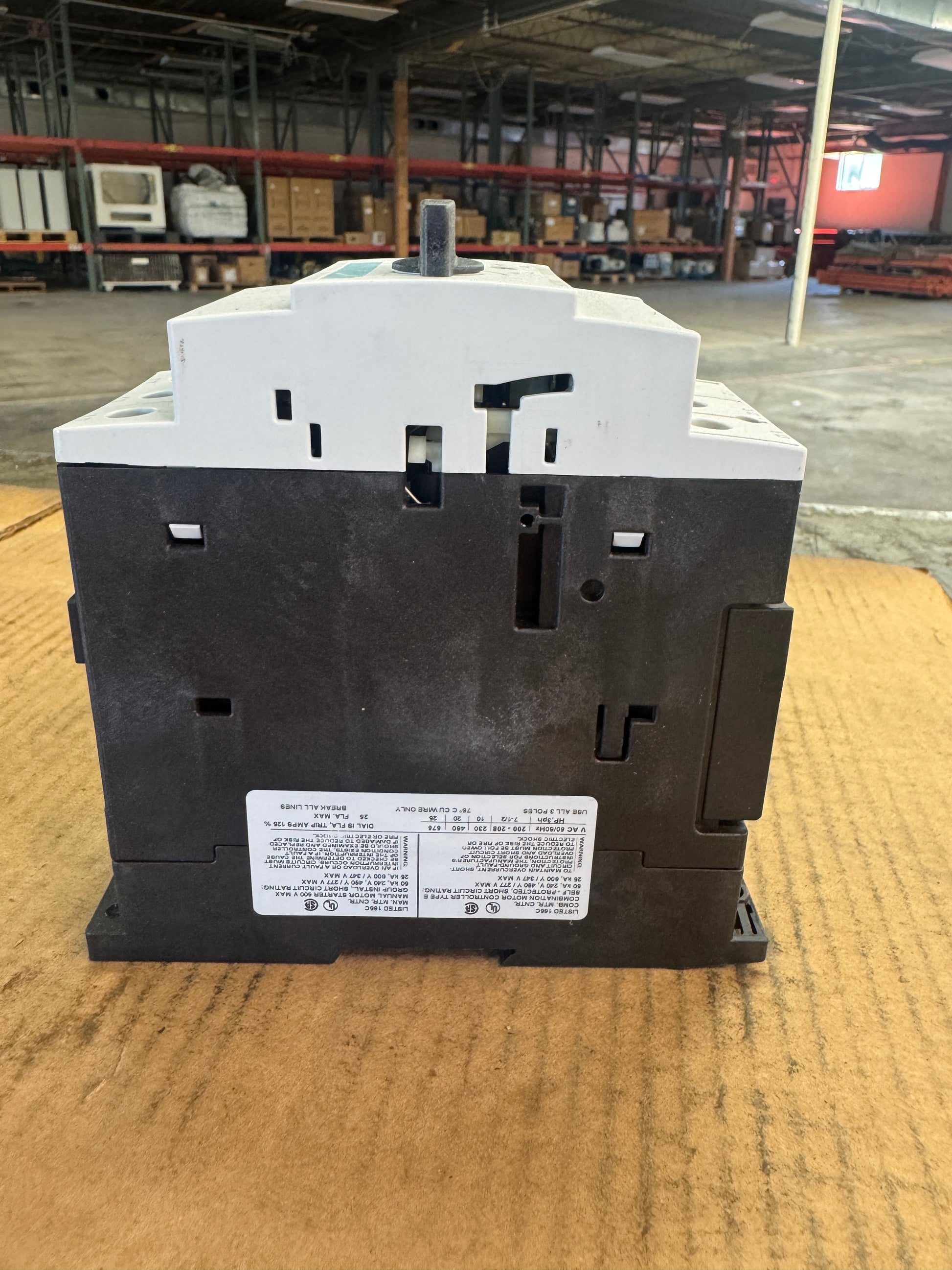

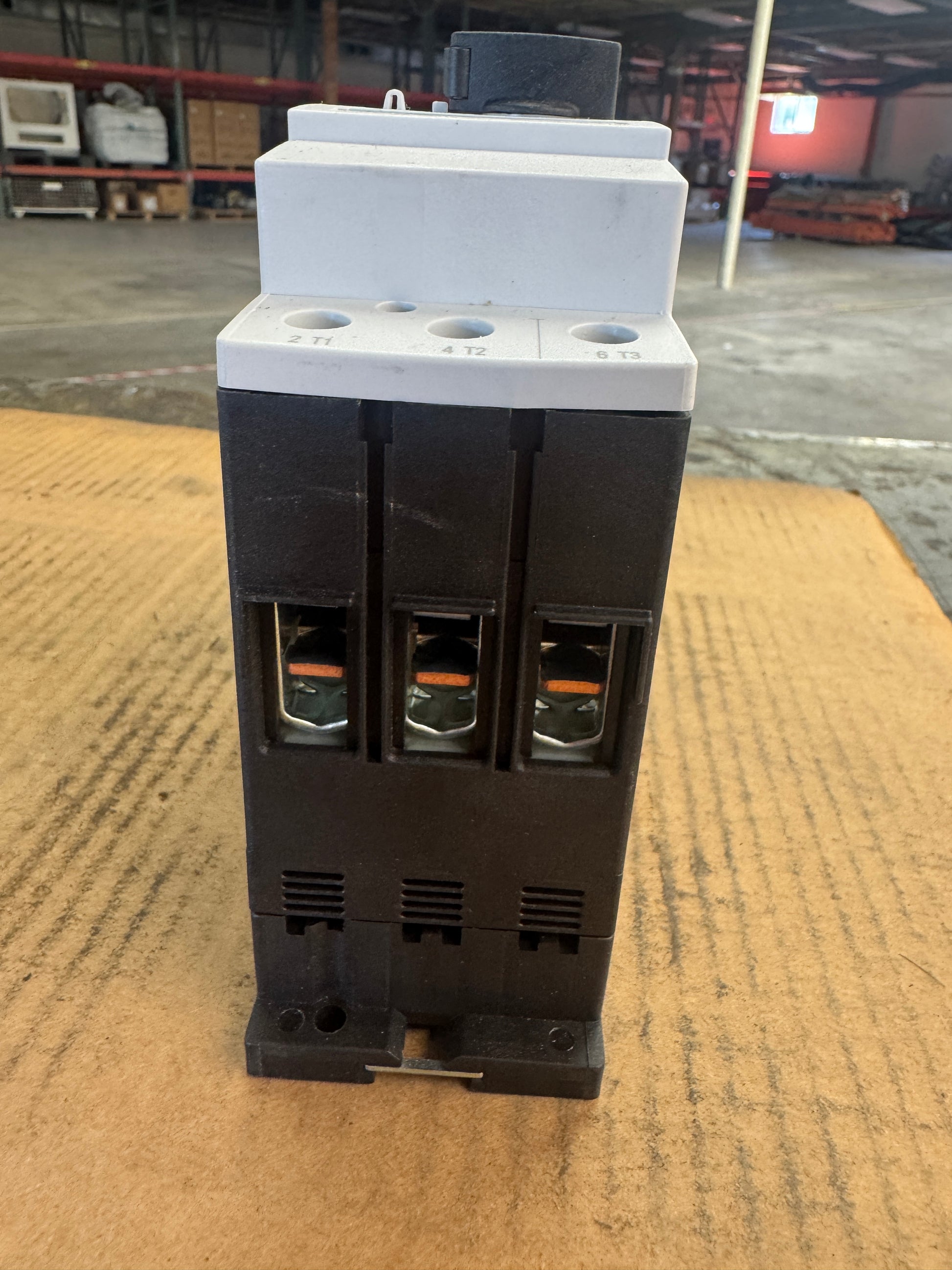

Siemens 3RV1031-4DA10 is a SIRIUS 3R manual motor protector and circuit breaker in the size S2 frame, identified directly on the nameplate by catalog number 3RV1031-4DA10. It carries an adjustable current setting range of 18 to 25 A, a Class 10 trip characteristic, and a 325 A short circuit release, with three poles and screw terminals at the 1 L1, 3 L2, 5 L3 line side and 2 T1, 4 T2, 6 T3 load side. The side rating label lists horsepower ratings for three phase service of 7 1/2 HP at 200 to 208 V, 10 HP at 230 V, 20 HP at 460 V, and 25 HP at 575 V, rated to 600 V max. Buyers matching an exact Siemens catalog number for motor branch protection, control panel replacement, or spare inventory can use the printed MPN and the 18 to 25 A setting range to confirm fit against existing equipment.
