Siemens 3RW3018-1BB04 Soft Starter 200 to 480V Open Box Unused
Siemens 3RW3018-1BB04 Soft Starter 200 to 480V Open Box Unused
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Open Box - Unused
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 3RW3018-1BB04
Stock #: Stock # 0626-01783
Product Specifications
- Manufacturer: Siemens
- MPN / Model: 3RW3018-1BB04
- Product Type: SIRIUS AC Semiconductor Motor Starter (Soft Starter)
- Rated Power: 7.5 kW at 400V, 4 kW at 230V
- Rated Operational Current: 17.6 A at up to 40C
- FLA: 17 A at up to 50C
- Rated Operational Voltage: 200 to 480V, 50/60 Hz
- Control Supply Voltage: 24V (Us)
- Horsepower: 3 HP at 200V, 3 HP at 230V, 10 HP at 460V (3PH)
- Rated Insulation Voltage: 480V (Ui)
- Rated Impulse Voltage: 6 kV (Uimp)
- Standards: IEC 60947-4-2, IEC 60947-5-1, GB/T14048.6
- Approvals: UL Listed, CE, CCC, EAC, UKCA, KCC-REM-S49-3RW
Product Description

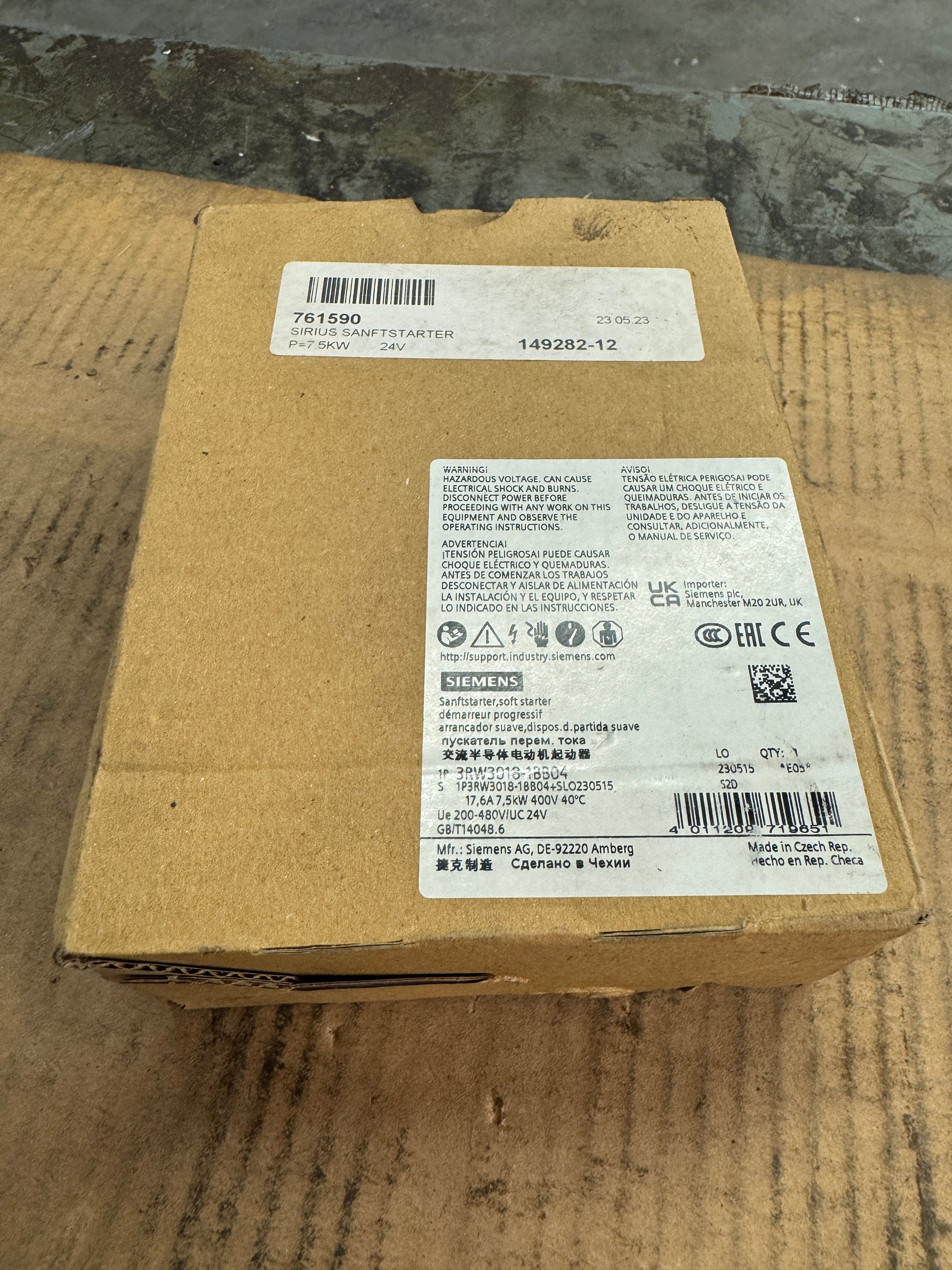

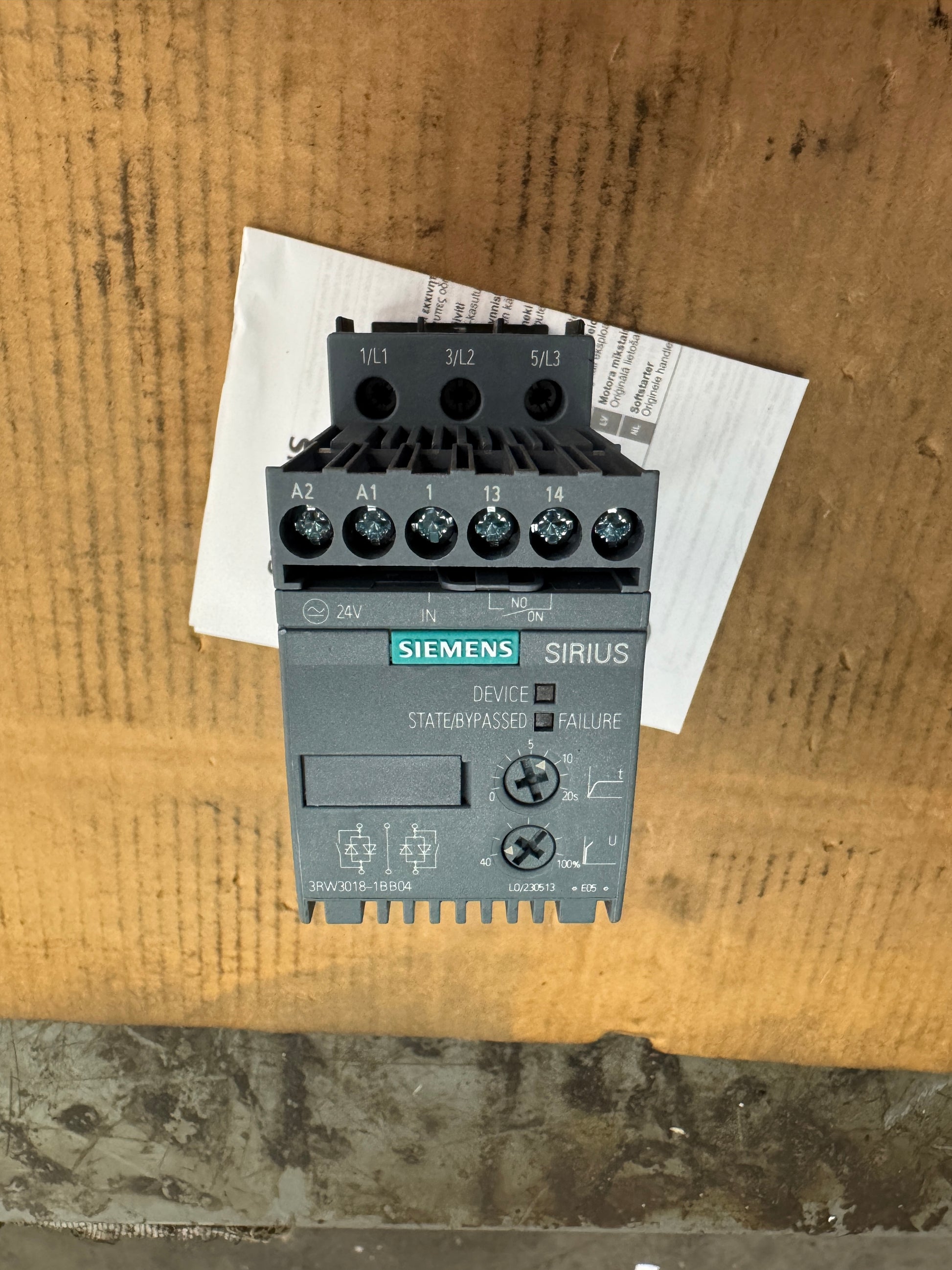

Siemens SIRIUS soft starter, catalog number 3RW3018-1BB04, is an AC semiconductor motor starter rated for 7.5 kW at 400V and 4 kW at 230V, with a rated operational current of 17.6 A. The unit operates across a 200 to 480V range at 50/60 Hz and uses a 24V control supply. Adjustable ramp time and starting voltage are set through the two front rotary dials, and front terminals are marked 1/L1, 3/L2, 5/L3 on the line side along with A2, A1, 1, 13, and 14 for control and auxiliary connections. DEVICE, STATE/BYPASSED, and FAILURE status indicators are provided on the face. This catalog number is useful for buyers matching an exact Siemens SIRIUS 3RW30 soft starter for replacement, spare inventory, or maintenance sourcing. Confirmed identifiers include the manufacturer, MPN, rated power and current, control voltage, and the carton serial reference 1P3RW3018-1BB04+SLO230515.
