Siemens 3RM1007-1AA04 AC Semiconductor Motor Starter 1.6-7A 24V DC

$109.99 USD

Sale Sold out

✓ 30-day returns on every item — return policy

ConditionSurplus - Untested MPN3RM1007-1AA04 Stock #0326-01045

30-day returns on every item. Photos reflect the actual item’s current condition — see our return policy and condition guide.

Shipping Estimate

⚡ Same-day shipping available — order by 11 am CT ($100 add-on at checkout)

✓ Free domestic UPS Ground shipping — applied automatically at checkout.

Same-Day Available
Real support team
Secure checkout

Product Specifications

Manufacturer: Siemens
MPN / Model: 3RM1007-1AA04
Product Type: AC Semiconductor Motor Starter
Series: SIRIUS
Revision: E04
Box Label Serial: S 1P3RM1007-1AA04+SG/200623702696
Box Label Date Code: G/200623 F88
Current Setting Range: 1.6 - 7 A
Rated Operational Current: Ie 7 A
Rated Operational Voltage: Ue 48-500 V
Control Supply Voltage: Us DC 24 V
Frequency: 50/60 Hz
Motor Power AC-53a: 1.5 kW at 230 V, 3 kW at 400 V, 4 kW at 500 V
Utilization Categories: AC-53a 7 A / 500 V, AC-51 10 A / 500 V, AC-15 3 A / 230 V, DC-13 1 A / 24 V
Tripping Class: Class 10A
Insulation Voltage: Ui 500 V, Uimp 6 kV (control circuit Ui 300 V, Uimp 4 kV)
Ambient Temperature: Ie 7 A up to 40 degrees C, surrounding air temp. 50 degrees C
UL Ratings: VAC480 FLA 6.1, LRA 43; short circuit 5 kA at 480 V; max fuse 30 A Class RK5; pilot duty 0.75 A 240 V ac; resistive load 3 A 250 V ac and 3 A 30 V dc; 75 degrees C Cu wire only
Terminals: Screw-type
Protection: IP20
Standards: IEC/EN 60947-4-2, IEC 60947-4-3, GB/T 14048.6
Certifications: UL Listed 165 C IND. CONT. EQ., CSA 400 V max.
Country of Origin: Germany
Condition: Surplus - Untested

Product Description

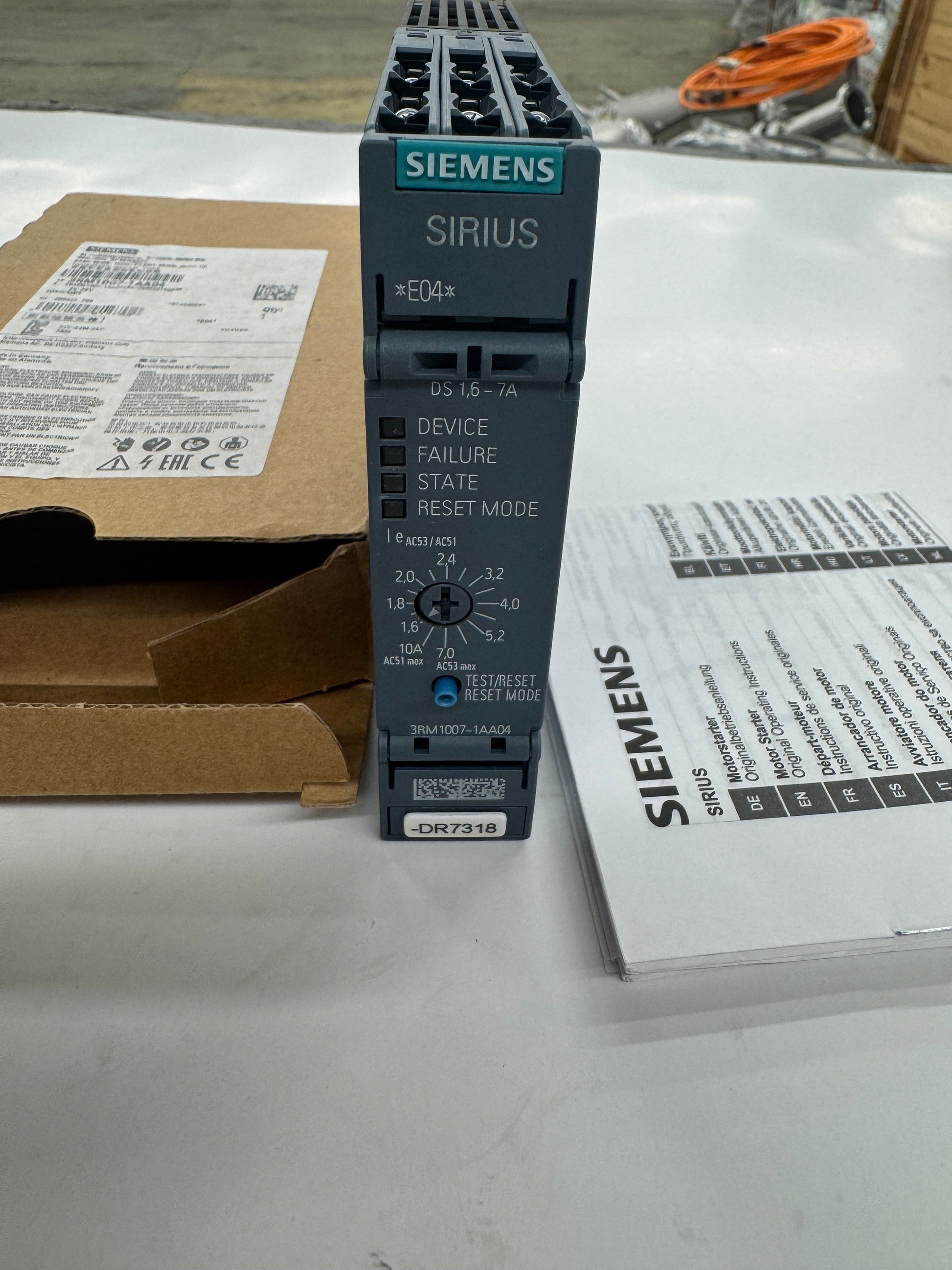

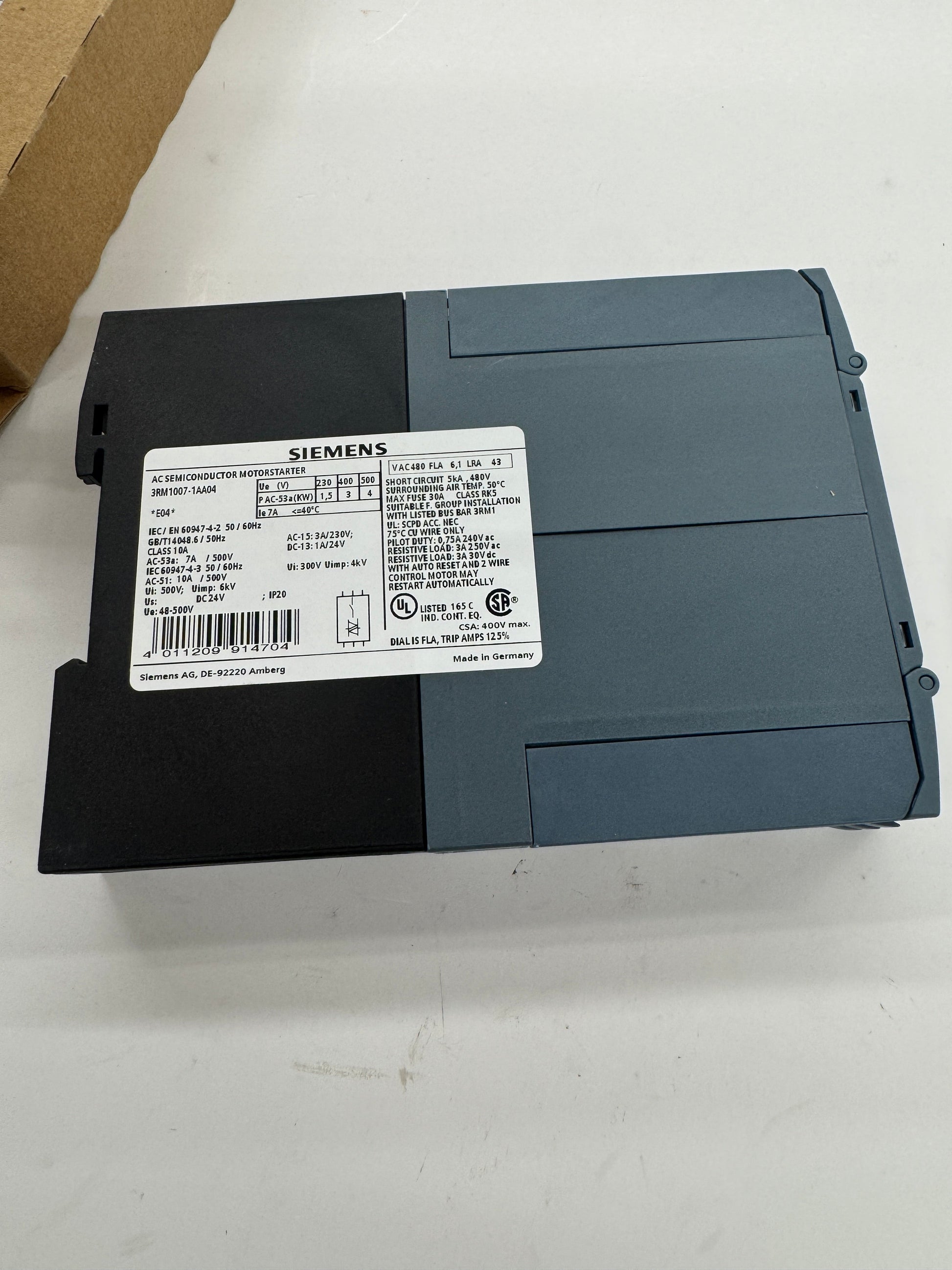

This is a Siemens 3RM1007-1AA04 AC semiconductor motor starter. The front is marked Siemens SIRIUS, *E04*, DS 1,6 - 7A, with Device, Failure, State and Reset Mode indicators, a current setting dial (1.6 to 7.0 A AC53 max, 10 A AC51 max) and a Test/Reset button. The side label reads Ue 230/400/500 V, P AC-53a 1.5/3/4 kW, Ie 7 A up to 40 degrees C, VAC480 FLA 6.1 LRA 43, IEC/EN 60947-4-2 50/60 Hz, Class 10A, AC-53a 7 A / 500 V, AC-51 10 A / 500 V, Ui 500 V Uimp 6 kV, Us DC 24 V, IP20, Ue 48-500 V, short circuit 5 kA 480 V, surrounding air temp. 50 degrees C, max fuse 30 A Class RK5, UL Listed 165 C IND. CONT. EQ. and CSA 400 V max. It also states that the dial is FLA with trip amps 125%, and that with auto reset and 2 wire control the motor may restart automatically. It is marked Made in Germany, Siemens AG, DE-92220 Amberg. No serial number appears on the side label. The Siemens box label shows serial S 1P3RM1007-1AA04+SG/200623702696, DC 24V, screw-type, date code G/200623 F88, E04 and quantity 1.

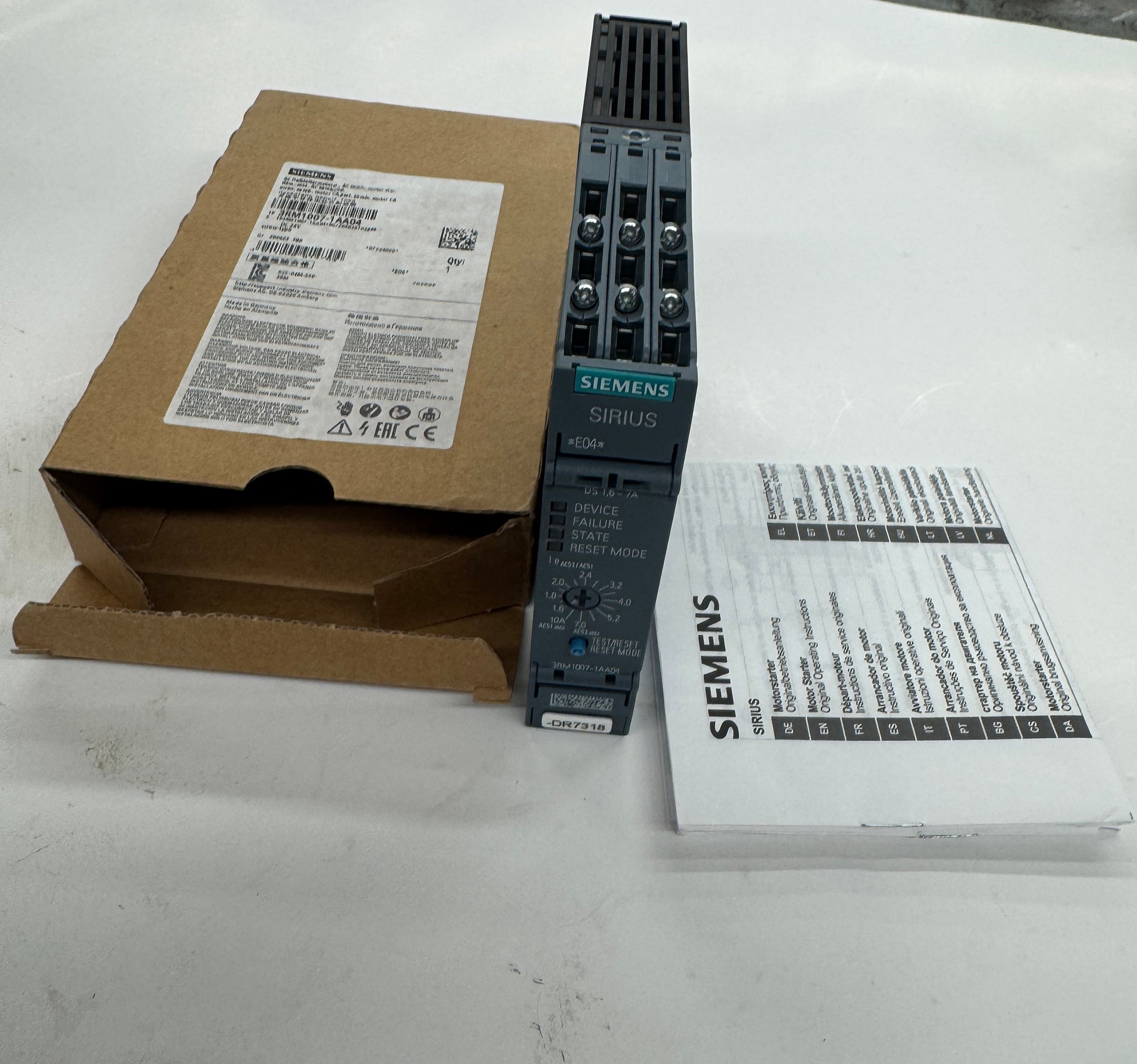

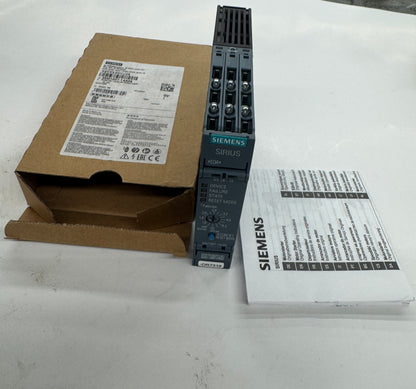

The photos show the unit with an opened Siemens cardboard box and a multilingual SIRIUS operating instructions booklet. The unit housing appears clean with no visible damage.

Sold as surplus, untested. This unit has not been powered on or tested by MRO Exchange, and the electrical ratings and function have not been verified.

Stock # 0326-01045
