Siemens AC Semiconductor Motor Starter 3RM1007-1AA04
Siemens AC Semiconductor Motor Starter 3RM1007-1AA04
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 3RM1007-1AA04
Stock #: 0326-01114

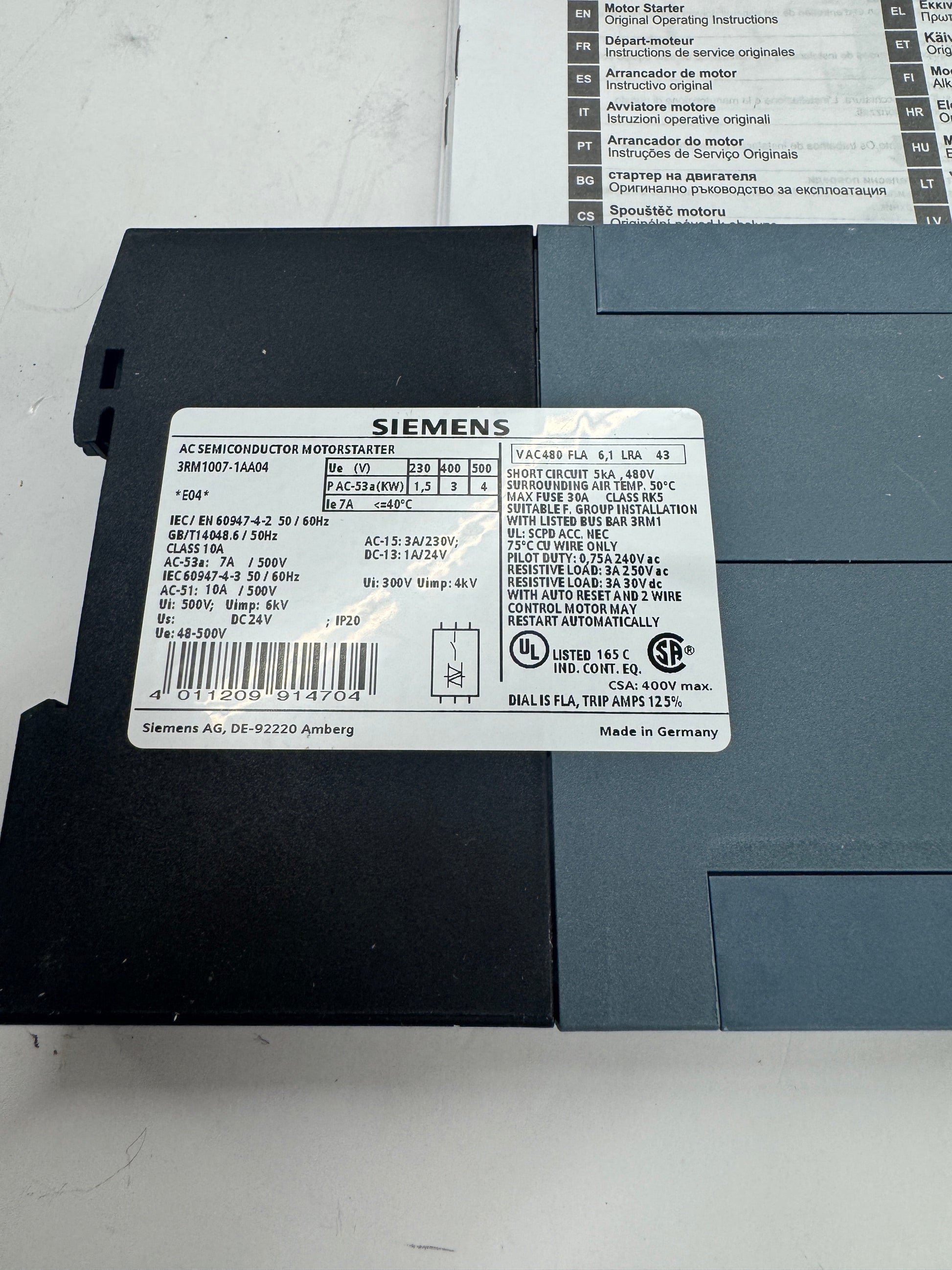

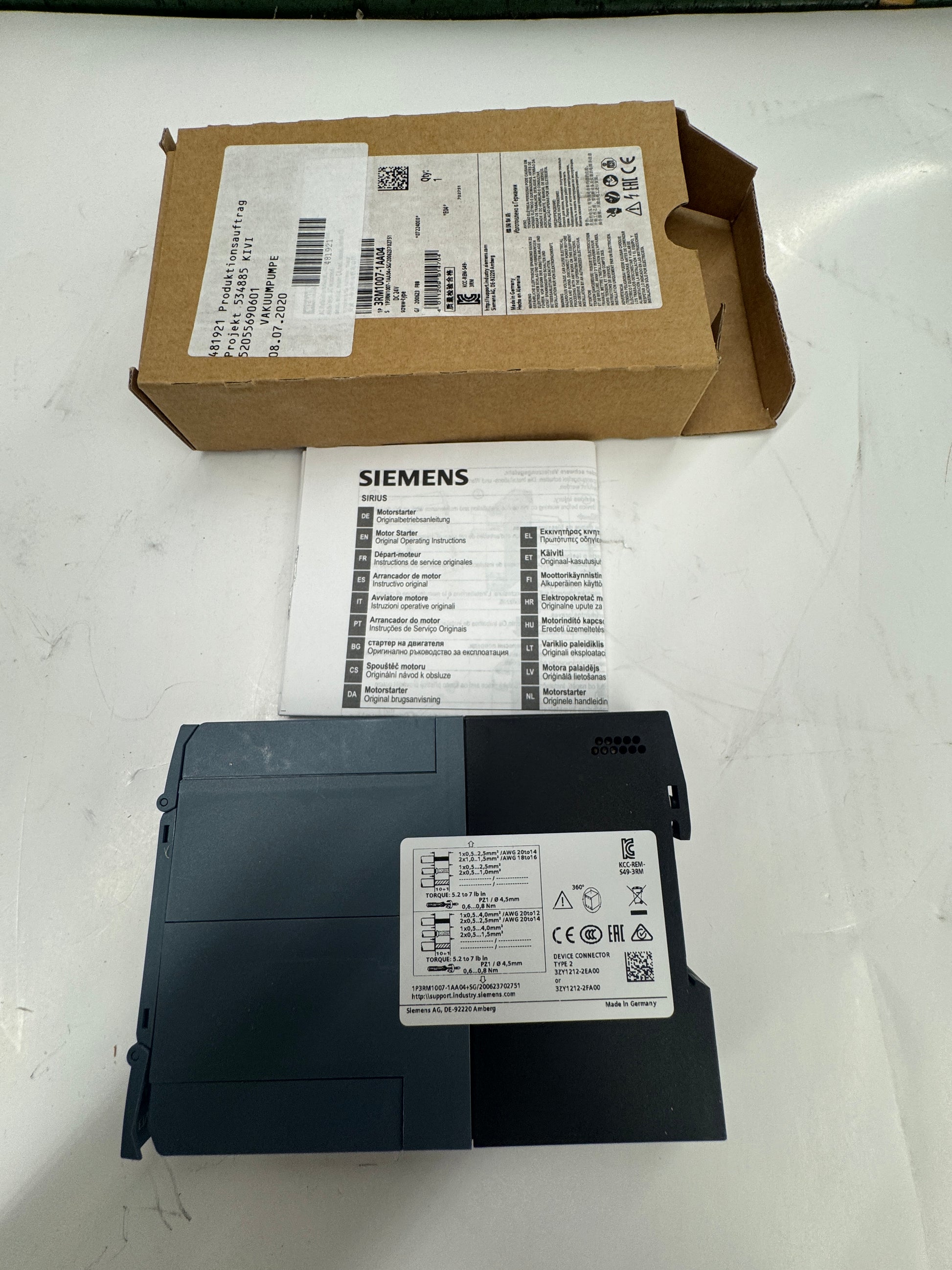

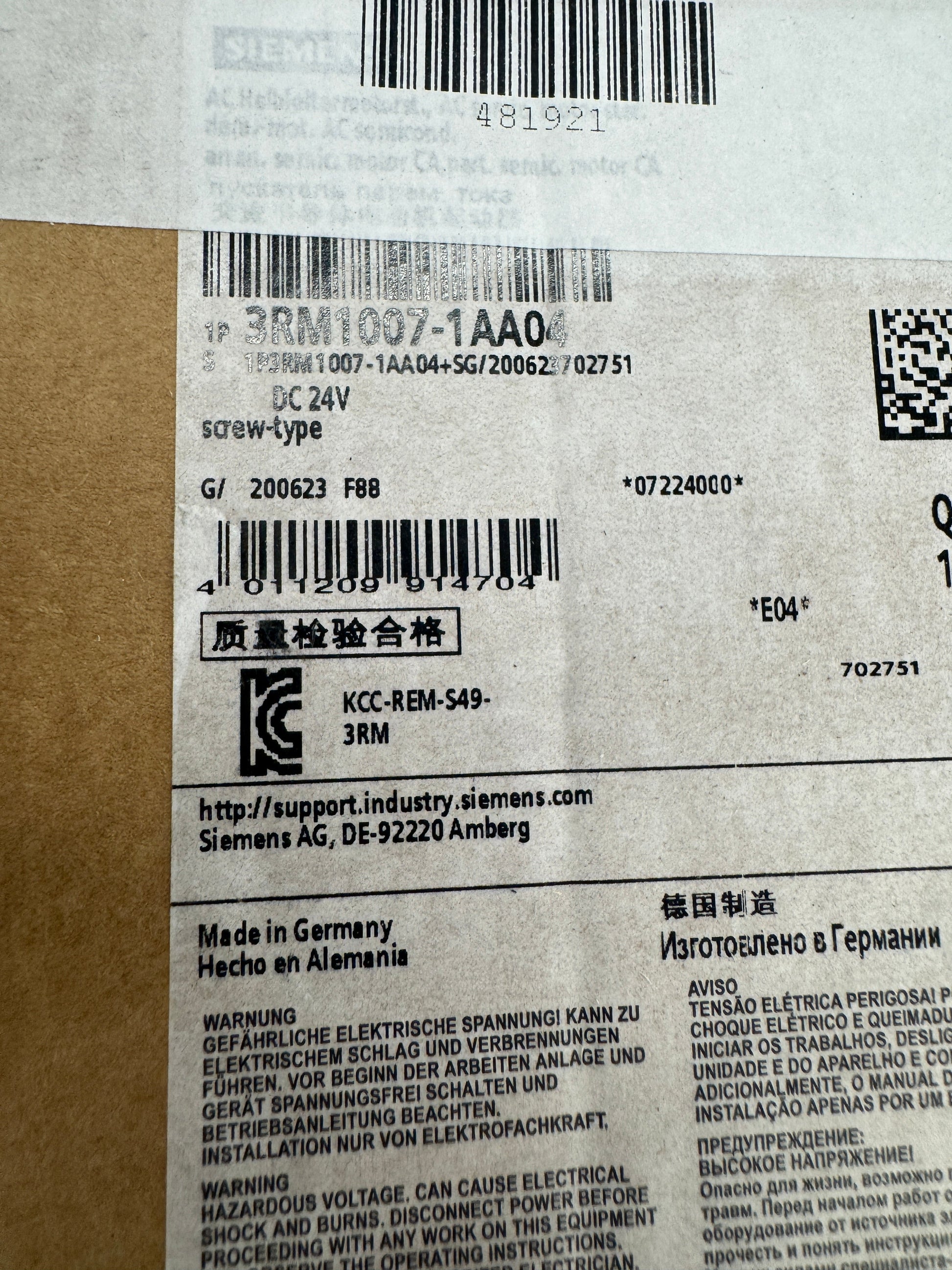

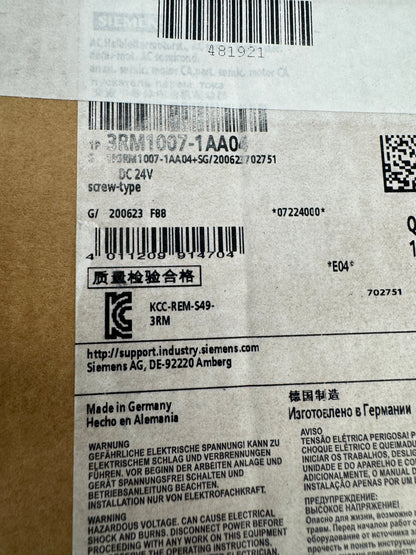

Used in motor control panels and automation cabinets for direct-on-line starting of three-phase and single-phase AC motors, the Siemens SIRIUS 3RM1007-1AA04 is a compact AC semiconductor motor starter from the 3RM1 series. The unit carries part number 3RM1007-1AA04 and revision E04, confirmed on both the device nameplate and original packaging label.
The 3RM1007-1AA04 operates on a supply voltage range of 48 to 500V AC and uses a DC 24V control voltage via screw-type connection terminals. Motor current range is 1.6 to 7A, with a rated operational current of 7A at 500V AC in AC-53a duty. Thermal overload protection is CLASS 10A per IEC/EN 60947-4-2. Motor power performance is rated at 1.5kW at 230V, 3kW at 400V, and 4kW at 500V per nameplate data.
Short circuit rating is 5kA at 480V, maximum fuse is 30A CLASS RK5, and surrounding air temperature is rated to 50 degrees C. The unit bears UL listing 165C for industrial control equipment and CSA rating to 400V maximum. Pilot duty rating is 0.75A at 240V AC; resistive load rating is 3A at 250V AC and 3A at 30V DC. The device is IP20 rated and suitable for group installation with listed bus bar 3RM1. Made in Germany by Siemens AG, DE-92220 Amberg. Serial reference 702751.
Stock # 0326-1114
