Siemens-Allis RCC5PI Control Relay 120V AC Open Box Unused
Siemens-Allis RCC5PI Control Relay 120V AC Open Box Unused
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Open Box - Unused
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: RCC5PI
Stock #: 0626-01587
Product Specifications
- Manufacturer: Siemens-Allis
- MPN / Model: RCC5PI
- Base Model: RCC5P
- Product Type: Control Relay
- Coil Voltage: 120V 60Hz / 110V 50Hz
- Contact Configuration: 5NO / 5NC, Form C
- Rating: NEMA A600, Heavy Duty
- Voltage (AC): 600V AC Max
- Current (Continuous): 10 Amps
- Max VA Make: 7200 VA
- Max VA Break: 720 VA
- Standards: VDE 0660, IEC 337, UL Listed (165C IND. CONT. EQ.), CSA LR 12730
- Country of Origin: Germany
Product Description
The Siemens-Allis RCC5PI is a heavy-duty industrial control relay rated for NEMA A600 service. The RCC5PI designation identifies the 120V 60Hz / 110V 50Hz coil version of the RCC5P 5-pole relay body. Contact configuration is 5NO/5NC Form C, with a continuous current rating of 10 amps at 600V AC maximum. Maximum make capacity is 7200 VA with a break rating of 720 VA.

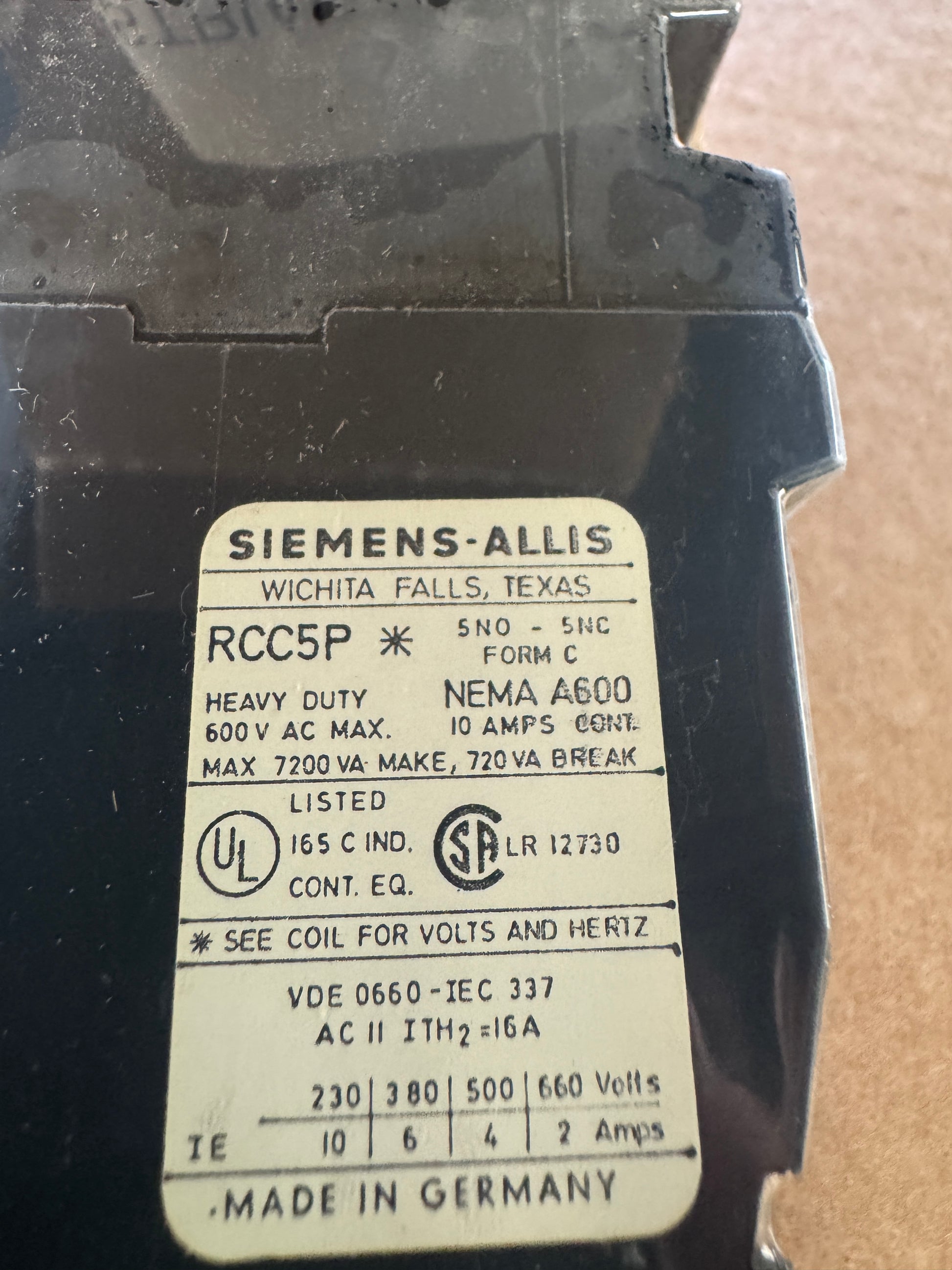

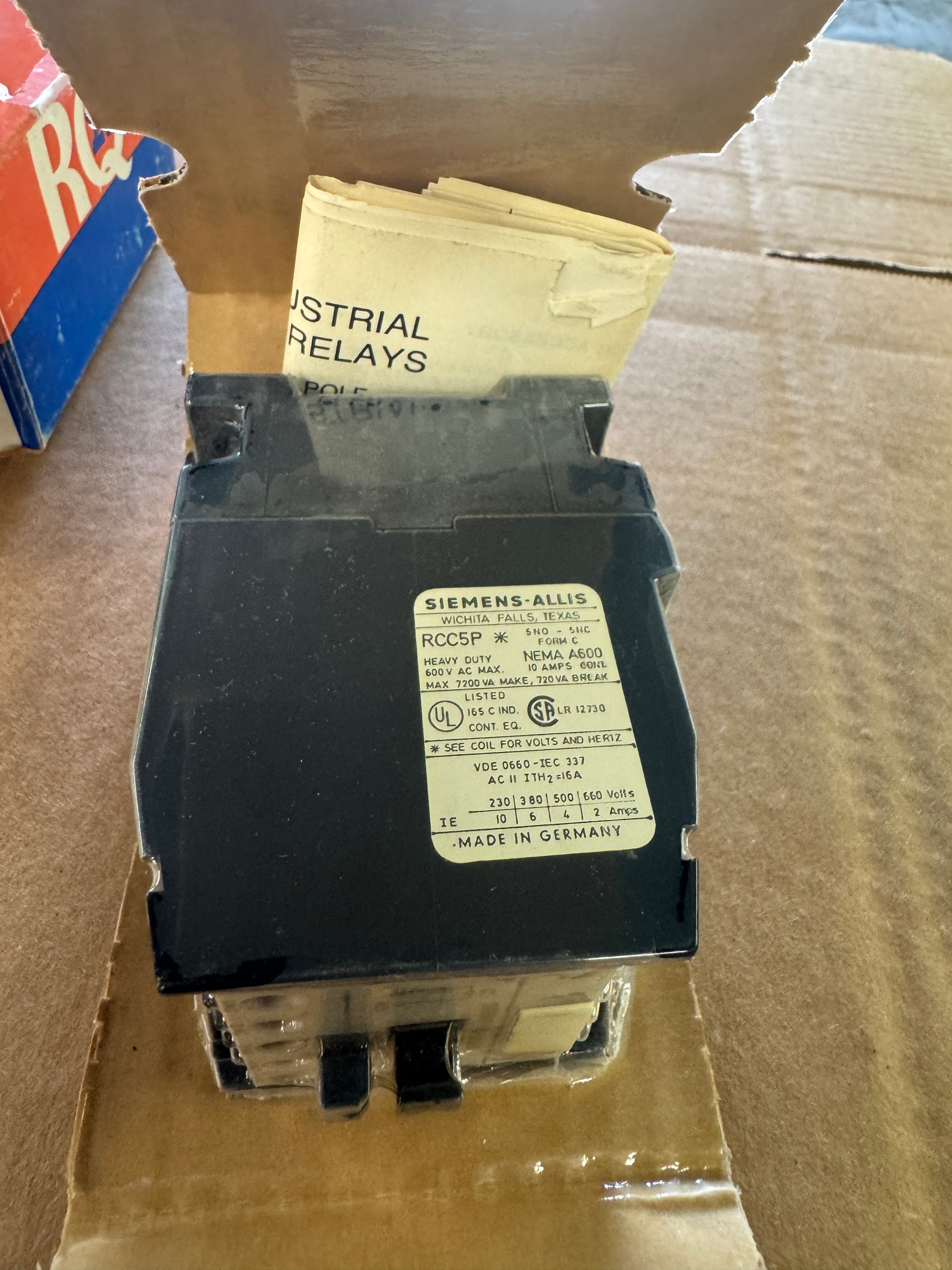

The nameplate confirms UL listing (165C IND. CONT. EQ.), CSA certification (LR 12730), and compliance with VDE 0660 and IEC 337. The relay carries IEC current ratings of 10A at 230V, 6A at 380V, 4A at 500V, and 2A at 660V. Manufactured in Germany by Siemens-Allis, Wichita Falls, Texas division. This listing includes the original Siemens-Allis Control Products Division box and enclosed instruction documentation.
