Siemens HDX3B060 Molded Case Circuit Breaker 600V AC, 3-Pole, 60A

$249.99 USD

Sale Sold out

✓ 30-day returns on every item — return policy

ConditionSurplus - Untested MPNHDX3B060 Stock #0426-02037

30-day returns on every item. Photos reflect the actual item’s current condition — see our return policy and condition guide.

Shipping Estimate

⚡ Same-day shipping available — order by 11 am CT ($100 add-on at checkout)

✓ Free domestic UPS Ground shipping — applied automatically at checkout.

Same-Day Available
Real support team
Secure checkout

Product Specifications

Manufacturer: Siemens
MPN / Model: HDX3B060
Product Type: Molded Case Circuit Breaker
Type: HDGA
Frame: DG
Poles: 3
Rated Current (In): 60 A at 40 C
Max Rating: 150 A, 600 V AC, 250 V DC
Trip Unit: Thermal-magnetic, Trip Unit 525
Interrupting Rating (UL): 100 kA at 240 V AC, 65 kA at 480 V AC, 20 kA at 600 V AC, 30 kA at 250 V DC
IEC 60947-2 Ratings (Icu / Ics): 100 / 75 kA at 220/240 V, 70 / 70 kA at 380/415 V, 12 / 6 kA at 690 V, 30 / 30 kA at 250 V DC
Frequency: 50/60 Hz
Wire Connector: TA1DG30, 6-1 AWG Cu/Al, 60/75 C
Siemens Part Number (MLFB): 3VL2106-2KN30-0AA0
Label Number: 77-3162008
Standards / Certifications: IEC 60947-2, UL Listed C.B. 3 Pole Unit (Issue No. XR-1682), HACR Type, CE
Condition: Surplus - Untested

Product Description

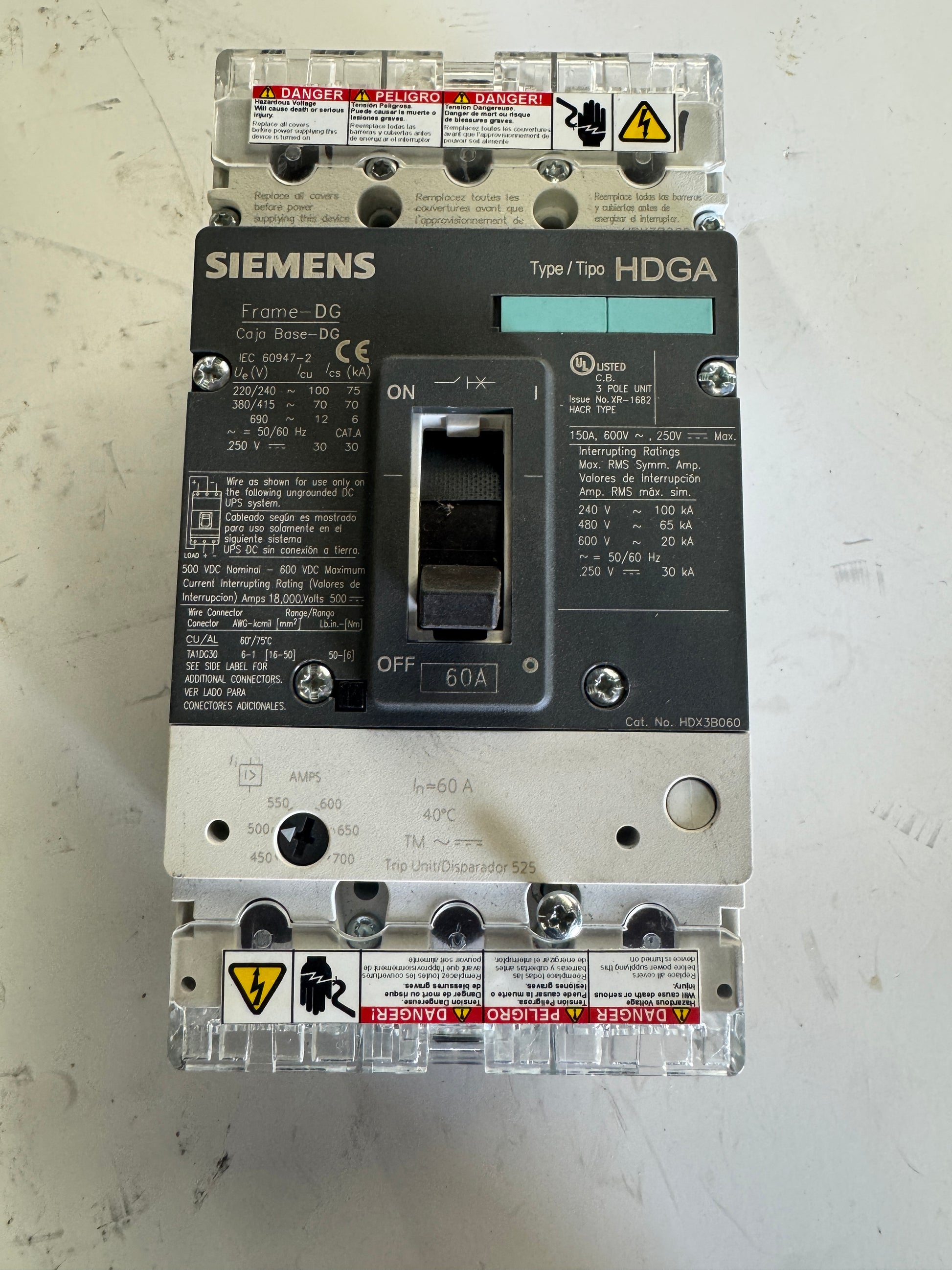

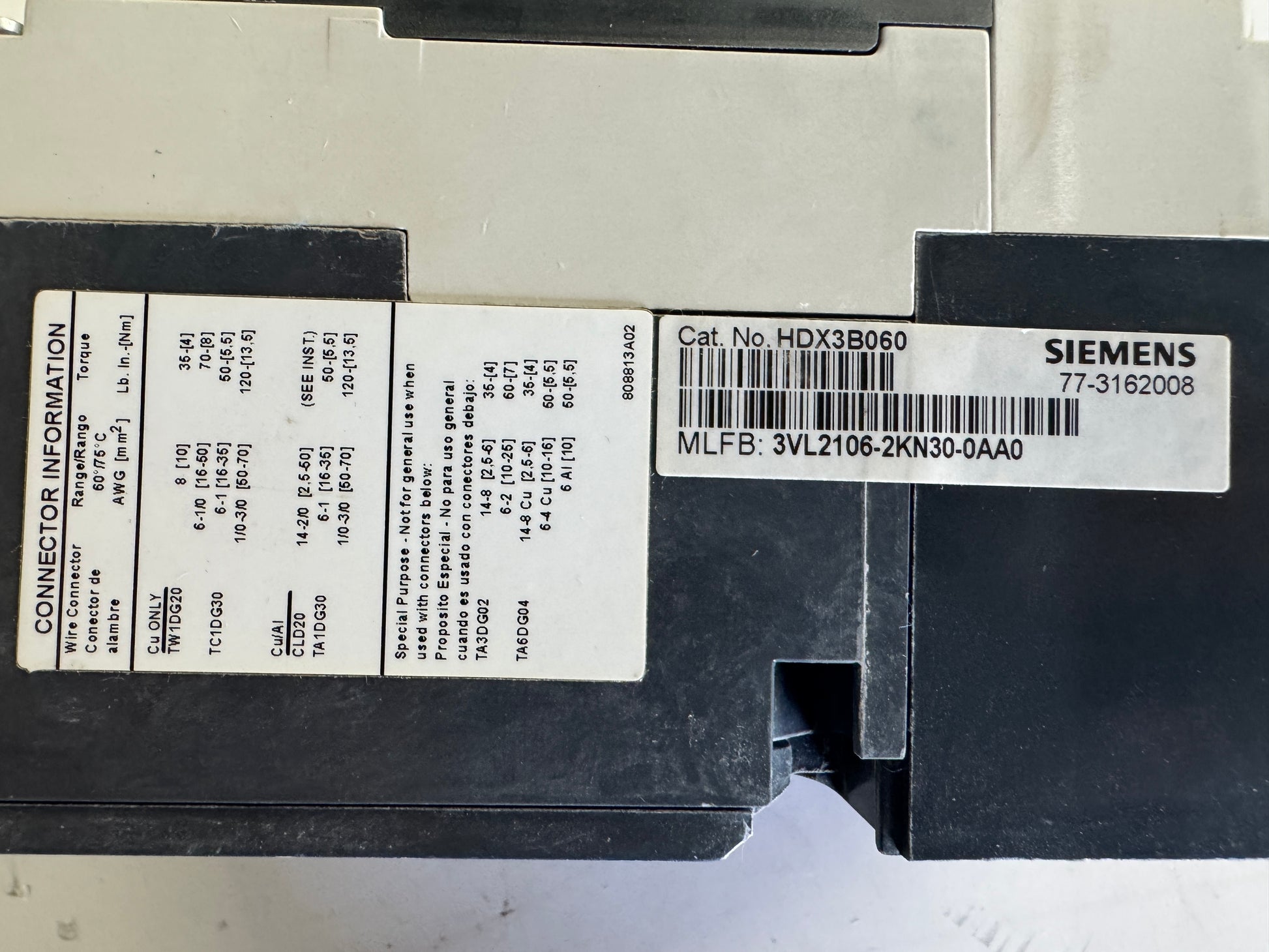

This is a Siemens HDX3B060 molded case circuit breaker. The front nameplate reads SIEMENS, Type / Tipo HDGA, Frame DG, IEC 60947-2, 150A, 600V AC, 250V DC Max., UL Listed C.B. 3 Pole Unit, Issue No. XR-1682, HACR Type, and Cat. No. HDX3B060. The interrupting ratings are 240 V 100 kA, 480 V 65 kA, 600 V 20 kA, and 250 V DC 30 kA. The nameplate also lists a DC UPS wiring note (500 VDC nominal, 600 VDC maximum, 18,000 amps at 500 V). The handle is marked ON, OFF and 60A, and the trip unit label reads In=60A at 40 C, Trip Unit / Disparador 525. A side label reads Cat. No. HDX3B060, 77-3162008, MLFB 3VL2106-2KN30-0AA0, with a connector information table.

The breaker has a black and gray housing with clear terminal covers on the line and load ends, and DANGER warning labels on the covers. The trip unit has an adjustment dial. The housing shows some dust and light wear.

Sold as surplus, untested. This unit has not been powered on or tested by MRO Exchange, and the breaker, trip unit and contacts have not been verified.

Stock # 0426-02037
