Siemens Failsafe Reversing Motor Starter 3RM1301-1AA04
Siemens Failsafe Reversing Motor Starter 3RM1301-1AA04
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 3RM1301-1AA04
Stock #: 0326-01044

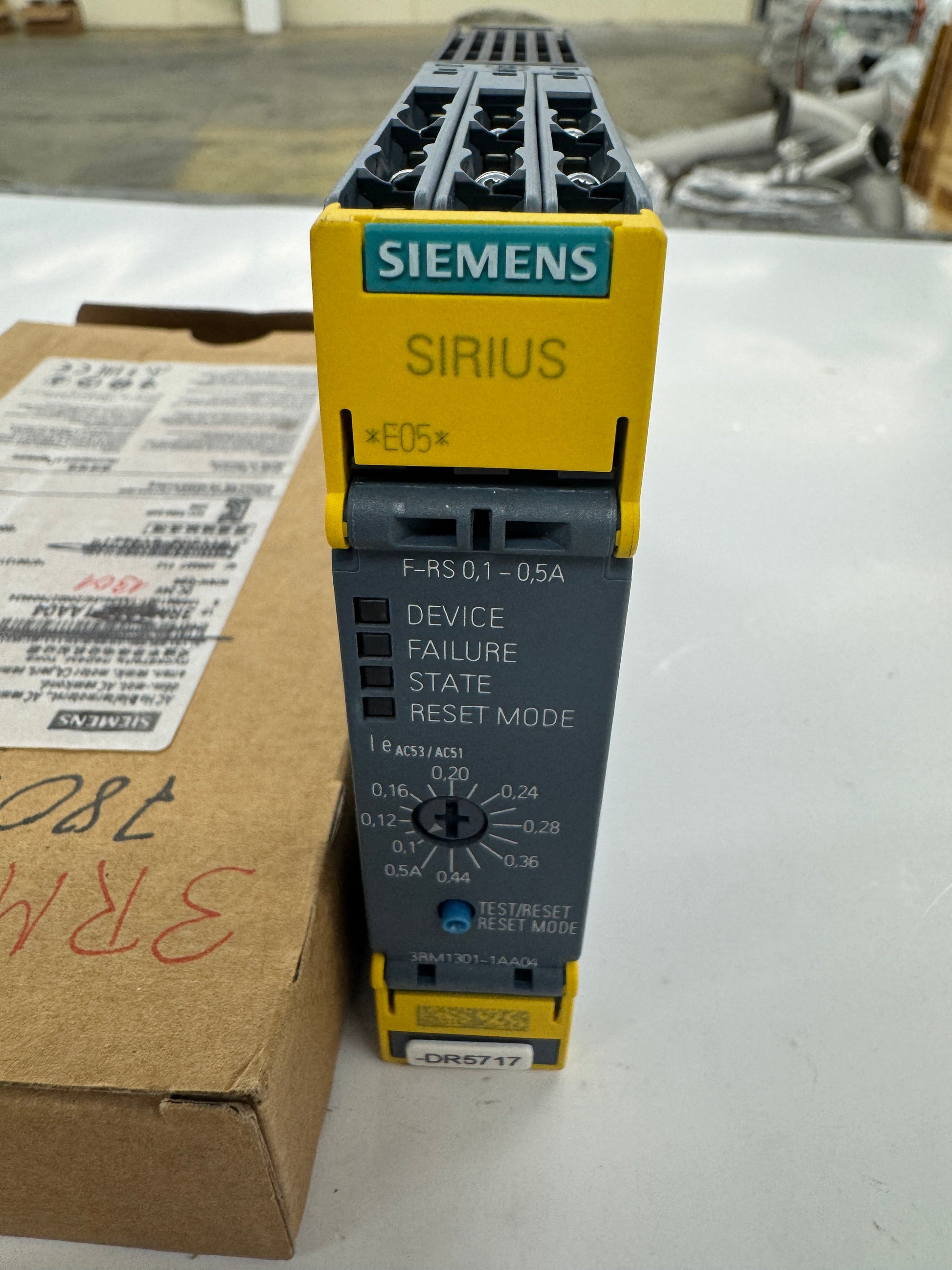

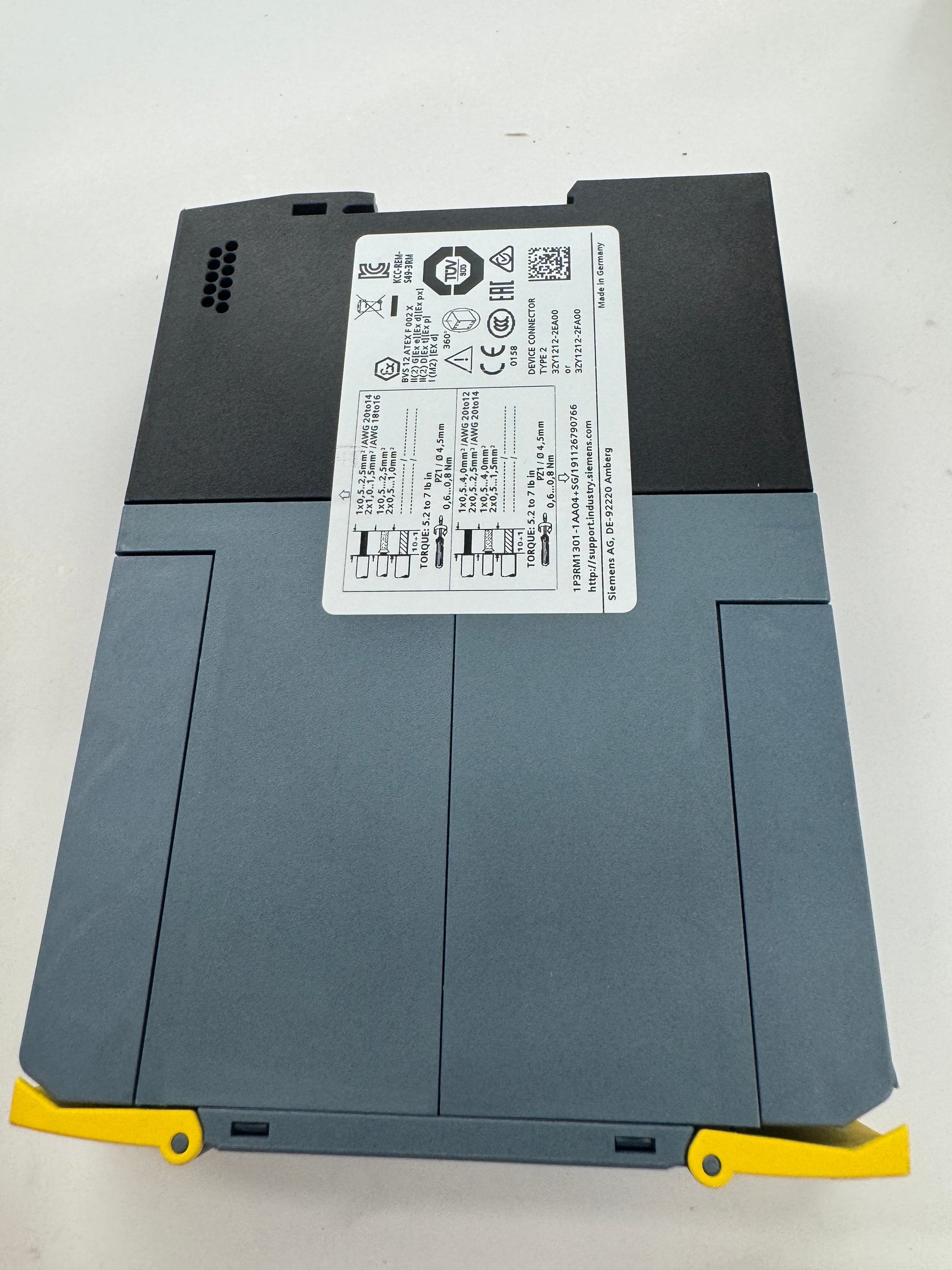

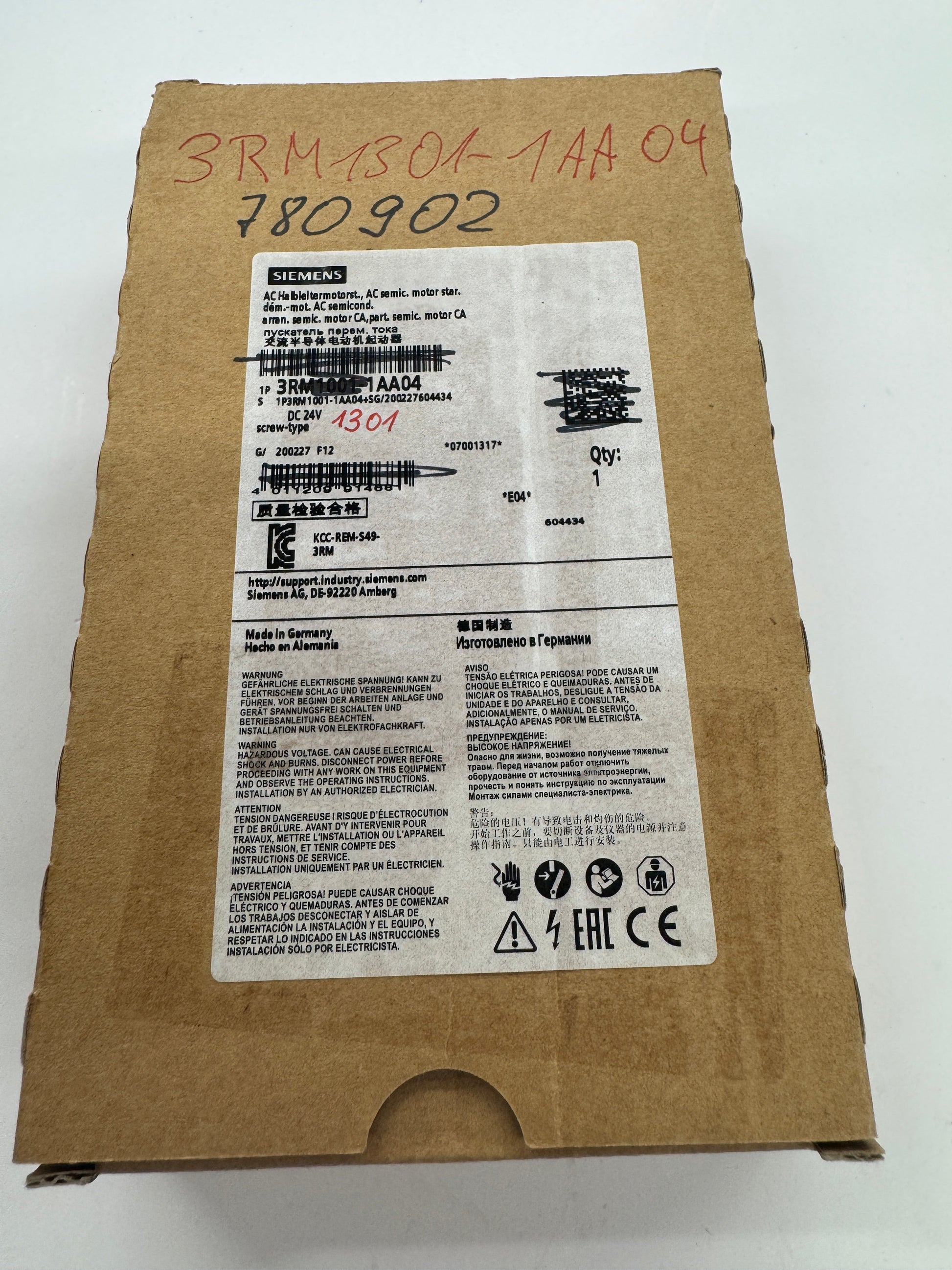

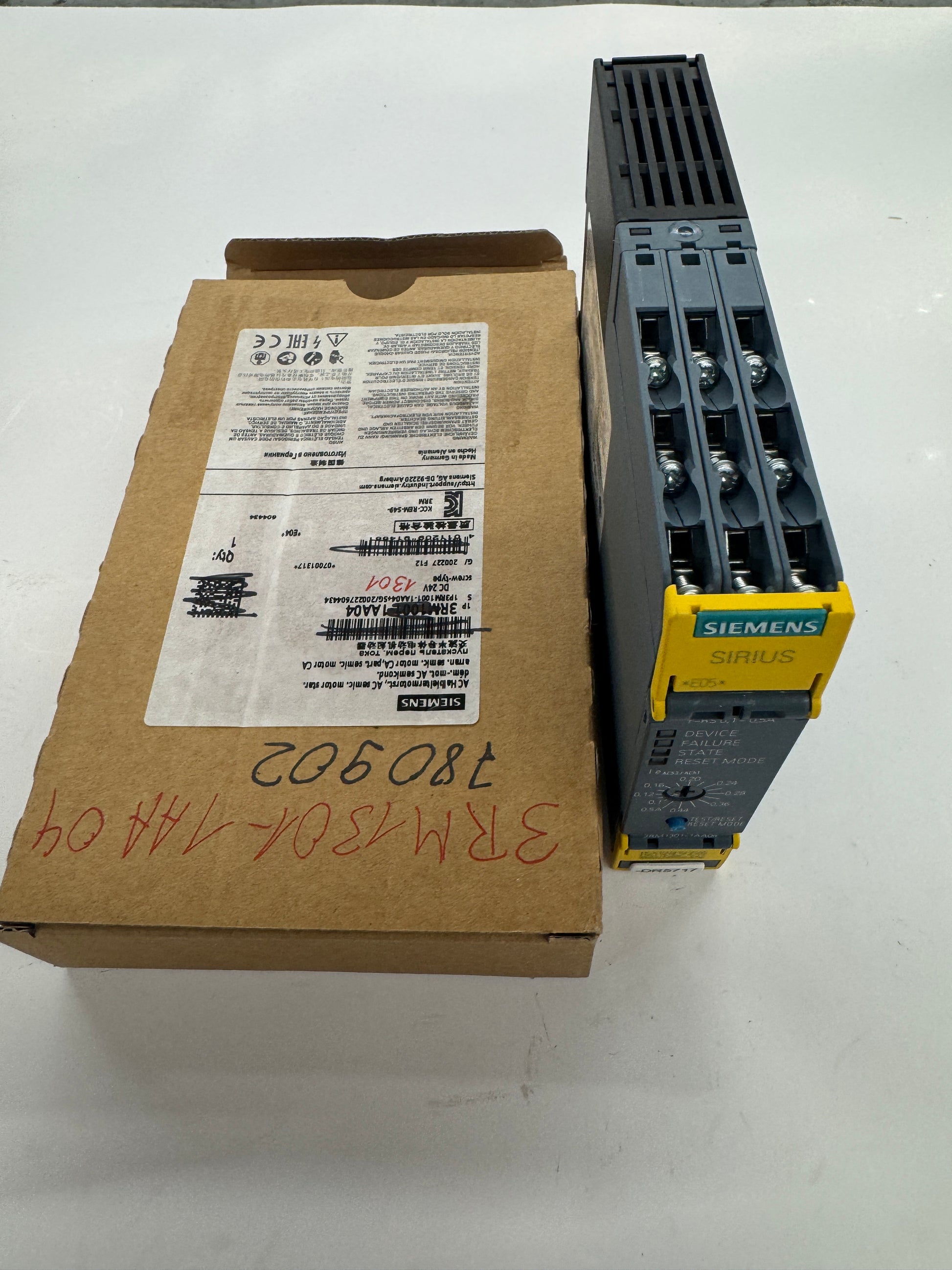

Used in safety-critical automation systems requiring functional shutdown, the Siemens SIRIUS 3RM1 series 3RM1301-1AA04 is a failsafe reversing motor starter rated for 500V load voltage with a 24V DC control supply. The unit carries a current adjustment range of 0.1 to 0.5A and a maximum motor power of 0.12 kW at 400V AC. Safety performance meets ISO 13849-1 Performance Level e, Category 4 and SIL 3 per IEC 62061, making it suitable for machinery requiring certified safety-related motor shutdown. The device features hybrid switching technology combining electronic and electromechanical operation for extended service life and reduced energy consumption. Connection is via screw terminals, and the unit mounts on standard DIN 35 rail. The overall width is 22.5mm, allowing dense cabinet packing in installations with multiple small motor circuits. Status indication is provided via front-panel LED display for device state, failure, and reset mode conditions. Manufacture origin is Germany, per nameplate data. This unit is MPN 3RM1301-1AA04. Serial number visible on unit label: DR5717. The original factory box and inner packaging are present as shown. Device connector type 2 is identified as 3ZY1212-2EA00 per the rear label. Certifications visible on the label include CE, EAC, KC, TUV, and CCC marks.
Stock # 0326-1044
