Siemens HDX3B060 Molded Case Circuit Breaker 600V AC / 250V DC Untested Surplus
Siemens HDX3B060 Molded Case Circuit Breaker 600V AC / 250V DC Untested Surplus
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: HDX3B060
Stock #: 0626-01473
Product Specifications
- Manufacturer: Siemens
- MPN / Model: HDX3B060
- Product Type: Molded Case Circuit Breaker
- Frame Type: HDGA, DG Frame
- Poles: 3
- Amperage: 60A
- Voltage Rating: 600V AC
- DC Service Rating: 250V, 30kA
- Trip Unit: Thermal Magnetic (Disparador 525)
- Rated Continuous Current (In): 60A at 40 degrees C
- AC Interrupting Capacity: 100kA at 240V, 65kA at 480V, 20kA at 600V
- Conductor Range: CU/AL 1/0 to 3/0 AWG (50 to 70 mm squared), 60/75 degrees C
- Cross-Reference: 3VL2106-2KN30-0AA0 (Siemens VL 150 UL)
- Standards: IEC 60947-2, GB14048.2/50Hz, UL Issue No. XR-1682
- Certifications: UL Listed, HACR, CE
Product Description

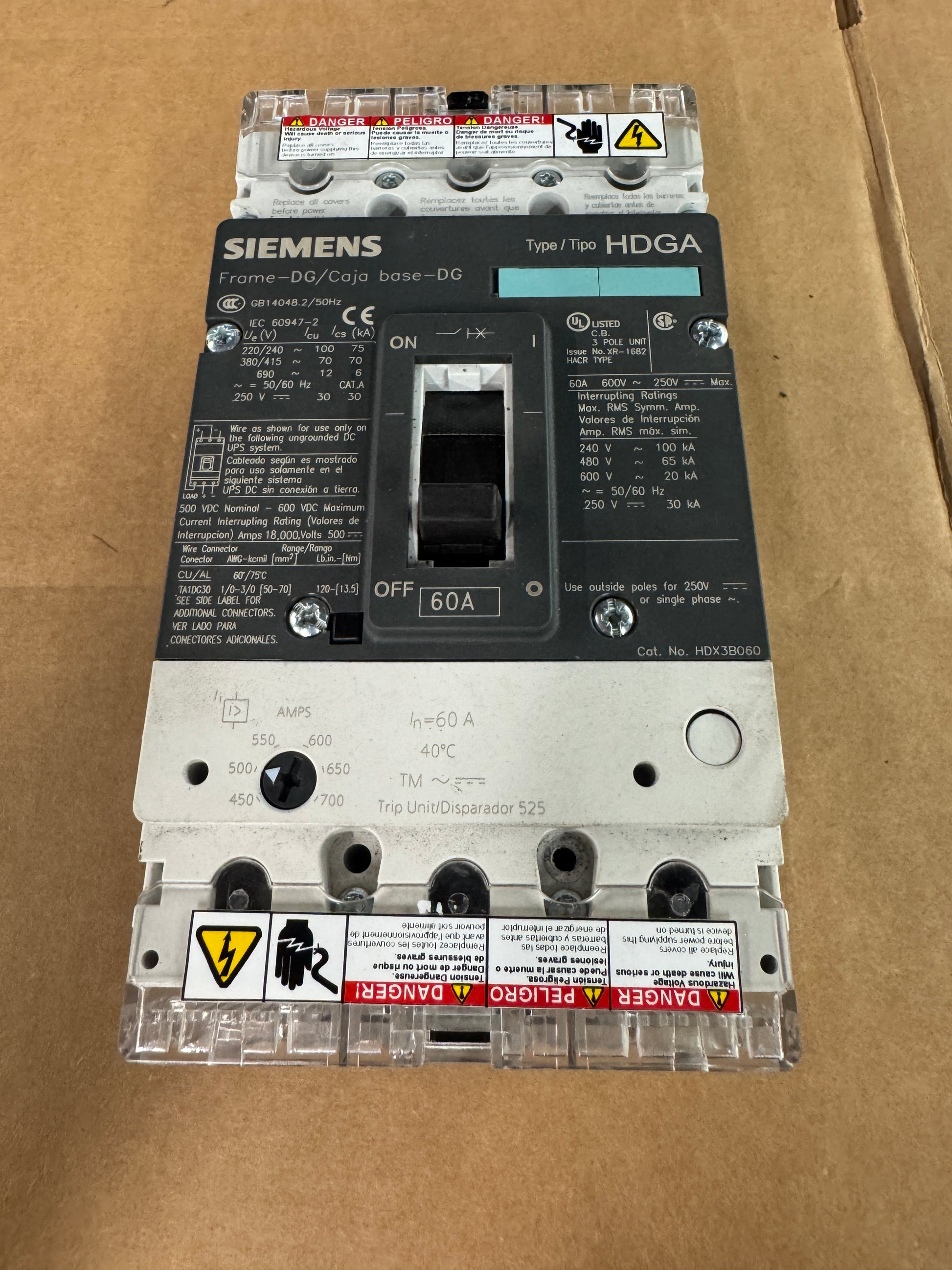

Rated at 60 amps and 600V AC, the Siemens HDX3B060 is a three-pole molded case circuit breaker in the HDGA Frame DG configuration. The unit carries catalog number HDX3B060, with a cross-reference designation of 3VL2106-2KN30-0AA0 under the Siemens VL 150 UL product line. DC service rating is 250V with a 30kA interrupting capacity. AC interrupting ratings are 100kA at 240V, 65kA at 480V, and 20kA at 600V per UL Issue No. XR-1682. The breaker carries UL listing, HACR certification, CE marking, and conforms to IEC 60947-2 and GB14048.2/50Hz standards.

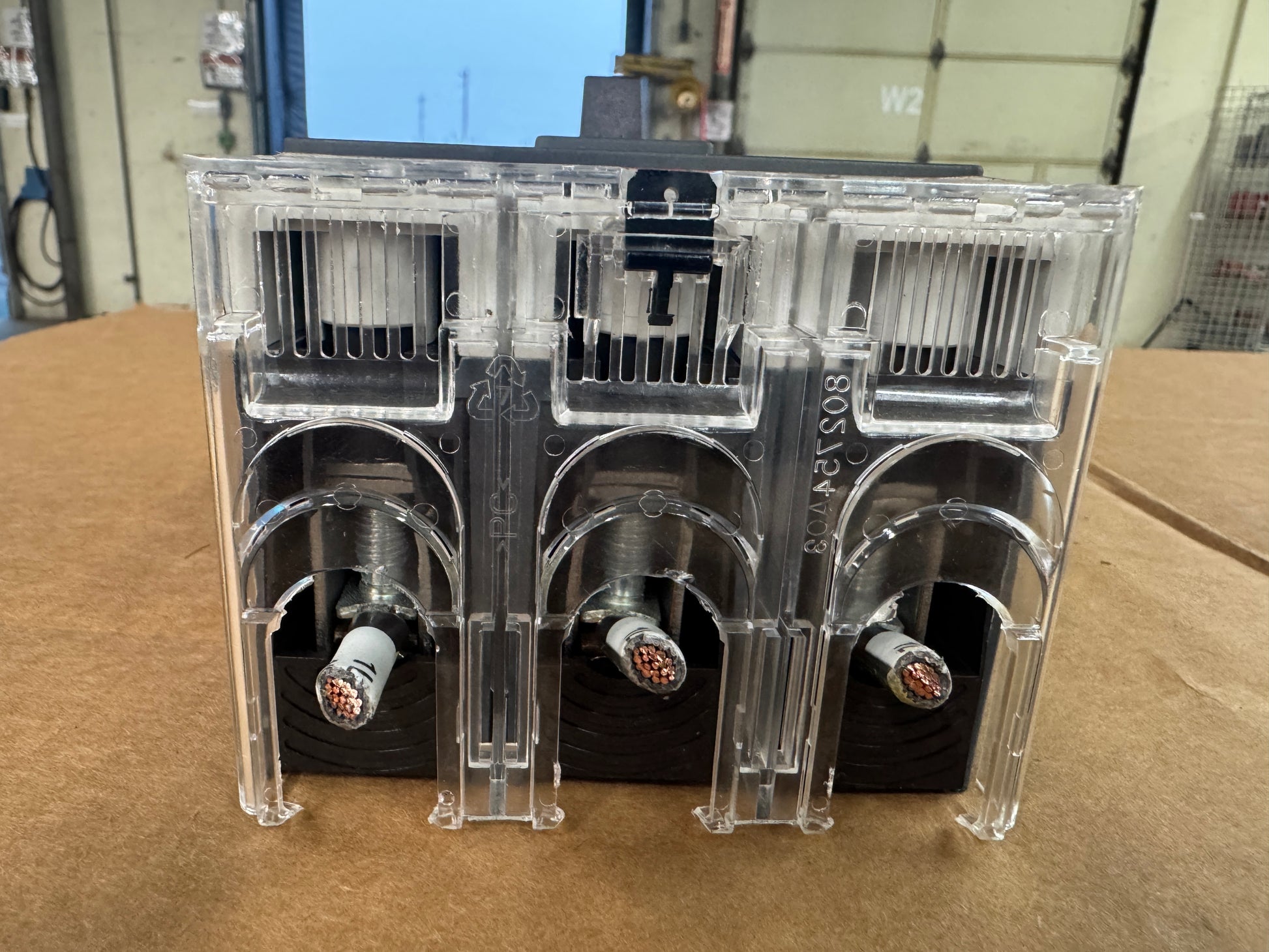

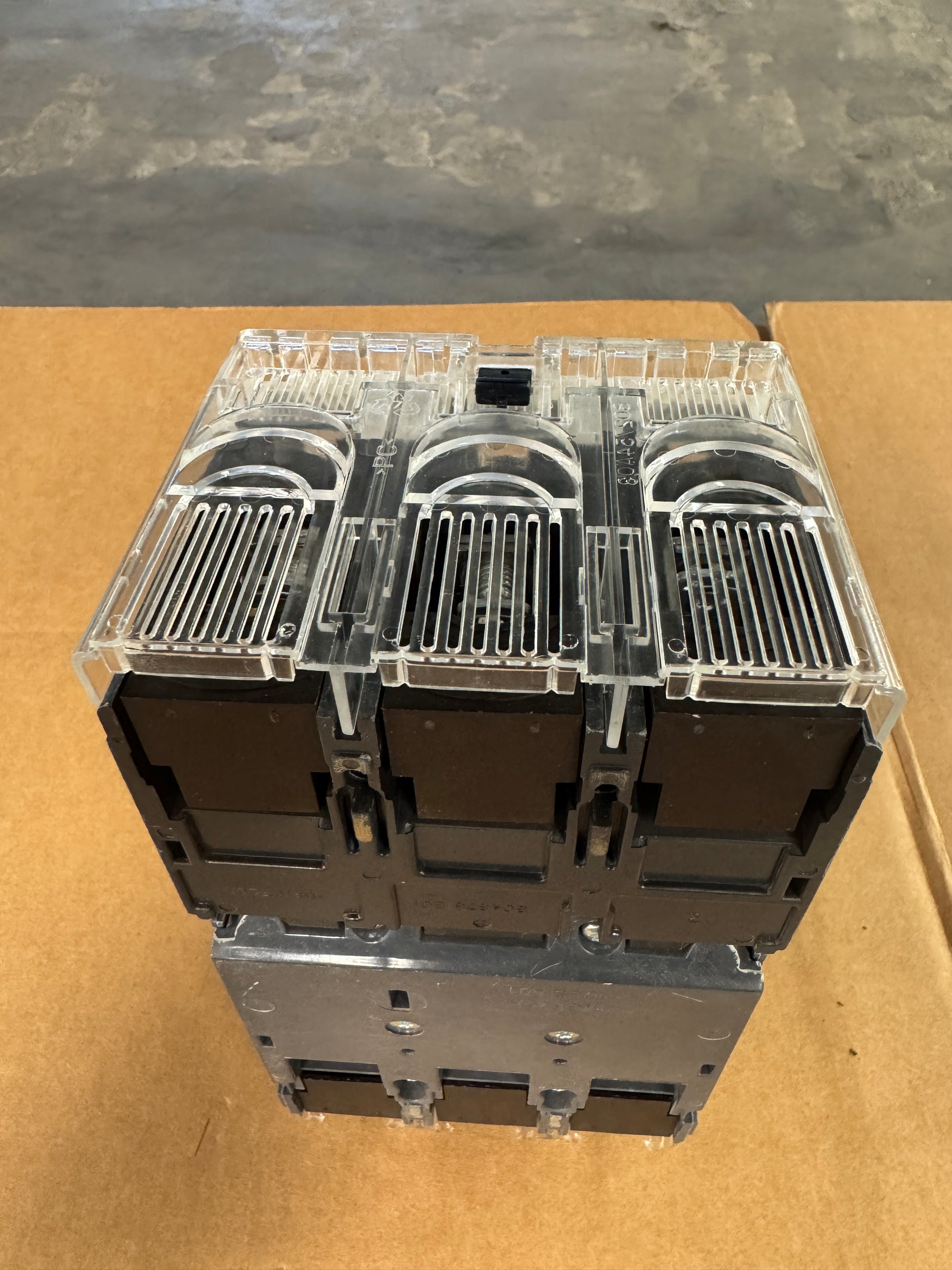

The thermal magnetic trip unit (Disparador 525) is factory set at In=60A for 40 degrees C ambient operation, calibrated for 50 and 60Hz systems. Wire termination accommodates CU/AL conductors rated 60/75 degrees C in the AWG 1/0 to 3/0 range (50 to 70 mm squared) with lug-style load connections. Clear terminal guards are present on both line and load sides. Load-side terminals show evidence of prior electrical connection with cut conductor stubs visible. Cross-reference part number 3VL2106-2KN30-0AA0 links this unit to the Siemens VL 150 UL series for parts identification purposes.
