Siemens HDX3P100 Molded Case Circuit Breaker 600V Untested Surplus
Siemens HDX3P100 Molded Case Circuit Breaker 600V Untested Surplus
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: HDX3P100
Stock #: 0626-01472
Product Specifications
- Manufacturer: Siemens
- MPN / Model: HDX3P100
- Product Type: Molded Case Circuit Breaker
- Frame Type: HDGA, DG Frame
- Poles: 3
- Amperage: 100A
- Voltage Rating: 600V AC
- Frequency: 50/60 Hz
- Trip Unit: Electronic Trip Unit 545, LSI Protection
- Rated Continuous Current (In): 100A
- Instantaneous Pickup (Ii): 1,100A
- Interrupting Capacity: 100kA at 240V AC, 65kA at 480V AC, 20kA at 600V AC
- Conductor Range: CU/AL 1/0 to 3/0 AWG (50 to 70 mm squared)
- Lug Type: TA1DG30
- Terminal Torque Rating: 120 In-Lb
- Standards: IEC 60947-2, UL Issue No. XR-1682
- Certifications: UL Listed, CSA, CE, HACR Type
Product Description
Rated at 100 amperes and 600 volts AC, the Siemens HDX3P100 is a three-pole molded case circuit breaker of the HDGA type within the DG frame series. The electronic Trip Unit 545 provides LSI protection covering long-time, short-time, and instantaneous functions, with a rated continuous current (In) of 100A and an instantaneous pickup (Ii) of 1,100A. Interrupting capacities are rated at 100kA symmetrical at 240V AC, 65kA at 480V AC, and 20kA at 600V AC per the nameplate. The breaker operates at 50/60 Hz and carries UL listing, CSA certification, CE marking, and HACR-type designation under Issue No. XR-1682, complying with IEC 60947-2.

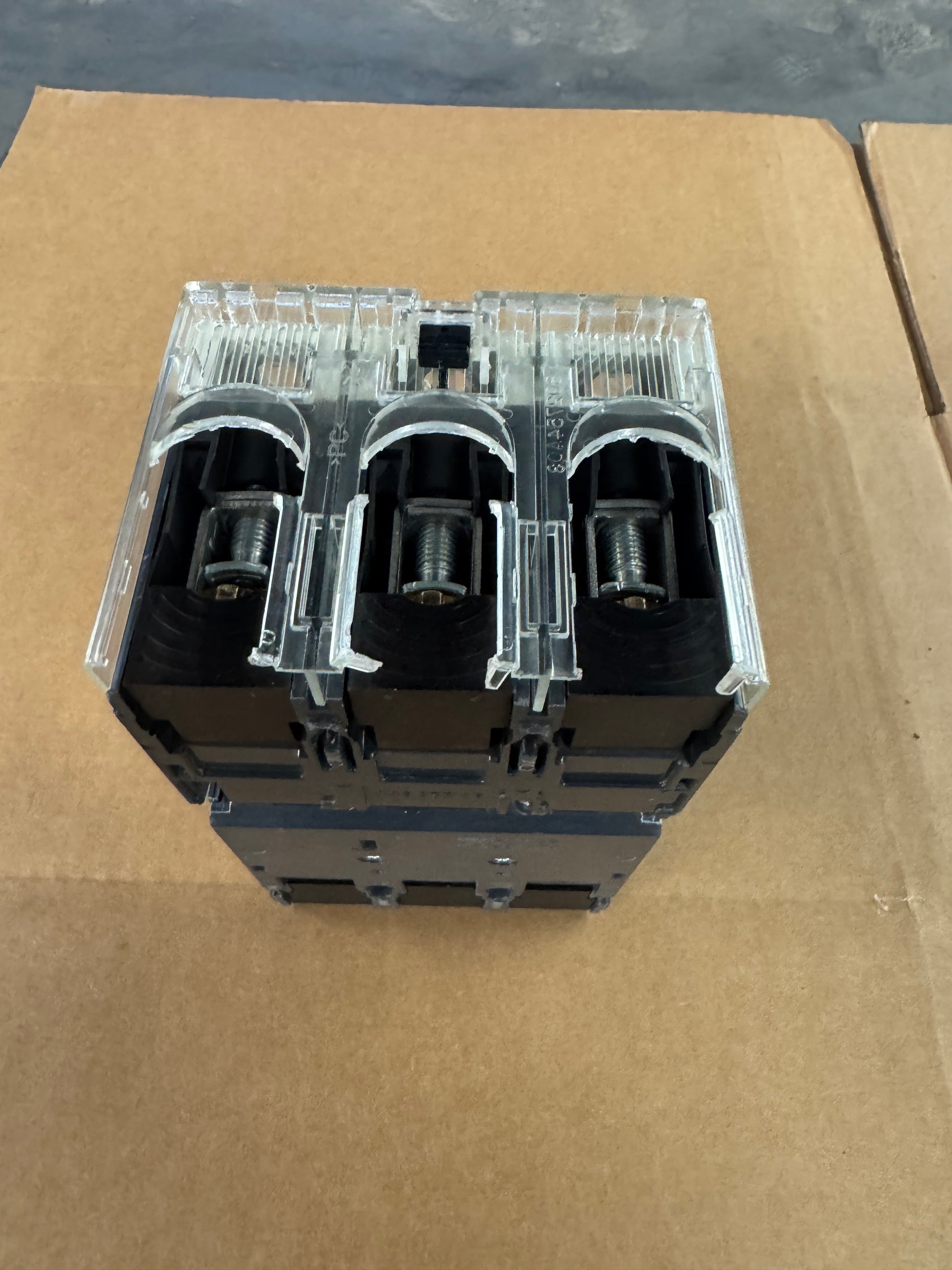

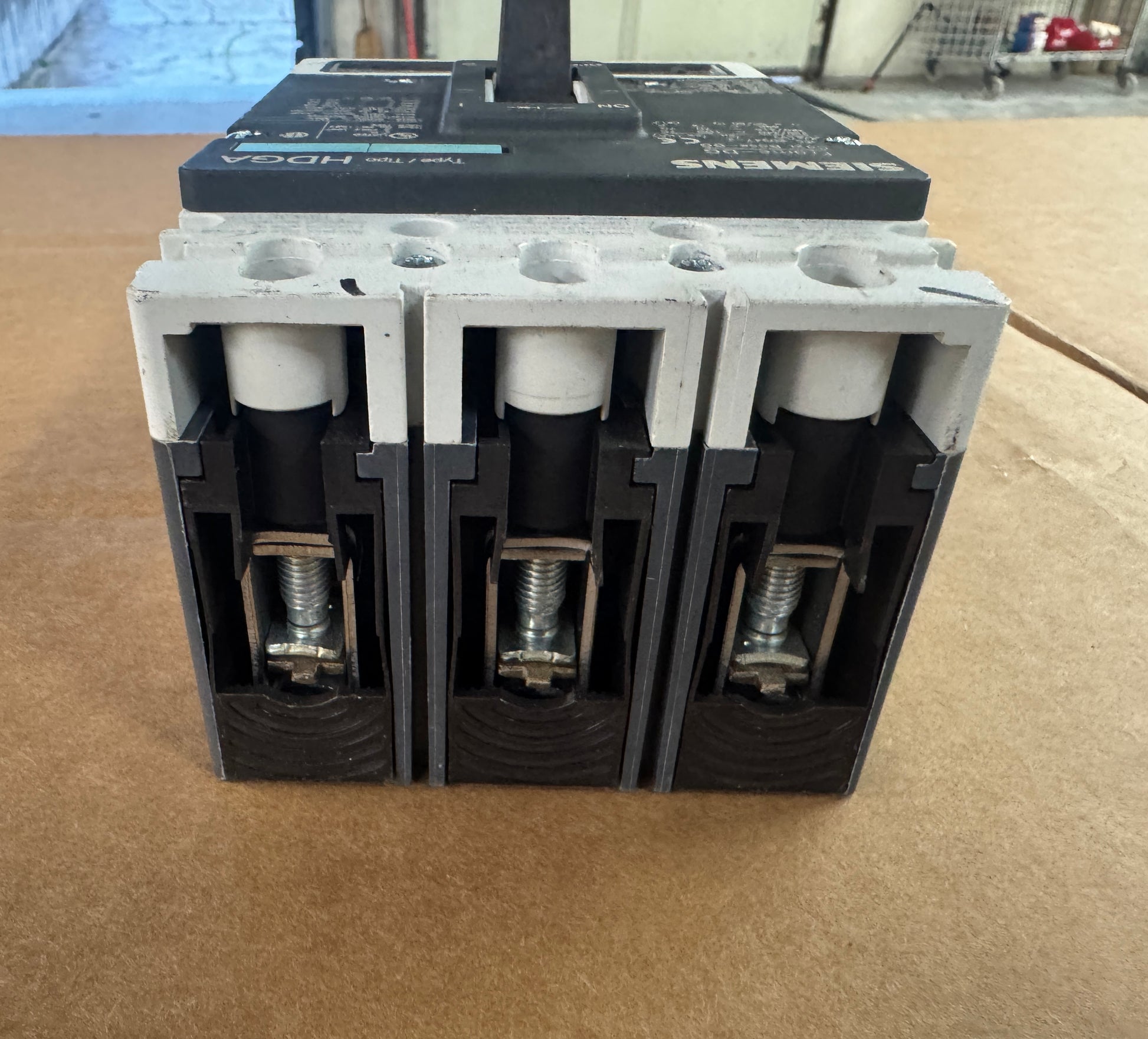

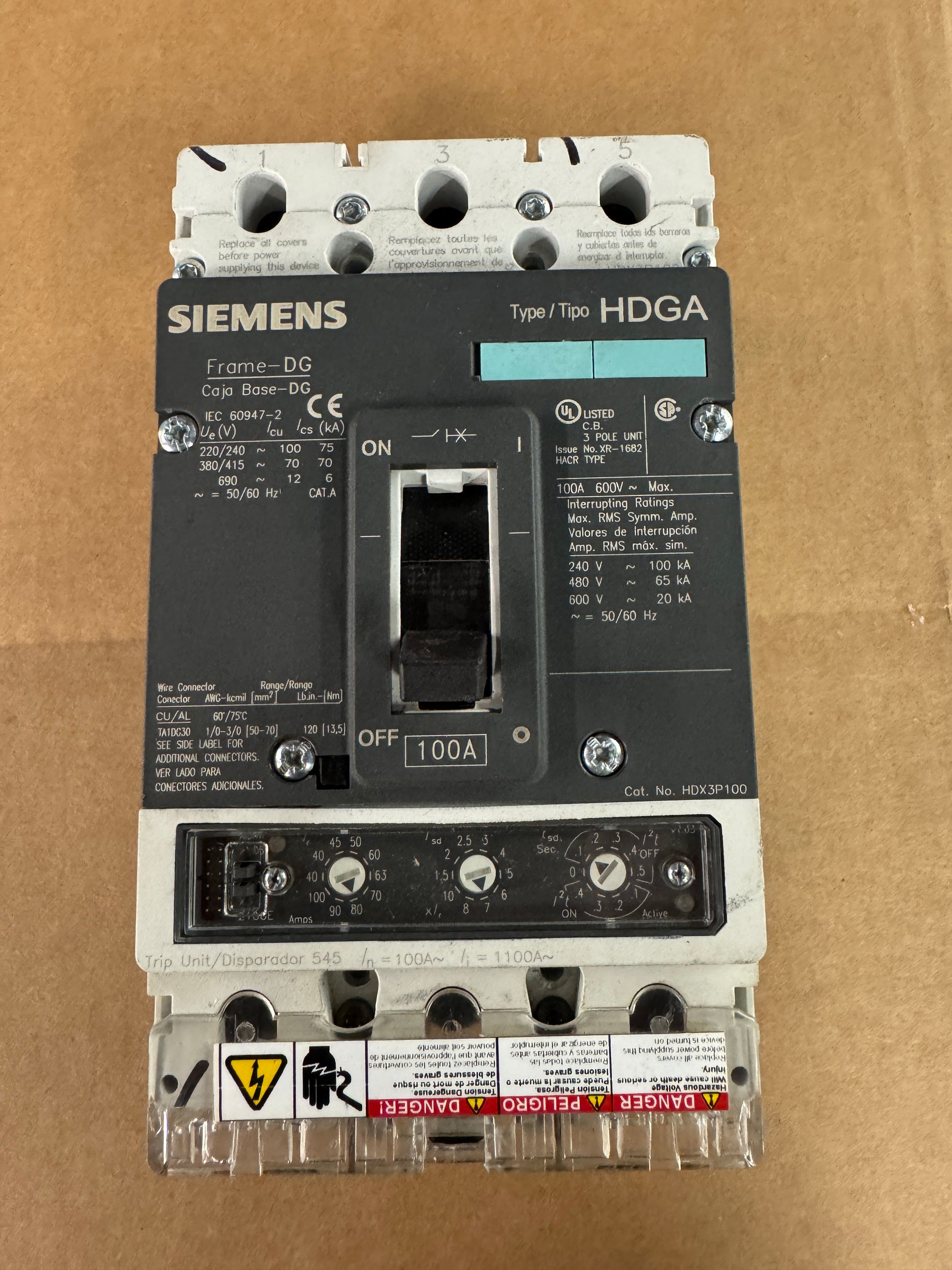

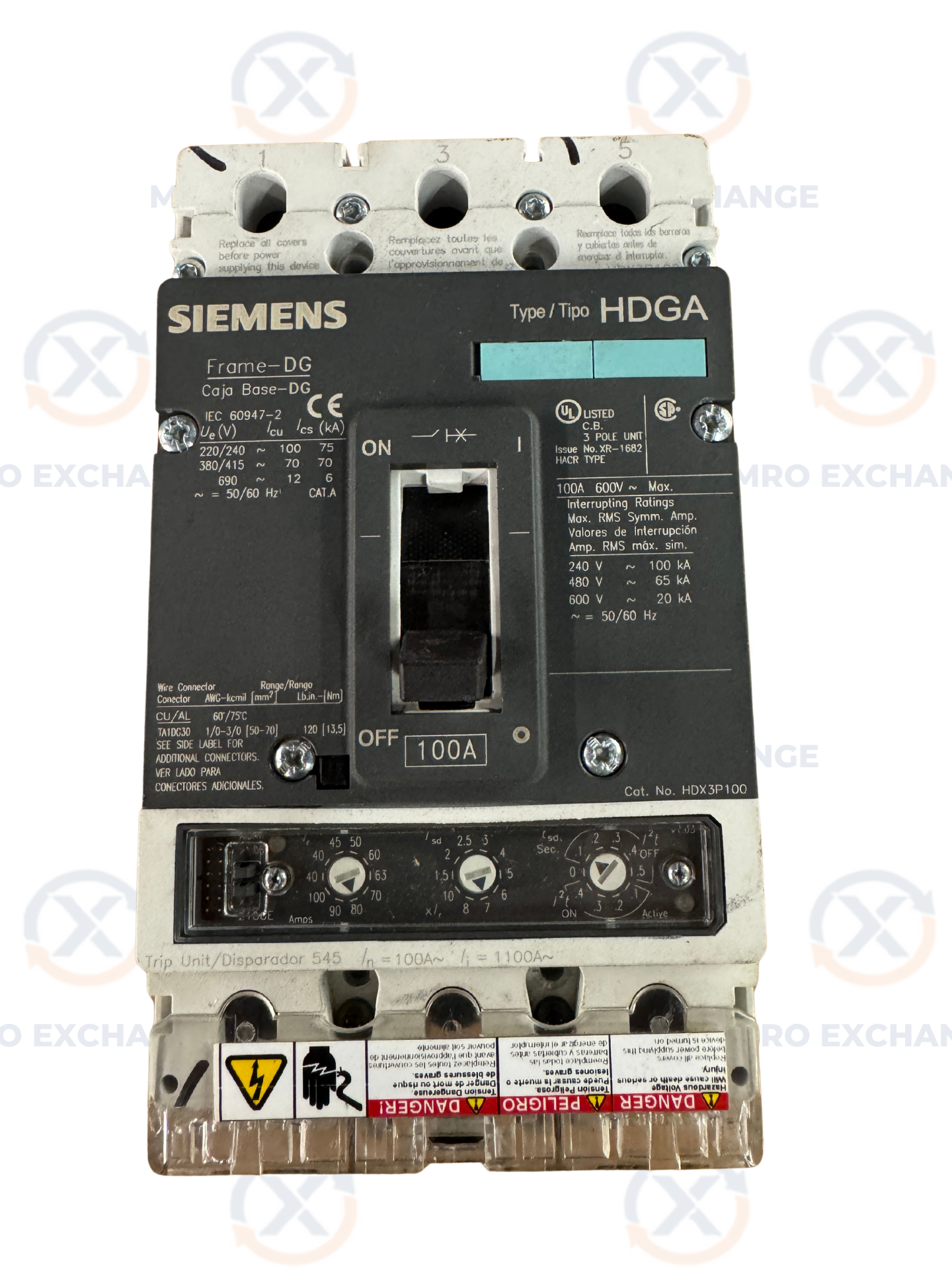

Terminal connections accommodate CU/AL conductors from 1/0 to 3/0 AWG (50 to 70 mm squared) using TA1DG30 lugs, rated to 120 in-lb torque. The HDX3P100 is suited for three-phase industrial power distribution, motor feeder protection, and branch circuit protection in low-voltage switchgear and motor control center installations requiring electronic overcurrent protection with LSI trip characteristics. Trip unit adjustment dials are present and visible. The transparent line-side terminal cover is attached. Catalog number HDX3P100 is confirmed on the nameplate label.
