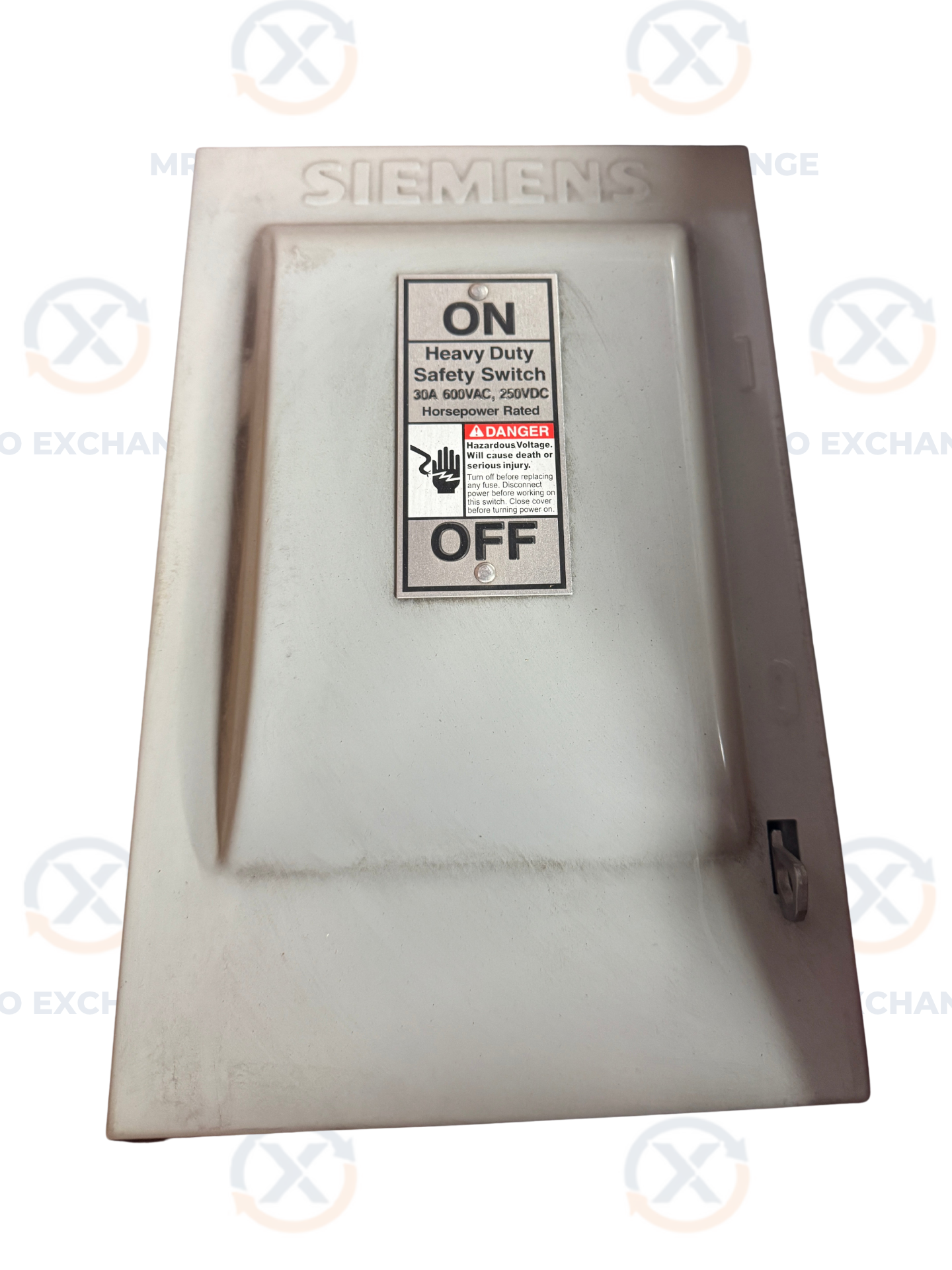

Siemens Heavy Duty Safety Switch HNF361 600 VAC

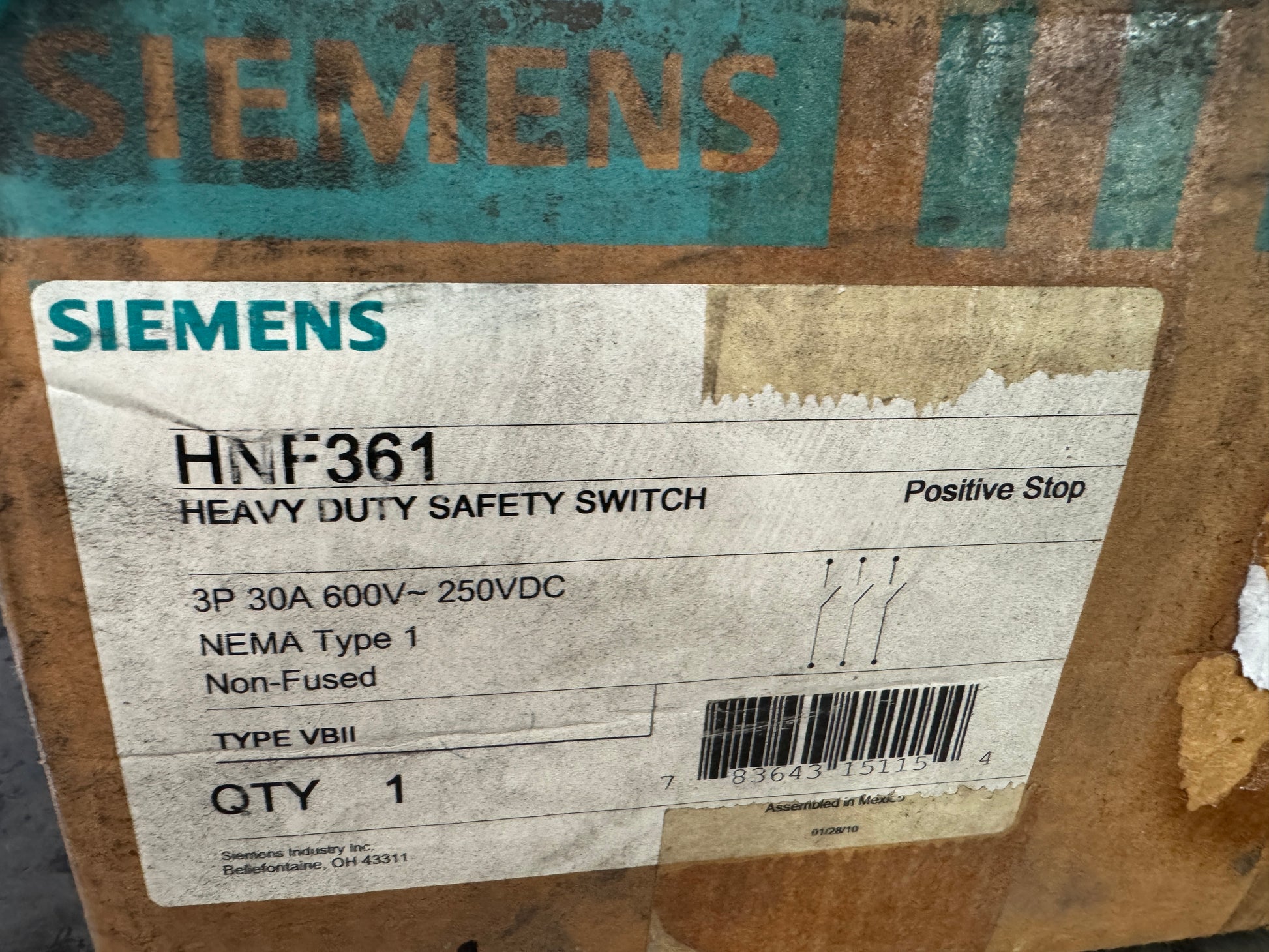

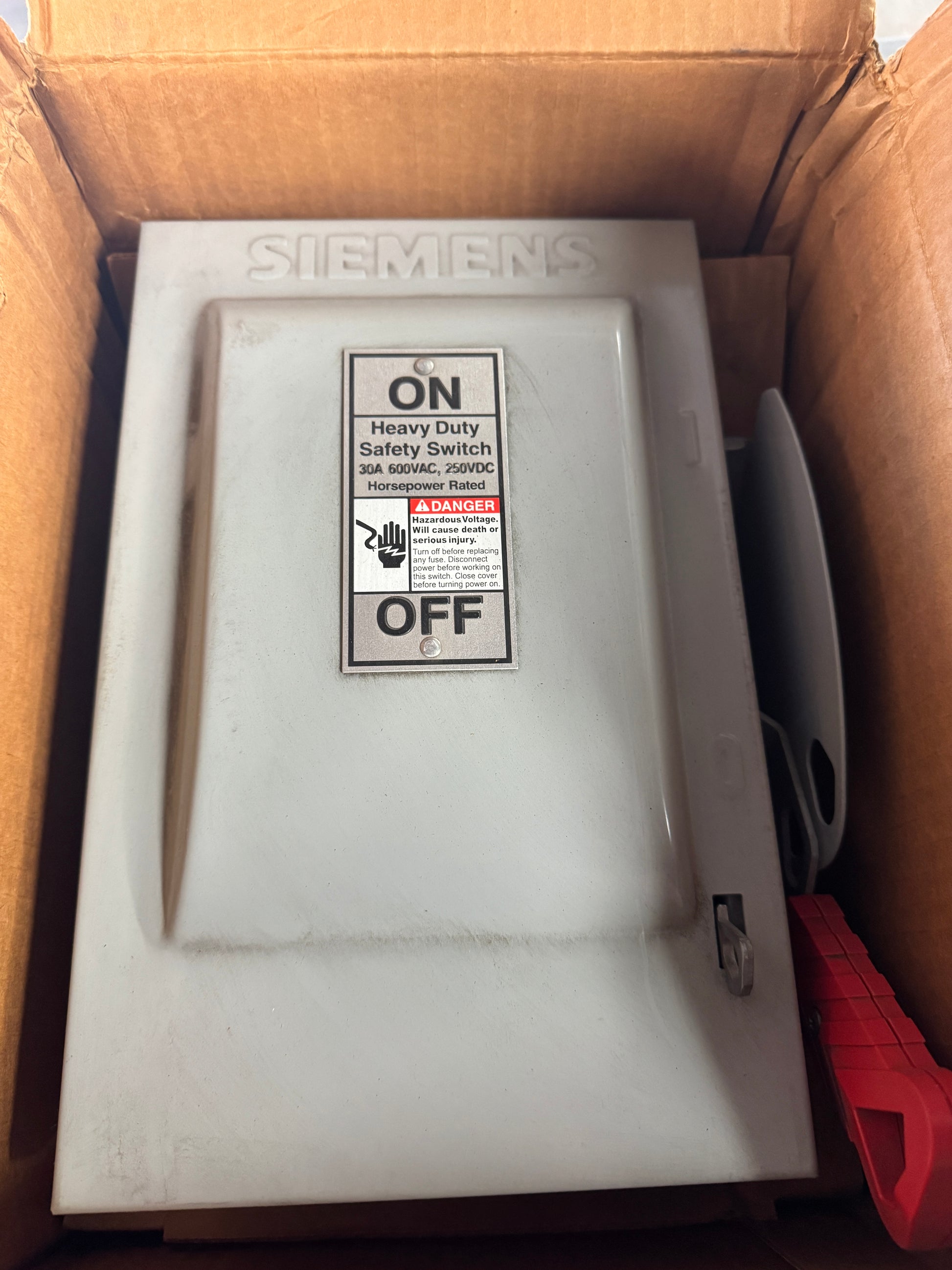

The Siemens HNF361 is a heavy duty non fused safety switch rated for 30 amps at 600 VAC and 250 VDC. Configured as a 3 pole, 3 wire single throw disconnect, it provides a horsepower rated means of isolating motor and feeder circuits for service or lockout. The NEMA Type 1 enclosure is intended for indoor general purpose use and features a quick make, quick break operating mechanism, embossed ON/OFF nameplate, and a defeatable cover interlock that keeps the door closed when the switch is in the ON position. Internal construction includes a hinged clear line terminal shield with probe holes for testing line side terminals, front removable mechanical lugs suitable for copper or aluminum conductors at 60 or 75 degrees C, and a Type VBII operating handle assembly with positive stop. Cover provisions accept up to three padlocks for lockout tagout compliance. As a non fused unit, the HNF361 is typically applied as a service disconnect where overcurrent protection is provided upstream. UL listed for branch circuit disconnect applications. Catalog markings on the rating plate confirm 30 A, 3P, 600 V~, 250 VDC, NEMA Type 1, Non Fused, Type VBII, with the UPC 783643151154. Assembled by Siemens Industry Inc. in Bellefontaine, OH. Common applications include HVAC, pumps, conveyors, machine tools, and general industrial motor disconnects in commercial and manufacturing facilities.

Stock # 0526-02277
