Siemens Selectivity Module 6EP1961-2BA21 24 VDC m01043

$199.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

MPN: 6EP1961
Stock #: 0326-01043

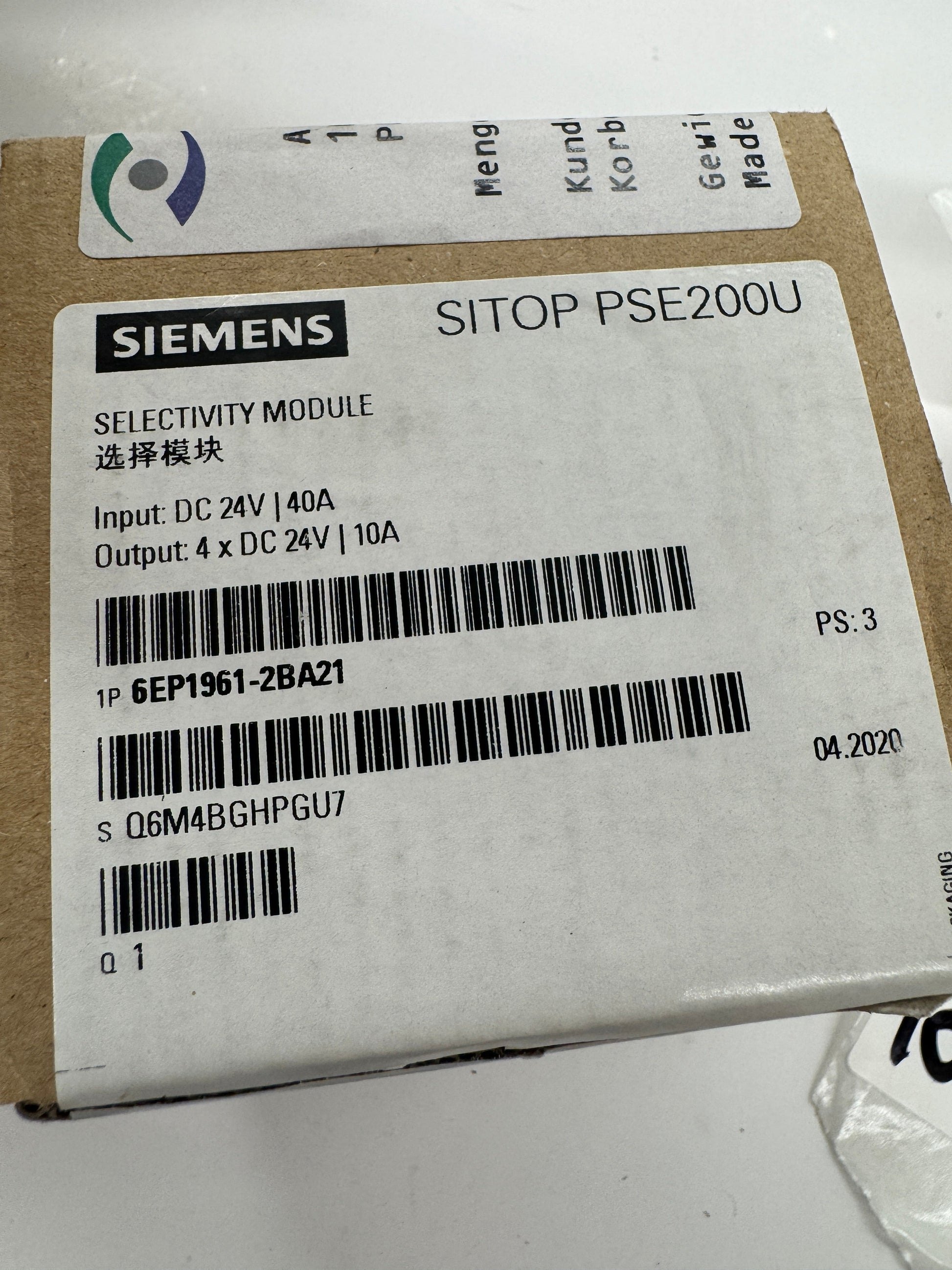

The Siemens SITOP PSE200U is a 4-channel electronic selectivity module designed to distribute and protect 24V DC branch circuits in industrial automation and control panel applications. Manufactured in Austria, this unit carries part number 6EP1961-2BA21 and serial number Q6M4BGHPGU7, with a manufacture date of April 2020 per the original box label.

Input is DC 24V at 40A. Output is 4 x DC 24V at 10A per channel, with each channel's trip level individually adjustable via front-panel potentiometer from 3A to 10A. The module selectively disconnects only the faulted output while maintaining uninterrupted power to all remaining channels, providing fault-tolerant power distribution for downstream loads.

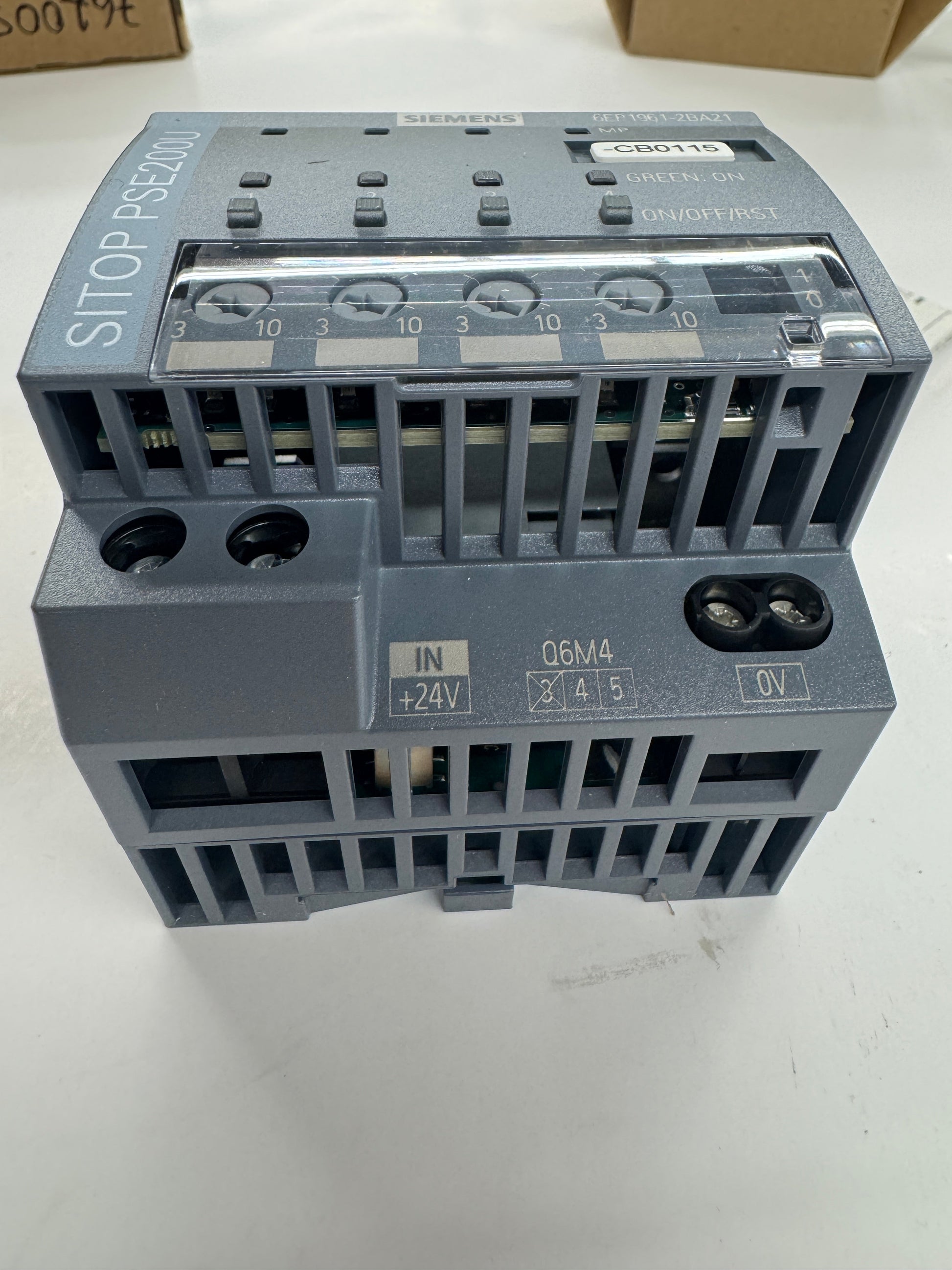

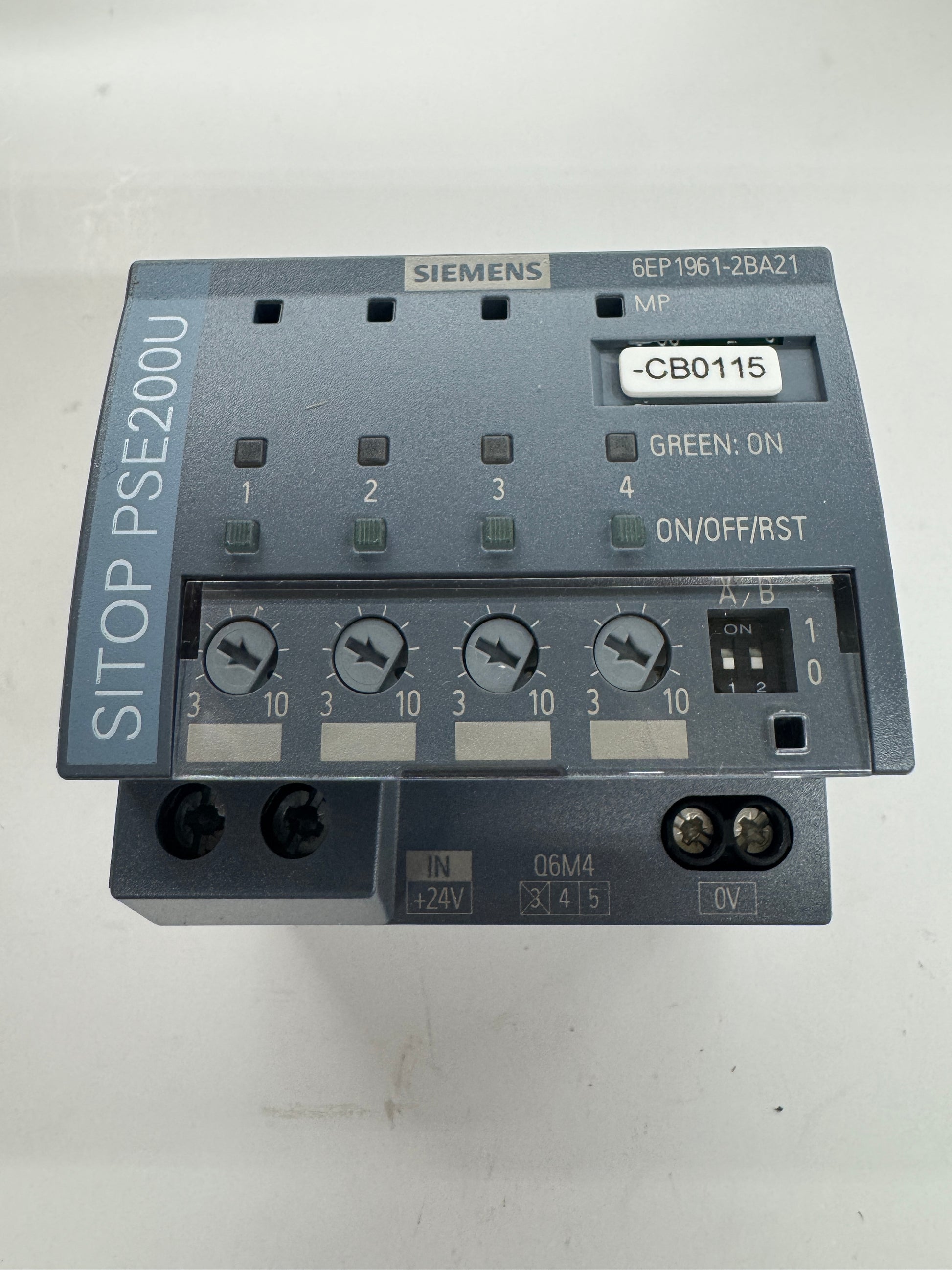

Status LEDs for each of the four output channels are visible on the front face, along with an ON/OFF/RST pushbutton for manual switching and remote reset capability. A common signaling contact (Q6M4, terminals 3/4/5) provides system-level fault indication. DIN rail mounting is supported per EN 60715-35x7.5/15.

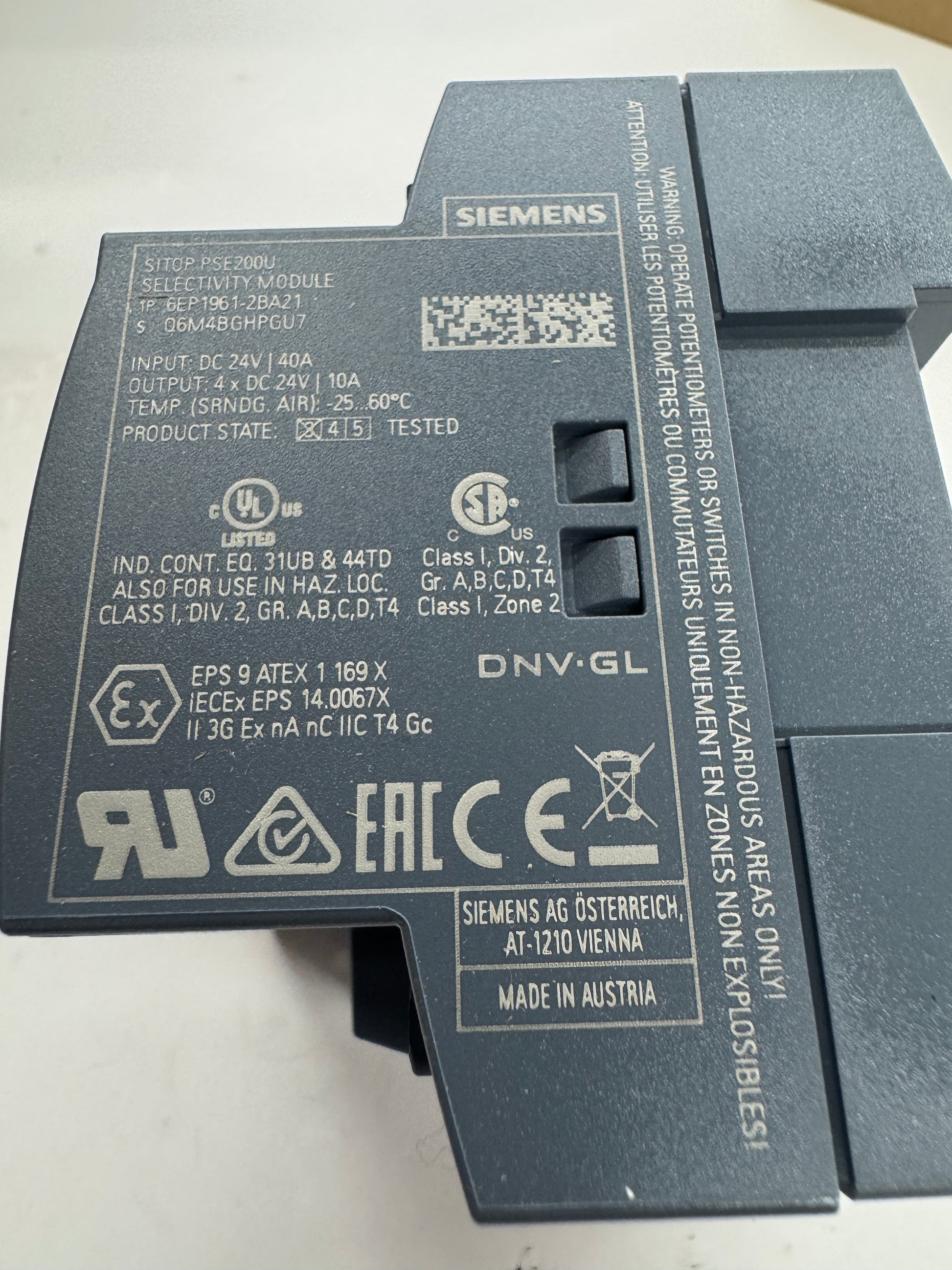

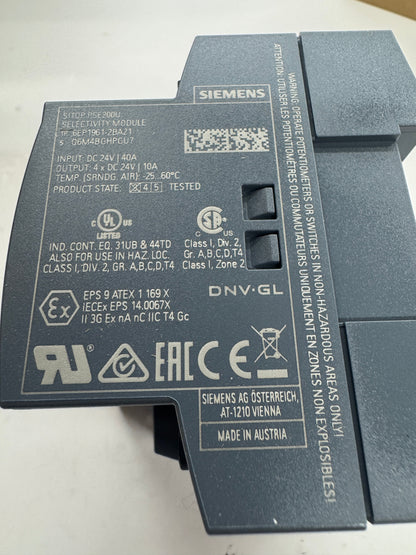

Certifications visible on the nameplate include cULus Listed (IND. CONT. EQ. 31UB and 44TD), CSA Class I Div. 2 Gr. A/B/C/D T4, ATEX EPS 9 ATEX 1 169 X, IECEx EPS 14.0067X, EAC, CE, and DNV-GL. The unit is also rated for use in Class I Zone 2 hazardous locations. Operating temperature range is confirmed as minus 25 to plus 60 degrees C per nameplate data.

Stock # 0326-1043
