SKF Double Row Angular Contact Ball Bearing 5308 ENR/C3 40 x 90 x 36 mm
SKF Double Row Angular Contact Ball Bearing 5308 ENR/C3 40 x 90 x 36 mm
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 5308 ENR/C3
Stock #: 0626-01456
Product Specifications
- Manufacturer: SKF
- MPN / Model: 5308 ENR/C3
- Product Type: Double-Row Angular Contact Ball Bearing
- Bore Diameter: 40 mm
- Outside Diameter: 90 mm
- Width: 36 mm (1-7/16 In.)
- Internal Clearance: C3
- Snap Ring: Yes (ENR, Outer Ring)
- Configuration: Open
- Rows: Double-Row
- Cross-Reference: 3308 ENR/C3
- Country of Origin: United States
- Stock Number: 0526-01456
Product Description

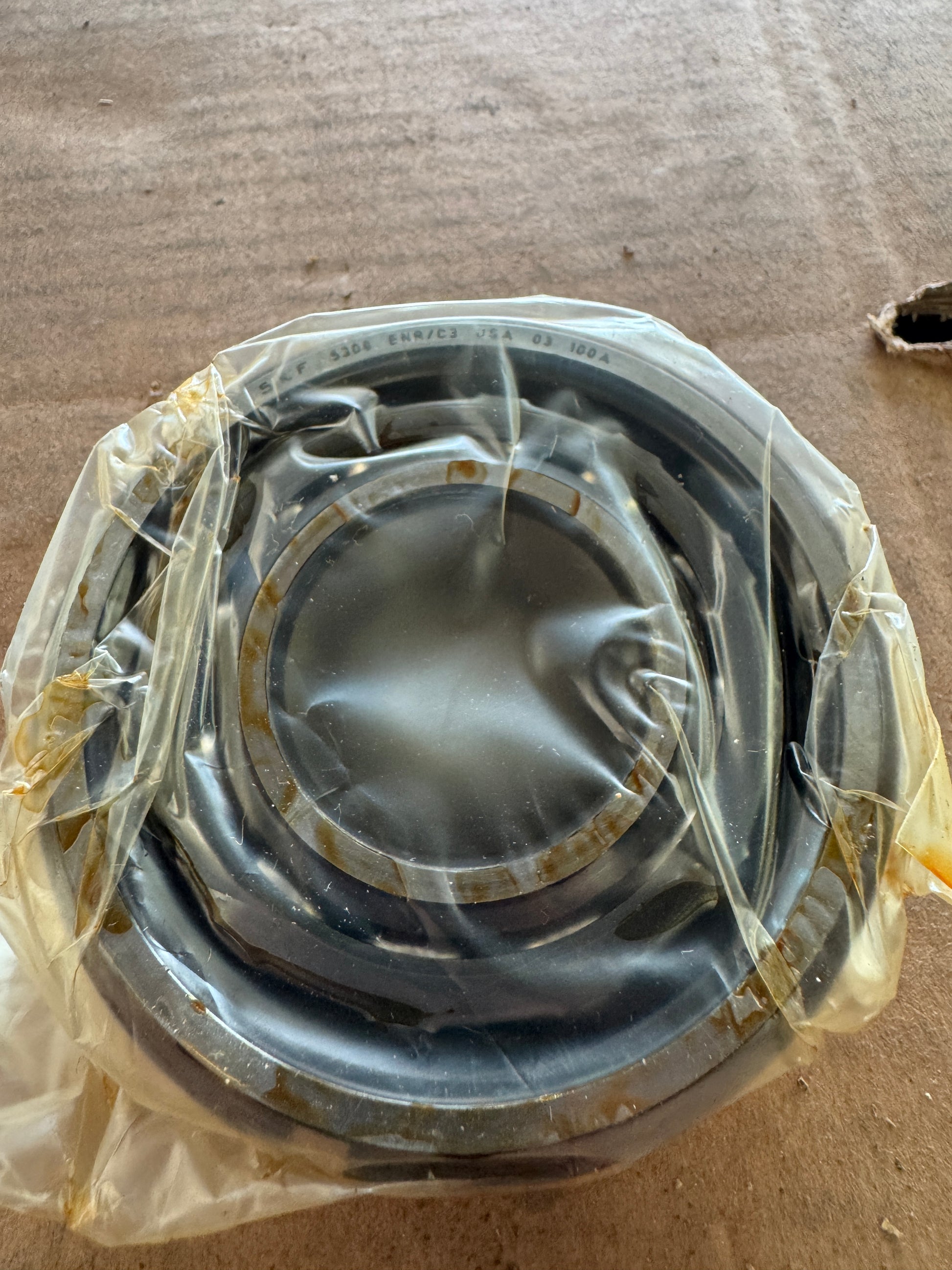

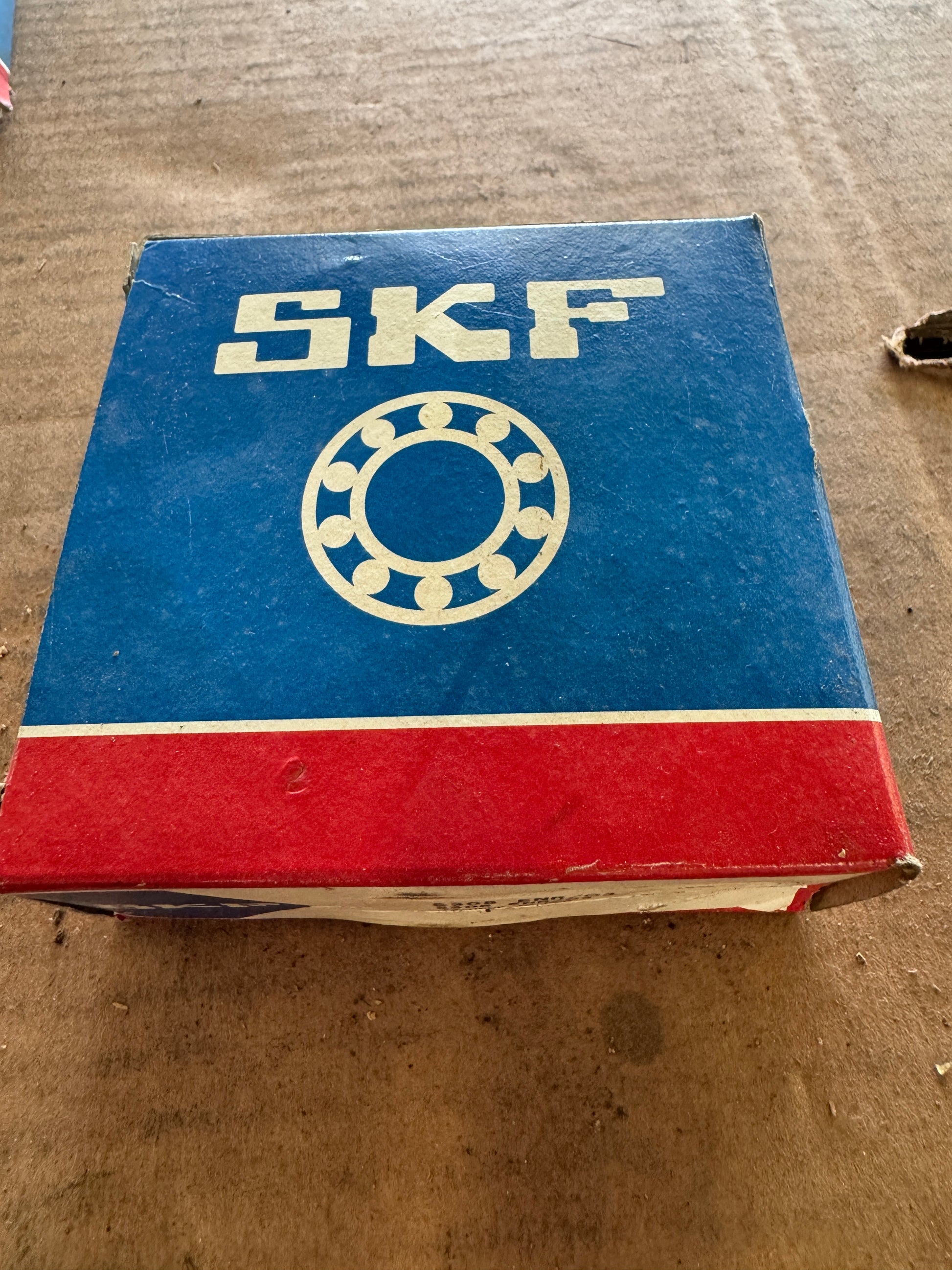

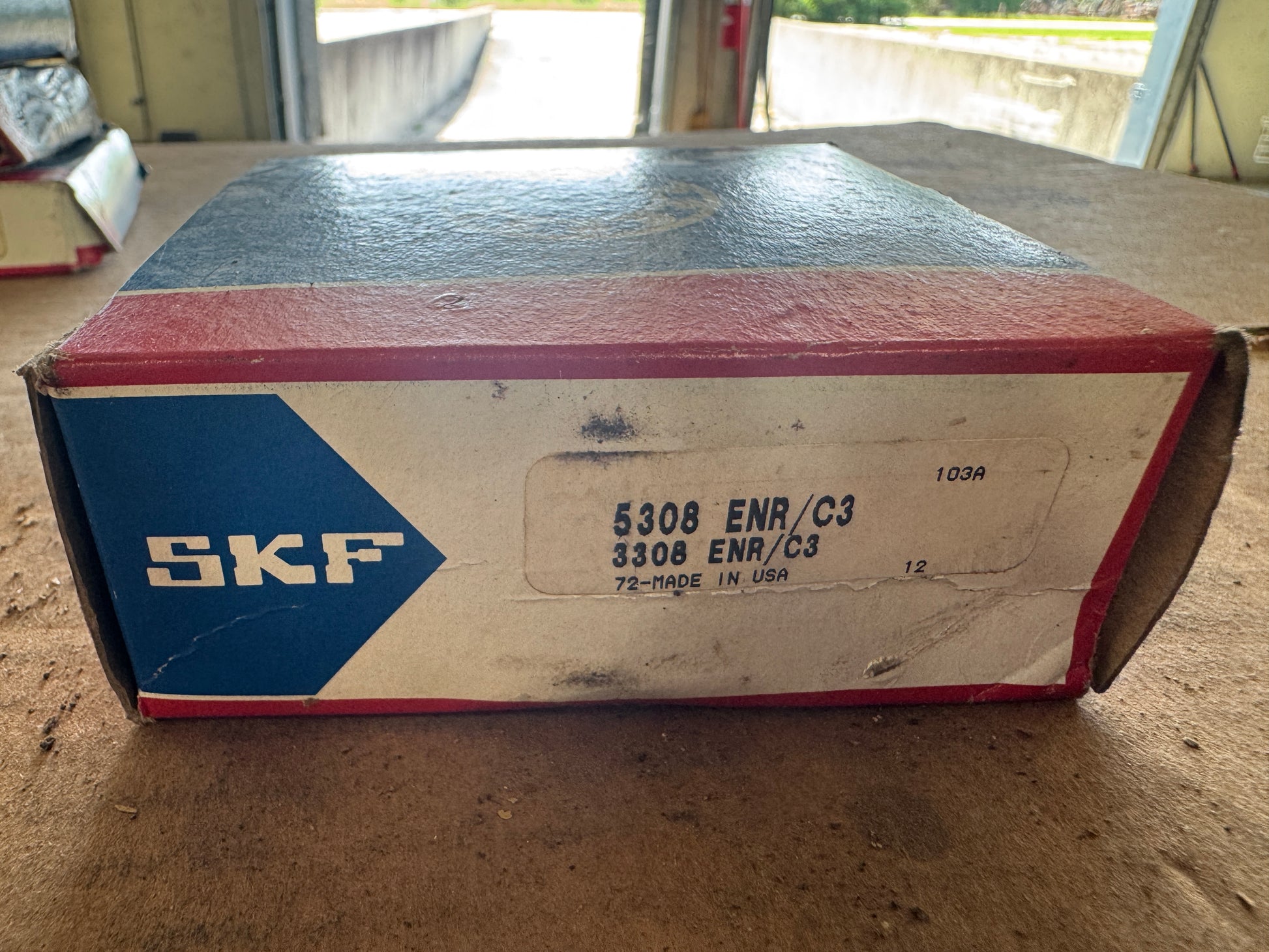

The SKF 5308 ENR/C3 is a double-row angular contact ball bearing with an inner diameter of 40 mm, outer diameter of 90 mm, and a width of 36 mm (1-7/16 in.). The C3 internal clearance designation indicates a greater-than-normal radial clearance suitable for applications where thermal expansion is a factor. The ENR suffix denotes an open bearing fitted with a snap ring on the outer ring for axial location in the housing. Cross-referenced as the 3308 ENR/C3, this unit is interchangeable with equivalents from MRC, NSK, FAG, and other major bearing manufacturers under the 3308 designation series. Double-row angular contact ball bearings of this type handle combined radial and bidirectional axial loads, making them common in gearboxes, pumps, electric motors, compressors, and general industrial machinery. Made in USA per box label. The bearing is in the original SKF box with manufacturer plastic wrap intact. Part number stamped on the bearing outer ring confirms 5308 ENR/C3 identity.
