MPN: 8539SCA54V81AFF4TY74
Stock #: 0526-02190

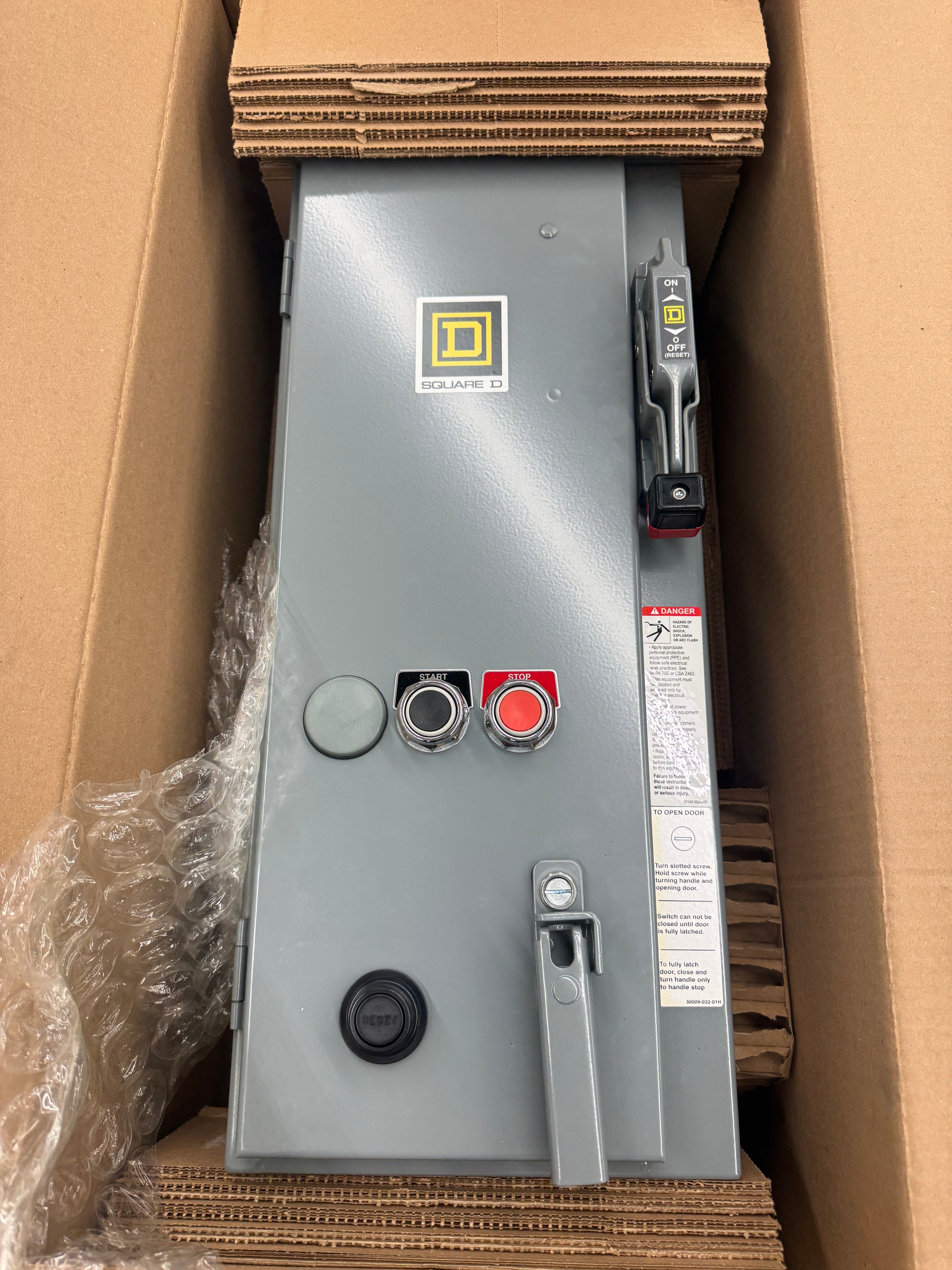

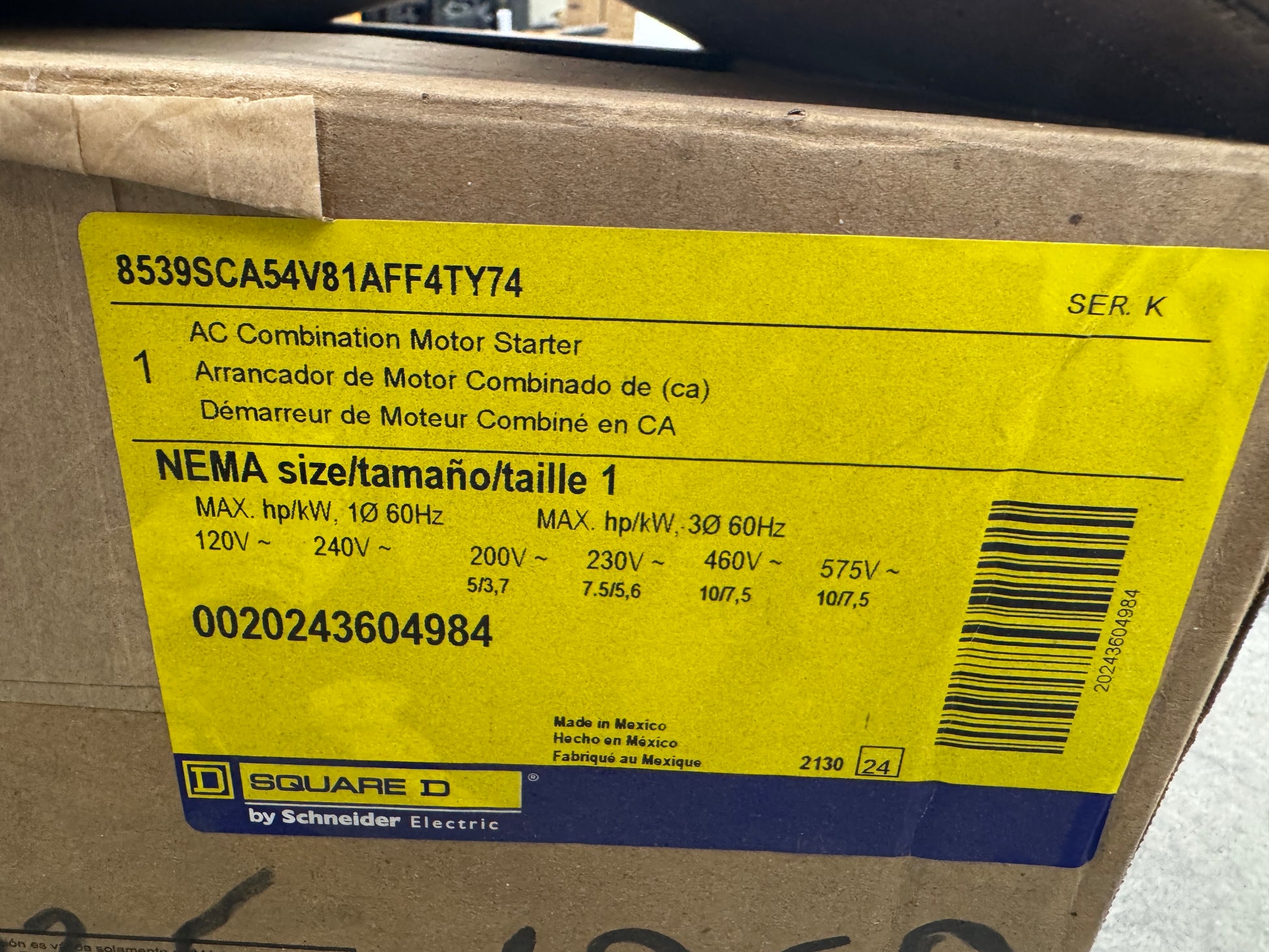

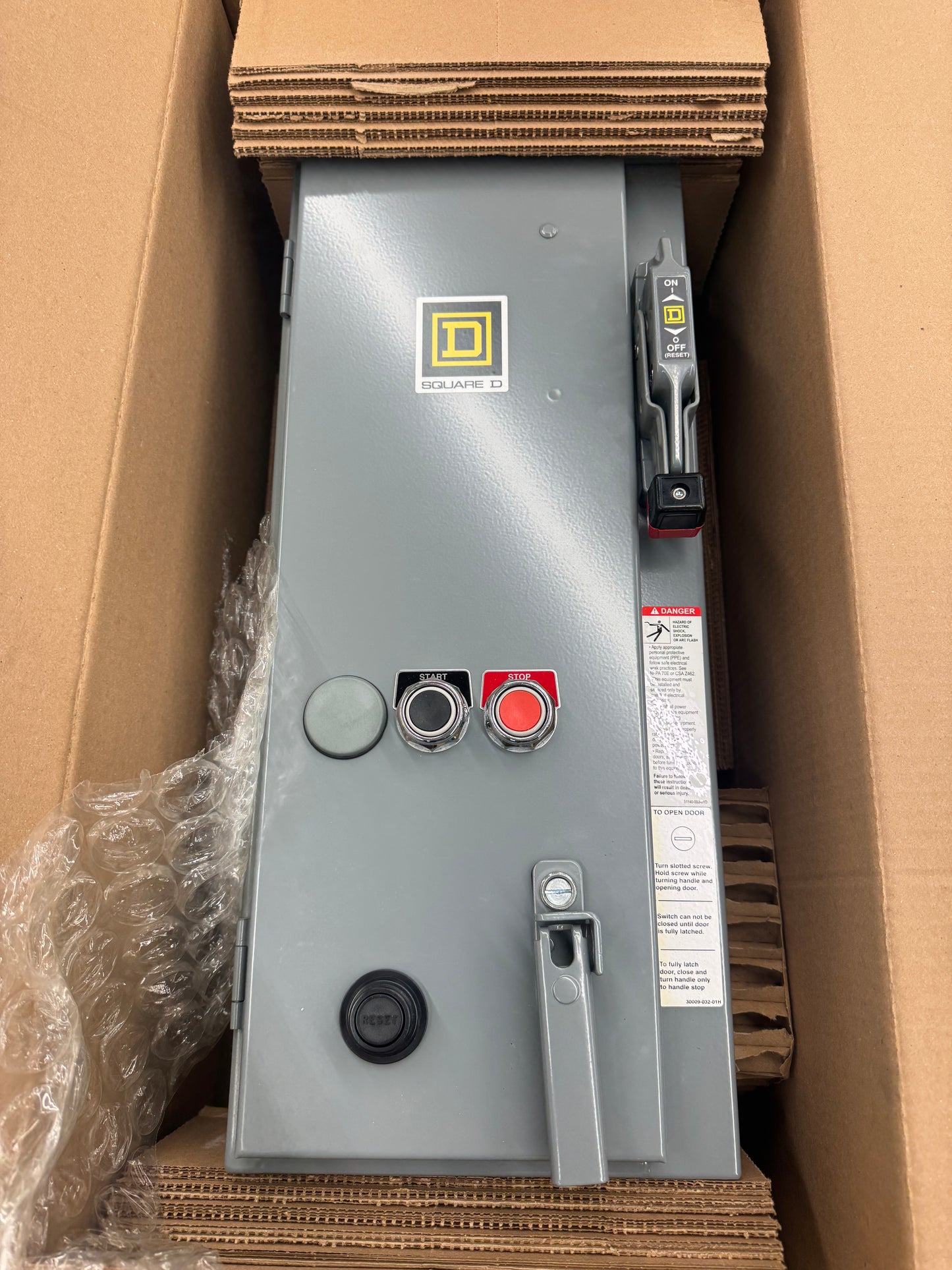

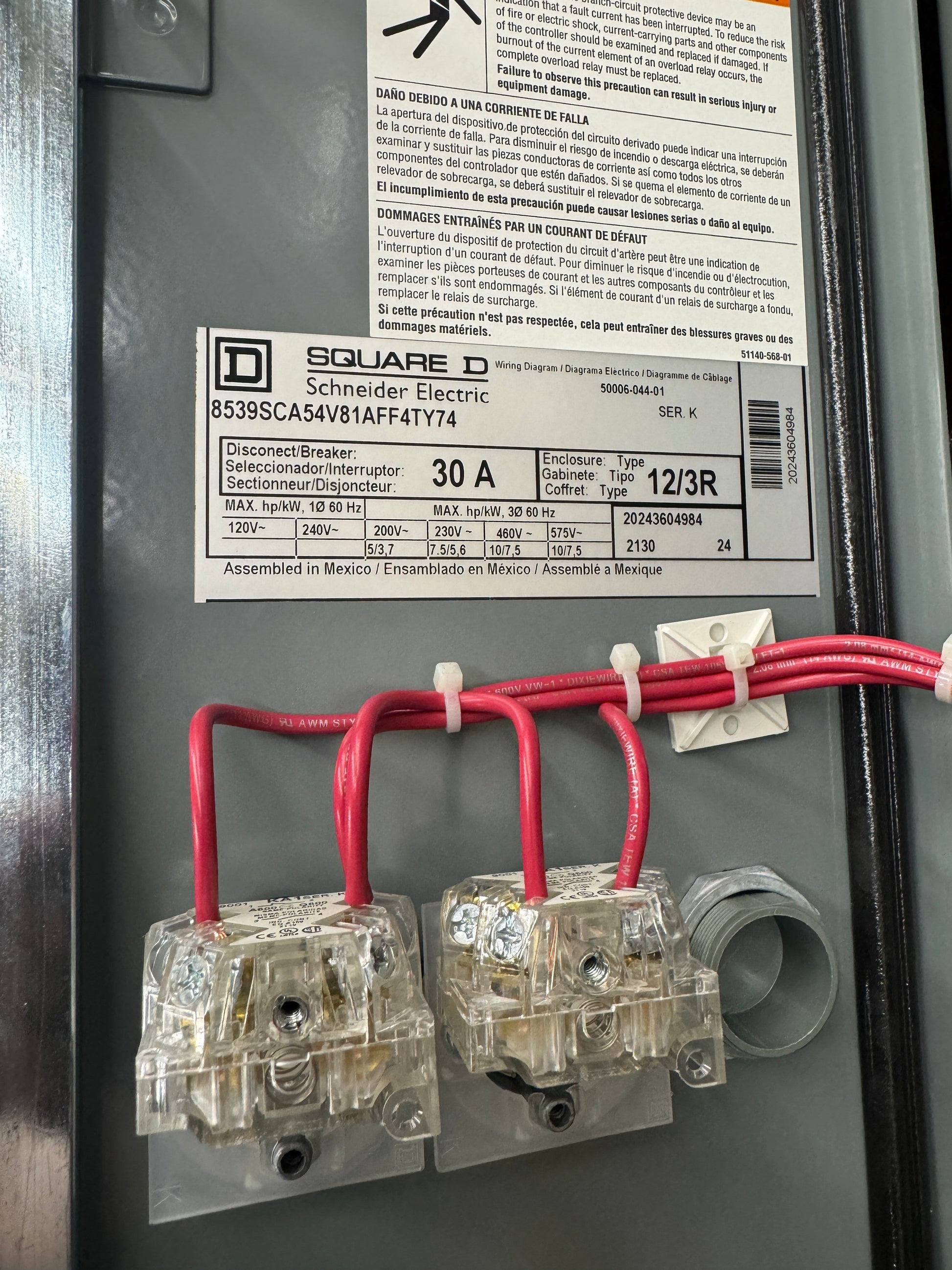

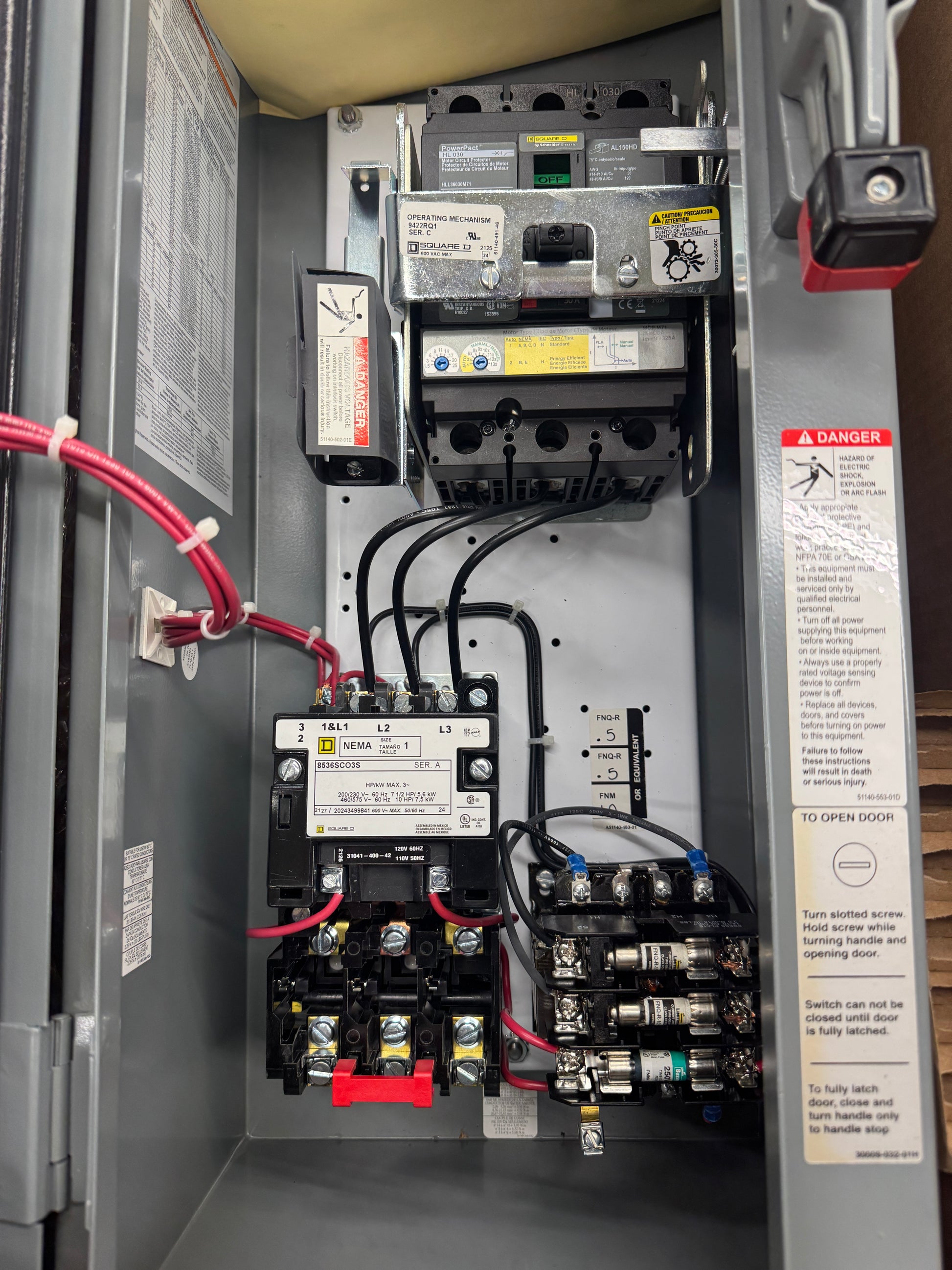

The Square D 8539SCA54V81AFF4TY74 is a Class 8539 Type S AC combination motor starter manufactured by Schneider Electric under the Square D brand. NEMA Size 1 rated, this unit is configured for 3-pole, 3-phase operation at 600V AC maximum, with a 30-amp PowerPact motor circuit protector breaker providing short circuit protection. Maximum motor ratings are 5 HP at 200V, 7.5 HP at 230V, and 10 HP at 460V and 575V three phase. The enclosure is a painted sheet steel NEMA Type 12/3R design rated for dusttight and drip-proof applications, suitable for both indoor and outdoor non-corrosive environments. This catalog number includes an AFF4 Motor Logic solid state overload relay, a TY74 HOA (Hand-Off-Auto) control station with Start and Stop pushbuttons, and a Series K designation. The internal contactor is a Square D NEMA Size 1 Type S unit (8536SCO3S Series A) rated 200/230V at 60Hz. The circuit breaker shown internally is a Square D PowerPact AL150HD. Unit is new in original manufacturer carton. Part number 0020243604984 appears on the box label as the UPC/catalog identifier. Assembled in Mexico per nameplate and box label. Wiring diagram reference 50006-044-01 and 51140-568-01 are visible on the enclosure door label. Applicable to pump, fan, conveyor, and general industrial motor control applications.
