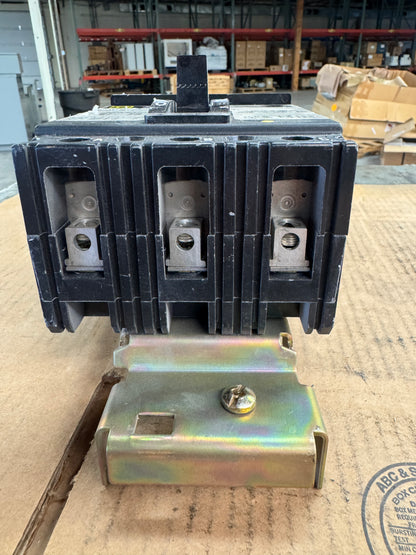

Square D FA36025 I-Line Circuit Breaker 600V AC, 250V DC

$229.00 USD

Sale Sold out

ConditionSurplus - Untested MPNFA36025 Stock #Stock # 0626-01767

Photos reflect current condition. Items differing from description may be eligible for return or refund — see our condition guide.

Shipping Estimate

Estimated package weight: 10.0 lbs

Select your state above for a shipping estimate.

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Product Specifications

Manufacturer: Square D
MPN / Model: FA36025
Product Type: I-Line Molded Case Circuit Breaker
Type: FA
Amperage: 25 A
Poles: 3 Pole
Voltage: 600 VAC, 250 VDC
Interrupting Rating: 25 kA at 240 VAC, 18 kA at 480 VAC, 14 kA at 600 VAC, 10 kA at 250 VDC
Rating Temperature: 40 C
Standards: HACR Type, UL/CSA/NEMA, IEC 60947 2, BS EN 60947 2, CE
Lug Rating: AL50FA, #14 to #4 AWG Cu, #12 to #4 AWG Al

Product Description

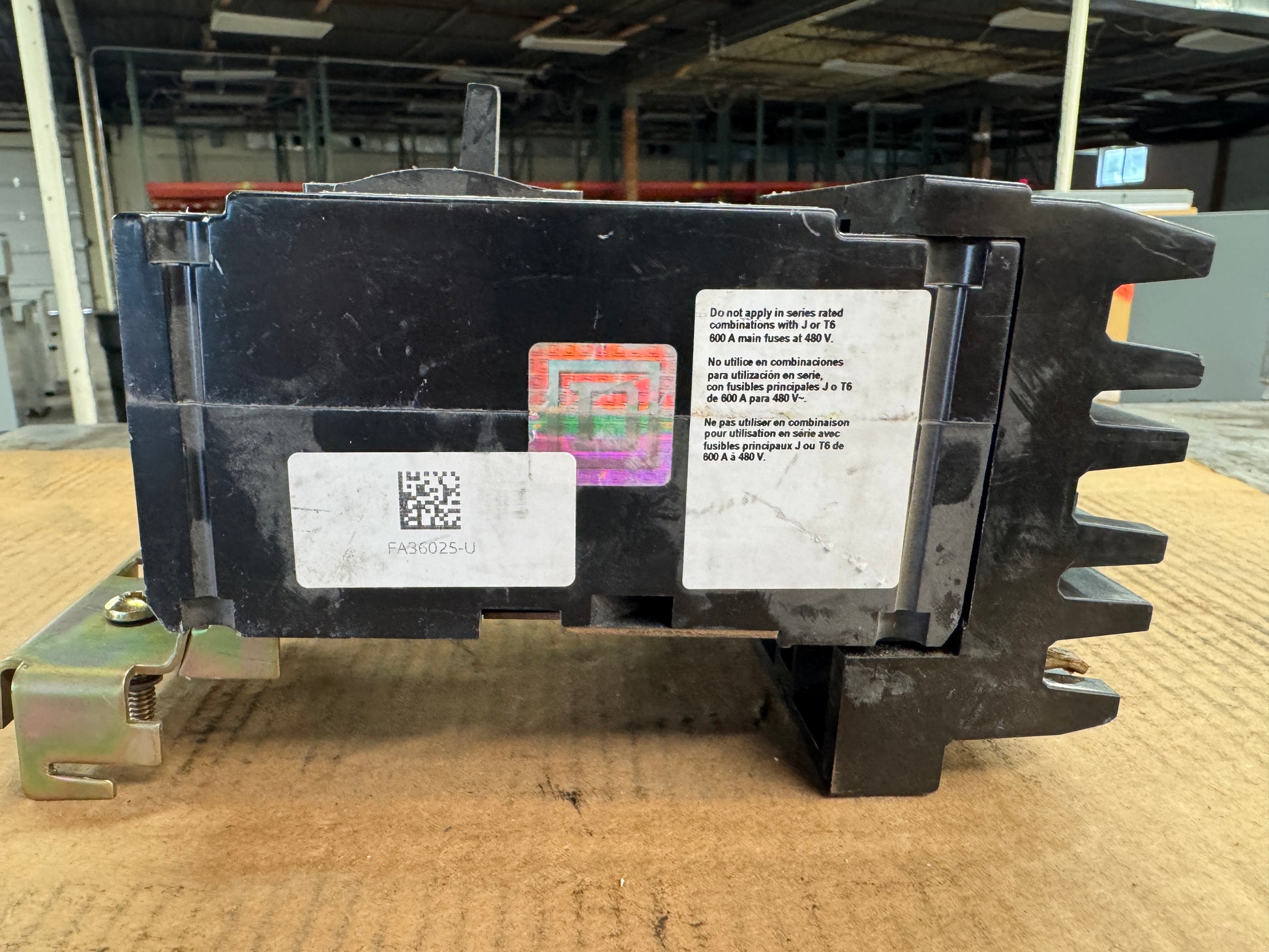

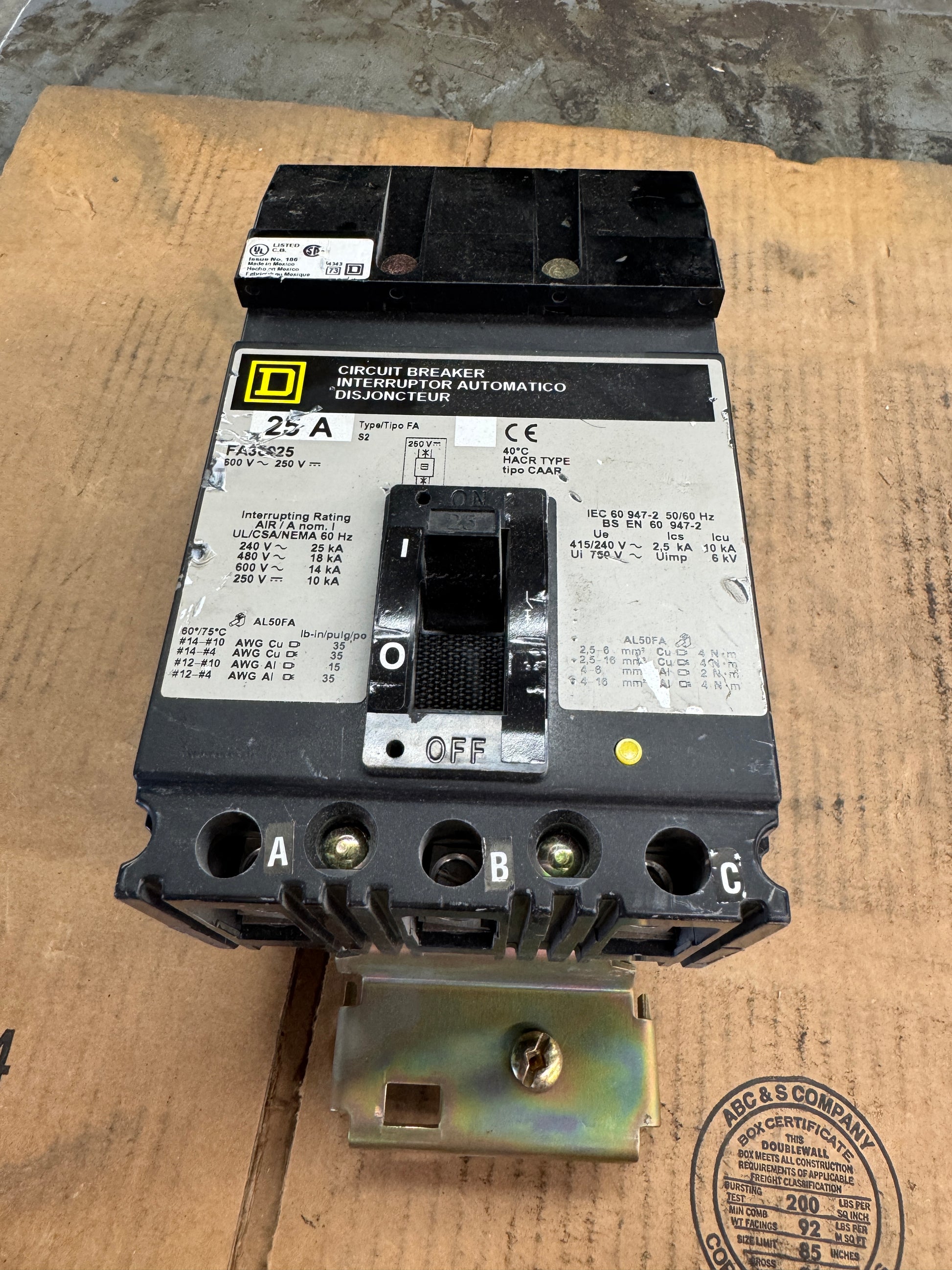

Square D FA36025 is a 25 amp, 3 pole I-Line molded case circuit breaker rated 600 VAC and 250 VDC, identified by the type FA designation printed on the nameplate. The breaker carries interrupting ratings of 25 kA at 240 VAC, 18 kA at 480 VAC, and 14 kA at 600 VAC, with a 40 C rating and HACR type marking. The side label reads FA36025 U. This unit suits buyers matching an exact Square D I-Line catalog number for replacement, spare inventory, or maintenance sourcing in panelboard applications. Confirmed details include the manufacturer, catalog number FA36025, pole count, amperage, voltage ratings, and interrupting ratings, all read directly from the product nameplate. Buyers comparing surplus options should use the exact catalog number and visible labeling to match this breaker to their existing equipment.
