Square D General Purpose Transformer 50SV1A
Square D General Purpose Transformer 50SV1A
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 50SV1A
Stock #: 0526-02274
The Square D 50SV1A is a general purpose dry type transformer manufactured by Schneider Electric. This single phase resin encapsulated unit carries a rated power of 0.050 kVA (50 VA) and operates at 60 Hz. The primary voltage configuration is 240 x 480 VAC, with a secondary voltage of 120/240 VAC, making the unit suitable for stepping down line voltage to standard control or low voltage circuits in industrial and commercial environments.
The core and coil assembly is encapsulated in epoxy resin, producing a sealed enclosure with no openings. This construction supports indoor and outdoor installation per the NEMA 3R rating and IP54 ingress protection, and resists airborne particulates, moisture, and contaminants common to industrial environments. The enclosure is painted sheet steel with a gray finish and is configured for wall mounting. Insulation class is 105 degrees C with a temperature rise of 55 degrees C. Winding material is copper.

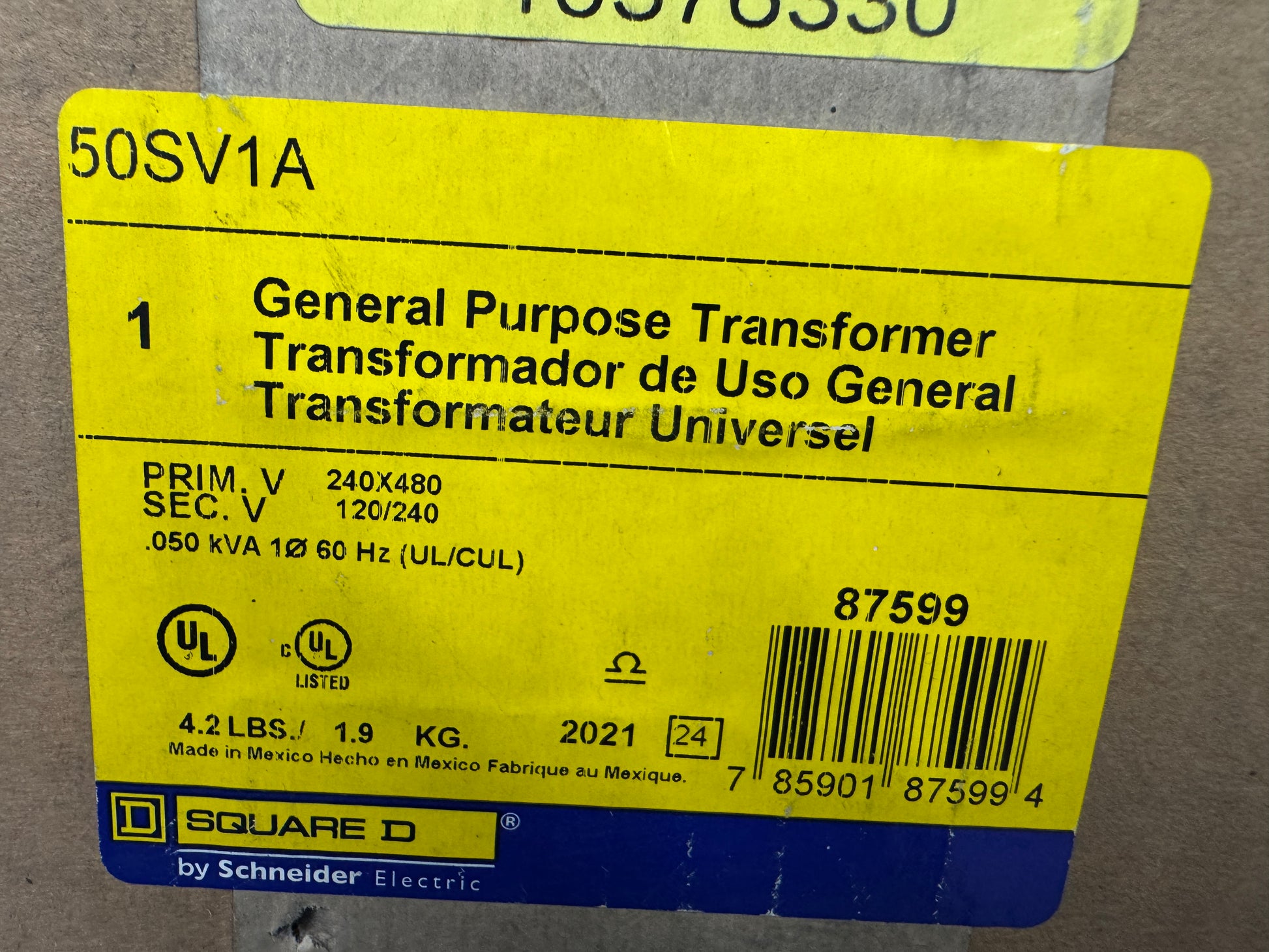

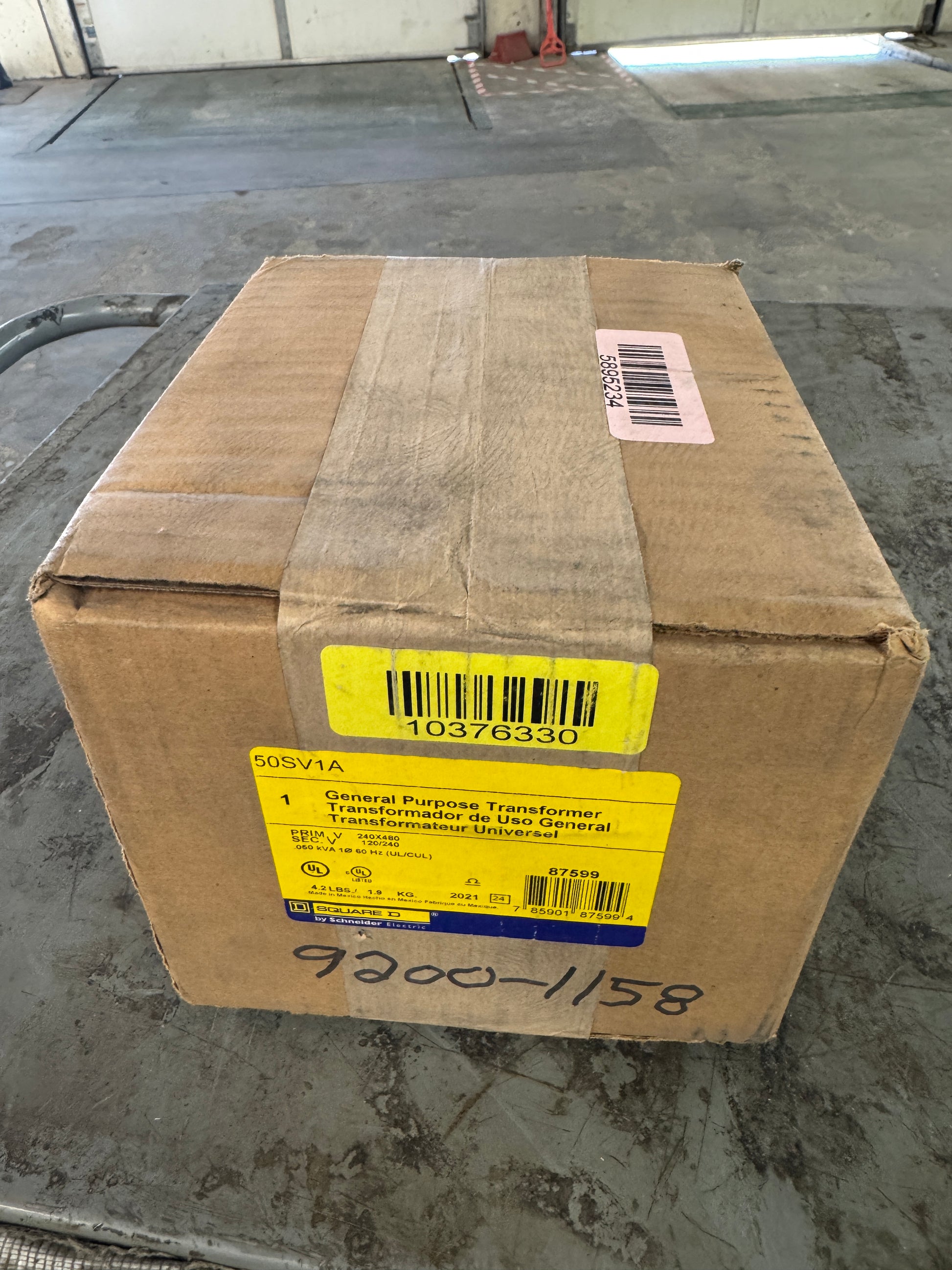

The unit measures approximately 5 in. height, 4.5 in. width, and 3.5 in. depth. UL Listed and cULus Listed, certified to NEMA ST 20. UPC 785901875994. Date code 2021. Common applications include machine control circuits, lighting circuits, instrumentation, small motor loads, and OEM equipment requiring isolated low voltage supply. The 50SV1A is part of the Square D SV series of low VA encapsulated transformers used widely across MRO, panel building, and CNC support applications. Item ships in original Square D factory box with manufacturer labeling intact.
Stock # 0526-02274
