Square D GJL36075M06 Motor Circuit Protector 600V / 480V AC Untested Surplus
Square D GJL36075M06 Motor Circuit Protector 600V / 480V AC Untested Surplus
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: GJL36075M06
Stock #: 0626-01508
Product Specifications
- Manufacturer: Square D (Schneider Electric)
- MPN / Model: GJL36075M06
- Product Type: Motor Circuit Protector (Molded Case Circuit Breaker)
- Series: PowerPact Mag-Gard
- Amperage: 75 A
- Voltage: 600Y/347 V AC / 480 V AC
- Poles: 3
- Phase: 3
- Trip Range: 225 to 825 A (adjustable magnetic)
- Frame: G Frame (GJL Series)
- Protection Type: Magnetic Only (Instantaneous)
- Wire Range (Copper): #14 to #1/0 AWG
- Wire Range (Aluminum): #8 to #1/0 AWG
- Terminal Torque: 50 lb-in
- Certifications: UL (E113389), CSA (LR 69561)
- Country of Origin: France
- Condition: Surplus / Used
Product Description

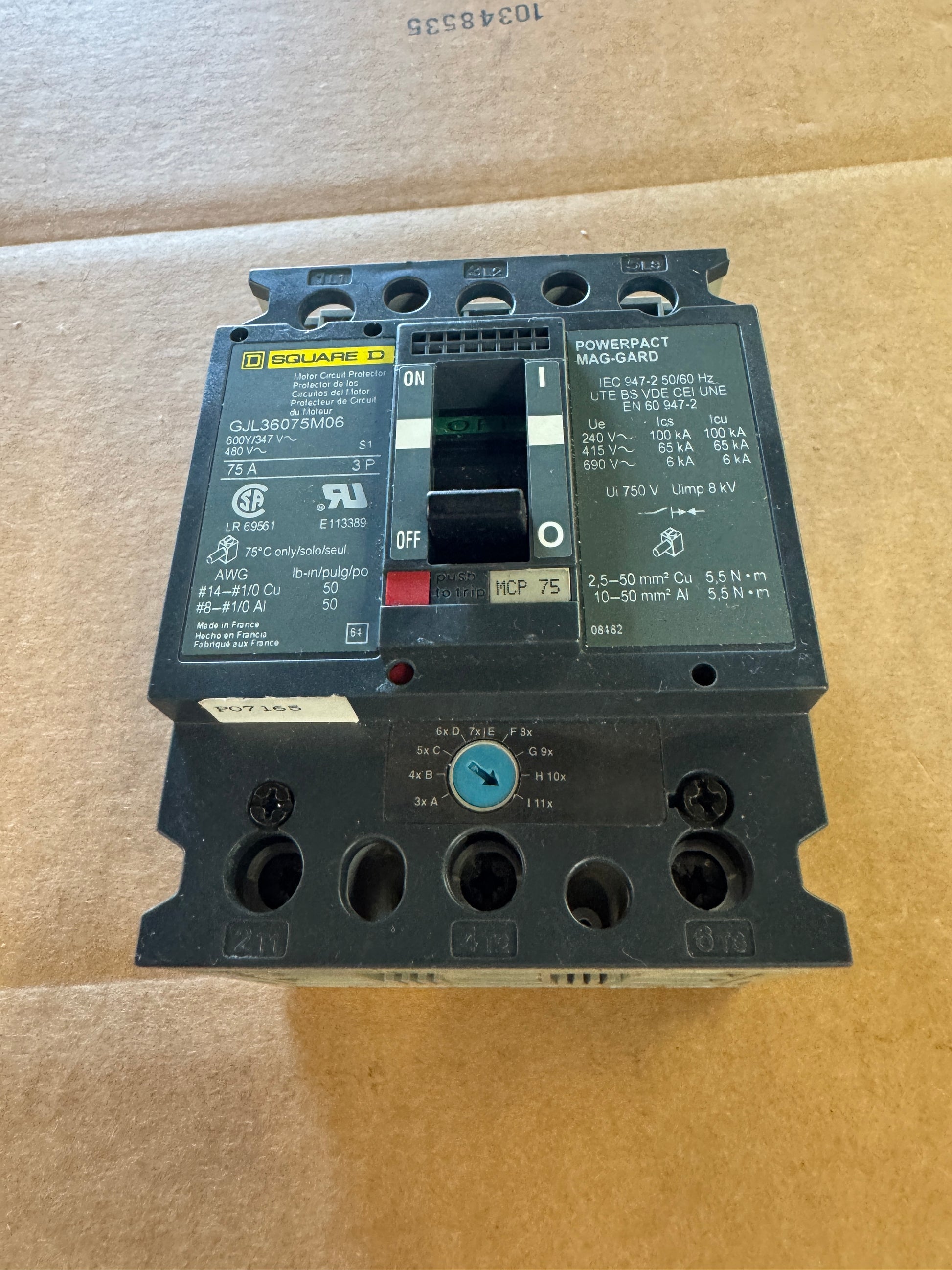

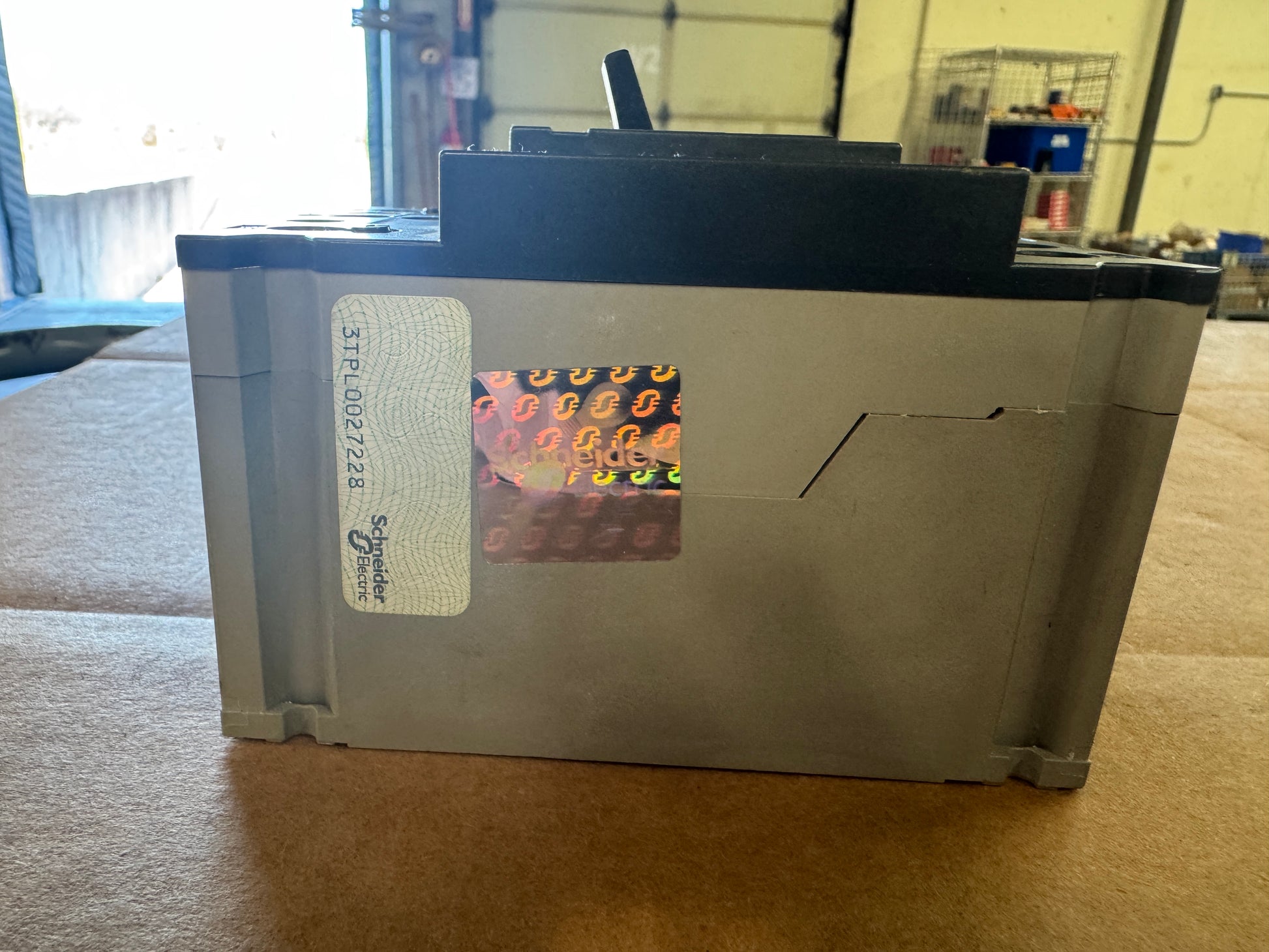

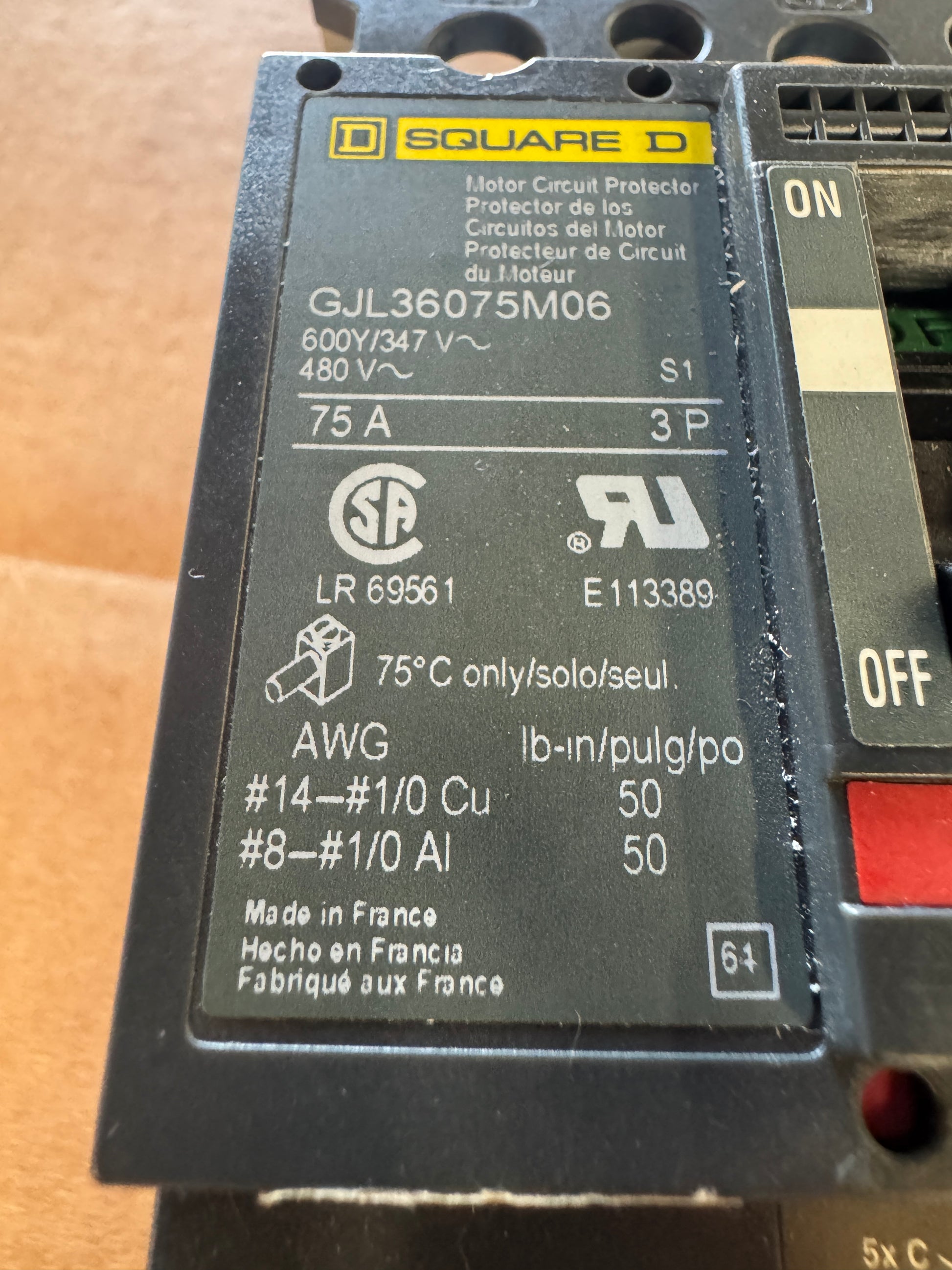

The Square D GJL36075M06 is a 3-pole Motor Circuit Protector from the PowerPact Mag-Gard series, rated 75 A at 600Y/347 V AC and 480 V AC. It carries catalog number GJL36075M06 as shown on the nameplate, confirmed in manufacturer labeling. The GJL36075M06 provides instantaneous magnetic-only protection with an adjustable trip range of 225 to 825 A, intended for use in UL-listed combination motor controllers with overload protection. Frame designation is G Frame (GJL Series). Wire termination accepts #14 to #1/0 AWG copper and #8 to #1/0 AWG aluminum, torqued to 50 lb-in. The breaker carries UL recognition (E113389) and CSA certification (LR 69561), and was manufactured in France. The Schneider Electric holographic anti-tamper seal is visible on the side panel. Listed as Surplus / Used. Buyers sourcing a replacement for the GJL36075M06 should match the exact catalog number and trip range setting to their existing combination starter or motor control center configuration.
