Square D Industrial Control Transformer 9070T50D1

$49.00 USD

Sale Sold out

ConditionFactory Sealed MPN9070T50D1 Stock #0526-02326

Photos reflect current condition. Items differing from description may be eligible for return or refund — see our condition guide.

Shipping Estimate

Estimated package weight: 5.0 lbs

Select your state above for a shipping estimate.

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

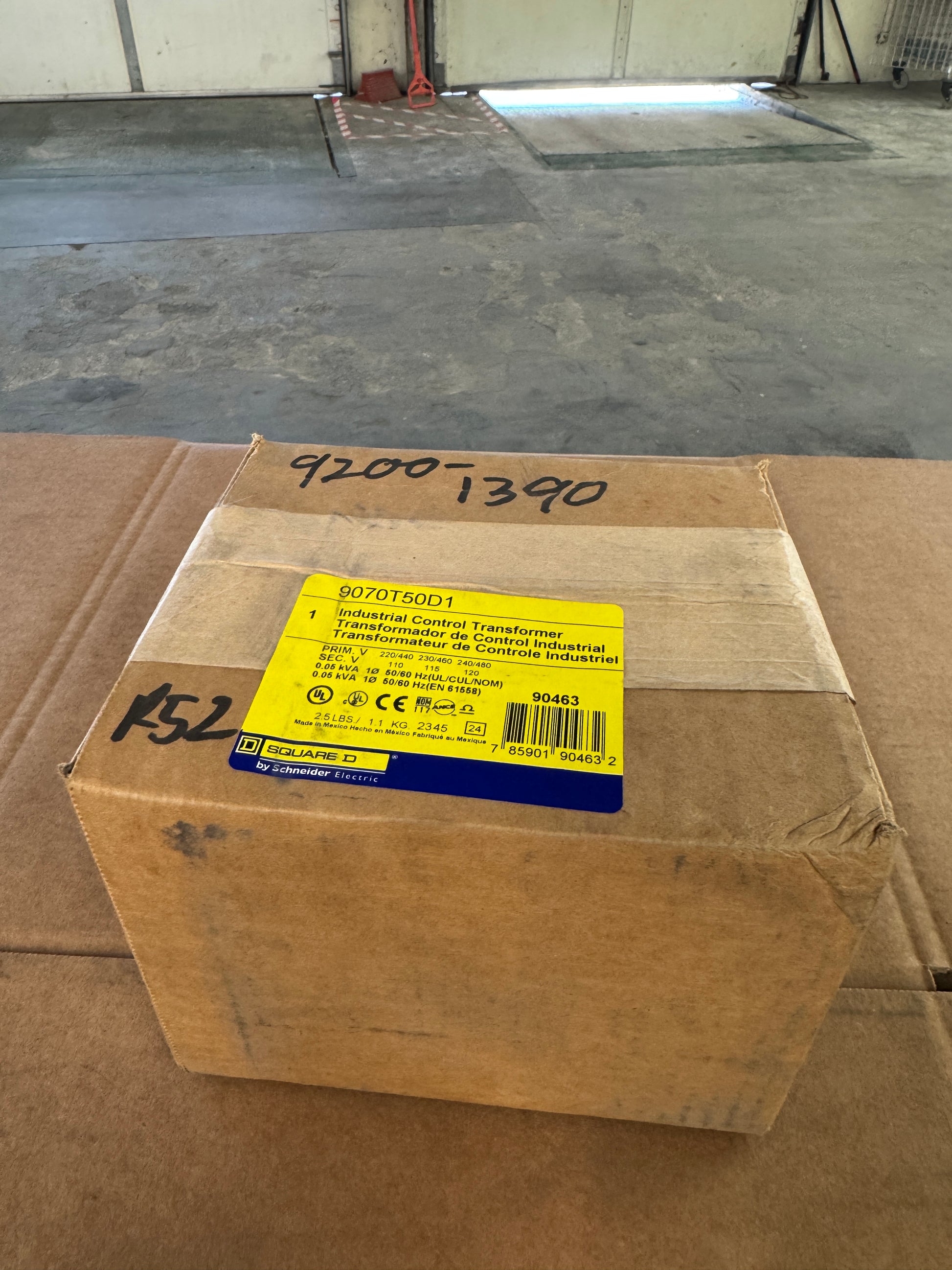

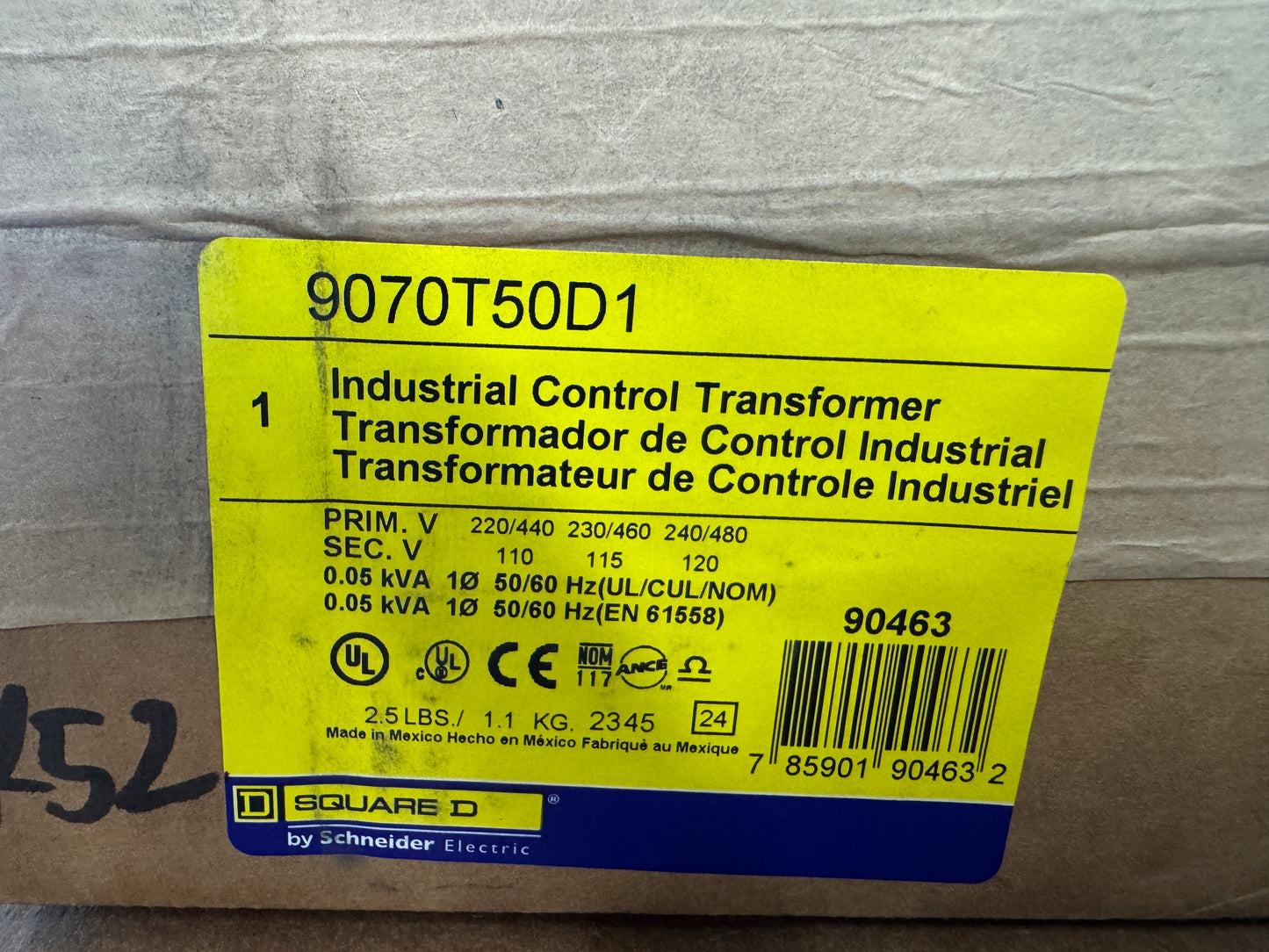

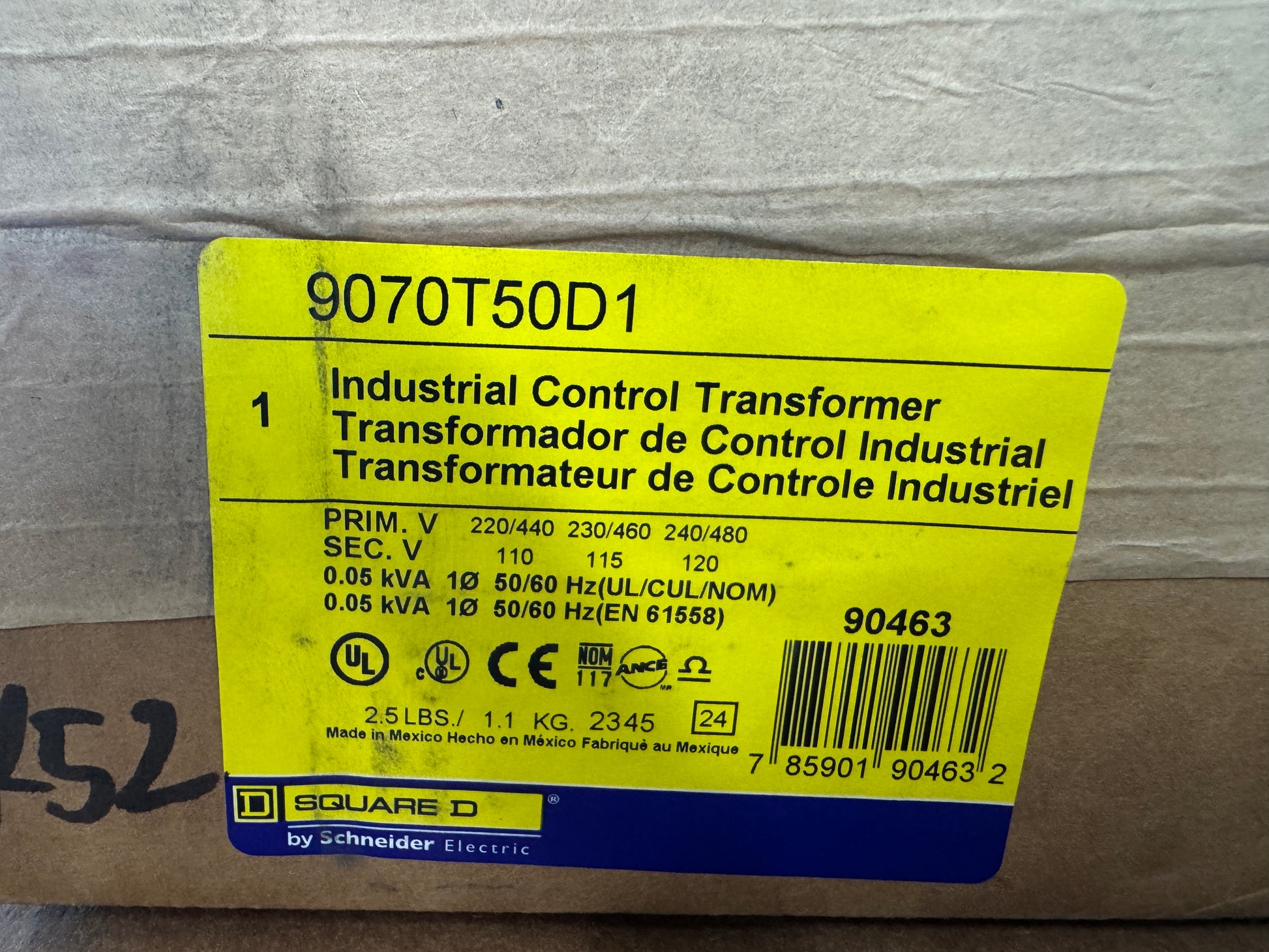

The Square D 9070T50D1 is a single phase industrial control transformer manufactured by Schneider Electric under the Class 9070 Type T product family. It is rated at 50 VA (0.05 kVA) and operates at 50/60 Hz. Primary voltage taps support 220/440, 230/460, and 240/480 VAC, and the secondary winding provides selectable 110, 115, or 120 VAC output. The unit is designed for handling the high inrush current associated with contactors, relays, solenoid valves, and other control circuit loads commonly found in CNC machinery, conveyor systems, paint lines, punch presses, and overhead cranes. Carton markings indicate UL, cUL, CE, NOM 117, and ANCE compliance. The open frame, panel mount construction uses copper windings with screw clamp terminals on both primary and secondary sides. Listed dimensions for the 9070T50D1 are approximately 3 in. wide by 3.09 in. deep by 2.58 in. tall, sized for typical control panel and machine builder applications. Markings on the carton label include 9070T50D1, identifier 90463, barcode 7 85901 90463 2, and Made in Mexico. Net listed weight on the carton is 2.5 lbs (1.1 kg). The unit is supplied in its original Square D / Schneider Electric carton with the factory yellow product label intact. Applications include OEM machinery control panels, replacement service on legacy Square D Class 9070 transformers, and step down power for 120 VAC pilot devices, indicator lights, and electromechanical relays.

Stock # 0526-02326

View full details
