Square D Main Breaker Load Center QO112M100P 120/240V
Square D Main Breaker Load Center QO112M100P 120/240V
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: QO112M100P
Stock #: 0526-02257
The Square D QO112M100P is a plug-on neutral indoor load center with a 100A convertible main breaker, designed for single-phase 120/240V AC systems at 50/60 Hz. This unit provides 12 spaces and accepts up to 24 circuits when configured with QO tandem breakers (20A maximum, non-CTL), giving installers flexibility for residential, commercial, remodel, and agricultural power distribution applications. The bus bar is rated 125A maximum and constructed from shielded tin plated copper, compatible with both QO plug-on circuit breakers and QO plug-on neutral circuit breakers, including CAFI, GFI, and dual function devices.
Enclosure dimensions are 14.25 in. wide by 14.92 in. high by 3.75 in. deep, with a NEMA 1 indoor rating and surface or flush mount capability. Short circuit current rating is 22 kA. Lugs accept 6 AWG through 1 AWG aluminum or copper conductors. The QO line features Visi Trip indication on compatible breakers for quick identification of tripped circuits. Assembled in the USA with US and foreign parts, UL listed.

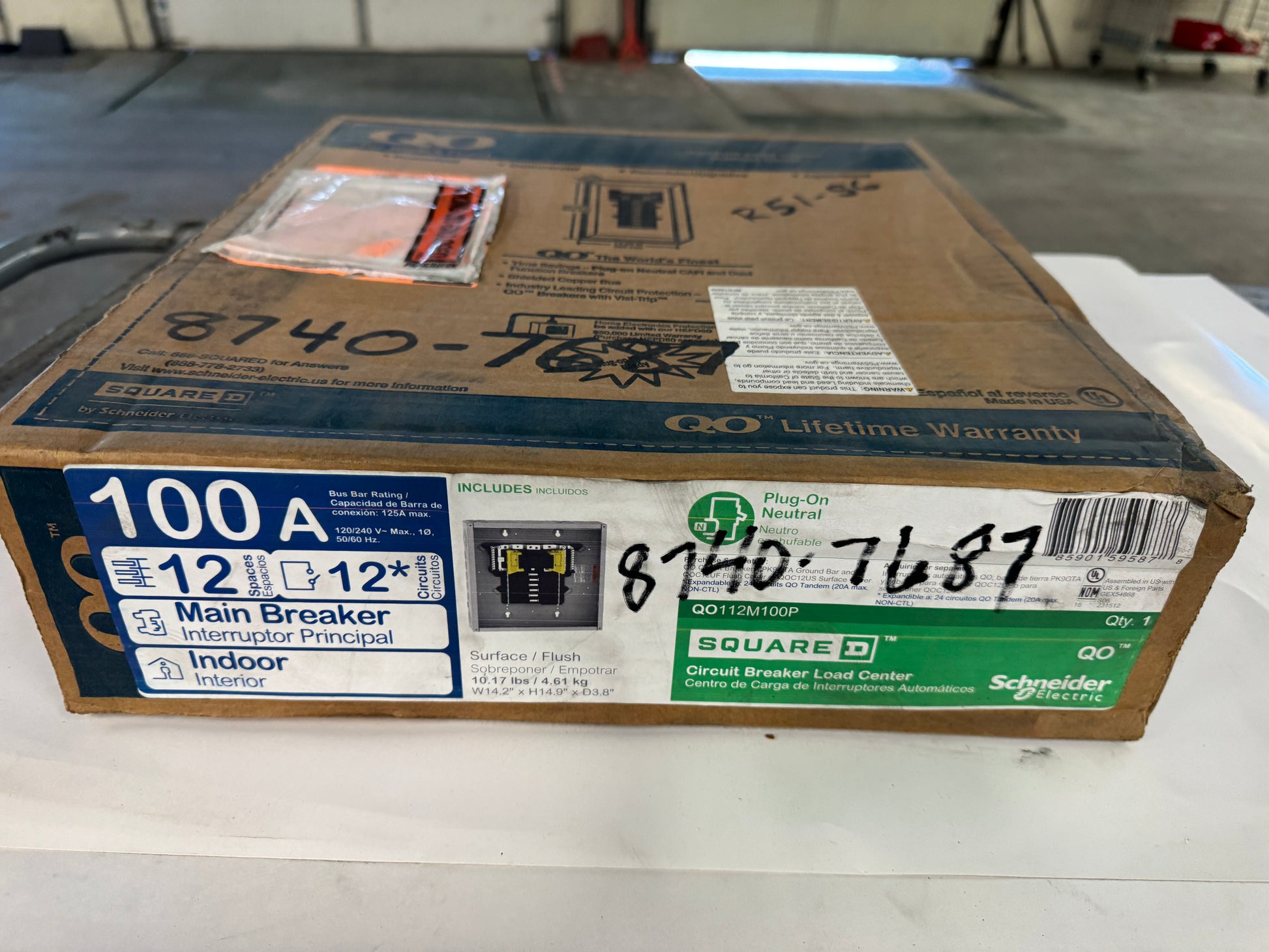

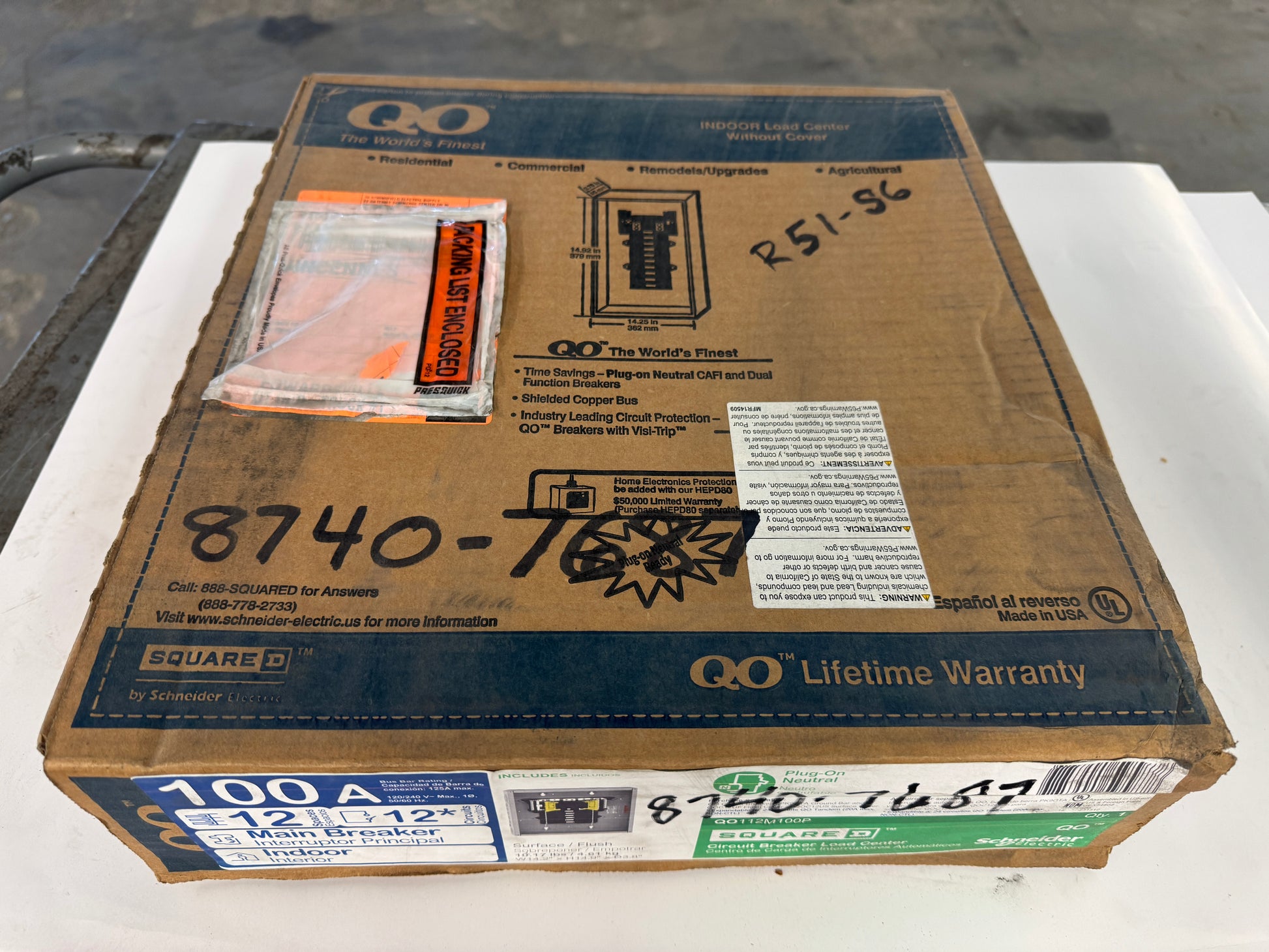

Packaged in original Schneider Electric box. Included accessories per the carton label: QO Circuit Breaker PK9GTA ground bar and QOC12UF flush cover (expandable with QOC12US surface cover sold separately). Cover not included with the load center body; order separately if required. The QO112M100P has been listed by Schneider Electric as discontinued from new production, making remaining new inventory a fit for replacement, retrofit, and panel upgrade projects where the QO plug-on neutral platform is required. Box marking 8740 76 and shelf marking R51 S6 visible on the carton.
Stock # 0526-02257
